Emerson Lumity E3 Quick Setup Manual

Lumity
TM
Control
Quick Setup Guide
The E3 (P/N 860-1300) is a system that combines energy management
with the ability to monitor various facility systems and provide alerts
when there are issues that need attention. This system provides HVAC
control, Refrigeration System Monitoring and Control, as well as
Lighting Control. In addition, the E3 can monitor and report energy
consumption and take action to reduce the energy demand during peak
periods. This can have a direct impact on utility bills by reducing total
energy costs. E3 ensures that the HVAC and lighting systems are on and
off at the appropriate times. This ability to monitor store conditions can
potentially minimize energy consumption.
Technical Specifications
*Operating Temperature
Operating Humidity
Storage Humidity
24 VAC
Dimensions
4 RS485 ports
2 Ethernet ports
2 USB ports
External Pollution Rating
Rated Impulse Voltage
Lithium Battery Marking
Document Part # 026-4167 Rev 1
©2021 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.climate.emerson.com/ for the latest technical documentation and updates.
E3 Supervisory
-40°F to 113°F (-40°C to 45°C)
*Tested to UL60730-1 standard
5% - 95% RH non-condensing at 90°F
5% - 100% RH
24 VAC ±20%, 50/60 Hz, Class 2
12" L x 12.5" W x 3.75 H"
COM 1 = RS485-COM2A and RS485-COM2B
COM 2 = RS485-COM6<ISOLATED>
COM 3 = <ISOLATED>RS485
COM 4 = RS485-COM4A and RS485-COM4B
ETH 0, ETH 1
J2, J3
All Models: Pollution Degree 3
2500/4000V
Caution: The cell used in this device may present a fire or chemical burn hazard if mistreated.
Do not disassemble, heat above 212°F (100°C), or incinerate.

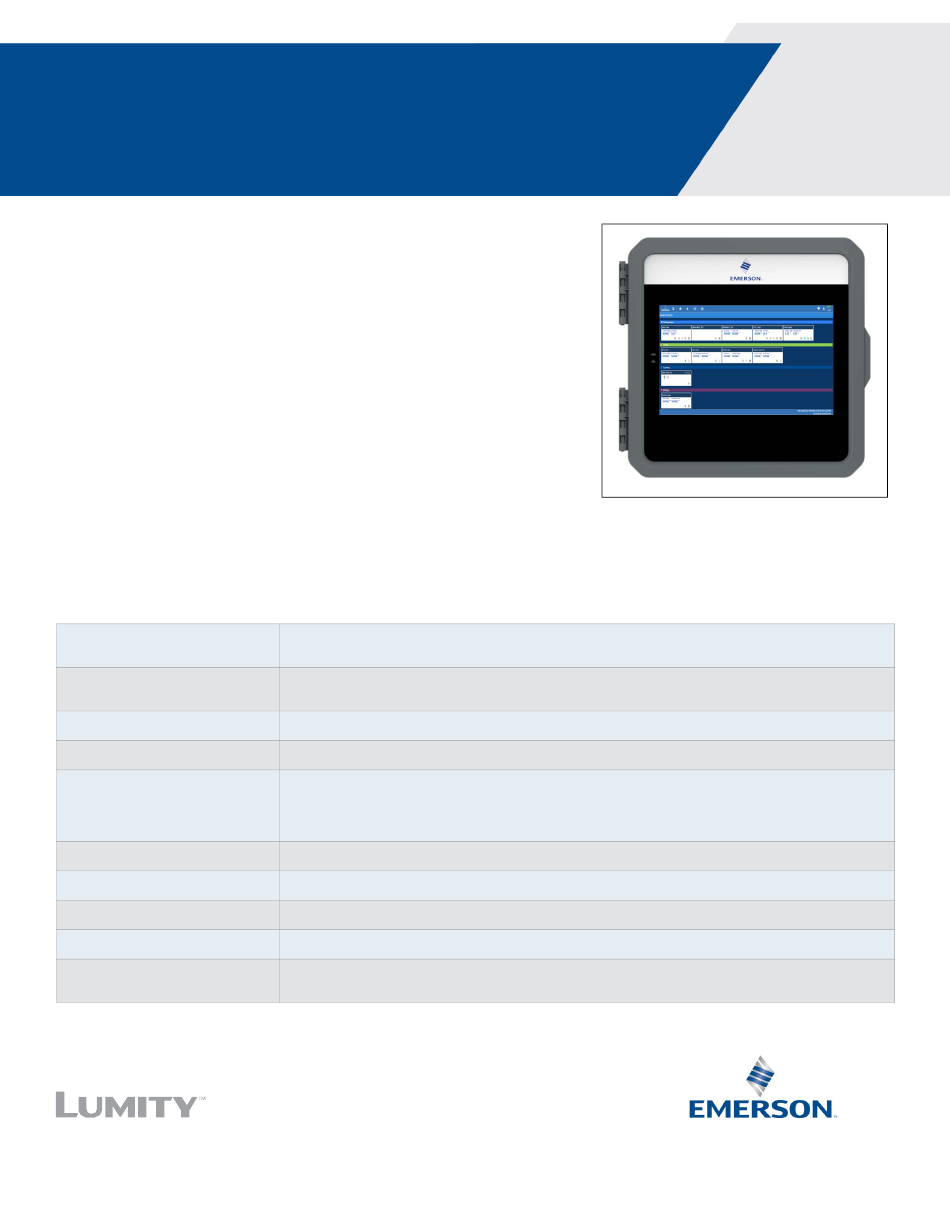

Figure 1 - E3 Controller
