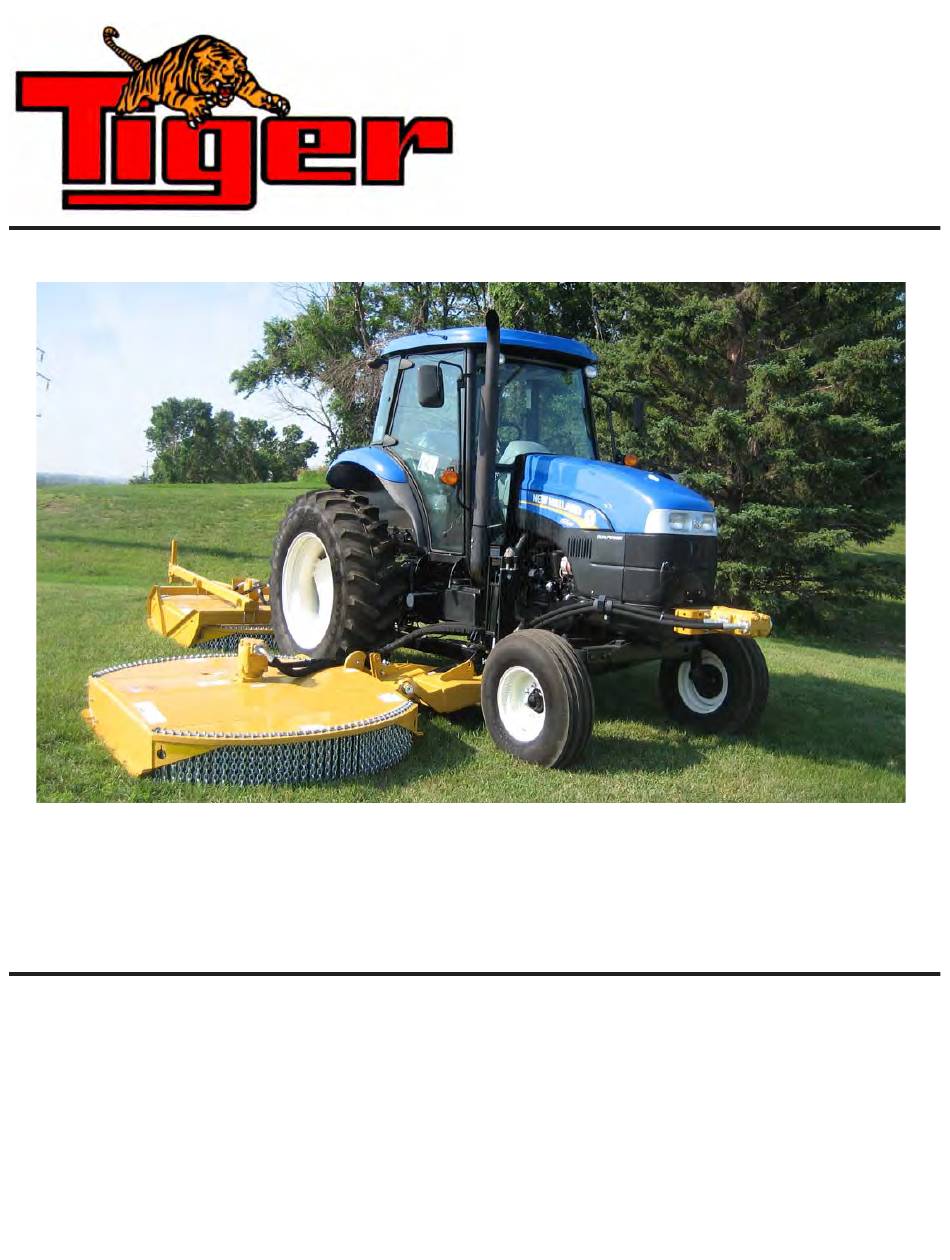

Tiger NEW HOLLAND TS6.110 Parts Listing With Mounting And Operation Instructions

Twin rotary

page of 216

/ 216
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Table of Contents

Summary of Contents for Tiger NEW HOLLAND TS6.110

Page 2 Warranty Information: Read and understand the complete Warranty Statement found in this manual. Fill out the Warranty Registration form in full and return it within 90 days. Make certain the Serial Number of the machine is recorded on the Warranty Card, and form that you retain.
Page 3 • Classify the problem • Hydraulic, electrical or mechanical - Read the trouble shooting section • Tractor or Truck chassis - Contact vehicle dealer • If unable to correct the problem yourself, contact your local Tiger Dealer after gathering: • Machine model _______________________ •...
Page 5 PARTS SECTION______________________________________ COMMON PARTS SECTION____________________________ WARRANTY INFORMATION_____________________________ This symbol means: CAUTION – YOUR SAFETY IS AT RISK! When you see this symbol, read and follow the associated instructions carefully or personal injury or damage may result. Tiger is a registered trademark.
Page 7 SAFETY SAFETY SECTION Twin Rtry Safety Section 1-1...
Page 8 SAFETY General Safety Instructions and Practices A safe and careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner / operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions. The first section of this manual includes a list of Safety Messages that, if followed, will help protect the operator and bystanders from injury or death.
Page 9 SAFETY PELIGRO! Si no lee Ingles, pida ayuda a alguien que LEA EL si lo lea para que le traduzca las medidas INSTRUCTIVO! de seguridad. (SG-3) Never operate the Tractor or Implement until you have read and DANGER! completely understand this Manual, the Tractor Operator’s Manual, and each of the Safety Messages found in the Manual or on the Tractor and Implement.
Page 10 SAFETY DANGER! Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death. (SG-10) DANGER! Never allow children to operate or ride on the Tractor or Implement. (SG-11) WARNING! Do not mount the tractor while the tractor is moving.
Page 11 SAFETY WARNING! The operator and all support personnel should wear hard hats, safety shoes, safety glasses, and proper hearing protection at all times for protection from injury including injury from items thrown by the equipment. (SG-16) CAUTION! PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMA- NENT HEARING LOSS! Tractors with or without an Implement at- tached can often be noisy enough to cause permanent hearing loss.
Page 12 SAFETY WARNING! Never attempt to lubricate, adjust, or remove material from the Implement while it is in motion or while tractor engine is running. Make sure the tractor engine is OFF before working on the Implement. (SG-20) WARNING! Periodically inspect all moving parts for wear and replace when necessary with authorized service parts.
Page 13 SAFETY DANGER! NEVER use drugs or alcohol immediately before or while operating the Tractor and Implement. Drugs and alcohol will affect an operator’s alertness and coordination and therefore affect the operator’s ability to operate the equipment safely. Before operating the Tractor or Imple- ment, an operator on prescription or over-the-counter medication must consult a medical professional regarding any side effects of the medi- cation that would hinder their ability to operate the Equipment safely.
Page 14 SAFETY DANGER! The rotating parts of this machine have been designed and tested for rugged use. However, the blades could fail upon impact with heavy, solid objects such as metal guard rails and concrete structures. Such impact could cause the broken objects to be thrown outward at very high velocities.
Page 15 SAFETY Rotary Mowers are capable under adverse conditions of throwing DANGER! objects for great distances (100 yards or more) and causing serious injury or death. Follow safety messages carefully. STOP MOWING IF PASSERSBY ARE WITHIN 100 YARDS UN- LESS: -Front and Rear Deflectors are installed and in good, working condition;...
Page 16 SAFETY Be particularly careful when transporting the Implement with the Tractor. Turn curves or go up hills only at a low speed and using a gradual steering angle. Rear mounted implements move the center of gravity to the rear and remove weight from WARNING! the front wheels.
Page 17 These parts are made and tested to Tiger specifications. Non-genuine “will fit” parts do not consistently meet these specifications. The use of “will fit” parts may reduce mower performance, void mower warranties and present a safety hazard.
Page 18 SAFETY PART NO. LOCATION 22839 MOWER DECK 22840 INSIDE OF CAB 24028 MOWER DECK 10” x 5.5” 31522 MOWER DECK 18.25” x10” 31523 HYDRAULIC TANK Twin rtry Safety Section 1-12...
Page 19 SAFETY PART NO. LOCATION 42350 MOWER DECK 33743 INSIDE OF CAB 42399 MOWER DECK 42400 MOWER DECK Twin Rtry Safety Section 1-13...
Page 20 SAFETY PART NO. LOCATION 6T3217 MOWER DECK 6T3219 INSIDE OF CAB 6T3220 FRONT PUMP MOUNT 6T3221 INSIDE OF CAB Twin rtry Safety Section 1-14...
Page 21 SAFETY PART NO. LOCATION 6T3222 INSIDE OF CAB INSIDE OF CAB 6T3224 MOWER DECK 6T3230 INSIDE OF CAB Twin Rtry Safety Section 1-15...
Page 22 SAFETY PART NO. LOCATION 6T3233 HYDRAULIC TANK 6T3234 INSIDE OF CAB 6T3236 MOWER DECK HYDRAULIC TANK 6T3243 INSIDE OF CAB Twin rtry Safety Section 1-16...
Page 23 SAFETY PART NO. LOCATION 6T3249A MOWER DECK 6T3261 MOWER DECK TB1011 MOWER DECK Twin Rtry Safety Section 1-17...
Page 24 SAFETY 34852 HYDRAULIC TANK Twin rtry Safety Section 1-18...
Page 25 SAFETY ITEM PART NO. QTY. DESCRIPTION 50023 AVAIL MANUAL CANISTER COMPLETE 00776031 ROUND MANUAL CANISTER 33997 DECAL, SHEET, MANUAL CANISTER DECAL DECAL DECAL AVAIL SPECIFIC PRODUCT MANUAL 33753 E M I SAFETY MANUAL 34296 FRONT ADHESIVE PAD 34297 REAR ADHESIVE PAD 6T1823 ZIP TIE 14”...
Page 26 SAFETY FEDERAL LAWS AND REGULATIONS This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such. Employer-Employee Operator Regulations U.S.
Page 27 CNH TS6.110 - TWIN ROTARY ASSEMBLY SECTION Assembly Section 2-1...
Page 28 Always use a floor jack, hoist or fork lift to lift and raise heavy parts. Read and understand the entire ssembly ection instructions before attempting to mount your Tiger mower. Refer to the arts ection of this manual for detailed illustrations to locate all parts. (ASM-C-0001) TRACTOR PREPARATION Remove right and left hand steps.
Page 29 ASSEMBLY FRONT PUMP MOUNTING Install the pump mounting bracket on the front of the tractor with capscrews and washers as shown in the arts ection illustration. DO NOT tighten fasteners at this time. Thread the pump driveshaft into the crankshaft adapter. The end with the splines should match up with the coupler.
Page 30 ASSEMBLY POLYCARBONATE SAFETY WINDOW NOTE: Installing a boom mower requires that all of the right side windows be replaced, or protected with a polycarbonate window. This should be done before mounting the main rame. 1. Disconnect gas shock at door. Remove the right side cab door/window glass from tractor cab by removing hinge pins.
Page 31 ASSEMBLY MAINFRAME INSTALLATION With an overhead hoist and / or jack-stands, raise one side of the frame up to the correctly matching mounting holes. Install capscrews and all other hardware as shown in mainframe Parts Section to secure the sides of the mainframe to the tractor casting, DO NOT tighten at this time.
Page 32 ASSEMBLY WEATHER-PACK/METRI-PACK ASSEMBLY These instructions apply to both Weather-Pack and Metri-pack connectors. NOTE: Use the specific tool for the type of connector you are assembling. (ASM-C-0009) MANUAL LIFT VALVE PORTS (ASM-C-0057) Assembly Section 2-6...
Page 33 ASSEMBLY MANUAL SWITCHBOX MOUNTING Drill a hole in the right side of the steering console and secure the switchbox using the bracket and screws provided. Refer to the Parts Section for more information. (ASM- NH-0139) CABLE CONTROL/JOYSTICK STAND Place the beveled edge of the support bracket 3/4” in parallel to the door. Locate the support bracket approximately 6-1/2”...
Page 34 ASSEMBLY LIFT VALVE CABLE/WIRE ROUTING Cut a Ø2-1/4” hole in the back of the tractor cab as shown below. Install trim lock around the edges of the hole. Route the cables from the manual levers, or wires from the joystick, along with the wires from the switchbox along the floor out the back of the cab to the lift valve.
Page 35 ASSEMBLY *NOTE ON HUSCO CONTROL VALVES* Manual, cable controlled (Husco control valve) boom mowers require check valves with inte- gral restricting orifice (#06502036) installed in the control valve work ports that are connected to the gland ends of the main and secondary boom cylinders. This check valve allows oil to free flow into the gland end of the main and secondary boom cylinders, but restricts flow out of the cylinder, thereby providing proper boom control.
Page 36 ASSEMBLY ELECTRONIC LIFT VALVE PORTS (ASM-C-0089) JOYSTICK SWITCHBOX MOUNTING The switchbox is to be secured to the joystick/switchbox stand. Refer to the Parts Section for assembly and components needed. (ASM-NH-0137) Assembly Section 2-10...
Page 37 ASSEMBLY LIFT VALVE MOUNTING Before mounting the lift valve, you will need to mount the Lift Valve Mounting Plate to the tractor cab. First, remove the capscrews from the tractor cab as shown below. Next, replace the capscrews and install the Lift Valve Mounting Bracket as shown below. Refer to the Parts Sec- tion for details and hardware needed.
Page 38 ASSEMBLY SIDE ROTARY JOYSTICK CONTROL CALIBRATION SUB-D This Electronic control valve is now equipped with higher-resolution actuators on Inboard (Draft Beam) and Outboard (Mower Lift) functions. These actuators have “active fault monitoring”. The joystick is unchanged and provides a ratio-metric voltage signal. The neutral signal voltage is half or 50% of tractor supply voltage.
Page 39 ASSEMBLY SIDE ROTARY JOYSTICK CONTROL CALIBRATION CONTINUED Setting Signal Adaptation Potentiometers: Disconnect the Deutsch connectors from the actuators of the valve. Use a Volt/Ohm meter to measure signal voltage and adjust the signal adaptation potentiometers as needed. Pin #4 is tractor supply voltage.
Page 40 ASSEMBLY (ASM-C-0109A) Assembly Section 2-14...
Page 41 ASSEMBLY AXLE BRACE MOUNTING Position the right axle brace under the tractor right hand side. Raise the brace up to the matching mounting holes in the main ame and rear axle housing. Note that both right and left (if applicable) axle braces are installed on outside edge of the mainframe. Install the axle brace with capscrews, washers and nuts as shown in the mainframe arts ection.
Page 42 (ASM-MOTOR HYDRO-0001) FILLING HYDRAULIC RESERVOIR Refer to the aintenance ection for filling specifications and hydraulic oil requirements. NOTE: Starting or running your Tiger mower before filling reservoir will cause serious damage to hydraulic pump. (ASM-C-0004hydro resrv) INSTALLING O-RING FITTINGS Installing straight, 45º and 90º O-rings requires that the O-ring and washer be up against the swivel body.
Page 43 ASSEMBLY TEMPERATURE GAUGE MOUNTING (OPTIONAL) Mount the temperature gauge where it is clearly visible to the operator. Attach the green (-) wire from the negative post on the gauge to a grounded bolt on the tractor frame. Remove paint if needed to make a good ground. Remove the pipe plug from the side of the hydraulic reservoir and install the temperature sensor using thread sealing tape.
Page 44 ASSEMBLY COOLER MOUNTING - SIDE TANK Mount the cooler mounting brackets on the top rear side of the side hydraulic tank. Locate the bolt plates on the top of the tank and secure the appropriate cooler bracket to the tank with the hardware provided. Attach the screen and cooler to the brackets. Refer to the Parts Section to attach the hoses and adapters to the cooler.
Page 45 ASSEMBLY COMBO LIFT DRAFT BEAM INSTALLATION Install ½” O-ring breather into butt port of inboard cylinder. Install fittings in the rod end of the cylinder according to the diagram in the commons section. These fittings should be positioned to face the butt end of the cylinder. Next turn the clevis onto the rod of the cylinder until it is tight against the shoulder and lock into place with locking bolt on clevis.
Page 46 ASSEMBLY LIMIT SWITCH MOUNTING ASSEMBLING LIMIT SWITCH Mount bracket 1-5/8” down from top edge on the inside of the rear arm of the draft beam, (Fig. A) square with inside corner as shown with the square corners against arm. Weld plate no more than 5/8” x 1/4” on top as shown.
Page 47 ASSEMBLY LIMIT SWITCH (ASM-C-0029) TRAVEL LOCK MOUNTING Install the travel lock bracket on the main frame. Slide the draft beam and align the travel lock mounting hole on the draft beam with the travel lock bracket hole on the mainframe. Install the capscrew, lockwasher and hex nut.
Page 48 ASSEMBLY MOWER MOUNTING Check that all grease zerks have been installed in the draft beams pivot arm, left linkage arm, right linkage arm, and cylinder mounting ears. Using a clevis pin and roll pins, connect the pivot arm to clevis on draft beam. NOTE: Make sure the longer distance between the cutout and the end of the pivot arm is closest to the draft beam pivot ears on the center tube as shown in the diagram below.
Page 49 ASSEMBLY TWIN ROTARY MOWER INSTRUCTIONS HOW TO REMOVE REAR MOWER 1. Rest rear mower so ground supports it front and rear. 2. Turn tractor off. There should be no hydraulic pressure in hoses at locations 1,2,3 and 4. 3. Disconnect 2 from 1. 4.
Page 50 ASSEMBLY DECK / MOTOR FEEDLINE Install the 1” hoses from the motor to the solenoid valve. Refer to the arts ection for detailed information about hoses and fittings for this application. Install split hoses around hydraulic hoses where they contact sharp edges, or any other edges that may rub hoses.
Page 51 ASSEMBLY FINAL PREPARATION FOR OPERATION Place operator’s safety and operation decals on the steering column and side console where they are clearly visible to the operator. These decals should be understood by each operator of the machine in conjunction with the Safety and Operation Sections of this book. The decals are to be mainta ned in good condition as a reminder to the operator, and should be replaced if damaged.
Page 52 ASSEMBLY Assembly Section 2-26...
Page 63 OPS-U- 0011_A NOTE: The mower Operator’s Manual and affixed Decals contain important instructions on the safe and proper use of the mower. Maintain these important safety features on the mower in good condition to ensure the information is available to the operator at all times. OPS-R-0099 ©...
Page 69 Tractor PRE-OPERATION Inspection Mower ID#________________ Make ____________________ Date: ________________ Shift ____________________ Condition at Start Specific Comments Item of Shift if not O.K. The flashing lights function properly The SMV Sign is clean and visible The tires are in good condition with proper pressure The wheel lug bolts are tight The tractor brakes are in good condition The steering linkage is in good condition...
Page 70 Rotary Mower PRE-OPERATION Inspection Mower ID#________________ Make ____________________ Date: ________________ Shift ____________________ Table 1: Condition at Specific Item Start of Shift Comments if Start of Shift not O.K. The Operator’s Manual is in the canister on the mower All safety decals are in place and legible The hitch connection bolts &...
Page 77 NOTE: Where there are grass and weeds high enough to hide debris that could be struck by the blades, the area should be: inspected and large debris removed, mowed at an intermediate height, inspected, closely with any remaining debris being removed, and mowed again at desired final height.
Page 94 NOTE: Refer to repair parts section on valve bank settings on individual relief cartridges. © 2013 Alamo Group Inc...
Page 101 NOTE: If flow meter is available, check pressure and flow volume for all suspected hydraulic problems. © 2013 Alamo Group Inc.
Page 109 NOTE: Make sure the cable turnbuckle is loose enough to allow the cylinder to reach full extension before the head reaches the stop. © 2013 Alamo Group Inc.
Page 114 NOTE: The grease zerk and gussets are located on the top side of the spindle housing. Be sure the spindle is assembled correctly. © 2013 Alamo Group Inc.
Page 117 MAINTENANCE MAINTENANCE OF CRANKSHAFT ADAPTER ASSEMBLY (RIGID ENGINE MOUNT TRACTORS ONLY) If replacement of components of the crankshaft adapter assembly is required, follow the assembly procedures shown below. Seat rubber grommet completely into counterbore, then seat steel grommet completely into rubber grommet while rubber grommet is supported. (ASM-JD-0051 CRANKSHAFT ADAPTER MAINTENANCE) TWIN ROTARY Maintenance Section 4-23...
Page 119 NH TS6.110 TWIN ROTARY PARTS SECTION...
Page 120: Table Of Contents
PART NAME INDEX PARTS ORDERING GUIDE ..................................3 AXLE BRACES......................................4 SWITCHBOX MOUNT ....................................6 TRACTOR MOUNT KIT....................................8 TRACTOR MOUNT KIT HYDRAULICS..............................10 REAR MOWER HYDRAULICS - TSR MOWER............................. 12 REAR MOWER HYDRAULICS - TM MOWER ............................14 POLYCARBONATE SAFETY WINDOW ..............................16 NOTES.........................................
Page 123 AXLE BRACES Continued... ITEM PART NO. QTY. DESCRIPTION ------ MAIN FRAME *REFER TO TRACTOR MOUNT KIT PAGE 21833 CAPSCREW,3/4" X 2-1/4",NC 33880 FLATWASHER,3/4" 21825 HEX NUT,3/4",NC 06300208 AXLE BRACE,RH 21846 CAPSCREW,3/4" X 9",NC 06300209 AXLE BRACE,LH NH TS6.110 TWIN ©2013 Alamo Group Inc. Parts Section 5-5...
Page 125 SWITCHBOX MOUNT Continued... ITEM PART NO. QTY. DESCRIPTION 06510097 SWITCHBOX, TWIN/T3F, GND 34496 BRKT, SWITCHBOX, UNI 32359 SCREW, MACHINE 21530 CAPSCREW, 1/4" X 1" NC 21527 NYLOCK NUT 1/4" NC 22014 FLATWASHER 1/4" NH TS6.110 TWIN ©2013 Alamo Group Inc. Parts Section 5-7...
Page 127 TRACTOR MOUNT KIT Continued... ITEM PART NO. QTY. DESCRIPTION 06300222 MAINFRAME, TS6.110, TM, TSF 21831 CAPSCREW, 3/4 X 1-3/4 NC 33880 FLATWASHER, 3/4, GR 8, SAE 21825 HET NUT, 3/4 NC 30708 CAPSCREW, 20MM X 90MM, 2.5P, GR10.9 06530542 CAPSCREW, 20MM X 130MM, 2.5P, GR10.9 21627 NYLOCK NUT, 3/8, NC 06530537...
Page 128: Tractor Mount Kit Hydraulics
TRACTOR MOUNT KIT HYDRAULICS NH TS6.110 TWIN ©2013 Alamo Group Inc. Parts Section 5-10...
Page 129 TRACTOR MOUNT KIT HYDRAULICS Continued... ITEM PART NO. QTY. DESCRIPTION 34309 BALL VALVE, 1-1/2" FOR 34655 ELBOW, 1-1/2" MOR X 1-1/2" MJ 06500306 HOSE, #24X70" 34064 ADAPTER, 1-1/4" MOR X 1"MJ TF4852 KIT, FLANGE, #20 PUMP,*REFER TO TRACTOR MOUNT KIT PAGE 06510083 VALVE, BRAKE, SOL, 3000PSI 21644...
Page 130: Rear Mower Hydraulics - Tsr Mower
REAR MOWER HYDRAULICS - TSR MOWER NH TS6.110 TWIN ©2013 Alamo Group Inc. Parts Section 5-12...
Page 131 REAR MOWER HYDRAULICS - TSR MOWER Continued... ITEM PART NO. QTY. DESCRIPTION 34181 UNION BLOCK,TRR 33287 FITTING,BULKHEAD,1"MJ X 1"MOR 06503028 QUICK COUPLER,1"SAE,MALE,FLAT 06503027 QUICK COUPLER,1"SAE,FEM,FLAT 33555 ADAPTER,1"MOR X 1"MJ 21625 HEX NUT,3/8",NC 22016 FLATWASHER,3/8" 21644 CAPSCREW,3/8" X 5",NC 06500086 HOSE,1" X 24" (PRESSURE) 06500087 HOSE,1"...
Page 132: Rear Mower Hydraulics - Tm Mower
REAR MOWER HYDRAULICS - TM MOWER NH TS6.110 TWIN ©2013 Alamo Group Inc. Parts Section 5-14...
Page 133 REAR MOWER HYDRAULICS - TM MOWER Continued... ITEM PART NO. QTY. DESCRIPTION 34181 UNION BLOCK,TRR 33287 FITTING,BULKHEAD,1"MJ X 1"MOR 06503028 QUICK COUPLER,1"SAE,MALE,FLAT 06503027 QUICK COUPLER,1"SAE,FEM,FLAT 33555 ADAPTER,1"MOR X 1"MJ 34198 HOSE,1" X 40" (PRESSURE) TF4852 KIT,FLANGE,#20 ------ PUMP *REFER TO TRACTOR MOUNT KIT PAGE 34197 HOSE,1"...
Page 134: Polycarbonate Safety Window
POLYCARBONATE SAFETY WINDOW NH TS6.110 TWIN ©2013 Alamo Group Inc. Parts Section 5-16...
Page 135 POLYCARBONATE SAFETY WINDOW Continued... ITEM PART NO. QTY. DESCRIPTION 31965 TRIMLOCK (IN FEET) 33477 ISOLATOR 21575 HEX NUT,5/16",NC 33478 ROD,THREADED,5/16" X 3" 32550 U-BOLT,ASSY 06490039 POLYCARBONATE,DOOR 21636 CAPSCREW,3/8" X 2-1/2",NC 22016 FLATWASHER,3/8" 21527 NYLOCK NUT,1/4",NC 22014 FLATWASHER,1/4" 06410672 BRACKET,BOTTOM 06537000 WASHER,NEOPRENE 06537001 WASHER,RUBBER...
Page 137 COMMON TWIN ROTARY PARTS SECTION...
Page 138 NOTES...
Page 139 PART NAME INDEX PARTS ORDERING GUIDE ..................................5 CABLE DRAFT BEAM ASSEMBLY................................6 COMBO DRAFT BEAM ASSEMBLY................................ 8 60IN SIDE CABLE TM ROTARY MOWER............................. 10 72IN SIDE CABLE TM ROTARY MOWER............................. 12 60IN SIDE COMBO TM ROTARY MOWER ............................14 72IN SIDE COMBO TM ROTARY MOWER ............................
Page 140 PART NAME INDEX SWITCH BOX......................................72 SWITCH BOX SCHEMATIC..................................73 NOTES 1........................................74 COMMON TWIN ©2014 Alamo Group Inc. Parts Section 6-4...
Page 143 CABLE DRAFT BEAM ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 6T0105 DRAFT BEAM (STD WITH TRAVEL LOCK) 27241 DRAFT BEAM (EXTENDED 6”) 6T0150 CYLINDER 3” X 18” 6T0151R HYD. CYLINDER 3” X 10” 6T0100 LOWER SHEAVE BRACKET 6T0101 UPPER SHEAVE BRACKET 33768 SHEAVE 6T0110...
Page 145 COMBO DRAFT BEAM ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 06350001 COMBO DRAFT BEAM - STD DTY ROTARY 31063 COMBO DRAFT BEAM - HVY DTY ROTARY 6T0151R HYD. CYLINDER 3” X 10” 32215 HYD. CYLINDER 3” X 12” - STD DTY 25343 HYD.
Page 147 60IN SIDE CABLE TM ROTARY MOWER Continued... ITEM PART NO. QTY. DESCRIPTION 32099 RTRY, 60" DECK, CABLE 31773 GAURD,CHAIN,FRONT,SR60 6T1001 BRKT, MOTOR MTG, 60"SIDE RTRY 6T0820H SKID SHOE, TM60 22592 FLAP, DEFLECTOR, TM60 6T0823 BAR, FLAP, TM60 6T1024H5 SPINDLE ASSY,CPLT,HD,5/8" HOLES 21223 SPROCKET, 1-1/4"...
Page 149 72IN SIDE CABLE TM ROTARY MOWER Continued... ITEM PART NO. QTY. DESCRIPTION 21225B RTRY,72" DECK, CABLE 31931 GUARD,CHAIN,FRONT,SR72 6T1001 BRKT, MOTOR MTG, 60"SIDE RTRY 21248 SKID SHOE, TM72 21295B FLAP, DEFLECTOR, TM72 21242A BAR, FLAP, TM72 6T1024H5 SPINDLE ASSY,CPLT,HD,5/8" HOLES 21223 SPROCKET, 1-1/4"...
Page 151 60IN SIDE COMBO TM ROTARY MOWER Continued... ITEM PART NO. QTY. DESCRIPTION 30087D RTRY, 60" DECK, COMBO - STD DUTY 32617 RTRY, 60" DECK, COMBO - HVY DUTY 31773 GAURD,CHAIN,FRONT,SR60 6T1001 BRKT, MOTOR MTG, 60"SIDE RTRY 6T0820H SKID SHOE, TM60 22592 FLAP, DEFLECTOR, TM60 6T0823...
Page 153 72IN SIDE COMBO TM ROTARY MOWER Continued... ITEM PART NO. QTY. DESCRIPTION 34260 RTRY, 72" DECK, COMBO - STD DUTY 31408A RTRY, 72” DECK, COMBO - HEAVY DUTY 31931 GUARD,CHAIN,FRONT,SR72 6T1001 BRKT, MOTOR MTG, 60"SIDE RTRY 21248 SKID SHOE, TM72 21295B FLAP, DEFLECTOR, TM72 21242A...
Page 155 60IN SIDE TSR ROTARY MOWER Continued... ITEM PART NO. QTY. DESCRIPTION 34975 HEAVY DUTY GRASSKAT COMBO 06320005 STD DUTY GRASSKAT COMBO ---- 06320008 HEAVY DUTY GRASSKAT CABLE 34980 SPINDLE ASSY,TM 60" 06504016 CURRENT MOTOR,(M365-1 1/4" 14-SPLINE) 06410254 SKID,OUTBOARD,TM60 22992 CHAIN,10 LINK 6T2270 PLOW BOLT,3/8"...
Page 157 60IN REAR TM ROTARY MOWER Continued... ITEM PART NO. QTY. DESCRIPTION 23003 REAR RTRY, 60” W/REAR CHAINS 32616 RTRY, 60" DECK, TRR 6T1024H5 SPINDLE ASSY,CPLT,HD,5/8 HOLES 6T2277 CAPSCREW, 3/4" X 2" NF 21993 LOCKWASHER,3/4",GR 8 6T2413 HEX NUT,3/4",NF,GR 8 ------ DISK *REFER TO DISK &...
Page 158 60IN REAR TSR ROTARY MOWER ITEM PART NO. QTY. DESCRIPTION 06741023 60IN TSR REAR MOWER ASSY 06320002 TRAILKAT®,60,WLDMNT 6T0112 SHACKLE,W/PIN,CPLT 22051 CABLE,LIFT,TRR,60 COMMON TWIN ©2014 Alamo Group Inc. Parts Section 6-22...
Page 159 60IN REAR TSR ROTARY MOWER Continued... ITEM PART NO. QTY. DESCRIPTION 06520425 06537021 ROLLPIN,5MM X 50MM,SS 21474A HITCH,3PT,TRR 28511 STAND,SAFETY SUPPORT W/PAD 23329 CASTER WHL,SOLID TIRE W/SPIND 22057 SPINDLE,CASTER AXLE,ASSY 22018 FLATWASHER,1/2,WIDE 21725 HEX NUT,1/2,NC 6T3211 GREASE ZERK,1/8 06370003 CASTER ADJ,TRAILKAT 06504016 MOTOR,M365-1 1/4”,SPLINE,SEALED 6T1025...
Page 161 REAR ROTARY HYDRAULICS Continued... ITEM PART NO. QTY. DESCRIPTION ------ REAR ROTARY MOWER 06510083 VALVE,BRAKE,SOL,3000PSI,METRI 33555 ADAPTER,1MORB X 1MJIC (3 FOR TSR) 33554 ELBOW,1MORB X 1MJIC,45 (TSR PRESSURE TO MOTOR) TF4852 KIT, FLANGE, #20 34198 HOSE, 1" X 40" (TM MOWER RETURN) 06500087 HOSE, 1"...
Page 163 60IN SIDE TM CHAIN GUARDS Continued... ITEM PART NO. QTY. DESCRIPTION 31773 GUARD,CHAIN,TM60,FRONT,ASSY 31762 GUARD,CHAIN,TM60,FRONT 28407 CABLE,5/16",BULK (QTY IN FEET) 22993 CHAIN,5/16",GR30,9 LINK 28408 U-BOLT,CABLE,5/16" (NOT SHOWN) 31774 GUARD,CHAIN,TM60,REAR,ASSY 31763 GUARD,CHAIN,TM60,REAR 31879 ROD,SHORT,TM60 31878 ROD,LONG,TM60 22016 FLATWASHER,3/8",GR8 6T3028 COTTER PIN,1/8" X 1" 22992 CHAIN,5/16",GR30,10 LINK COMMON TWIN...
Page 165 72IN SIDE TM CHAIN GUARDS Continued... ITEM PART NO. QTY. DESCRIPTION 31931 GUARD,CHAIN,TM72,FRONT,ASSY 31863 GUARD,CHAIN,TM72,FRONT 28407 CABLE,5/16",BULK (QTY IN FEET) 22993 CHAIN,5/16",GR30,9 LINK 28408 U-BOLT,CABLE,5/16" (NOT SHOWN) 31932 GUARD,CHAIN,TM60,REAR,ASSY 31864 GUARD,CHAIN,TM60,REAR 31934 ROD,LONG,TM72 31933 ROD,SHORT,TM72 22016 FLATWASHER,3/8",GR8 6T3028 COTTER PIN,1/8" X 1" 22992 CHAIN,5/16",GR30,10 LINK COMMON TWIN...
Page 167 60IN TSR REAR GUARDS Continued... ITEM PART NO. QTY. DESCRIPTION 34973 ROD,CHAIN,OUTER,TM60 34974 ROD,CHAIN,INNER,TM60 21631 CAPSCREW, 3/8 X 1-1/4,NC 34972 PLATE,CAP,CHAIN 21625 HEX NUT,3/8",NC 21988 LOCKWASHER, 3/8" 22992 CHAIN,10 LINK 06410947 MNT,FLAP,RH,EXT,TSR 06401184 STRAP,FLAP,EXT,TSR 06410948 COVER,FLAP,EXT,TSR 21632 CAPSCREW,3/8" X 1-1/2" NC 22016 FLATWASHER,3/8",GR8 06410946...
Page 169 TM MOWER SPINDLE ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 6T1024H5 SPINDLE ASSEMBLY COMPLETE 6T1031 SPROCKET 6T1016 BEARING LOCK NUT - THICK 22596 JAM WASHER 6T1015 BEARING ADJUSTMENT NUT - THIN 6T1014 BEARING ADJUSTMENT SLEEVE 6T1011 UPPER SEAL - SET OF 2 6T1012 BEARING CONE 6T1013...
Page 171 TSR MOWER SPINDLE ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 34980 SPINDLE ASSEMBLY COMPLETE 34978 SPINDLE MOUNT 34979 SPINDLE,TM60 6T1013 BEARING CUP 6T1012 BEARING CONE 6T1011 UPPER SEAL - SET OF 2 6T1014 BEARING ADJUSTMENT SLEEVE 6T1013H BEARING,CUP,HD 6T1012H BEARING CONE,HD 6T1011H SEAL,LOWER,HD 34985...
Page 172 ROTARY DISK AND KNIVES ITEM PART NO. QTY. DESCRIPTION 34876 BLADE MOUNTING DISK 6T1023R NYLOCK NUT,1-1/8” 34878 SPACER 34497 KNIFE MOUNTING BOLT 34685 KNIFE,60" HIGH SUCTION - STANDARD 34684 KNIFE,60" - OPTIONAL 34682 KNIFE 72” (MOUNT ON 72” MOWER ONLY) 25270 FLATWASHER,5/8",USS,GR8 6T2259...
Page 175 SIDE ROTARY CASTER WHEEL ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 25214C FRAME,CASTER,WHL (TM60) 28297A FRAME,CASTER WHL (TM72) 22057 SPINDLE,CASTER AXLE,ASSY 6T2617 BUSHING,MACH,1-1/2IDX 2-1/4OD 28548 CASTER WHEEL,SOLID TIRE 22065 HUB,ASSY,CASTER ---- 22066 HUB,CASTER 22070 DUST CAP ---- 22071 HUB STUD 22073 HEX NUT,1”,NF (SLOTTED) ----...
Page 177 60IN TM REAR CASTER WHEEL & 3PT ASSY Continued... ITEM PART NO. QTY. DESCRIPTION ------ MOWER,REAR,60IN,TM 21474A HITCH, 3PT, TRR 22059B ADJ ROD, TRR 25095A FRAME, CASTER WHEEL, TRR 60" 22057 SPINDLE, CASTER AXLE, ASSY 21925 HEX NUT,1" NC 22023 FLATWASHER,1"...
Page 178 CASTER WHEEL ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 22057 SPINDLE,CASTER AXLE,ASSY 21987 LOCKWASHER,5/16” 21575 HEX NUT,5/16” 28548 CAPSCREW,5/16” X 3/4”,NC 22697 RIM,OUTER,CASTER ASSY 21416 TIRE,SOLID 22696 RIM,CASTER WHEEL 22070 DUST CAP 22533 COTTER PIN,3/16” X 2” 6T0836 CUP,CASTER WHEEL 22073 HEX NUT,1",NF (SLOTTED JAM NUT) 22071 HUB STUD...
Page 179 SAFETY STAND ITEM PART NO. QTY. DESCRIPTION ------ REAR RTRY - REFER TO REAR RTRY DECK ASSY 28511 REAR RTRY STAND 06520425 6T3014 ROLL PIN, 1/4" X 2" 6T3004 R-CLIP (HAIRPIN COTTER, 3/16") COMMON TWIN ©2014 Alamo Group Inc. Parts Section 6-43...
Page 180 3IN X 10IN HYDRAULIC CYLINDER BREAKDOWN ITEM PART NO. QTY. DESCRIPTION 6T0151R HYD. CYLINDER 3" X 10" 6T0167 CYLINDER BUTT 6T0170 CYLINDER GLAND 6T0178 CLEVIS END 6T0164 CYLINDER TUBE 6T0161 PISTON ROD 6T0173 PISTON 6T0179 LOCKNUT 6T0176 TIE ROD ASY 6T0187 SEAL KIT ------...
Page 181 3IN X 12IN HYDRAULIC CYLINDER BREAKDOWN ITEM PART NO. QTY. DESCRIPTION ---- 32215 HYD. CYLINDER 3" X 12" (STD DUTY) 25343 HYD. CYLINDER 3" X 12" (HVY DUTY) 6T0167 CYLINDER BUTT 6T0170 CYLINDER GLAND 6T0178 CLEVIS END 6T0204 CYLINDER TUBE 6T0203 PISTON ROD 6T0173...
Page 182 3IN X 18IN HYDRAULIC CYLINDER BREAKDOWN ITEM PART NO. QTY. DESCRIPTION 6T0150 CYLINDER 3" X 18" 6T0167 CYLINDER BUTT 6T0170 CYLINDER GLAND 6T0178 CLEVIS END 6T0165 CYLINDER TUBE 6T0162 PISTON ROD 6T0173 PISTON 6T0179 LOCKNUT 6T0177 TIE ROD ASY 6T0187 SEAL KIT ------ O - RING...
Page 183 RESERVOIR TANK FILTER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 06505044 FILTER ASSY SAE 10 MICRON 28583 CAPSCREW,8MM X 25MM(1.25 PITCH) 06505045 COVER 06505046 SEAL KIT 06505047 SPRING 06505048 BYPASS 35259 FILTER,10 MIC,RETURN LINE 06505049 CAN/BODY COMMON TWIN ©2014 Alamo Group Inc. Parts Section 6-47...
Page 185 ROTARY MOTOR BREAKDOWN Continued... ITEM PART NO. QTY. DESCRIPTION 06504011 MOTOR ASSEMBLY 22790 END,COVER 06504088 HOUSING, PEC 06504111 HOUSING, GEAR 06504026 SET, GEAR SHAFT 06504104 CAPSCREW 06504078 SCREW, DRIVE 06504092 06504093 PIN, DOWEL 06504094 NAME PLATE 06504095 THRPL 2961940 PLUG, ODT 2962200 RING, SNAP 06504096...
Page 187 60IN TSR ROTARY MOTOR BREAKDOWN Continued... ITEM PART NO. QTY. DESCRIPTION 06504016 MOTOR(M365-1 1/4SPLINE),SEALED 22790 COVER,END 06504088 HOUSING,PEC 06504111 HOUSING,GEAR 06504110 SET,GEAR SHAFT 06504104 CAP SCREW 06504078 SCREW,DRIVE 06504093 PIN,DOWEL 06504094 NAME PLATE 06504095 THRPL 02961940 PLUG,ODT (0.25) 6T5200 RING,SNAP 06504097 SEAL,LIP 22797...
Page 189 FRONT HYDRAULIC PUMP BREAKDOWN Continued... ITEM PART NO. QTY. DESCRIPTION 06504002 PUMP,ASSY 22766 HOUSING,SEC 06504068 HOUSING,PEC 02965092 HOUSING,GEAR 06504069 HOUSING,BEARING CARRIER 06504070 SET,GEARSHAFT 06504071 GEAR,SET 02961917 WASHER 06504072 STUD 06504073 NUT,HEX 22765 SEAL,LIP 6T5121 PLUG 02979970 SPACER 02979971 RING,SNAP 02965611 THRPL 06504074 SEAL,CHAN...
Page 191 COOLER ASSEMBLY Continued... ITEM PART NO. QTY. DESCRIPTION 21530 CAPSCREW,1/4 X1 NC 21986 LOCKWASHER,1/4 22014 FLATWASHER,1/4 35176 1/4 U-NUT 06370015 SCREEN,COOLER,FRNT 06380006 MNT,COOLER,BUMPER TANK,RH 06380007 MNT,COOLER,BUMPER TANK,LH 06510350 COOLER,FRONT MNT 06510029 FAN ASSY ONLY 21629 CAPSCREW,3/8 X 3/4 NC 21988 LOCKWASHER,3/8 22016 FLATWASHER,3/8...
Page 193 CABLE (MANUAL) LIFT VALVE BREAKDOWN - 31320 Continued... ITEM PART NO. QTY. DESCRIPTION 31595 INLET END COVER 31594 END COVER, LOAD SENSE 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) 06503067 RELIEF PLUG 06503067 RELIEF PLUG 6T4209 RELIEF PLUG...
Page 195 CABLE (MANUAL) LIFT VALVE BREAKDOWN - 31321 Continued... ITEM PART NO. QTY. DESCRIPTION 31595 INLET END COVER 31594 END COVER, LOAD SENSE 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) 06503067 RELIEF PLUG 31861 RELIEF VALVE, 360 PSI 6T4209 RELIEF PLUG...
Page 197 CABLE (MANUAL) LIFT VALVE BREAKDOWN - 06502043 Continued... ITEM PART NO. QTY. DESCRIPTION 31595 INLET END COVER 31594 END COVER, LOAD SENSE 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) (REMOVE SHUTTLE DISC) 06503067 RELIEF PLUG 06503067...
Page 199 CABLE (MANUAL) LIFT VALVE BREAKDOWN - 06502044 Continued... ITEM PART NO. QTY. DESCRIPTION 31595 INLET END COVER 31594 END COVER, LOAD SENSE 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) 31597 VALVE SECTION (DOUBLE ACTING, CENTER SPRING) (REMOVE SHUTTLE DISC) 06503067 RELIEF PLUG 31861...
Page 201 CABLE (MANUAL) LIFT VALVE BREAKDOWN - 06502087 Continued... ITEM PART NO. QTY. DESCRIPTION TB1017S INLET END COVER TB1702 END COVER, POWER BEYOND TB1017P VALVE SECTION (SINGLE ACTING, SPRING DETENT) TB1017P VALVE SECTION (SINGLE ACTING, SPRING DETENT) TB1017N VALVE SECTION (DOUBLE ACTING, CENTER SPRING) ------ ------ 28816...
Page 203 CABLE (MANUAL) LIFT VALVE BREAKDOWN - 06502088 Continued... ITEM PART NO. QTY. DESCRIPTION TB1017S INLET END COVER TB1702 END COVER, POWER BEYOND TB1017P VALVE SECTION (SINGLE ACTING, SPRING DETENT) TB1017N VALVE SECTION (DOUBLE ACTING, CENTER SPRING) TB1017N VALVE SECTION (DOUBLE ACTING, CENTER SPRING) ------ 31861 RELIEF VALVE, 360 PSI...
Page 204 BRAKE VALVE ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 06510083 BRAKE VALVE, ASSY 34092 BRAKE VALVE, BLANK 34094 LOGIC ELEMENT 34095 RELIEF VALVE, 3000 PSI 06510095 METRI PAK COIL 34093 CARTRIDGE, 2 POSITION, 3 WAY (WITH NUT & WASHER) 34091 RELIEF VALVE, 2600 PSI 34096 RELIEF SEAL KIT ----...
Page 206 CABLE DRAFT BEAM TRAVEL LOCK ITEM PART NO. QTY. DESCRIPTION ------ CABLE DRAFT BEAM 6T0106 TRAVEL LOCK BRACKET 6T0107 TRAVEL LOCK PINS 3/4” X 3 1/4” 6T3020 R - CLIP 5/32” 21833 CAPSCREW 3/4” X 2 1/4” 21825 HEX NUT 3/4” 21993 LOCK WASHER 3/4”...
Page 207 COMBO DRAFT BEAM TRAVEL LOCK ITEM PART NO. QTY. DESCRIPTION ------ COMBO DRAFT BEAM 6T0106 TRAVEL LOCK BRACKET 21833 CAPSCREW 3/4” X 2 1/4” ------ MAIN FRAME *REFER TO PARTS SECTION 33856 BRKT,PIN HOLDER 21988 LOCK WASHER 3/8” 21629 CAPSCREW 3/8” X 3/4” 6T3020 R - CLIP 5/32”...
Page 208 SWITCH BOX ITEM PART NO. QTY. DESCRIPTION 06514011 SWBX,ALUM,BLK,06510097 35226 SWITCH,MOWER,COLEHERSEE 06510028 SWITCH,FORWARD/BRAKE/REV 33811 SWITCH,MASTER/DECK FLOAT 6T3923 INDICTATOR LIGHT,ON,RED 34540 STRAIN RELIEF,3/4,BLACK,NYLON 06514006 BREAKER,15A,SWBX 06514015 ALARM,SWBX,REVERSER 06550002 DECAL,SWTCHBX,TWIN/T3F,REV FAN 35227 RELAY,DP,DT,12V,LY2F,35226 COMMON TWIN ©2014 Alamo Group Inc. Parts Section 6-72...
Page 211 WARRANTY SECTION Warranty Section 7-1...
Page 213 All Tiger obligation under this warranty shall be terminated if the equipment is modified or altered in ways not approved in writing by Tiger, if repair parts other than genuine Tiger repair parts have been used, or if the equipment has been subject to misuse, neglect, accident, improper maintenance or improper operation.
Page 214 . Common sense should play a large role in the operation of this machine. Since we at Tiger Corporation are constantly striving to improve out products, we reserve the right to change specifications or design at any time.
Page 215 TO THE OWNER / OPERATOR / DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this manual and on the machine. The table of contents clearly identifies each section where you can easily find the information you need. The Occupational Safety and Health Act (OSHA 1928.51 subpart C) makes the following minimum requirements for tractor operators.
