Power Systems
Servicing the IBM Power System
S822LC (8335-GCA or 8335-GTA)
IBM

Advertisement

Table of Contents
loading

Related Manuals for IBM S822LC

Summary of Contents for IBM S822LC

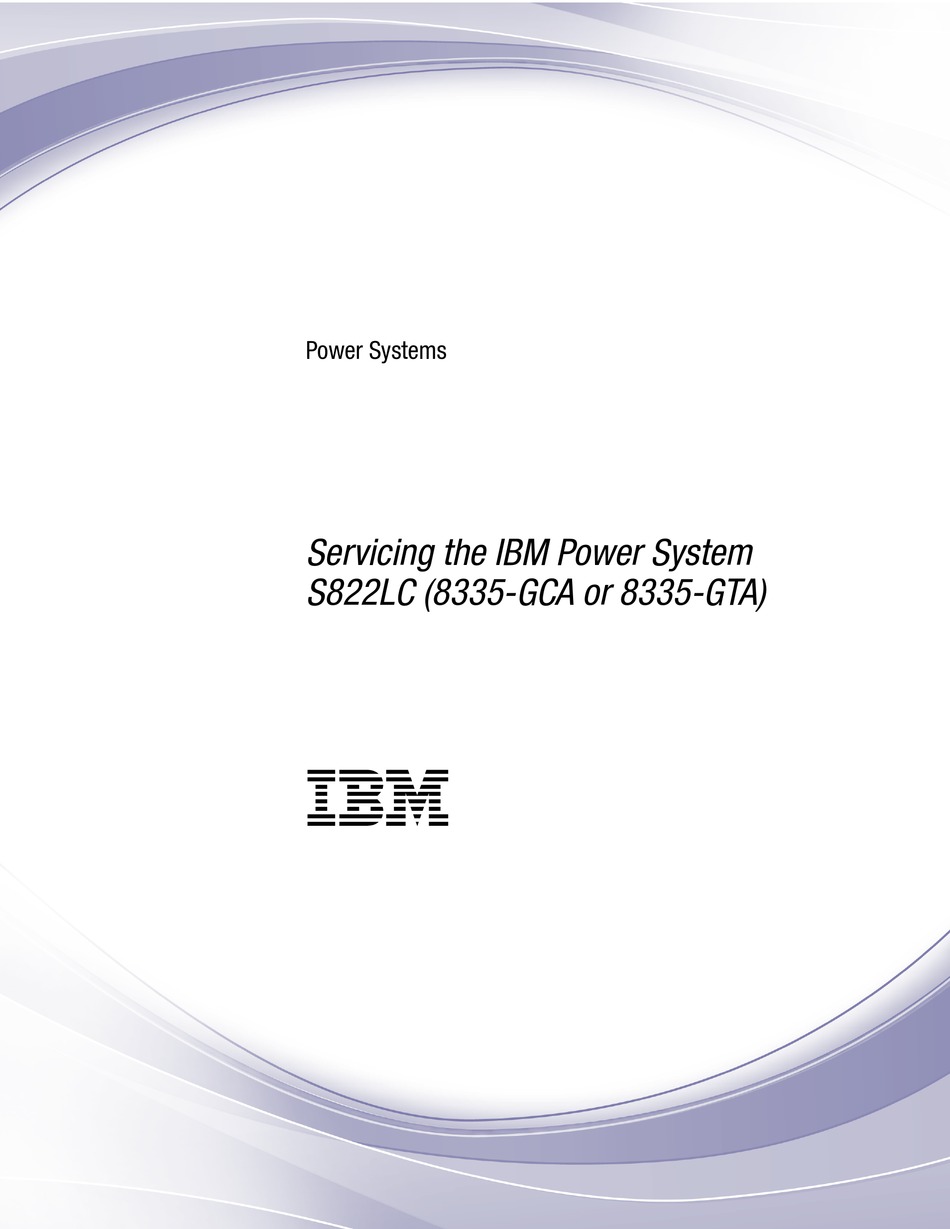

  • Page 1 Power Systems Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 3 Power Systems Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 4 Note Before using this information and the product it supports, read the information in Safety notices, “Notices” on page 119, the IBM Systems Safety Notices manual, G229-9054, and the IBM Environmental Notices and User Guide, Z125–5823. ™ This edition applies to IBM Power Systems servers that contain the POWER8 processor and to all associated models.

  • Page 5: Table Of Contents

    Contents Safety notices .... Removing and replacing memory in the 8335-GCA or 8335-GTA . Removing and replacing memory DIMM from Removing and replacing parts ..the 8335-GCA or 8335-GTA . Servicing system parts .
  • Page 6 Class B Notices . 8335-GCA or 8335-GTA system Terms and conditions. Removing the service access cover from an 8335-GCA or 8335-GTA system Installing the service access cover on an 8335-GCA or 8335-GTA system Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 7: Safety Notices

    You should also refer to the safety information documentation any time you do not clearly understand any safety information in the U.S. English publications. Replacement or additional copies of safety information documentation can be obtained by calling the IBM Hotline at 1-800-300-8751.
  • Page 8 Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: v If IBM supplied the power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product.
  • Page 9 Observe the following precautions when working on or around your IT rack system: v Heavy equipment–personal injury or equipment damage might result if mishandled. v Always lower the leveling pads on the rack cabinet. v Always install stabilizer brackets on the rack cabinet. v To avoid hazardous conditions due to uneven mechanical loading, always install the heaviest devices in the bottom of the rack cabinet.
  • Page 10 DANGER: Hazardous voltage, current, or energy levels are present inside any component that has this label attached. Do not open any cover or barrier that contains this label. (L001) (L002) viii Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 11 DANGER: Rack-mounted devices are not to be used as shelves or work spaces. (L002) (L003) Safety notices...
  • Page 12 1 laser products. Outside the U.S., they are certified to be in compliance with IEC 60825 as a class 1 laser product. Consult the label on each part for laser certification numbers and approval information. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 13 Exchange only with the IBM-approved part. Recycle or discard the battery as instructed by local regulations. In the United States, IBM has a process for the collection of this battery. For information, call 1-800-426-4333. Have the IBM part number for the battery unit available when you call. (C003)
  • Page 14 (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed OSP cabling. The addition of primary protectors is not sufficient protection to connect these interfaces metallically to OSP wiring. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 15 Note: All Ethernet cables must be shielded and grounded at both ends. The ac-powered system does not require the use of an external surge protection device (SPD). The dc-powered system employs an isolated DC return (DC-I) design. The DC battery return terminal shall not be connected to the chassis or frame ground.
  • Page 16 Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 17: Removing And Replacing Parts

    Note: See the International Information Bulletin for Customers - Installation of IBM Machines (http://www.ibm.com/e-business/linkweb/publications/servlet/pbi.wss). This bulletin (Publication number: SC27-6601-00) provides a list of the key IBM system installation activities and those activities that might be billable activities. Before you begin a replacement, complete these tasks: 1.
  • Page 18 Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: v If IBM supplied the power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product.

  • Page 19: Servicing System Parts

    Note: See the International Information Bulletin for Customers - Installation of IBM Machines (http://www.ibm.com/e-business/linkweb/publications/servlet/pbi.wss). This bulletin (Publication number: SC27-6601-00) provides a list of the key IBM system installation activities and those activities that might be billable activities. Before you begin a replacement, complete these tasks: 1.
  • Page 20 Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: v If IBM supplied the power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product.

  • Page 21: Removing And Replacing A Disk Drive In The 8335-Gca Or 8335-Gta

    The drive might be a hard disk drive (HDD) or a solid-state drive (SSD). Preparing the 8335-GCA or 8335-GTA system to remove and replace a disk drive with the power turned on Follow these steps to prepare the IBM Power System S822LC (8335-GCA and 8335-GTA) system to replace a disk drive. Procedure 1.

  • Page 22: Removing And Replacing A Disk Drive In The 8335-Gca Or 8335-Gta System

    7. Remove the drive from the static-protective package and place it on an ESD mat. Removing and replacing a disk drive in the 8335-GCA or 8335-GTA system Follow these steps to remove a disk drive in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Procedure 1.
  • Page 23 Figure 1. Disk drive lock detail 5. Support the bottom of the drive as you slide it out of the system. Do not hold the drive by the handle. 6. If you are removing more than one drive, repeat the steps in this procedure until all drives are removed.

  • Page 24: Preparing The 8335-Gca Or 8335-Gta System For Operation After Removing And Replacing A Drive With The Power Turned On

    Load or restore data from your backup media. Preparing the 8335-GCA or 8335-GTA system for operation after removing and replacing a drive with the power turned on Follow these steps to prepare the IBM Power System S822LC (8335-GCA and 8335-GTA) system for operation. Procedure 1.

  • Page 25: Removing And Replacing The Disk Drive And Fan Card In The 8335-Gca Or 8335-Gta

    Removing and replacing the disk drive and fan card in the 8335-GCA or 8335-GTA Learn how to remove and replace the disk drive and fan card in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Removing the disk drive and fan card from the 8335-GCA or 8335-GTA To remove the disk drive and fan card from the IBM Power System S822LC (8335-GCA and 8335-GTA) system, complete the steps in this procedure.

  • Page 26: Replacing The Disk Drive And Fan Card In The 8335-Gca Or 8335-Gta

    11. Place the disk drive and fan card on the table. Replacing the disk drive and fan card in the 8335-GCA or 8335-GTA To replace the disk drive and fan card in the IBM Power System S822LC (8335-GCA and 8335-GTA) system, complete the steps in this procedure.
  • Page 27 Figure 4. Inserting the disk drive fan card Figure 5. Routing the cables under the disk drive and fan card 4. Replace the 5 screws for the bottom of the disk drive and fan card. Figure 6 on page 12 shows all 12 screw locations.

  • Page 28: Removing And Replacing The Disk And Fan Signal Cable In The 8335-Gca Or 8335-Gta

    Learn how to remove and replace a disk and fan signal cable in the 8335-GCA or 8335-GTA system. Removing the disk and fan signal cable from the 8335-GCA or 8335-GTA system Follow these steps to remove a disk and fan signal cable from the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Procedure 1.
  • Page 29 Figure 7. Location of the disk and fan signal cable and connectors 3. Release the cable from the retaining clip on the inside wall of the system. 4. Label and disconnect the disk and fan signal cable (A) from the disk drive and fan card (B) and from the system backplane (C).

  • Page 30: Replacing The Disk And Fan Signal Cable In The 8335-Gca Or 8335-Gta System

    5. Place the cable on the table. Replacing the disk and fan signal cable in the 8335-GCA or 8335-GTA system Follow these steps to replace a disk and fan signal cable in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Procedure 1.

  • Page 31: Removing And Replacing A Fan In The 8335-Gca Or 8335-Gta

    3. Secure the cable in the retaining clip on the inside wall of the system. Removing and replacing a fan in the 8335-GCA or 8335-GTA Find information about removing and replacing fans in the IBM Power System S822LC (8335-GCA and 8335-GTA) system.
  • Page 32 Ensure that you have read the complete procedure to remove and replace a system fan and that you are prepared to remove and replace the fan within this time. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 33: Removing A System Fan From The 8335-Gca Or 8335-Gta

    Figure 10. Location of the fans and LEDs 7. Select an action: v To do a concurrent repair with the system running: a. Continue the procedure with the system power turned on. b. Remove the failed fan indicated by the amber fault LED. For instructions, see “Removing a system fan from the 8335-GCA or 8335-GTA.”...

  • Page 34: Replacing A System Fan In The 8335-Gca Or 8335-Gta

    2. Using your hand to support the bottom of the fan, align the fan (A) with the fan slot and slide it into the system until the terracotta tab (A) locks in place, as shown in Figure 12 on page 19. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 35: Preparing The System For Operation After Removing And Replacing A System Fan

    6. Verify the installed part. See Verifying a repair in the 8335-GCA or 8335-GTA. (www.ibm.com/ support/knowledgecenter/POWER8//p8ei3/p8ei3_verifyrepair.htm) Removing and replacing the fan power cable in the 8335-GCA or 8335-GTA Find information about removing and replacing the fan power cable in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Removing and replacing parts...

  • Page 36: Removing The Fan Power Cable From The 8335-Gca Or 8335-Gta

    2. Remove the power riser air baffle. See Figure 13. Figure 13. Removing the power riser air baffle 3. Locate where the fan power cable is connected. See (A) in Figure 14 on page 21. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 37 Figure 14. Location of the fan power cable and connectors 4. Grasp the connector end of the fan power cable that is connected to the power riser. See (A) in Figure 15 on page 22. 5. While pressing the latch release lever with your thumb, disconnect the cable from the connector. Note: The latch release on the connector must be depressed before unplugging the cable.

  • Page 38: Replacing The 8335-Gca Or 8335-Gta Fan Power Cable

    Figure 16 on page 23. Ensure that the cable latch clip snaps into place on the connectors. 3. Connect the other end of the fan power cable into the disk drive and fan card as shown in Figure 16 on page 23. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 39 Figure 16. Installing the fan power cable 4. Install the power riser air baffle. See Figure 17. Ensure that the holes in the baffle align with the pins on the system. Figure 17. Installing the power riser air baffle Removing and replacing parts...

  • Page 40: Removing And Replacing The Front Usb Cable And Connector In The 8335-Gca Or 8335-Gta

    Removing and replacing the front USB cable and connector in the 8335-GCA or 8335-GTA Learn how to remove and replace the front USB cable and connector in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Removing the front USB cable and connector from the 8335-GCA or...
  • Page 41 Figure 19. Removing the front USB cable and the power switch cable from the system backplane and the disk drive and fan card 6. Pressing the latch release on the connector, disconnect the power switch cable (B) from the system backplane.
  • Page 42 Figure 22. Pull out the switch and cable 10. Pressing the latch releases (A) on the connector, disconnect the front USB cable and connector from the power switch. See Figure 23 on page 27. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 43: Replacing The Front Usb Cable And Connector In The 8335-Gca Or 8335-Gta System

    11. Place the front USB cable and connector and the power switch and cable on the table. Replacing the front USB cable and connector in the 8335-GCA or 8335-GTA system Follow these steps to replace the front USB cable and connector in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Procedure 1.
  • Page 44 6. Using the labels, plug the front USB cable (A) and the power switch cable (B) to the system backplane. See Figure 27 on page 29. Ensure that the cable latch clip snaps into place on the connectors. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 45 Figure 27. Plugging in the cables 7. Replace the rack installation support on the side of the system. See Figure 28. Figure 28. Replacing the rack installation support 8. Secure each cable in the retaining clip on the inside wall of the system. 9.

  • Page 46: Removing And Replacing A Graphics Processing Unit In The 8335-Gca Or 8335-Gta

    Figure 29. Removing the PCIe riser Replacing the graphics processing unit in the 8335-GCA or 8335-GTA system Follow these steps to replace a graphics processing unit in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 47: Removing And Replacing Memory In The 8335-Gca Or 8335-Gta

    Figure 30. Inserting the PCIe riser Removing and replacing memory in the 8335-GCA or 8335-GTA Learn how to remove and replace memory in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Removing and replacing memory DIMM from the 8335-GCA or 8335-GTA Learn how to remove and replace memory DIMM from the 8335-GCA or 8335-GTA system.
  • Page 48 Figure 32. Location of the memory DIMM slots on the riser; positions 33 through 36 3. Remove the memory riser that contains the failed memory DIMM. a. Open the release latches on the memory riser. See (A) in Figure 33 on page 33. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 49 Figure 33. Removing a memory riser from the system b. Pull out the memory riser from the slot by holding onto the latches. c. Place the memory riser on an ESD mat. 4. Remove the failed memory DIMM from the slot on the memory riser. a.
  • Page 50 6. To replace memory DIMM, complete the following steps: a. Push the locking tabs to the open position, away from the slot, in the direction shown in Figure 35 on page 35. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 51 Figure 35. Replacing memory DIMM in a slot on the riser b. Grasp the memory DIMM along its edges and align it with the slot on the riser. Attention: Memory is keyed to prevent it from being installed incorrectly. Note the location of the key tab within the memory connector before you attempt to install it.

  • Page 52: Removing And Replacing Memory Risers In The 8335-Gca Or 8335-Gta

    Figure 36. Replacing a memory riser in the system 8. Verify the installed part. See Verifying a repair in the 8335-GCA or 8335-GTA. (www.ibm.com/ support/knowledgecenter/POWER8//p8ei3/p8ei3_verifyrepair.htm) Removing and replacing memory risers in the 8335-GCA or 8335-GTA Learn how to remove and replace a memory riser in the 8335-GCA or 8335-GTA system.
  • Page 53 Figure 37. Location of the memory risers: positions 9 through 16 3. Remove the memory riser. a. Open the release latches on the memory riser. See (A) in Figure 38 on page 38. Removing and replacing parts...

  • Page 54: Replacing Memory Risers In The 8335-Gca Or 8335-Gta

    Align the memory riser with the connector. c. Press the memory riser firmly into the connector. d. Press the release latches into the closed position. See (A) in Figure 39 on page 39. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 55: Removing And Replacing Pcie Adapters In The 8335-Gca Or 8335-Gta

    Follow these steps to remove and replace Peripheral Component Interconnect (PCI) Express (PCIe) adapters in the PCIe riser of the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Removing a PCIe adapter from a PCIe riser in the 8335-GCA or 8335-GTA To remove a PCIe adapter in a PCIe riser, complete the steps in this procedure.
  • Page 56 3. Using the blue strap and the blue touchpoint, remove the PCIe riser from the system. See Figure 40. Figure 40. Removing the PCIe riser 4. Place the PCIe riser on an ESD mat on the table. 5. Remove the PCIe adapter from the PCIe riser Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 57: Replacing A Pcie Adapter In A Pcie Riser In The 8335-Gca Or 8335-Gta

    Figure 41. Removing PCIe card from PCIe riser 6. Place the PCIe adapter on the table. Replacing a PCIe adapter in a PCIe riser in the 8335-GCA or 8335-GTA To replace a PCIe adapter in a PCIe riser, complete the steps in this procedure. About this task Attention: For safety and airflow purposes, if you remove parts from the system, you must ensure that: v PCIe tailstock fillers are present...
  • Page 58 4. Using the 3 alignment pins (A), place the PCIe riser into the system. Push it down into place until it is firmly seated in the system. See Figure 44 on page 43. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 59: Removing And Replacing A Pcie Adapter On The System Backplane Of The 8335-Gca Or 8335-Gta

    Follow these steps to remove and replace Peripheral Component Interconnect (PCI) Express (PCIe) adapters in the system backplane of the IBM Power System S822LC (8335-GCA and 8335-GTA). Removing a PCIe adapter from the system backplane in the 8335-GCA or 8335-GTA To remove a PCIe adapter from the system backplane, complete the steps in this procedure.

  • Page 60: Replacing A Pcie Adapter In The System Backplane In The 8335-Gca Or 8335-Gta

    1. Ensure that you have the electrostatic discharge (ESD) wrist strap attached. If not, attach it now. 2. Insert the replacement PCIe adapter into the system backplane, aligning it properly and inserting it fully into the slot. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 61: Removing And Replacing Power Risers In The 8335-Gca Or 8335-Gta

    PCIe adapter. Removing and replacing power risers in the 8335-GCA or 8335-GTA Find information about removing and replacing power risers in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Removing a power riser from the 8335-GCA or 8335-GTA To remove a power riser from the 8335-GCA or 8335-GTA system, complete the steps in this procedure.
  • Page 62 3. Locate the power risers. Figure 46 on page 47 shows the location of the power risers in the 8335-GCA or 8335-GTA system. The (B) power riser contains the time-of-day battery and the connector for the fan power cable. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 63 Figure 46. Location of the power risers 4. Remove the faulty or failed power riser. a. If applicable, disconnect the fan power cable from the power riser (A) in Figure 47 on page 48, by pressing the latch release lever with your thumb. Note: The latch release on the connector must be depressed before unplugging the cable.

  • Page 64: Replacing A Power Riser In The 8335-Gca Or 8335-Gta

    2. If applicable, replace the time-of-day battery in the slot on the power riser. For instructions, see “Removing and replacing the time-of-day battery in the 8335-GCA or 8335-GTA” on page 95. The existing time-of-day battery can be reused, but IBM recommends installing a new time-of-day battery when replacing the power riser.
  • Page 65 Figure 48. Replacing a power riser in the system 4. Install the power riser air baffle. See Figure 49 on page 50. Ensure that the holes in the baffle align with the pins on the system. Removing and replacing parts...

  • Page 66: Removing And Replacing A Power Supply In The 8335-Gca Or 8335-Gta

    Figure 49. Installing the power riser air baffle Removing and replacing a power supply in the 8335-GCA or 8335-GTA Find information about removing and replacing power supplies in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Preparing the system to remove and replace a power supply To prepare the system to remove and replace a power supply, complete the steps in this procedure.
  • Page 67 Attention: v Attach an electrostatic discharge (ESD) wrist strap to an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware. v When using an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is used for static control.

  • Page 68: Removing A Power Supply From The 8335-Gca Or 8335-Gta

    Refer to Figure 51 on page 53. b. Pull the end of the power cord out of the power supply. c. Retain the hook-and-loop fastener for future use. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 69: Replacing A Power Supply In The 8335-Gca Or 8335-Gta

    Figure 51. Disconnecting the power cord from the power supply 3. Remove the power supply from the system. a. To unseat the power supply from its position in the system, pull up the terracotta locking-tab (A). See Figure 52. b. Grasp the power supply handle with one hand, and pull the power supply (B) part of the way out of the system.
  • Page 70 Attention: This system is equipped with two power supplies. Before you continue with this procedure, connect all power cords to the power supplies and strap them. Figure 54. Connecting the power cord to the power supply Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 71: Preparing The System For Operation After Removing And Replacing A Power Supply

    Removing and replacing the power switch and cable in the 8335-GCA or 8335-GTA Learn how to remove and replace the power switch and cable in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Removing the power switch and cable from the 8335-GCA or 8335-GTA...
  • Page 72 5. Pressing the latch release on the connector, disconnect the front USB cable (A). See Figure 56 on page Note: The latch release on the connector must be depressed before unplugging the cable. Failure to do so can damage the cable and the connector. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 73 Figure 56. Removing the front USB cable and the power switch cable from the system backplane and disk drive fan card 6. Pressing the latch release on the connector, disconnect the power switch cable (B) from the system backplane. See Figure 56. 7.
  • Page 74 Figure 59. Pull power switch from system 10. Pressing the latch releases on the connector (A), disconnect the front USB cable from the power switch. See Figure 60 on page 59. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 75: Replacing The Power Switch And Cable In The 8335-Gca Or 8335-Gta System

    11. Place the power switch and the front USB cable on the table. Replacing the power switch and cable in the 8335-GCA or 8335-GTA system Follow these steps to replace the power switch and cable in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Procedure 1.
  • Page 76 6. Using the labels, plug the front USB cable (A) and the power switch cable (B) to the system backplane. Ensure that the cable latch clip snaps into place on the connectors. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 77: Removing And Replacing The System Backplane In The 8335-Gca Or 8335-Gta

    9. Replace the disk fan card. For instructions, see “Replacing the disk drive and fan card in the 8335-GCA or 8335-GTA” on page 10. Removing and replacing the system backplane in the 8335-GCA or 8335-GTA You can remove and replace the system backplane in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Removing and replacing parts...

  • Page 78: Removing The System Backplane From The 8335-Gca Or 8335-Gta

    Following a system backplane replacement, you must set the system serial number on the system backplane. There is a tool to set the system serial number, go to Fix Central (www.ibm.com/support/ fixcentral/) to download the tool and follow the instructions for setting the serial number.
  • Page 79 6. Label and remove the fan power cable from the power distribution card. For instructions, see “Removing the fan power cable from the 8335-GCA or 8335-GTA” on page 20. 7. Label and remove the disk and fan signal cable from the system backplane. For instructions, see “Removing the disk and fan signal cable from the 8335-GCA or 8335-GTA system”...
  • Page 80 Figure 64. System backplane screw locations 12. Using the blue lift points, slide the system backplane (E) towards the fans, then lift to remove it. See Figure 65 on page 65. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 81: Replacing The System Backplane In The 8335-Gca Or 8335-Gta

    Figure 65. Lifting out the backplane 13. Place the system backplane on the ESD mat. Replacing the system backplane in the 8335-GCA or 8335-GTA To replace the system backplane, complete the steps in this procedure. Procedure 1. Ensure that you have the electrostatic discharge (ESD) wrist strap attached. If not, attach it now. 2.
  • Page 82 Figure 66. Lowering the system backplane into the system and sliding it to the back of the system. 4. Align and screw the 10 black hex screws (B) into the system backplane. The screw locations are shown in Figure 67 on page 67. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 83 Figure 67. System backplane screw locations 5. Replace the middle support (C). See Figure 68 on page 68. a. Lower the middle support (C) into place. b. Replace the two screws (E) on the side of the system. c. Replace the four screws (D) that connect the middle support to the system backplane. Removing and replacing parts...
  • Page 84 Note: If you plan to remove dust or debris from the heat sink, this operation must be performed in another room that is greater than 7.6 m (24.9 ft) away from the work area. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 85 Figure 69. Removing the heat sink 8. Remove dust and debris from the system processor module area. a. If dust or debris is present, use the supplied air pump (part number 45D2645) to clean the system processor module area. Blow small bursts of air from the center toward the sides of the system processor module as shown in Figure 70 on page 70.
  • Page 86 Figure 71 on page 71. b. Lower the tool over the system processor module by ensuring the two guide pins (C) are inserted into the alignment holes (B) on each side of the tool. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 87 Figure 71. Lowering the removal tool onto the system processor module c. With the removal tool (A) sitting on top of the system processor module, push down on the tool to lock the system processor module into the tool, as shown in Figure 72 on page 72. Make sure that both of the tool jaws are locked on the system processor module.
  • Page 88 If dust or debris is present on the system processor socket, use the supplied air pump (part number 45D2645) to clean the socket. Blow small bursts of air from the center toward the sides of the socket, as shown Figure 73 on page 73. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 89 Figure 73. Removing dust and debris from the system processor socket b. Lower the tool and system processor module onto the socket. Align the beveled corner (A) of the tool with the beveled corner on the socket. Ensure that the two guide pins (C) are inserted into the alignment holes (B) on each side of the tool.
  • Page 90 (A) together until a firm stop is reached, as shown in Figure 75 on page 75. Then, lift the tool off the system processor module. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 91 Figure 75. Removing the system processor module tool 13. Inspect the thermal interface material (TIM) for visible signs of damage, as shown in Figure 76 on page 76. Note: When the heat sink is removed from the system processor module, the TIM is typically adhered to the heat sink.
  • Page 92 The side with the red stripe must be facing up. Align the beveled edges of the TIM and the system processor module (A), as shown in Figure 77 on page 77. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 93 Figure 77. Installing the TIM onto the processor lid 16. Install the heat sink: a. Position the heat sink using the guide holes on the heat sink (A) to correctly align it with the guide pins (B). See Figure 78 on page 78. b.
  • Page 94 Figure 79. Tightening the center load screw on the heat sink 17. Repeat from step 6 on page 68 with the other system processor module These next steps continue installing components into the new system backplane: Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 95 Following a system backplane replacement, you must set the system serial number on the system backplane. There is a tool to set the system serial number, go to Fix Central (www.ibm.com/support/ fixcentral/) to download the tool and follow the instructions for setting the serial number.

  • Page 96: Removing And Replacing A System Processor Module For The 8335-Gca Or 8335-Gta

    Removing and replacing a system processor module for the 8335-GCA or 8335-GTA You can remove and replace the system processor module in the IBM Power System S822LC (8335-GCA and 8335-GTA) server. Removing a system processor module in the 8335-GCA or 8335-GTA...
  • Page 97 Note: If you plan to remove dust or debris from the heat sink, this operation must be performed in another room that is greater than 7.6 m (24.9 ft) away from the work area. Figure 82. Removing the heat sink 4.
  • Page 98 Figure 84 on page 83. b. Lower the tool over the system processor module by ensuring the two guide pins (C) are inserted into the alignment holes (B) on each side of the tool. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 99 Figure 84. Lowering the removal tool onto the system processor module c. With the removal tool (A) sitting on top of the system processor module, push down on the tool to lock the system processor module into the tool, as shown in Figure 85 on page 84. Make sure that both of the tool jaws are locked on the system processor module.
  • Page 100 Note: Setting the tool and system processor module at an angle on the top cover of the system processor module packaging will make it easier to pick up and place in the packaging after you replace the system processor module. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 101 Figure 86. Placing the tool at an angle on the top cover of the packaging 7. Squeeze the two blue tabs to release the system processor module from the tool. See Figure 87 on page 86. Note: To prevent the system processor module from falling, do not squeeze the two tabs before you place the tool on the top cover of the system processor module packaging.

  • Page 102: Replacing A System Processor Module In The 8335-Gca Or 8335-Gta System

    Figure 87. Releasing the system processor module from the tool Replacing a system processor module in the 8335-GCA or 8335-GTA system Follow these steps to replace a system processor module in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Procedure 1.
  • Page 103 Figure 88. Aligning the removal tool Figure 89. Locking the system processor module into the tool 4. Prepare for system processor module installation: Removing and replacing parts...
  • Page 104 If dust or debris is present on the system processor socket, use the supplied air pump (part number 45D2645) to clean the socket. Blow small bursts of air from the center toward the sides of the socket, as shown Figure 91 on page 89. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 105 Figure 91. Removing dust and debris from the system processor socket b. Lower the tool and system processor module onto the socket. Align the beveled corner (A) of the tool with the beveled corner on the socket. Ensure that the two guide pins (C) are inserted into the alignment holes (B) on each side of the tool.
  • Page 106 (A) together until a firm stop is reached, as shown in Figure 93 on page 91. Then, lift the tool off the system processor module. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 107 Figure 93. Removing the system processor module tool 6. Inspect the thermal interface material (TIM) for visible signs of damage, as shown in Figure 94 on page 92. The thermal interface material (TIM) is typically adhered to the heat sink. Unless damaged, the TIM that is adhered to the heat sink can be reused.
  • Page 108 The side with the red stripe must be facing up. Align the beveled edges of the TIM and the system processor module (A), as shown in Figure 95 on page 93. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 109 Figure 95. Installing the TIM onto the processor lid 9. Install the heat sink: a. Position the heat sink using the guide holes on the heat sink (A) to correctly align it with the guide pins (B). See Figure 96 on page 94. b.
  • Page 110 Align the beveled corner of the module (A) to the corner of the packaging with triangle (B) and place it in the packaging, as shown in Figure 98 on page 95. Close the packaging Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 111: Removing And Replacing The Time-Of-Day Battery In The 8335-Gca Or 8335-Gta

    Figure 98. Placing the system processor module into the packaging Removing and replacing the time-of-day battery in the 8335-GCA or 8335-GTA Learn about removing and replacing the time-of-day battery in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Procedure 1.
  • Page 112 Figure 99. Removing the power riser air baffle 3. Locate the time-of-day battery on the power riser nearest to the side of the system as shown in Figure 100. Figure 100. Location of the time-of-day battery Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 113 4. Remove the power riser that contains the time-of-day battery. a. Grasp the connector end of the fan power cable that is connected to the power riser. See (A) in Figure 101. b. While pressing the latch release lever with your thumb, disconnect the cable from the connector. Note: The latch release on the connector must be depressed before unplugging the cable.
  • Page 114 Using the alignment pins (A), insert the power riser into the slot. See Figure 104 on page 99. c. Reconnect the fan power cable to the power riser. See (C) in Figure 104 on page 99. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 115 Figure 104. Replacing a power riser in the system 8. Install the power riser air baffle. See Figure 105 on page 100. Ensure that the holes in the baffle align with the pins on the system. Removing and replacing parts...

  • Page 116: Common Procedures For Servicing Or Installing Features In The 8335-Gca Or 8335-Gta

    8335-GCA or 8335-GTA This section contains all the common procedures related to installing, removing, and replacing features in the IBM Power System S822LC (8335-GCA and 8335-GTA) system. Before you begin Observe these precautions when you are installing, removing, or replacing features and parts.
  • Page 117 Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: v If IBM supplied the power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product.
  • Page 118 (including operating systems, licensed programs, and data). 3. Review the installation or replacement procedure for the feature or part. 4. Note the significance of color on your system. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 119: Identifying The System That Contains The Part To Replace

    7. If you encounter difficulties during the installation, contact your service provider, your IBM reseller, or your next level of support. 8. For the IBM Power System S822LC (8335-GCA and 8335-GTA) systems, ensure that the top cover is on when running for thermal performance.

  • Page 120: Identifying The 8335-Gca Or 8335-Gta That Needs Servicing

    -I lanplus -H <hostname> -U <username> -P <password> chassis identify <interval> Preparing the system to remove and replace internal parts in the 8335-GCA or 8335-GTA To prepare the IBM Power System S822LC (8335-GCA and 8335-GTA) system to remove and replace internal parts, complete the steps in this procedure. Procedure 1.
  • Page 121 2. Identify the part and the system that you will be working on. For instructions, see “Identifying the system that contains the part to replace” on page 103. 3. If applicable, open the rack front door. 4. Attach the electrostatic discharge (ESD) wrist strap. Attention: v Attach an electrostatic discharge (ESD) wrist strap to an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware.
  • Page 122 8335-GCA or 8335-GTA” on page 52. 10. Place the system into the service position. For instructions, see “Placing an 8335-GCA or 8335-GTA system into the service position” on page 112. (R008) Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 123: Preparing The System For Operation After Removing And Replacing Internal Parts For The 8335-Gca Or 8335-Gta

    Preparing the system for operation after removing and replacing internal parts for the 8335-GCA or 8335-GTA To prepare the IBM Power System S822LC (8335-GCA and 8335-GTA) system for operation after removing and replacing internal parts, complete the steps in this procedure.

  • Page 124: Starting And Stopping The 8335-Gca Or 8335-Gta

    10. Verify the installed part. See Verifying a repair in the 8335-GCA or 8335-GTA. (www.ibm.com/ support/knowledgecenter/POWER8//p8ei3/p8ei3_verifyrepair.htm) Starting and stopping the 8335-GCA or 8335-GTA Learn how to start and stop the IBM Power System S822LC (8335-GCA and 8335-GTA) system for performing a service action or system upgrade. Starting the system You use the power button to start the system.

  • Page 125: Removing And Replacing Covers On An 8335-Gca Or 8335-Gta System

    The -P setting instructs the system to shut down and then power down. Removing and replacing covers on an 8335-GCA or 8335-GTA system Learn how to remove and replace the covers for an IBM Power System S822LC (8335-GCA and 8335-GTA) system so that you can access the hardware parts or perform service.

  • Page 126: Removing The Front Cover From An 8335-Gca Or 8335-Gta System

    8335-GCA or 8335-GTA” on page 53. Removing the front cover from an 8335-GCA or 8335-GTA system Learn how to remove the cover from an IBM Power System S822LC (8335-GCA and 8335-GTA) system so that you can access the components or perform service.

  • Page 127: Installing The Front Cover On An 8335-Gca Or 8335-Gta System

    4. Pull the cover away from the system. Installing the front cover on an 8335-GCA or 8335-GTA system Learn how to install the front cover on an IBM Power System S822LC (8335-GCA and 8335-GTA) system after accessing the components or performing service.

  • Page 128: Service And Operating Positions For 8335-Gca Or 8335-Gta

    Service and operating positions for 8335-GCA or 8335-GTA Learn how to place on an IBM Power System S822LC (8335-GCA and 8335-GTA) system into the service or operating position. Placing an 8335-GCA or 8335-GTA system into the service position Learn how to place an IBM Power System S822LC (8335-GCA and 8335-GTA)system into the service position.

  • Page 129: Power Cords

    Figure 113. Placing the system into the operating position Power cords Learn how to disconnect and connect the power cords on IBM Power System S822LC (8335-GCA and 8335-GTA) systems. Disconnecting the power cords from an 8335-GCA or 8335-GTA system Learn how to disconnect the power cords from an IBM Power System S822LC (8335-GCA and 8335-GTA) system.
  • Page 130 Note: This system might be equipped with two or more power supplies. If the removing and replacing procedures require the power to be off, then ensure that all the power sources to the system have been completely disconnected. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 131: Connecting The Power Cords To An 8335-Gca Or 8335-Gta System

    Figure 116. Removing the power cords from an 8335-GTA or 8335-GCA system Connecting the power cords to an 8335-GCA or 8335-GTA system Learn how to connect the power cords to an IBM Power System S822LC (8335-GCA and 8335-GTA) system. Procedure 1.
  • Page 132 Figure 119 on page 117. Use the hook-and-loop fastener to tie the power cord to the power supply handle. Figure 118. Power cord loop with cable management arm routing. The power cord loops counterclockwise to the right. Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)
  • Page 133 Figure 119. Power cord loop with sidewall routing. The power cord loops counterclockwise to the left. 4. Close the rack door at the rear of the system. Removing and replacing parts...
  • Page 134 Servicing the IBM Power System S822LC (8335-GCA or 8335-GTA)

  • Page 135: Notices

    This information was developed for products and services that are offered in the USA. This material may be available from IBM in other languages. However, you may be required to own a copy of the product or product version in that language in order to access it.

  • Page 136: Privacy Policy Considerations

    All statements regarding IBM's future direction or intent are subject to change or withdrawal without notice, and represent goals and objectives only. All IBM prices shown are IBM's suggested retail prices, are current and are subject to change without notice. Dealer prices may vary.

  • Page 137: Trademarks

    IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the web at Copyright and trademark information at www.ibm.com/legal/copytrade.shtml.
  • Page 138 This product has been tested and found to comply with the limits for Class A Information Technology Equipment according to European Standard EN 55022.
  • Page 139 Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user will be required to take adequate measures. IBM Taiwan Contact Information: Electromagnetic Interference (EMI) Statement - Korea Notices...
  • Page 140 Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur von der IBM empfohlene Kabel angeschlossen werden. IBM übernimmt keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das Produkt ohne Zustimmung von IBM verändert bzw.

  • Page 141: Class B Notices

    Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and connectors are available from IBM-authorized dealers. IBM is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment.
  • Page 142 This product is in conformity with the protection requirements of EU Council Directive 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility. IBM cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non-IBM option cards.
  • Page 143 Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur von der IBM empfohlene Kabel angeschlossen werden. IBM übernimmt keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das Produkt ohne Zustimmung von IBM verändert bzw.

  • Page 144: Terms And Conditions

    Permissions for the use of these publications are granted subject to the following terms and conditions. Applicability: These terms and conditions are in addition to any terms of use for the IBM website. Personal Use: You may reproduce these publications for your personal, noncommercial use provided that all proprietary notices are preserved.
  • Page 145 Notices...
  • Page 146 IBM® Printed in USA...

This manual is also suitable for:

8335-gca8335-gta

Table of Contents
