ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
Model/Modelo/Modèle
B2510LF/B2512LF/
B2510LF-PPU/B2512LF-PPU/
B2515LF-PPU
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.

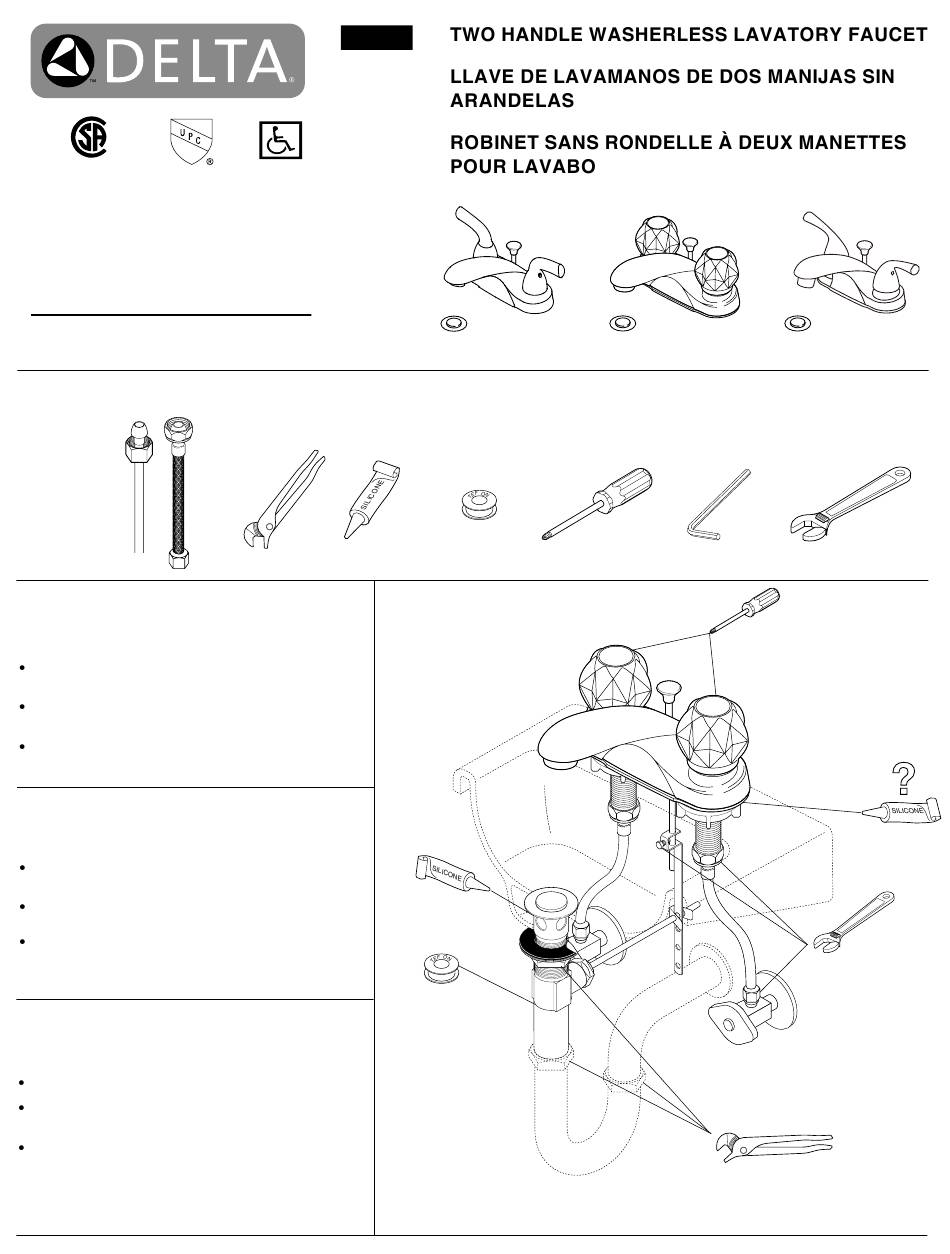

For easy installation of your Delta
faucet you will need:
To READ ALL the instructions completely
before beginning.
To READ ALL warnings, care, and maintenance
information.
To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
LEER TODAS las instrucciones completamente
antes de empezar.
LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
LIRE TOUTES les instructions avant de débuter;
LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
Acheter le bon nécessaire de raccordement.
65591
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
L
L
1
?
2/21/11 Rev. E
