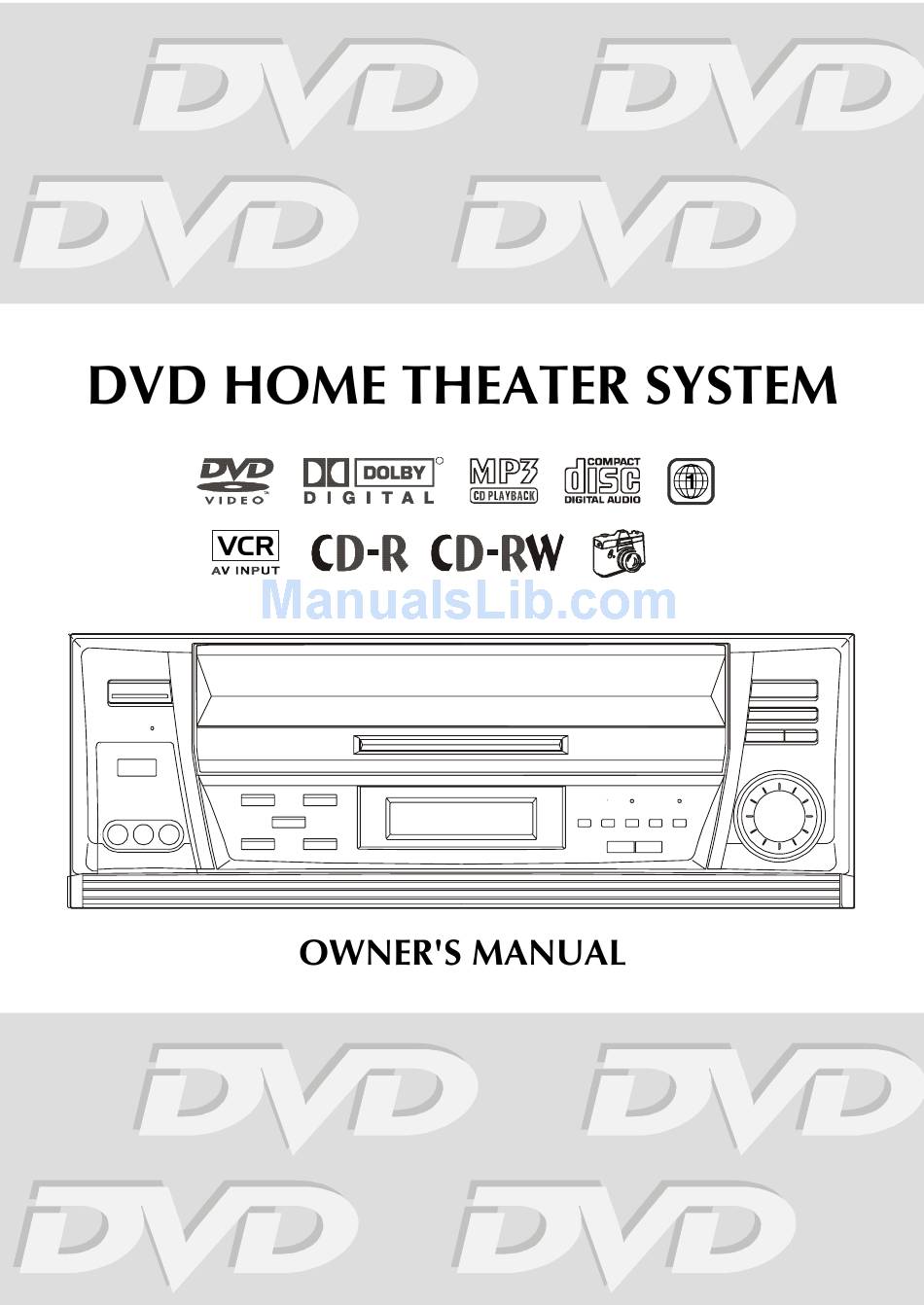

Audiovox DV1530 Owner's Manual

Audiovox dv1530: owners manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R
JPG
FILES

Advertisement

Table of Contents
loading

Related Manuals for Audiovox DV1530

Summary of Contents for Audiovox DV1530

  • Page 1 FILES...

  • Page 2: Important Safety Instruction

    Important Safety Instructions WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
  • Page 3 Important Safety Instructions 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to. 4.

  • Page 4: Table Of Contents

    Important Safety Instruction ... 1-2 Disc Formats ... 4 Before You Start ... 5 Using the remote control ... 5 Parts and Functions ... 6-9 Front Panel ... 6 Rear Panel...7 Subwoofer...7 Remote Control ... 8-9 Display ...10 Front Panel Display ...10 Display Information ...10 Setup ...

  • Page 5: Disc Formats

    The Unit can playback. DVDs [8cm(3")/12cm(5”) disc] Audio CDs [12cm(5”) disc] Region Management Information Region Management Information: This Unit is designed and manufactured to respond to the Region Management Information that is encoded on DVD discs. If the Region number printed on the DVD disc does not correspond to the Region number of this Unit, this Unit cannot play that disc.

  • Page 6: Before You Start

    Using the Remote Control • Point the Remote Control at the REMOTE SENSOR located on the Unit. • When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation. • The recommended effective distance for remote operation is about 16 feet (5 meters). To install Batteries 1.

  • Page 7: Parts And Functions

    Front Panel 1) POWER button Turn the power on or off. 2) 5 Disc tray Open or close tray by pushing OPEN/CLOSE button. Place discs on the disc trays, label side up. 3) Display window Display system information. PRO LOGIC indicator When DOLBY PRO LOGIC sound is selected in AV_IN mode, the light will illuminate.

  • Page 8: Rear Panel

    Rear Panel Sub-Woofer Front Panel 22) AM LOOP ANTENNA terminal 23) FM ANTENNA jacks 24) Power cord 25) DIGITAL AUDIO OUT jack 26) AUDIO OUT jack (SUB-WOOFER) 27) S-VIDEO (DVD) output jack 28) VIDEO OUT jack 29) AUDIO OUT (L/R) jacks 30) VIDEO IN (VCR) jack (AV1) Parts and Functions 31) AUDIO IN (L/R) jacks (AV1)

  • Page 9: Remote Control

    Remote Control R E T U R N F U N C T IO N M E M O RY 5 .1 C H 2 .1 C H D IM M ER D IS C 1 D IS C 2 D IS C 4 D IS C 5 P R O L O G IC...

  • Page 10: Parts And Functions

    Remote Control O P E N / C LO S E R E T U R N F U N C T IO N G O TO M EM O RY 5 .1 C H 2 .1 C H S O U N D D IM M ER D IS C 1 D IS C 2...

  • Page 11: Display

    Front Panel Display CD indicator Displayed during CD playback. STEREO indicator Tune into a station. "((ST))" will appear when an FM broadcast is in stereo. Main display section Indicates the operation status of the disc and Unit. Display Information The DVD displays the information shown below on the TV screen and on the Unit's DVD display depending on the operation status.

  • Page 12: Setup

    For better reception Connect FM antenna (included) to the FM ANTENNA jacks. Connect the loop antenna (included) to the AM LOOP ANTENNA terminals. A.Connecting your TV The Unit can be connected to your TV in several different ways, depending on the design of your TV. RCA Audio/Video Jacks Use the included Audio/Video cable.

  • Page 13: Connecting A Vcr

    B. Connecting a VCR 1. Using the supplied Audio/Video cable, connect the yellow plug from VIDEO OUT jack on your Unit to VIDEO IN jack on your TV, connect the left and right AUDIO OUT jacks on your Unit to AUDIO IN jacks on your TV. If you want the sound come from the speakers of the Main Unit, you need not to connect these left and right Audio cable from the Main Unit to your TV.

  • Page 14: Connecting Another Source

    C. Connecting another source Using the supplied Audio/Video cable, connect ONLY the left and right AUDIO OUT jack on your Unit to the AUDIO IN jack or use a coaxial digital Audio cable (not supplied) to connect to the coaxial in jack on your another equipment.

  • Page 15: Connecting The Speakers & Subwoofer

    D. Connecting the speakers & subwoofer 1. The speaker cords have been color-coded to simplify connection. Just plug the POSITIVE (+) and NEGATIVE (-) ends of each speaker wire into the corresponding jacks on the rear of the subwoofer, matching the color tube on the end of the speaker wire to the color-coded connector.

  • Page 16: Positioning The Speakers And Subwoofer

    E. Positioning the speakers and subwoofer CENTER Place on the top of or below the TV. FRONT SPEAKERS Place on both sides of the TV, equal distances apart. Setup CENTER FRONT LEFT REAR LEFT FRONT RIGHT SUB- WOOFER SUBWOOFER Can be placed anywhere. REAR RIGHT REAR SPEAKERS...

  • Page 17: Mounting Rear Surround Speakers

    Mounting rear surround speakers 1) Mark the correct mounting position on the wall. 2) Insert a fixing screw(s) at the marked position on the wall. 3) Align the slot hole(s) of the speaker over the screw and pull the speaker downward until it is firmly hooked. DO NOT RETURN THIS TO THE STORE Please call Customer Service at 1-800-252-6123 or visit online help at http://www.18002526123.com...

  • Page 18: Adjusting The Sound

    To adjust the surround sound balance while Pro Logic decoding is in effect Use the remote control to make the following changes to speaker balance: Front speaker (left) • Press the SOUND button repeatedly to display LEFT, then press the sound level.
  • Page 19 To select the listening channel 1. When the disc is stopped, you can press 5.1 CH and 2.1 CH buttons on the remote control to select different speakers output status shown as below table. 2. At AV_IN function mode, you also can press the select 3 STEREO, PRO LOGIC (indicator on the front panel will illuminate) or OFF three different speakers output status, Details please refer to below listed table.

  • Page 20: Playing A Disc

    Basic playback This owner’s manual explains the basic instructions of this DVD Unit. Some DVD discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD Unit may not respond to all operating commands. This is not a defect in the DVD Unit. Refer to the instruction notes of discs.

  • Page 21: Fast Foward/Fast Reverse

    Fast Forward/Fast Reverse 1. Press the TUNING TUNING button when a disc is playing. • The disc begins fast scan at x2 speed. • Four speeds are available. Each time TUNING button is pressed, the speed of fast scan changes in the following sequence: Note : You also can press and hold...

  • Page 22: Angle Selection

    Angle selection Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles. 1. While you are playing a DVD with different angles recorded, press the ANGLE button to view the number of the current angle.

  • Page 23: Subtitle Selection

    Subtitle selection 1. While a DVD is playing, press the SUBTITLE button to display the current language setting, as shown in the example below. 2. Press the SUBTITLE button repeatedly to select the desired subtitle language. Notes : • If only one language is recorded, the language does not change. •...

  • Page 24: Special Functions

    Basic playback DISPLAY function Using DISPLAY, you can check and change the current settings of the following items: ANGLE, AUDIO and SUBTITLE. • While the disc is playing, press the DISPLAY button to display the screen shown below. Elapsed time: Elapsed time from the beginning of the chapter which is currently playing. Remaining time: Remaining time of the title which is currently playing.

  • Page 25: Locating A Specific Title

    Basic playback Locating a specific title If a DVD disc contains title numbers, you can locate a specific title by directly selecting a title number. 1. In stop mode, press the GOTO button. 2. Press button to highlight a specific field and press the corresponding number button(s) for the title you want.

  • Page 26: Locating A Specific Time

    Basic playback Locating a specific time You can move to a specific location by entering its corresponding time (hours, minutes, seconds) 1. Press the GOTO button. 2. Press button to highlight time. 3. Press the corresponding number buttons for the setting point you want. •...

  • Page 27: Cd / Dvd Programmable Memory

    Advanced CD / DVD programmable memory playback Programmable memory The two types of programmed playback provided by this Unit are title programmed playback and chapter programmed playback. Title / Chapter programmed playback 1.Press the MEMORY button while the disc is stopped. 2.Enter the title numbers in .

  • Page 28: Repeat Playback

    Advanced playback You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, A-B repeat) Repeating a title You can play the same title repeatedly. 1. While the disc is playing, press the REPEAT DISC button until the “ ”...

  • Page 29: Repeating A Specific Section Dvd

    Advanced playback Repeating a specific section You can play a specific section repeatedly. 1. While the disc is playing, press the REPEAT A-B button at the beginning of the section ( ) is displayed you want to play repeatedly. 2. Press the REPEAT A-B button again at the end of the section ) is displayed.

  • Page 30: Playing Mp3 And Picture File Disc

    Playing MP3 and Picture File Disc This Unit will play MP3 and Picture files recorded on CD-R and CD-RW discs Playing a MP3 file disc 1. Press the OPEN /CLOSE button, the disc tray opens. 2. Insert a MP3 file disc on the disc tray with the label side up. 3.

  • Page 31: Playing A Picture File Disc

    Playing MP3 and Picture File Disc Playing a Picture file disc 1. Press the OPEN /CLOSE button, the disc tray opens. 2. Insert a Picture CD on the disc tray with the label side up. 3. Press the OPEN/CLOSE button, the disc tray closes. 4.

  • Page 32: Radio Operation

    Tuning into a station manually 1.Press FUNCTION button on the remote or TUNER button on the front panel until the frequency band appears on the display. 2. Press the BAND button on the remote remote or button on the front panel to select the desired band. 3.Press the TUNING button to tune in the desired...

  • Page 33: Customizing The Function Settings

    Customizing the Function Settings LANGUAGE setting 1. Press FUNCTION button on the remote or DVD button on the front panel until DVD appears on the display. 2. Press the STOP button so that no disc is playing. 3. Press the SETUP button. 4.

  • Page 34: Video Setting

    Customizing the Function Settings VIDEO setting TV Shape 1. Press the SETUP button. 2. Use button to select Video, then press the ENTER button. 3. Use button to select TV Shape, then press the ENTER button. 4. Use button to shift and select the TV type, then press the ENTER button. 5.

  • Page 35: Video Output

    Customizing the Function Settings Video Output 1. Press the SETUP button. 2. Use button to select Video, then press the ENTER button. 3. Use button to select Video Output, then press the ENTER button. 4. Use button to shift and select the signal, then press the ENTER button. 5.

  • Page 36: Edges

    Customizing the Function Settings Edges 1. Press the SETUP button. 2. Use button to select Video, then press the ENTER button. 3. Use button to select Edges, and then press the ENTER button. 4. Use button to shift and select the Sharpen / Soften / Off, then press the ENTER button. 5.

  • Page 37: Audio Setting

    Customizing the Function Settings AUDIO setting Digital Out 1. Press the SETUP button. 2. Use the cursor button to select Audio, press the ENTER button. 3. Use the cursor button to select Digital Out, and then press the ENTER button repeatedly to select Digital Out type.

  • Page 38: Subwoofer

    Customizing the Function Settings Subwoofer 1. Press the SETUP button. 2. Use the cursor button to select the Audio, press the ENTER button. 3. Use the cursor button to Subwoofer, and then press the ENTER button. 4. Use the cursor button to select the desired setting, and then press the ENTER button.

  • Page 39: Center Delay

    Customizing the Function Settings Center Delay 1. Press the SETUP button. 2. Use the cursor button to select the Audio, press the ENTER button. 3. Use the cursor button to Center delay, then repeatedly press the ENTER button to select the desired Center Delay type.

  • Page 40: Rating Setting

    Customizing the Function Settings RATING setting Password/Parental lock DVD discs equipped with the password function are rated according to their content. The contents allowed by a parental lock level and the way a DVD disc can be controlled may vary from disc to disc. For example, if the disc allowed, you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or you could lock out playback of the disc altogether.

  • Page 41: Factory Set

    Customizing the Function Settings Factory Set If you want to return the initial language setting to the factory default, do the following: 1. Press the SETUP button. 2. Use button to select the Rating, then press the ENTER button. 3. Use button to shift and select the Factory Set, then press the ENTER button.

  • Page 42: Language Code List For Disc Language

    Language Code List for Disc Language...

  • Page 43: Maintenance

    Cleaning Disc A defective or soiled disc inserted into the Unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges. • Do NOT touch the surface of the unlabeled side of the disc. •...
  • Page 44 SYMPTOM CAUSE (AND REMEDY) • The location and orientation of the antenna are incorrect. If you use an indoor antenna, change to an outdoor antenna. • The TV antenna wire is too close to the Unit. Separate the antenna wire of the TV set from the Unit.
