Overview

Design and function

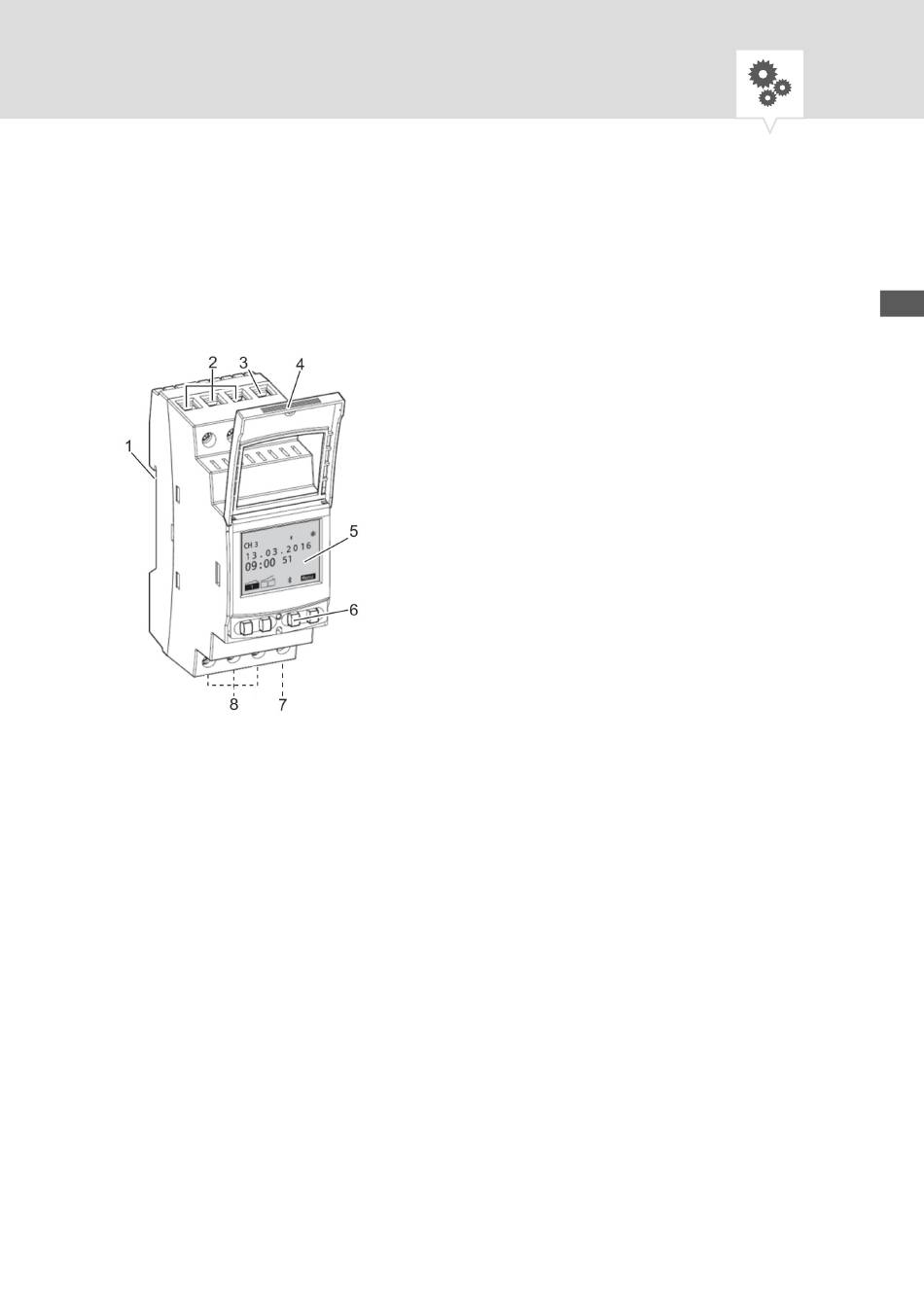

Fig. 1: Channel extension
1 Click system for installation on a DIN rail
2 Terminals for channel 4, 6 or 8
3 Terminal for phase
4 Sealable housing
5 Display
6 Control buttons
7 Terminal for neutral conductor
8 Terminals for channel 3, 5 or 7
Description of function
The channel extension has two channels and can be operated via a display (Fig. 1/5) with four control
buttons (Fig. 1/6). The radio signal frequency is 2.4 GHz and the maximum transmission power is 1.8 mW.
The DIN-rail timer provides two channels: channel 1/2. In addition, up to three channel extensions can be
connected to the DIN-rail timer to provide the following channels:: channel 3/4, channel 5/6, channel 7/8.
The channel extension is installed on a DIN rail (Fig. 1/1) by means of a click system; the channel exten-
sion activates the connected device.
