Summary of Contents for Audiovox VOD705DL
-

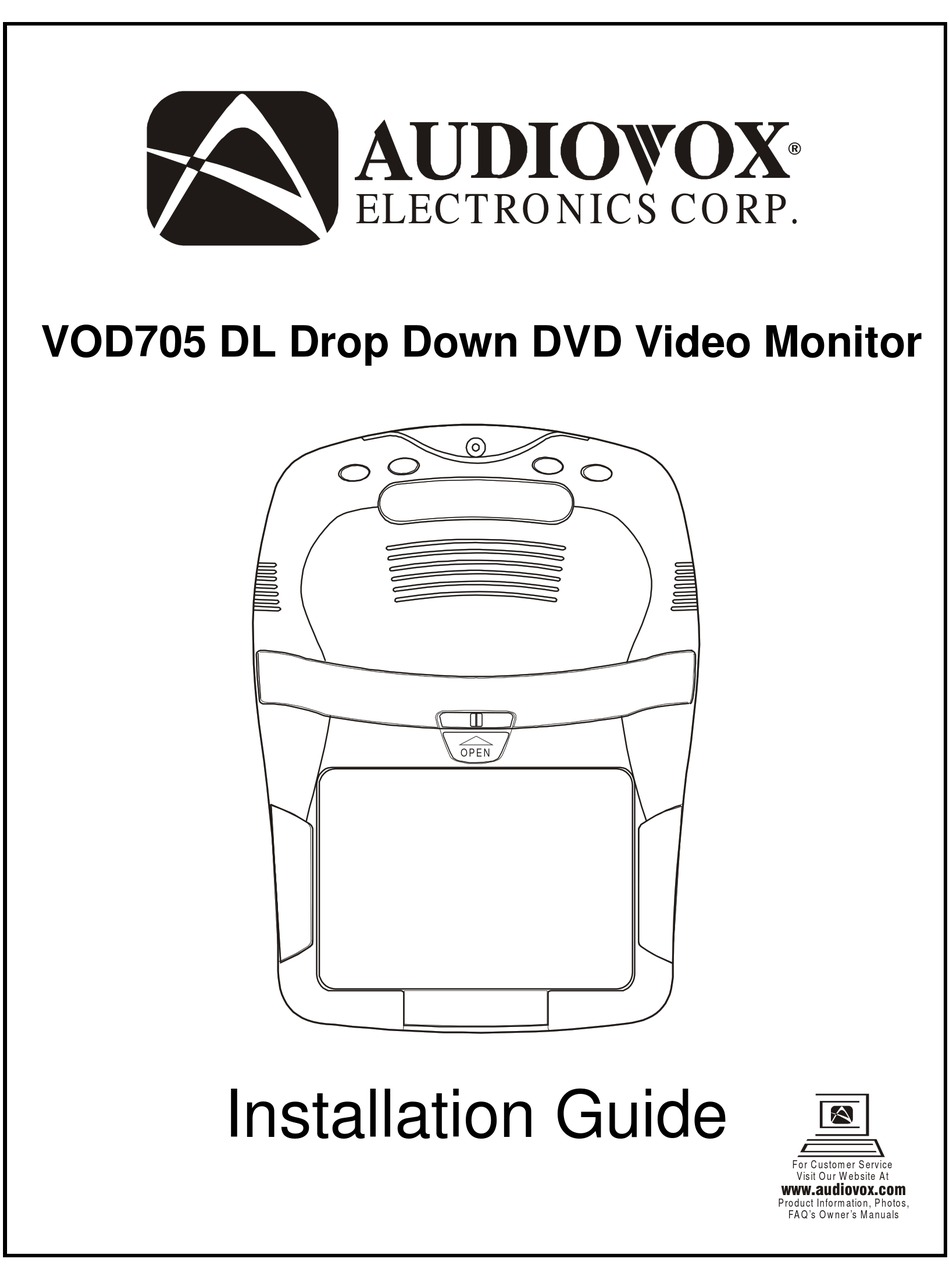

Page 1: Installation Guide
® ELECTRONICS CORP . VOD705 DL Drop Down DVD Video Monitor O P E N Installation Guide F o r C ustom er S ervice V is it O u r W e b site A t P ro du ct Info rm atio n , P h oto s, FA Q ’s O w ner ’s M a nu als... -
Page 2: Important Notice
Important Notice It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver's seat, or that is visible directly or indirectly to the operator of the motor vehicle. -
Page 3: Materials Included In This Package
MATERIALS INCLUDED IN THIS PACKAGE: 1) VOD705 DL DVD Video Monitor (P/N 136D2136) (1 pc) 2) Accessory 8 pin FM Transmitter Harness with Transformer (P/N 112B3106) (1 pc) 3) 18 Pin Power / Signal Harness with Two DIN Connectors and Cable Clamps (P/N 1123107) (1 pc) 4) 2 Pin Power Wire Harness with Choke (P/N 112B3143) (1 pc) 5) Hardware Package (P/N 150-1427) #6 x 1/4”... -
Page 4: General System Configurations
GENERAL INSTALLATION APPROACH: 1) Decide upon system configuration and options that will be installed (i.e.: what components, VCP, Tuner, RF Modulator/external amp, remote headphones, 2 2) Review all manuals to become familiar with electrical requirements and hook ups. 3) Decide upon mounting locations of all components and method of mounting. 4) Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as all areas where interconnecting wire harnesses will need to be located. -
Page 5: Vehicle Preparation
VEHICLE PREPARATION: Locate an accessory power source (+12v when key is in the ACC. and run positions, and 0v when key is off). Also locate a good grounding point. Generally, these connection points can be found at the Ignition Switch, Fusebox, Radio etc. The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the installation of the video monitor and related console accessories. -
Page 6: Mini Console Installation
MINI CONSOLE INSTALLATION: This page only covers special installation considerations for the mini-console installation. If the video monitor is to be installed in a vehicle with the mini console, the console may need to be trimmed to fit the contour of the vehicle headliner. In this installation, the video monitor is mounted directly to the overhead cross-member in the roof using the mounting screw bosses. - Page 7 MOUNTING THE MINI-CONSOLE Roof Roof Support Headliner 12"x9"x3/4" Plywood Block (4) Self-Tapping Screws (not supplied) Mini-Console Video Unit (5) #8 Flat Washers (5) #8x3/4" Self-Tapping Screws (1) Rubber Plug...
- Page 8 VOD705DL Sold Seperately VIDEO IN FUSE AUDIO-R AUDIO-L NOTE: 1) Make the connections to the vehicle for the 18 pin wiring harness (Source Component Harness(s), Power Harness ect.) 2) Connect the 18 Pin Harness to the mating connector on the Video Monitor.
-
Page 9: Connecting The Dome Lights
CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply voltage to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. To determine which system you have you must locate the wires at the dome light. -
Page 10: Troubleshooting
Negative Switched Dome lighting To 12 pin connector on Monitor Factory Dome light circuit Troubleshooting: SYMPTOM: No power at Video Monitor Power but no video or sound Picture, but no sound No Infrared remote func- tions for VCP (or other com- ponents) Red / black - Lamp on Black / red - Lamp common... - Page 11 V is it O u r W e b site A t P ro du ct Info rm atio n , P h oto s, FA Q ’s O w ner ’s M a nu als 128-6248B © Copyright 2002 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788...
