AM/FM/MPX RADIO
WITH DETACHABLE FRONT PANEL,
COMPACT DISC PLAYER,
CD CHANGER CONTROLS
AND QUARTZ CLOCK

Advertisement

Table of Contents
loading

Related Manuals for Audiovox ACD-75

Summary of Contents for Audiovox ACD-75

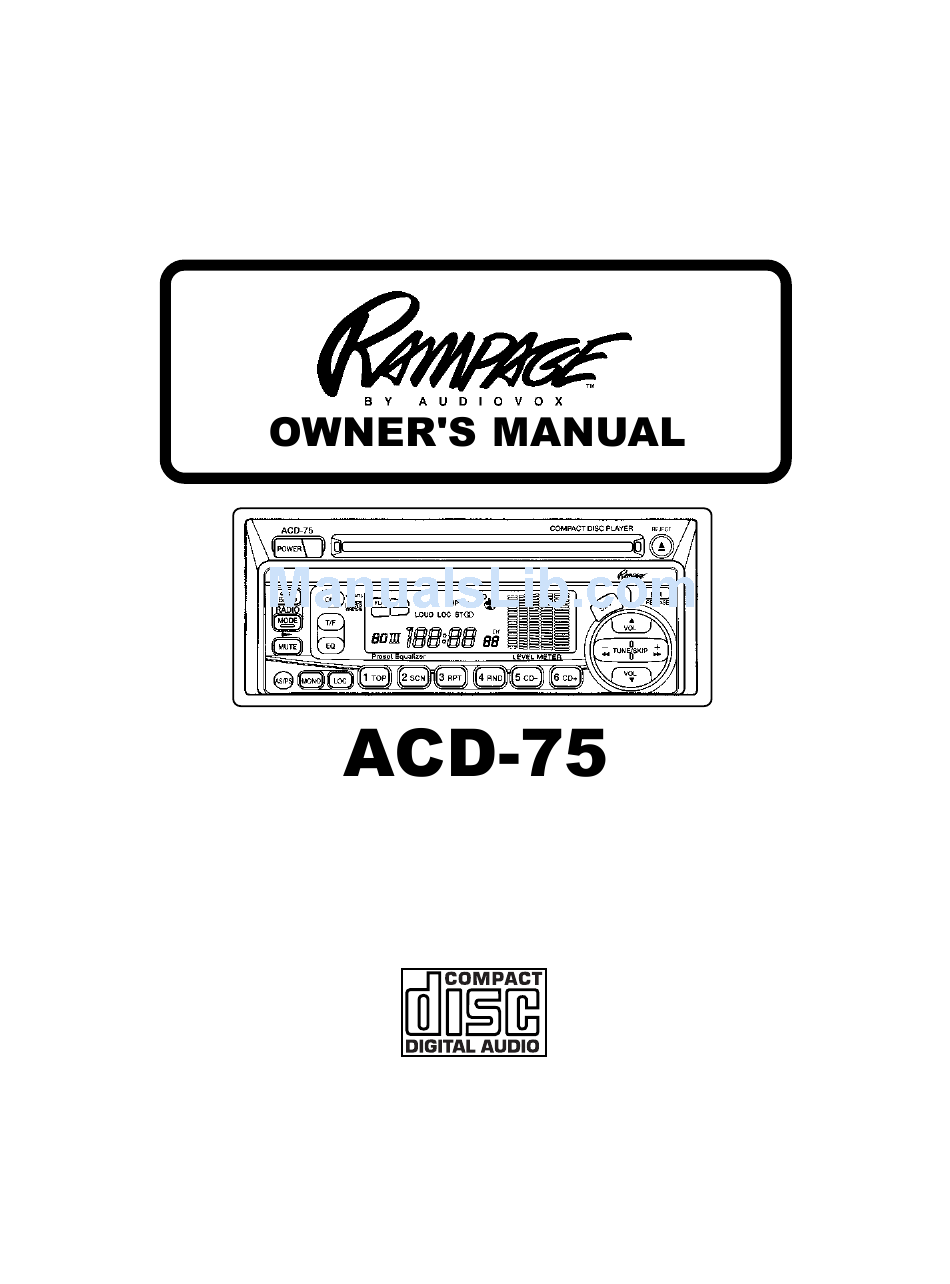

  • Page 1 AM/FM/MPX RADIO WITH DETACHABLE FRONT PANEL, COMPACT DISC PLAYER, CD CHANGER CONTROLS AND QUARTZ CLOCK...

  • Page 2: Installation Instructions

    Please consult your local car stereo installation shop or consumer electronic store. d. On the ACD-75, remove the detachable front panel, if it is attached to the chassis, by pressing the RELEASE button and pulling the panel assembly straight off the panel mounting plate.

  • Page 3: Wiring Color Codes

    USING A WIRING ADAPTER The easiest wiring method to connect the ACD-75 to the vehicle is to buy a wire harness adapter from your dealer, a car stereo installation shop or an electronics store. If you use a wiring adapter, all wires can be connected to your ACD-75 even before your old radio is removed from the car.
  • Page 4 3. Some vehicle applications incorporate a rear mounting support. Match the rear quickie bolt on the ACD-75 radio to the rear factory radio bolt location and snap the long quickie bolt (Item #3) into place. Thread the plastic rear bushing (Item #5) fully onto the quickie bolt.
  • Page 5 WIRING DIAGRAM-TYPICAL INSTALLATION FOR GM (Figure 1)
  • Page 6 TYPICAL CHRYSLER APPLICATION (See Figure 2.) Radio Preparation: NOTE: For Chrysler car installations, use the Chrysler Hardware Kit, Part Number 150-1332 1. Select two of the three mounting tabs provided (Items # 7, # 8 and # 9) and match the radio mounting style of the vehicle as shown in Figures 3, 4 and 5.
  • Page 7 TYPICAL INSTALLATION FOR CHRYSLER (Figure 2)
  • Page 8 ACD-75 POWER LOUD BAND MODE MUTE MONO TAB #1 ACD-75 POWER LOUD BAND MODE MUTE TAB #2 MONO ACD-75 POWER LOUD BAND MODE MUTE MONO TAB #2 COMPACT DISC PLAYER 100 WATT COMPACT DIGITAL AUDIO TUNE/SKIP Figure 3 COMPACT DISC PLAYER...
  • Page 9 POWER ON-OFF BUTTON Press this button to turn the unit on or off. The unit will also turn on automatically when a compact disc is inserted if the ignition switch is “on”. VOLUME (LEVEL) CONTROL To increase the volume level, press the VOL button.
  • Page 10 5 seconds of choosing the Treble mode, press the VOL button to decrease the treble response or the VOL button to increase it as desired. The level will be shown on the display panel from a minimum -12 to a maximum of +12 ( 00 indicates flat response).
  • Page 11 station in the selected direction and stop at that frequency. Press either side of the button again to resume seek to the next station in the selected direction. LOCAL/DISTANT SELECTOR (LOC) This feature is used to select the strength of the signals at which the radio will stop during Automatic Seek Tuning.
  • Page 12 FUNCTION DISPLAY (LEVEL METER) The Function Display consits of five bar graphs which provide a visual representation of the volume level and the channel signal levels. The volume level is represented by three thin bar graphs. As the volume is increased, the number of illuminated segments will increase.
  • Page 13 REPEAT PLAY SELECTOR (RPT) During disc play, press this button to repeat the play of the selected track (RPT will appear on the display panel). Play of the track will continue to repeat until the button is pressed again and the RPT indication disappears from the display panel.
  • Page 14 FRONT PANEL RELEASE BUTTON (RELEASE This button is used to release the mechanism that holds the front panel to the chassis. To detach the front panel, press the button so that the panel releases on the right side. Then carefully swing the right side out until the left edge disengages.
  • Page 15 CD PL CD PLA A A A A YER ERR CD PL CD PL CD PL If a problem should develop while operating the CD player, an error code (ER-1, ER-2, ER-3, etc.) may appear on the display panel. This can indicate a number of problems with the unit, including a mechanical error or an error in the microprocessor control of the player.
  • Page 16 Built into this radio are controls to operate an optional CD changer. Please check with your Rampage/Audiovox car stereo specialist or call 1-800-645-4994 for recommendations of the models that will work with this radio. Adjustment of the audio functions (volume,...
  • Page 17 pressed, the RPT indication will appear on the display panel and play of the selected track will be continually repeated until the Rrack Repeat mode is canceled by pressing the RPT button twice or by activating the Scan Random Play functions.

  • Page 18: Handling Compact Discs

    The radio section of your new sound system does not require any maintenance. We recommend that you keep this manual for reference on the many features found in this unit as well as how to set the clock. The compact disc player section also requires no routine maintenance, but proper understanding of its use and handling will help you obtain maximum enjoyment of its capabilities.

  • Page 19: 12 Month Limited Warranty

    This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. U.S.A. : AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NY 11788 l 1-800-645-4994 CANADA: CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA...
  • Page 20 © 2000 Audiovox Electronics Corp., Hauppauge, NY 11788 128-5812A...
