2.8 Install a PCI Expansion Card

The motherboard has two 32-bit PCI slots (one shared with AMR
slot). If you wish to install a PCI card, refer to the instructions in this
section.

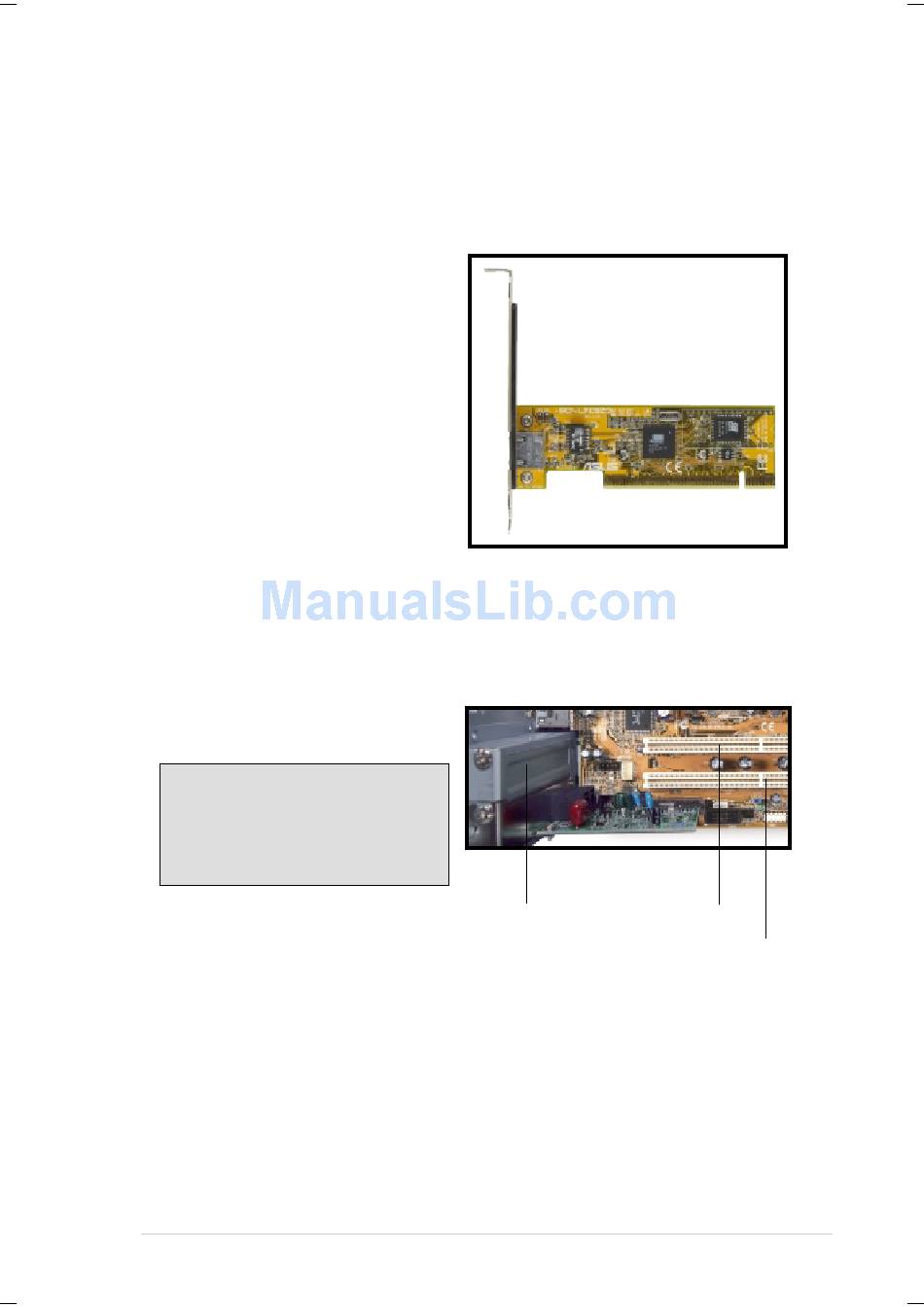

The figure on the right shows a
sample PCI network card that you
can install on the PCI slot.
Follow these steps to install a PCI
expansion card.
1. Place the chassis on its side.
2. Remove the metal bracket
cover opposite the PCI slot
marked PCI1.
NOTE
If you have installed a
modem riser card, PCI2 is
not available.
3. Align the PCI card golden
fingers to the PCI slot and its
metal bracket to the slot
opening on the chassis.
4. Press the card firmly until the
it is properly seated on the
slot.
5. Secure the card to the chassis
with a bracket screw.
ASUS Terminator K7 Barebone System
Slot Opening
PCI Slot 1 (PCI1)
for PCI1
PCI Slot 2 (PCI2)
27
