- Page 1 Thermal & Cable Solutions CALsys 1700 Temperature Calibrator USER MANUAL TEMPSENS INSTRUMENTS (l) PVT. LTD. U#ll...
-
Page 2: Table Of Contents
Content General Instruction....................Information on operating instruction Liability & warranty Unpacking & initial inspection Before you start....................Safety information Warning Caution Technical Data....................... 3.1 Technical specification 3.2 Circuit diagram Overview........................ Introduction Outline description Operating Instruction................... Power Setting the temperature Operating Instruction Operation of Controller.................. -
Page 3: General Instruction
1. General Instruction Information on operating instruction Congratulations on your purchase of high-quality and efficient CALsys 1700 temperature calibrator.Read this manual carefully to all instructions on safety, operation and maintenance. It serves as an important source of information and reference for installation and operation of the device. The general safety requirements must be strictly adhered to when operating the device. -
Page 4: Before You Start
2. Before You Start Safety Information Use the instrument only as specified in this manual. Otherwise, the protection provided by the instrument may be impaired. Refer to the safety information below and throughout the manual. The following definitions apply to the terms “Warning” and “Caution”. “Warning”... -
Page 5: Technical Data
3. Technical Data Technical Specification Voltage 230 V AC Power Supply Frequency 50/60 Hz Temperature Range 500 to 1700°C Resolution 0.1 °C Stability ± 2.0 °C Controlling Sensor B type T/C Duplex Time to reach Max. Temperature 3 hours Operating Temperature 20 to 45 °C Controller Specifications Eurotherm P104 series... -
Page 6: Overview

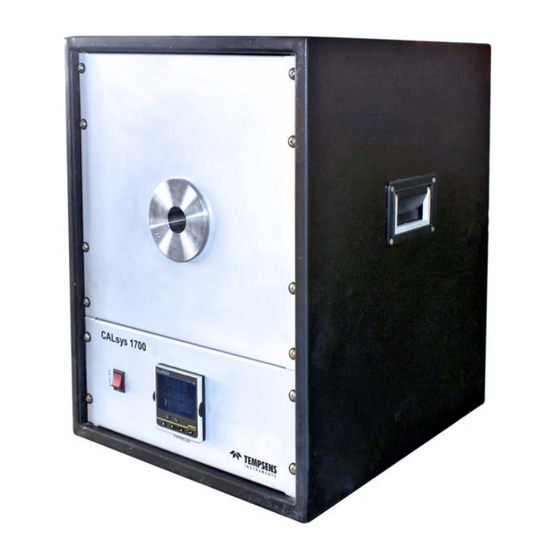

4. Overview Introduction The CALsys 1700 used as Dry block calibrator for thermocouple calibration and it can be used also as a pyrometer calibration with ceramic cavity. The 'CALsys 1700' has been designed to provide stable and accurate temperature to enable professionals to calibrate Temperature Sensing Devices (Thermocouple &... - Page 7 Eurotherm website) software is used for communicate the controller to PC and CAL soft for graphical view and data logging of the CALsys 1700. (8) Controlling Sensor Connection : Connect thermocouple wire to the controller terminal according to polarity.
- Page 8 If there is shipping damage, notify the carrier immediately. 2) Open the front plate and back sheet of CALsys 1700 and remove all packing sheets from inside. Insertion of heating element 40 mm height after inserting heating element...
- Page 9 Re-fix the front panel and back with help of bolts Note : Once you heated 3-4 times then recheck all heater connection of CALsys 1700 (there are no any nut bolt tight loose connection) to avoid any drops of voltage.
-
Page 10: Operating Instruction
Press “UP” or “DOWN” buttons to change the change the temperature set-point value. When the set-point temperature is changed the controller will switch the CALsys 1700 ON or OFF to raise or lower the temperature. The displayed temperature will gradually change until it reaches the setpoint temperature. The temperature bath requires 15 to 20 minutes to reach the set-point depending on the span. -
Page 11: Operation Of Controller
6. Operation of Controller Preset value of temperature Set value of temperature Page Down Enter Front Panel Layout The Temperature Controller The controller has a dual display, the upper display indicates the measured temperature, and the lower display indicates the desired temperature or set point. Altering the Set point To change the set point of the controller use the UP and DOWN keys to raise and lower the set point to the required value. -
Page 12: Maintenance & Trouble Shooting
Trouble Shooting 1. Unit Fails to Operate Check fuse if it is tripped switch is ON. If not power ON of calsys 1700 consult us. 2. Unit Unstable Controller parameter has been interfered, consult us. -
Page 13: Software Installation
PC serial port. This enables the acquisition and recording of data, as well as the transfer of commands from the software application to the tempsens furnace. Communication can be done by clicking on connect and select correct COM port address (fig. 1) where furnace is connected. Also user has to select type of controller version3216 (fig. - Page 14 8.2.2 Scale Trend in scale trend you have to change the Y-Axis Min value 0 and Y-AxisMax value 1700.MaximumTime Span, Minutes have to save data the data logging up to 120 minutes, than clickon start graph button. After complete the task clickon save to file button.
-
Page 15: Safety Instruction
