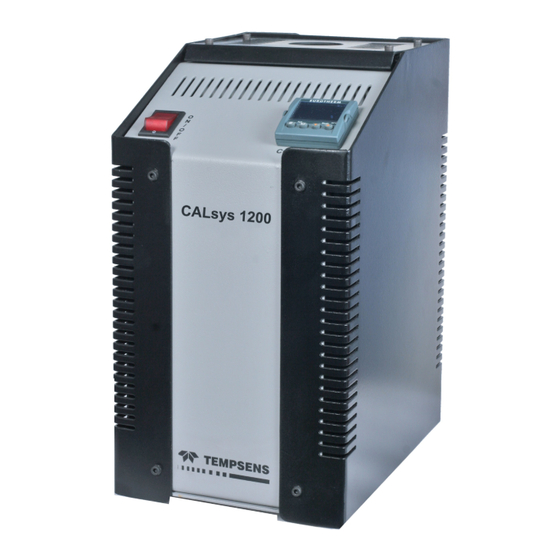

- Page 1 CALsys 1200 CALsys 1200 Dry block Temperature Calibrator USER MANUAL TEMPSENS INSTRUMENT (I) PVT. LTD UNIT II...
- Page 2 1. General Instruction................1 1.1 Information on operating instruction 1.2 Liability & warranty 1.3 Unpacking & initial inspection Before you start................2 2.1 Safety information 2.2 Warning 2.3 Caution Technical Data................3 3.1 Technical specification 3.2 Circuit diagram Overview..................4 4.1 Introduction 4.2 Outline description 5.
-
Page 3: General Instruction
1. General Instruction 1.1 Information on operating instruction Congratulations on your purchase of high-quality and efficient CALsys 1200 temperature calibrator.Read this manual carefully to all instructions on safety, operation and maintenance. It serves as an important source of information and reference for installation and operation of the device. -
Page 4: Before You Start
Before you Start 2.1 Safety Information Use the instrument only as specified in this manual. Otherwise, the protection provided by the instrument may be impaired. Refer to the safety information below and throughout the manual. The following definitions apply to the terms “Warning” and “Caution”. ... -
Page 5: Technical Data
3. Technical Data 3.1 Tec hnic a l Sp ec ific a t io n Voltage 230 V AC Power 1.5 KW Supply Frequency 50/60 Hz Temperature range 250 to 1200°C Resolution 0.1 °C Stability ± 0.5 °C Controlling sensor R type T/C Time to reach max. - Page 6 4. Overview 4.1 Introduction: The ‘CALsys 1200’ has been designed to provide stable and accurate temperature to enable professionals to calibrate Temperature Sensing Devices by comparison method. The ‘CALsys 1200’ model has been designed to be rugged and easily maintained. This model provides an isothermal enclosure (Metal block) in which the thermocouple/RTD can be calibrated against the temperature of the calibrator.
- Page 7 1. Insert the inconel block into well of furnace. 2. Connect the ‘CALsys 1200’ to a suitable power supply & Switch ON the Dry bath source and set the desire temperature value in PID by using UP & Down key.
-
Page 8: Front Panel Layout
6. Operation of Controller FRONT PANEL LAYOUT Operator Buttons 6.1 The Temperature Controller The controller has a dual display, the upper display indicates the measured temperature, and the lower display indicates the desired temperature or set point. 6.2 Altering the Set point To change the set point of the controller use the UP and DOWN keys to raise and lower the set point to the required value. -
Page 9: Maintenance And Troubleshooting
Cleaning may be accomplished by the use of a small dry paint brush. 7.2 Trouble shooting 1. Unit fails to operate Check fuse if it is tripped switch is ON. If not power ON of calsys 1200 bath consult us. 2. Unit unstable Controller parameter has been interfered, consult us. -
Page 10: Software Installation
Tempsens furnace. Communication can be done by clicking on connect and select correct COM port address (fig. 1) where furnace is connected. Also user has to select type of controller... - Page 11 1.2.2 Scale Trend: -in scale trend you have to change the Y-Axis Min value 0 and Y-AxisMax value 1200.MaximumTime Span, Minutes have to save data the data logging up to 120 minutes, than clickon start graph button. After complete the task clickon save to file button. Set Point (°C): - in which you can set temperature of furnace as your requirement.
-
Page 12: Safety Instructions
TEMPSENS reserves the right to make changes, without further notice, to any product herein to improve reliability, function, or design . TEMPSENS does not assume any liability arising out of the application or use of any product described herein, neither does it convey any license under its patent right nor the right of others. - Page 13 TEMPSENS INSTRUMENT (I) PVT. LTD...
