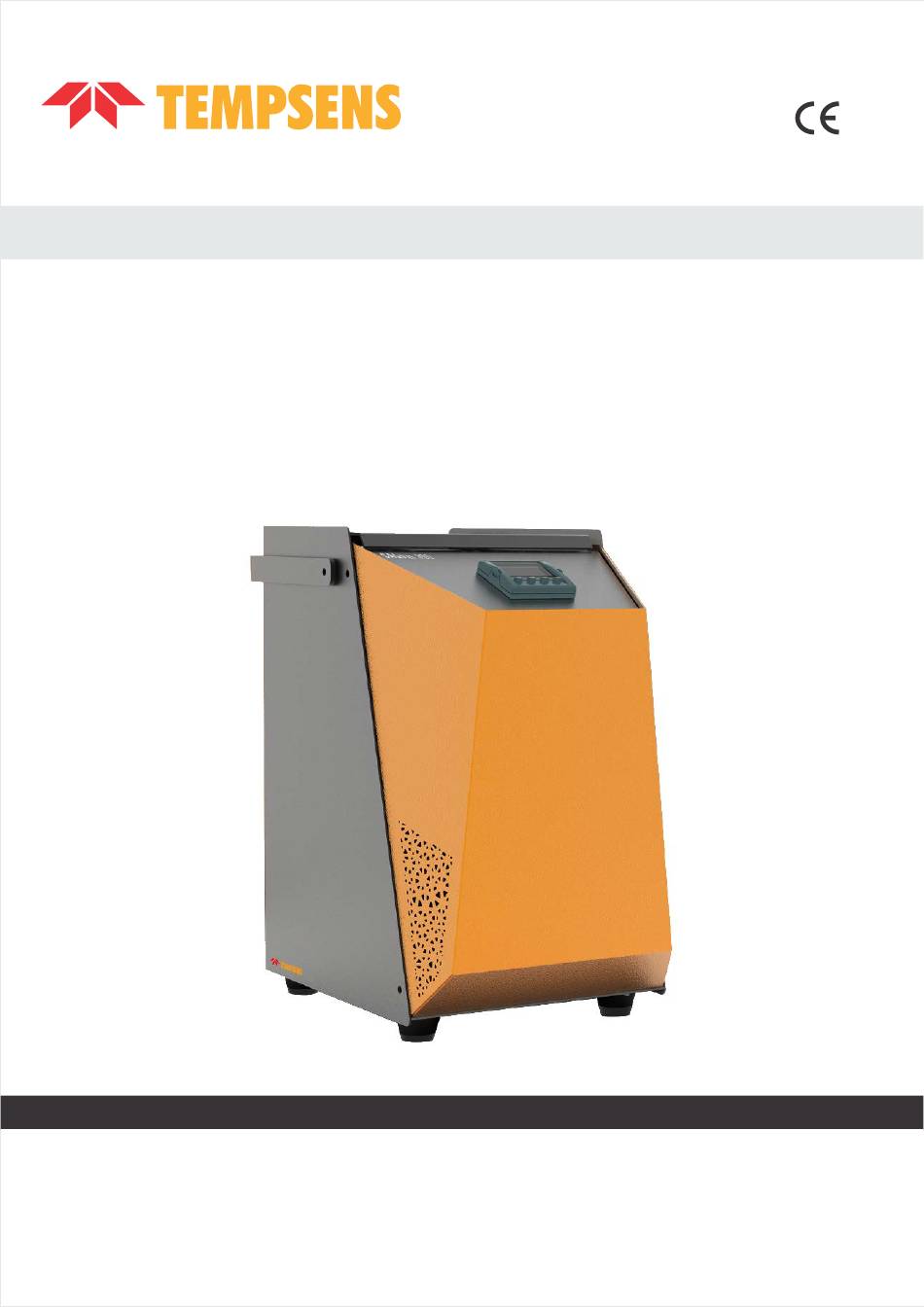

- Page 1 Thermal Engineering Solutions CALSYS 650 Dry Block Temperature Calibrator USER MANUAL...
- Page 2 1. Introduction 1.1 Basic working of CALsys 650 1.2 Dimension 1.3 Wiring Diagram 2. Technical Specification 3. Installation 3.1 Environmental Condition 4. Unpacking & Initial Inspection 4.1 Installation 5. Operating Instruction 5.1 Power 5.2 Heating up the source 5.3 Operating Instruction 6.
-
Page 3: Safety Information
Preface Thank you for purchasing High Quality and Efficient CALsys This user manual contains information about the product and 650. its proper use and should be kept in a place where it will be easy to access. Please familiarize yourself with the information contained in the safety precautions sections before using this product. -
Page 4: Health And Safety Instructions
There are no user serviceable parts inside. Contact Ÿ HIGH VOLTAGE is used in the operation of this equipment. Ÿ Tempsens agent for repair. SEVERE INJURY OR DEATH may result if personnel fail to Ensure materials, especially flammable materials are kept Ÿ... - Page 5 Please contact us in case you required more information about our other products. Basic Working of CALsys 650 The purpose of the CALsys 650 is to provide an isothermal enclosure for calibration purpose. The heater blockhouses a heater and a control sensor used by the temperature controller to sense the block temperature.
-
Page 6: Wiring Diagram
204.40 192.40 192.40 192.40 115.50 192.40 204.40 161.20 BOTTOM FRONT BACK CONTROLLER CHAMBER 267.85 153.76 SIDE VIEW SECTION A-A Wiring Diagram... -
Page 7: Technical Specification
Chapter - 2 Technical Specification Temperature Range 50 C to 650°C ° Accuracy ±1.0°C ± 0.025°C at 50°C Stability ± 0.035°C at 350°C ± 0.07°C at 650°C Resolution 0.1°C ± 0.04°C at 50°C Uniformity ± 0.07°C at 350°C ± 0.09°C at 650°C Time to Reach Max. -
Page 8: Environmental Conditions
Chapter - 3 Installation Place the black body on a flat surface with at least 10 inches of free space around the instrument. Overhead clearance is required. DO NOT Place this unit under a cabinet or structure. Plug the power cord into a grounded mains outlet located on the controlling unit rear panel. -
Page 9: Initial Inspection
Unpack the Furnace carefully and inspect. If you find any damage or any item is missing notify us or CALsys 650 K type TC Brass Block Software CD our agent. - Page 10 100 Deg C. Operating Instruction Connect the 'CALsys 650' to a suitable power supply. Place the metal insert in the bath. Place the sensors for calibration & master sensor into a suitable insert hole.
- Page 11 Plan the calibration point in increasing way then set the controller accordingly. This method will save the time. 10. Take the reading of sensors (master & test) at stable temperature with the help of Digital Multimeter or by using Tempsens make TEMPMET 08 or TEMPMET 09 for reading RTD or TC sensor.
- Page 12 Chapter - 6 Operation of Controller The Temperature Controller The controller has a dual display, the upper display indicates the measured temperature, and the lower display indicates the desired temperature or set point. Altering the Set point To change the set point of the controller use the UP and DOWN keys to raise and lower the set point to the required value.
-
Page 13: Digital Communications Wiring
Chapter - 7 Digital Communications EIA232 Connections RS-232 is a standard communication protocol for linking computer and its peripheral devices to allow serial data exchange. RS-232 communications uses the Modbus Screen protocol. Rs-232 communications is not available if Common Remote Set point is fitted. Cable screen should be grounded at one point only to prevent earth loops. -
Page 14: Broadcast Communications
Broadcast Communications 3200 The 3200 broadcast master can be connected to up to Master 31slaves if no segment repeaters are used. If repeaters are used to provide additional segments, 32 slaves are permitted in each new segment. The master is configured by setting the 'RETRN' parameter to W.SP, PV, OP or Err. -
Page 15: Installation
PC serial port. This enables the acquisition and recording of data, as well as the transfer of commands from the software application to the tempsens furnace. Communication can be done by clicking on connect and select correct COM port address (fig. 1) where furnace is connected. Also user has to select type of controller version3216 (fig. - Page 16 8.2.2 Scale Trend : in scale trend you have to change the Y-Axis Min value 0 and Y-Axis Max value 1500. Maximum Time Span, Minutes have to save data the data logging up to 120 minutes, than click on start graph button. After complete the task click on save to file button.
-
Page 17: Maintenance And Troubleshooting
Chapter - 9 Maintenance & Trouble shooting Routine service Turn the electricity supply off before attempting any cleaning operation. The only moving part is the fan. That has sealed-for-life bearings. Depending on the environment in which it is used, periodic cleaning is recommended. Cleaning may be accomplished by the use of a small dry paint brush. -
Page 18: Troubleshooting
HAZARDS WHICH MAY BE ASSOCIATED WITH, AND THE PRECAUTIONS TO BE TAKEN WITH, SUCH EQUIPMENT. Recommendation The life of your 'CALsys 650' instrument will be prolonged if regular maintenance and cleaning to remove general dust and debris is carried out. - Page 19 User induced faults are not covered under this warranty. Limit of Liability TEMPSENS not liable for any damages that arise from the use of any examples or processes mentioned in this Specifications are subject to change without notice Copyright: ©...
