5.0 SLOW CLOSE VALVE TIMING
LEFT
Uses left sleeve, stator and trunnion.

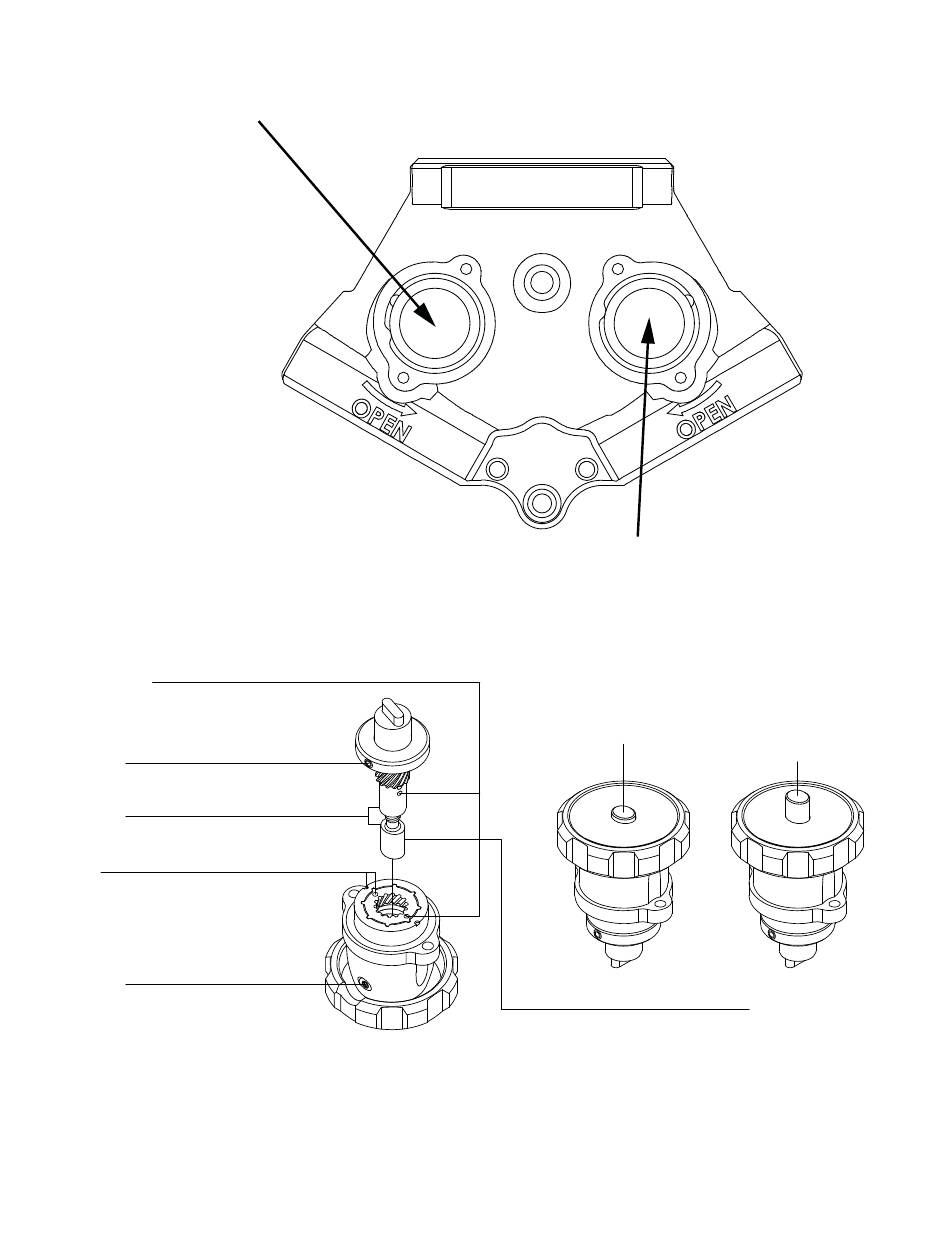

(see exploded view and parts list)
Timing marks aligned when splines engage
Blue Loctite
Approximately four turns out
Timing marks aligned when tops flush
Blue Loctite
Right parts similar with only one timing mark instead of two.
©Copyright Task Force Tips, Inc. 2008-2016
Aligned with eliptical hole in knob
LEFT SHOWN
7
RIGHT
Uses right sleeve, stator and trunnion.
(see exploded view and parts list)
3-1/2 Turns
Full Closed to Full Open
Indicator flush
Valve postion indicator
when fully closed
raises 1/2" when valve
is fully opened
