Invacare Action 2 Basic Service Manual page 24

inside of the wheelchair to prevent accidental release during contact leisure
activities.
Installing
1. Install the existing quick release axle
through the new/existing rear wheel.
2. Install the new/existing rear wheel and
quick release axle A into the axle bracket
on the wheelchair frame B.
3. Refer to Adjusting Quick Release Axles
paragraph if the locking pins are not
protruding past the inside of the axle
bushing or there is too much movement
of the rear wheel assembly in a back
and forth position.
SECTION 5—REAR WHEELS/FRONT CASTORS
Rear Wheel
Quick-Release
Axle

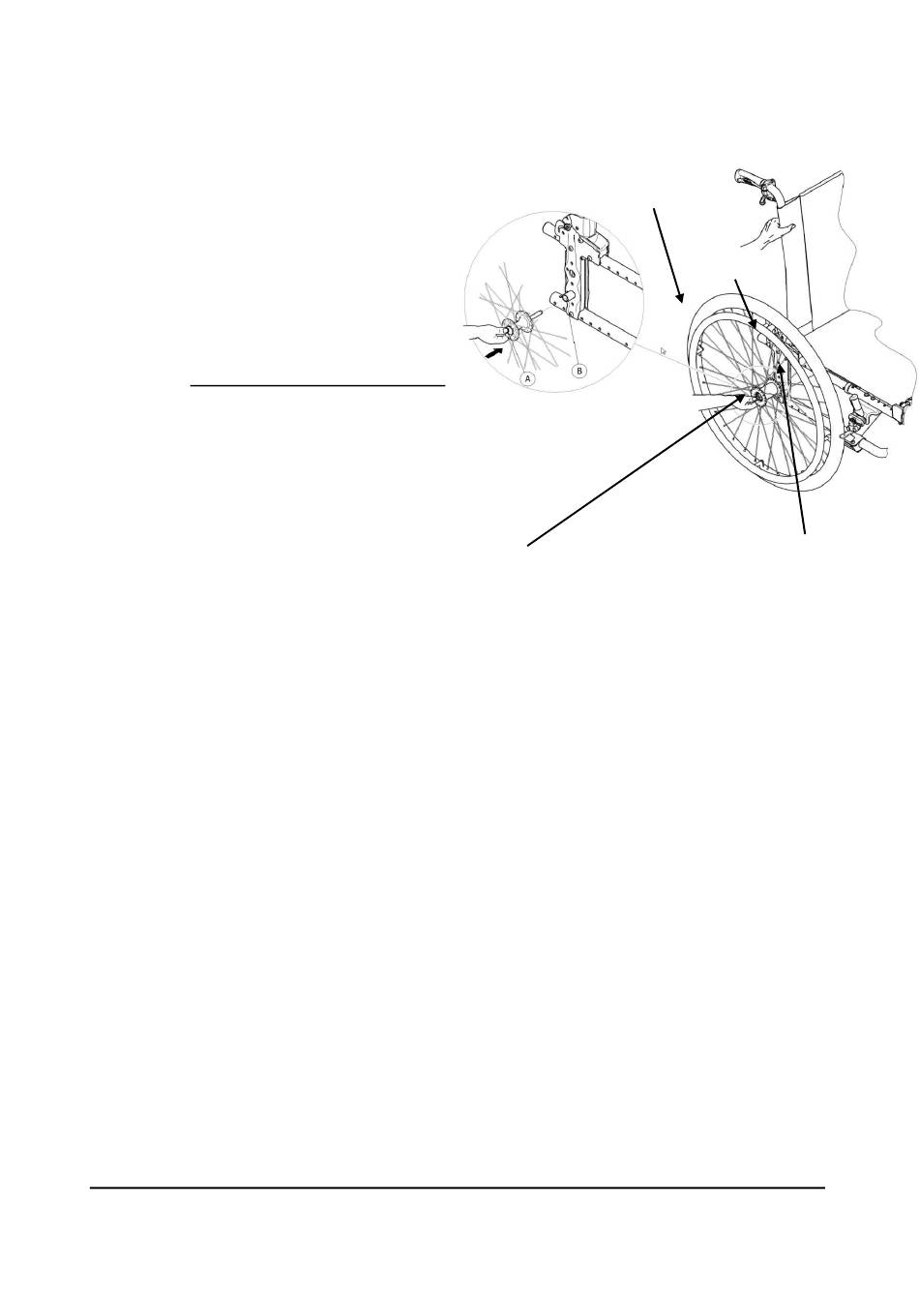

FIGURE 5.2
2 4
Wheelchair
Frame
Removing/Installing Rear Wheels
Axle
Bracket
