SECTION 4 –SEAT/BACK
FIGURE 4.1

Removing/Installing Seat Upholstery

NOTE: For this procedure, refer to FIGURE 4.2 on page 17.
R e m o v i n g Se a t U p h o l s te ry
NOTE: To install the seat upholstery, reverse this procedure.
1. Fold the wheelchair.
2. Remove the mounting screws that secures the seat upholstery to the front and back seat
rails.
3. Remove the end caps from the front of the seat rails.
4. Slide the seat upholstery out of the seat rails.
Assembly description
Screw for crossbar cap
Seat Upholstery
Endcaps

Removing/Installing Standard Back Upholstery

NOTE: For this procedure, refer to FIGURE 4.3. on page 18
Re movi ng Ba c k Upholste r y
NOTE: To Install the Back Upholstery, reverse this procedure.
1. Remove the back canes. Refer to Removing Back Canes paragraph.
2. Remove the mounting screw that secures the back upholstery to the back canes.
Refer to Detail "A".
Removing Back Canes
Screw Tool
PAN HD TAP
Pozidriv 2
3,5x9,5
Mounting Screws

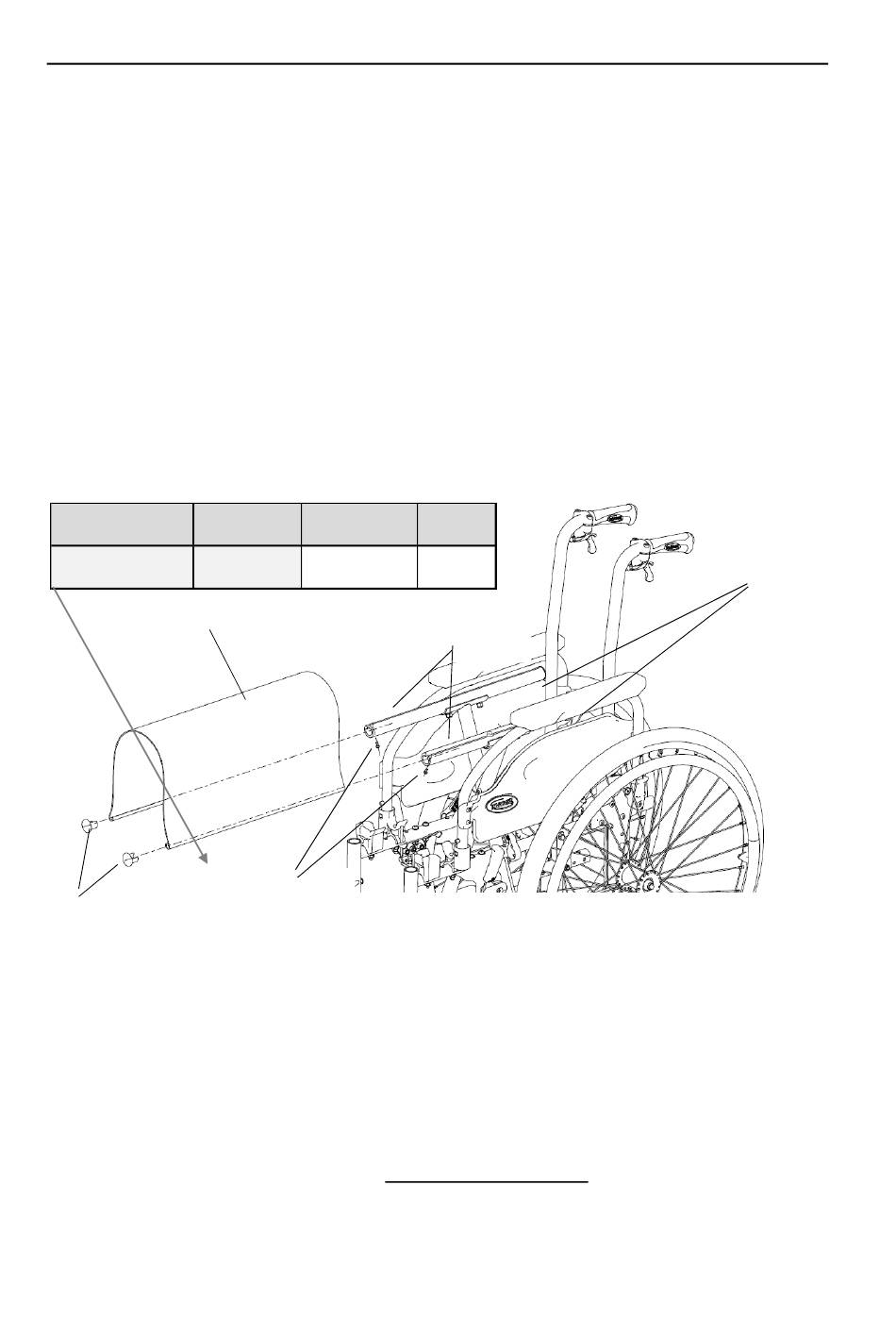

FIGURE 4.2 Removing/Installing Seat Upholstery
Torque
head in contact
with crossbar
Seat Rails
1 8
Mounting Screw
(hidden from view)
