- Page 2 Moteurs à allumage par étincelle série “Robin” EC, EY, EH, DY et EX: Engine Models : Modèles de moteur : EC01, 02, 03, 04, 06, 08, 10, 12, 17, 25 EC01, 02, 03, 04, 06, 08, 10, 12, 17, 25 EY08, 15, 20, 28, 35, 40...
-
Page 3: Table Of Contents
FOREWORD Thank you very much for purchasing a ROBIN ENGINE. Your ROBIN ENGINE can supply the power to operate various sorts of machines and equipment. Please take a moment to familiarize yourself with the proper operation and maintenance procedures in order to maximize the safe and efficient use of this product. Keep this owner’s manual at hand, so that you can refer to it at any time. -
Page 4: Safety Precautions
1. SAFETY PRECAUTIONS Please make sure you review each precaution carefully. Pay special attention to statement preceded by the following words. WARNING “WARNING” indicates a strong possibility of severe personal injury or loss of life if instructions are not followed. CAUTION “CAUTION”... - Page 5 WARNING : OTHER SAFETY PRECAUTIONS Place the protective covers over the rotating parts. ■ ■ If rotating parts such as the drive shaft, pulley, belt, etc. are left exposed, they are potentially hazardous. To prevent injury, equip them with protective covers or shrouds. Be careful of hot parts.
-
Page 6: Components
SYMBOLS Read the owner's manual. Stay clear of the hot surface. Exhaust gas is poisonous. Do not operate in an unventilated area. Stop the engine before refueling. Fire, open flame and smoking prohibited. On (Run) Plus ; Positive polarity Off (Stop) Battery Engine oil Engine start (Electric start) -
Page 7: Pre-Operation Checks

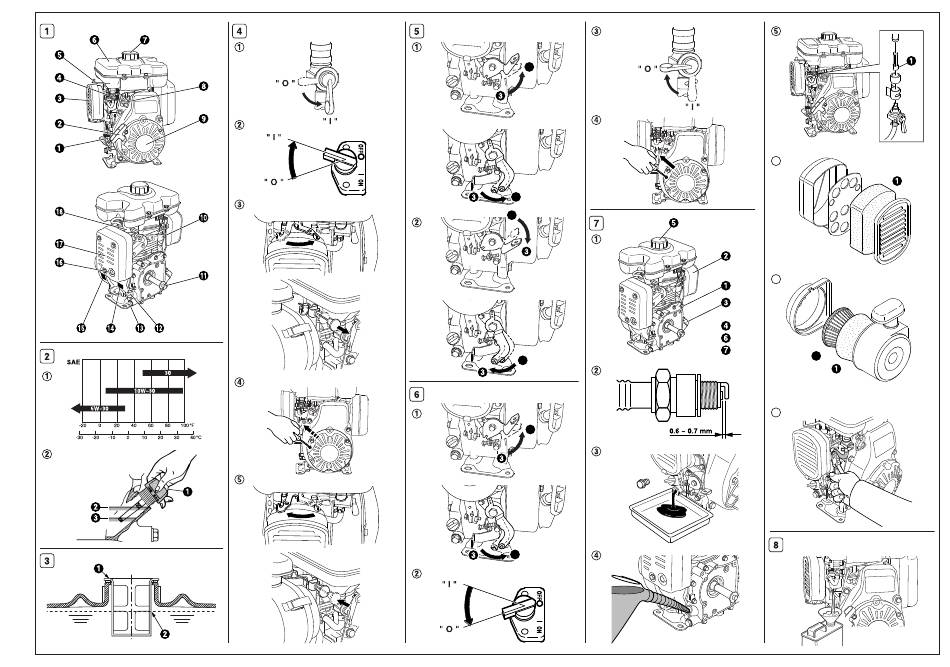

3. PRE-OPERATION CHECKS 4. OPERATING YOUR ENGINE (See Fig. 4 4 ) NOTE Engine shipped from our factory is without oil. 1. STARTING Before starting engine, fill with oil. Do not over-fill. (1) Open the fuel cock. (See Fig. 4-q) (2) Turn the STOP SWITCH to the position "... -
Page 8: Maintenance
3. INSPECTING THE SPARK PLUG ※ ※ STOPPING ENGINE WITH THE FUEL COCK (See FIG.7 7 -w w ) Close the fuel cock and wait for a while until the engine stops. (1) Clean off carbon deposits on the spark plug Avoid to let the fuel remain in the carburator over electrode using a plug cleaner or wire brush. -
Page 9: Preparations For Storage
5. CLEANING FUEL STRAINER 7. FUEL HOSE REPLACEMENT (See Fig.7 7 -t t ) (See Fig.7 7 -i i ) WARNING Flame Prohibited WARNING Take extreme caution when replacing fuel (1) Drain the fuel from the tank. hose ; gasoline is extremely flammable. (2) Close the fuel cock and remove the fuel strainer. -
Page 10: Oil Sensor Instructions (Optional)
7. OIL SENSOR INSTRUCTIONS 8. EASY TROUBLESHOOTING (OPTIONAL) WHEN ENGINE WILL NOT START : 1. FUNCTION OF OIL SENSOR Perform the following checks before you take the The engine will stop automatically when the oil engine to your Robin dealer. If you still have level falls below the safety limit. -
Page 11: Specifications
9. SPECIFICATIONS MODEL EH09-2D Air-cooled,4-cycle,single-cylinder, horizontal shaft,OHV,gasoline engine Type 51 x 42 Bore x Stroke Piston displacement mL(cc) Compression ratio 2.1 / 4200 Maximum Output kW / rpm 1.5 / 3600 Continuous Output kW / rpm 4.9 / 3600 Maximum torque N･m / rpm Direction of Rotation Counter clockwise as viewed from PTO shaft side...
