AMX Modero MVP-8400i Quick Start Manual

Overview
The AMX MVP-8400i panel (FG5965-04) uses an internal wireless compact
flash card to communicate with a NetLinx Master via a standard 802.11g
Wireless Access Point. Panel to panel communication is enabled via a full
duplex VoIP intercom interface. The MVP-8400i utilizes a 8.4" Color Active LCD
to display a 800 x 600 pixel image using over 256 K colors, and features
programmable firmware that can be upgraded via either the wireless card or the
mini-USB port. The MVP-8400i also features nine programmable external
pushbuttons and two sets of programmable LEDs. On the 4 available IR
channels, this panel utilizes both AMX IR frequencies (38 KHz or 455 KHz) and
2 additional user-defined IR libraries.
For detailed installation, configuration, programming, file transfer, and operating
instructions refer to the MVP-8400i Modero ViewPoint Touch Panels operation/
reference guide, available on-line at www.amx.com.
Directional pad w/center select button
Microphone
Pushbuttons (4)
Stylus
C
Speaker
Docking station interface connector

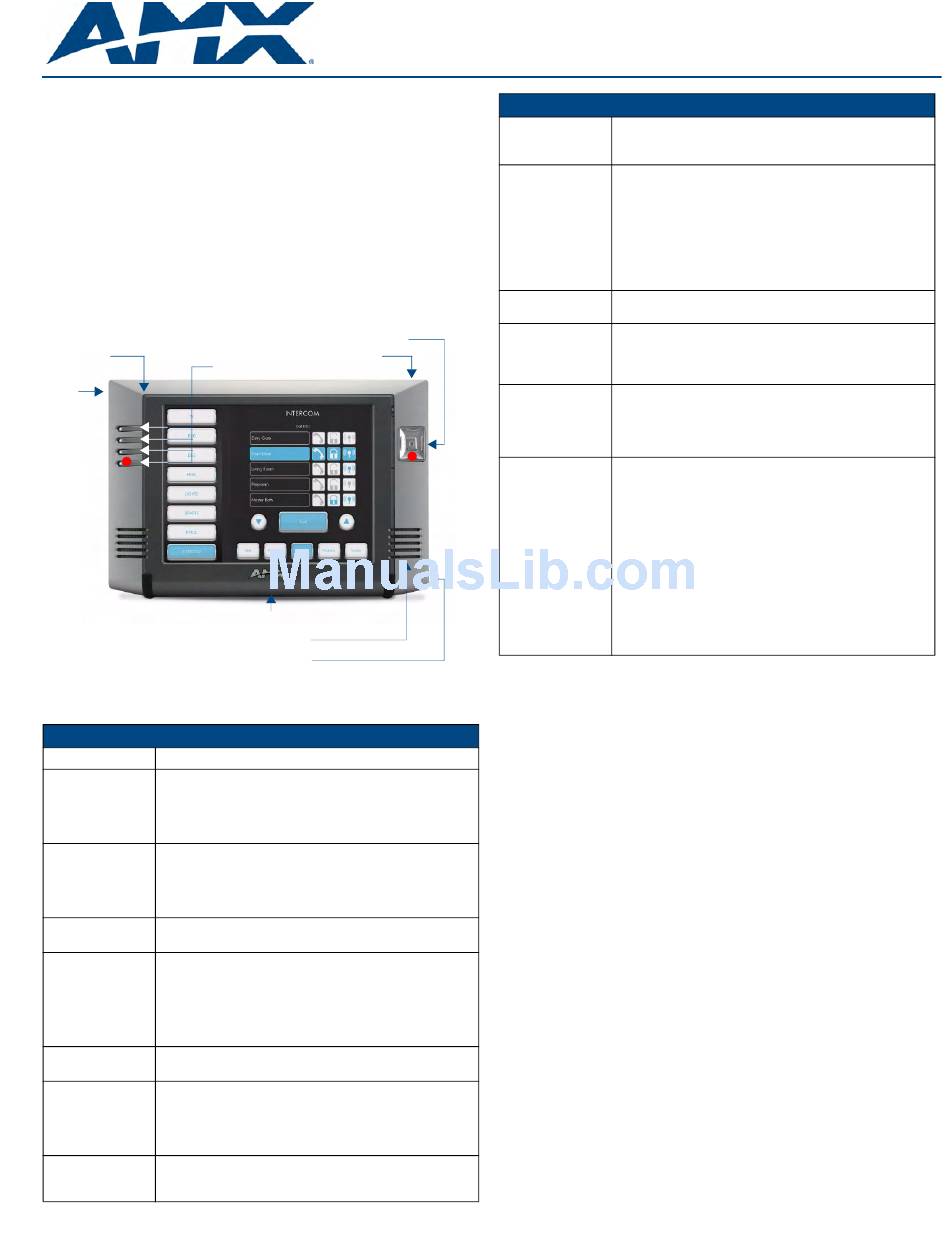

FIG. 1
MVP-8400i Touch Panel components
Specifications
MVP-8400i Specifications (FG5965-04)
Dimensions (HWD): • 7.17" x 10.47" x 1.34" (18.20 cm x 26.60 cm x 3.40 cm)
Power Requirement Panel with batteries fully charged or with no batteries:
(without charging):
• Constant current draw: 1.3 A @ 12 VDC
• Startup current draw: 1.9 A @ 12 VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the
above figures.
Power Requirement Panel while charging batteries:
(while charging):
• Constant current draw: 3.3 A @ 12 VDC
• Startup current draw: 3.9 A @ 12 VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the
above figures.
Minimum power PS4.4 Power Supply (FG423-45)
supply required: - All MVP models are shipped with this power supply.
Power Modes: • ON: Panel is fully functional.
• STANDBY: Panel uses low power, the LCD/backlight is
shutdown, LEDs still function. Panel resumes the ON
mode in ~ 1 second.
• OFF: On-board programs not running, touch screen still
powered, LED not functional. Panel resumes the ON
mode in ~ 30 seconds.
Certifications: • FCC Part 15 Class B and CE
• IEC60950
Battery Duration: • Eight hours of normal use (25% On state, 25% Standby,
and 50% Off).
(using 2 batteries)
• Four hours of continuous use (continuous On state).
The MVP-8400i ships with two MVP-BP batteries. You must
use both batteries to obtain the duration times given above.
Memory: • 128 MB SDRAM
• 128 MB Compact Flash (upgradable to 1 GB) - factory
programmed
MVP-8400i
Mini-USB
connector
Speaker
Power connector
Modero Wireless Touch Panel w/Duplex Intercom
MVP-8400i Specifications (Cont.)
Weight:
Screen Properties:
Viewing Angle:
Operating/Storage
Environments:
Included
Accessories
C
Other AMX
Equipment:
Speaker
Connections and Wiring
The PS4.4 Power Supply (with barrel connector) provides power to the
MVP-8400i either directly (via the power connector located on the lower right-
side of the panel) or indirectly (by routing incoming power through the Docking
Station's MVP Interface Connector).
• Once the MVP is connected to a docking station; charging priority is first
given to any MVP-BP battery packs found within the MVP-8400i and then
to any other batteries inserted into the docking station's battery charging
compartments.
Warning: Although firmware upgrades can be done over wireless Ethernet; it is
strongly recommended that firmware KIT files be transferred over a direct USB
connection and only when the panel is connected to a power supply. If battery
power or wireless connection fails during a firmware upgrade, the panel flash file
system may become corrupted.
Setup Pages
The panel is equipped with setup pages that allow you to set and configure
various features on the panel. Consult the MVP-8400i Modero ViewPoint Touch
Panels operation/reference guide for detailed information on the Setup pages.
Accessing The Protected Setup Page
1. Press down and hold both the bottom, left pushbutton and down on the
directional pad (indicated in FIG. 1) simultaneously for 3-5 seconds. This
opens the Setup page.
2. Press Protected Setup button on the Setup page. This opens a keypad for
password entry.
3. Enter the panel password into the keypad (default is 1988) and select
Done to access the Protected Setup page.
Setting the Panel's Device Number
In the Protected Setup page:
1. Press the Device Number field to open the Device Number keypad.
Enter a unique Device Number assignment for the panel, and press Done
to return to the Protected Setup page.
2. Press Reboot to reboot the panel, and apply the new Device Number.
Quick Start Guide
• Panel (no batteries): 1.85 lbs (0.84 kg)
• Panel with one battery: 2.25 lbs (1.02 kg)
• Panel with two batteries: 2.65 lbs (1.20 kg)
• Screen resolution: 800 x 600 pixels (HV) @ 60 Hz frame
frequency
• Aspect ratio: 4 x 3
• Brightness (luminance): 180 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 350:1
• Display colors: 256K colors (18-bit color depth)
• Dot/pixel pitch: 0.21 mm
• Panel type: TFT Color Active-Matrix
• Vertical: + 60° (up from center) and - 40° (down from
center)
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
• Wireless Interface Compact Flash card (CF Type 1)
(pre-installed into MVP)
• PS4.4 Power Supply (FG423-44)
• Stylus (pre-installed onto the left side of the unit)
• Two MVP-BP Power Packs (FG5965-20)
• CB-MVPWDS Conduit Box (FG037-10)
• CC-USB Type A to mini-B programming cable (FG10-5965)
• MVP-BP battery (FG5965-20)
• MVP-KS Kickstand (FG5965-12)
• MVP-STYLUS three pack (FG5965-30)
• MVP-TDS Table Top Docking Station (FG5965-10)
• MVP-WDS Wall Docking Station - Black (FG5965-11)
• MVP-WDS Wall Docking Station - Silver (FG5965-21)
• MVP-WDS-SK Silver Conversion Kit (FG5965-22)
• Upgrade Compact Flash (pre-programmed with firmware):
NXA-84CF128M 128 MB compact flash card (FG2116-50)
NXA-84CF256M 256 MB compact flash card (FG2116-51)
NXA-84CF512M 512 MB compact flash card (FG2116-52)
NXA-84CF1GB 1 GB compact flash card (FG2116-53)
