Burnside T400 Quick Start Manual

Burnside Telecom Limited
www.burnsidetelecom.com
Performing a ring back test
The ring back test helps to confirm: the link with the connected phone, the current ring
cadence and terminal status (for phones that support Caller Identity, also known as CLI).
1 Lift the handset and dial *9#
2 Replace the handset. Your phone should ring until the handset is lifted (or for 30
seconds). If your phone has a caller identity display, the status of the T400 terminal will
be shown.
Making and receiving calls
• To make a call: Lift the handset and listen for a dial tone*. Dial the required number and
then press # to place the call immediately. If you do not dial #, the call will be placed
after three seconds after the last button is pressed. You can adjust the delay period.
* If you hear a series of short tones, the terminal is waiting for you to enter a PIN code.
• To receive a call: When the phone rings, lift the handset and take the call in the normal
way. Hang up to terminate the call.
Mounting template
Please use this template to position screw holes when wall mounting your T400 terminal.
You are recommended to use 3mm x 30 pan-head screws.
Batteries
When replacing batteries, always replace all four. Only use batteries
recommended by Burnside, see www.burnsidtelecom.com/support
Packs of four of the original Panasonic BK200AAB are available from Burn-
side suppliers, part number 228002. An equivalent quality battery widely
available from online retailers is the Panasonic Eneloop BK-3MCCE.
Charger
To maintain the original high level of safety, only replace the charger with
one approved by Burnside. Replacement chargers are available from
Burnside suppliers, kit number 778017 (includes charger, UK and EU plug).
© 2018 Burnside Telecom Limited • Release 1.0c
102mm
BURNSIDE
landline alternatives
This quick start guide will help you to set up, switch on and begin using your T400 series
fixed cellular terminal unit. For further information on all features, please refer to the full
user guide available within the 'Service & Support' section at:
Getting started
• Remove any shipping tape,
then pull out the battery
insulating tab.
• Carefully slide open the battery
compartment.
• Insert a standard size SIM card
face down into the slot, with the
SIM card's chamfered corner
facing out.
• Replace the cover.
• If the unit will be wall mounted,
insert the supplied locking
screw to secure the battery
compartment lid.
• Place your T400 terminal
in a suitable location, but
keep it at least one metre
from your telephone to avoid
interference.
• When wall mounting, use the
two eyelet holes located on the
rear panel. The hole centres
are 102mm apart.
Battery care
The supplied high quality
Panasonic rechargeable NiMH
batteries allow the T400 to function
when there is mains power failure.
Charging of the batteries is fully automatic
and engineered to achieve a long service life.
The batteries are supplied nearly fully charged.
If the terminal is not going to be used for several months,
either remove the batteries or replace the insulating tab.

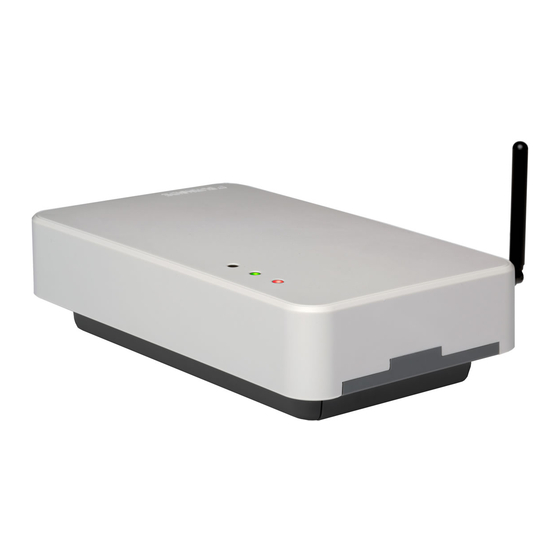

T400 fixed cellular terminal
quick start guide
www.burnsidetelecom.com
Battery
insulating
tab
IMEI identity
label
The above illustrations are
of the T400LR UK version.
Locking
screw
Sliding
cover
4 x AA
batteries
SIM
card
