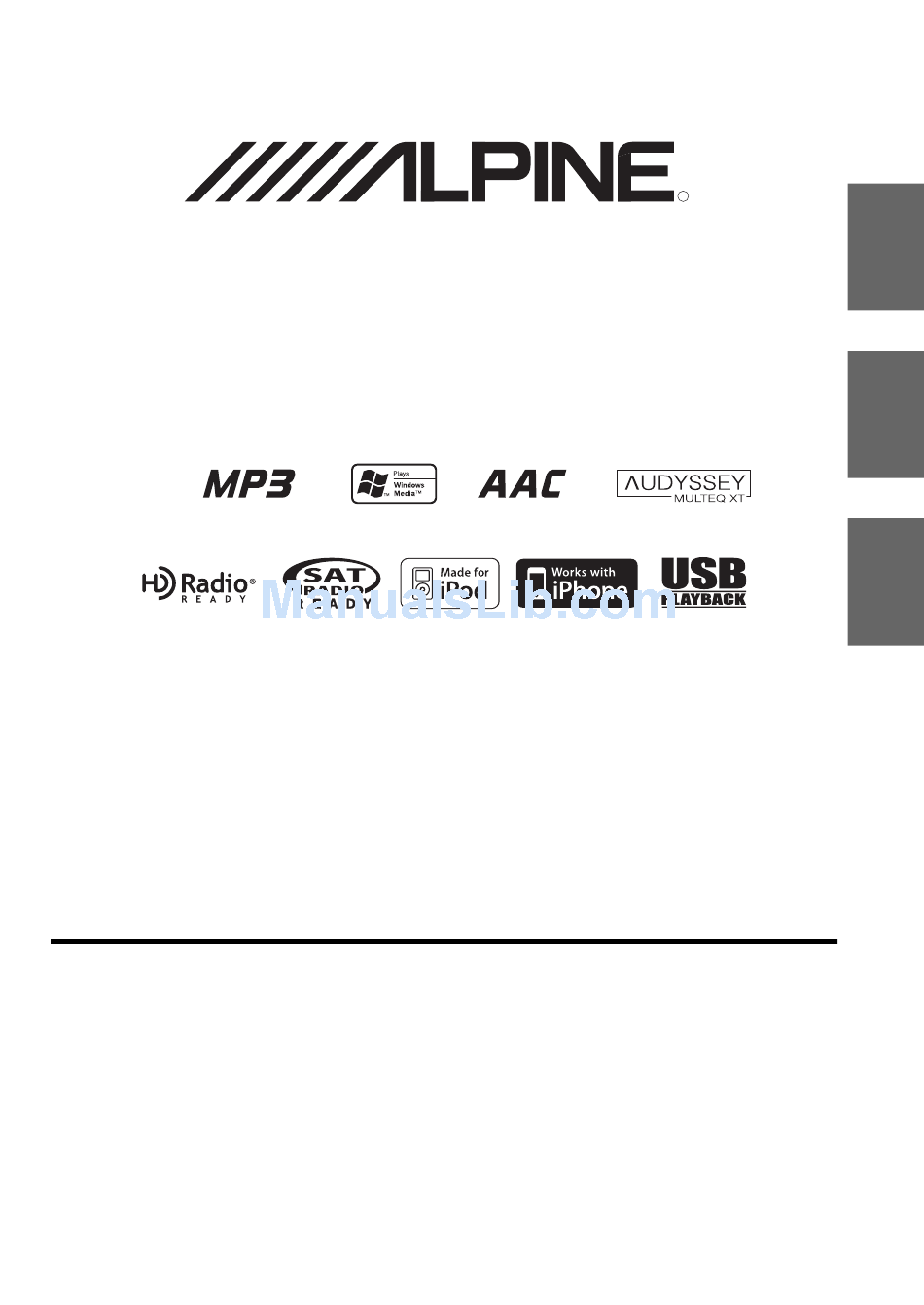

Digital Media Station
iXA-W404
• OWNER'S MANUAL
Please read before using this equipment.
• MODE D'EMPLOI
Veuillez lire avant d'utiliser cet appareil.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
161-165 Princes Highway, Hallam
Victoria 3803, Australia
Phone 03-8787-1200
ALPINE ELECTRONICS GmbH
Wilhelm-Wagenfeld-Strasse 1-3, 80807 München,
Germany
Phone 089-32 42 640
ALPINE ELECTRONICS OF U.K. LTD.
Alpine House
Fletchamstead Highway, Coventry CV4 9TW, U.K.
Phone 0870-33 33 763
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016, 95945 Roissy Charles de Gaulle
Cedex, France
Phone 01-48638989
R R
ALPINE ITALIA S.p.A.
Viale C. Colombo 8, 20090 Trezzano
Sul Naviglio (MI), Italy
Phone 02-484781
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal de Gamarra 36, Pabellón, 32
01013 Vitoria (Alava)-APDO 133, Spain
Phone 945-283588
ALPINE ELECTRONICS (BENELUX) GmbH
Leuvensesteenweg 510-B6,
1930 Zaventem, Belgium
Phone 02-725-13 15
Designed by ALPINE Japan
68-14470Z12-B
EN
FR
ES

Advertisement

Table of Contents
loading

Related Manuals for Alpine iXA-W404

Summary of Contents for Alpine iXA-W404

  • Page 1 Phone 1-800-ALPINE-1 (1-800-257-4631) ALPINE ELECTRONICS OF CANADA, INC. 777 Supertest Road, Toronto, Ontario M3J 2M9, Canada Phone 1-800-ALPINE-1 (1-800-257-4631) ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 161-165 Princes Highway, Hallam Victoria 3803, Australia Phone 03-8787-1200 ALPINE ELECTRONICS GmbH Wilhelm-Wagenfeld-Strasse 1-3, 80807 München,...

  • Page 3: Table Of Contents

    Contents Operating Instructions WARNING WARNING ... 4 CAUTION ... 4 PRECAUTIONS ... 5 Double Action Encoder Operation Normal operation ... 7 Alternate operation ... 7 Getting Started Accessory List ... 8 Location of Controls ... 8 Turning Power On or Off ... 9 Adjusting the Volume ...
  • Page 4 MultiInfo Setup MultiInfo Setup Operation ... 25 Visual EQ Visual EQ Setting Operation ... 26 Black Richness Function (BK RICH) ... 26 Selecting the Visual EQ Mode (Factory setting) ... 26 Adjusting Brightness ... 26 Adjusting Color of Picture ... 26 Adjusting Tint of Picture ...
  • Page 5 Storing favorite Sports Teams (SIRIUS mode only) ... 52 Receiving the stored information (SIRIUS mode only) ... 52 Deleting the stored Song/Artist/Sports team information (SIRIUS mode only) ... 53 Offset Playback Function (SIRIUS mode only) ... 53 Changer (Optional) Playback ... 53 Selecting a Disc (Changer) (Optional) ...

  • Page 6: Operating Instructions

    HALT USE IMMEDIATELY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing. DO NOT MIX NEW BATTERIES WITH OLD BATTERIES.

  • Page 7: Precautions

    This will restrict operation of these functions to times when the vehicle is parked. This ensures the focus of the driver’s attention will be on the road and not on the iXA-W404. This has been done for the safety of the driver and passengers.
  • Page 8 • The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is under license. Other trademarks and trade names are those of their respective owners.

  • Page 9: Double Action Encoder Operation

    Double Action Encoder Operation Double Action encoder There are 2 ways to operate the Double Action encoder. Normal operation Rotate the Double Action encoder to the left or right. The adjust volume and scroll through a list of items. Alternate operation Press in the outer ring and rotate the Double Action encoder to the left or right.

  • Page 10: Getting Started

    • Owner’s Manual ...1 set Optional Remote Control Interface Box This unit is operable using the vehicle’s secondary radio controls. An Alpine Remote Control Interface Box (optional) is required. For details, contact your Alpine dealer. Location of Controls Power indicator Lights when the unit is turned on.

  • Page 11: Turning Power On Or Off

    • The monitor may be dim during low temperature and immediately after turning on the power. The brightness will return to normal as time elapses. • The iXA-W404 is a precision device. With gentle handling, its unique capabilities can be enjoyed for a long time. Adjusting the Volume Rotate the Double Action encoder until the desired sound is obtained.

  • Page 12: The Head Unit Button Operation For The Setup Or Search List

    Press /ENTER. The Radio source is activated and the display changes to the Radio main screen. Display example for FM Radio main screen Displays the source name, such as radio band, etc., that is selected. Display time, missed call , signal strength Function Guide: The function guide display varies depending on each source.

  • Page 13: Radio

    Radio Display example for FM Radio main screen [DX SEEK]* button: Displays the tuning mode selection list. Displays the preset number* /frequency. The button displays the current tuning mode. Displayed only when the current station is the preset one. This unit cannot receive HD Radio signals (digital terrestrial radio). In order to activate the digital radio functions described below, an optional HD Radio Tuner module must be connected through the Ai-NET bus.

  • Page 14: Presetting Stations Automatically

    Tagging lets you tag songs heard on HD Radio stations. Using your new iXA-W404 in conjunction with an optional HD Tuner module, you can preview, buy and download later, songs from your iTunes tagged playlist the next time you sync your iPod. If the unit is connected to a Tagging compatible device, you can use the iTunes Tagging function.

  • Page 15: Other Useful Features

    Other Useful Features Adjusting the Audio Press and hold SETUP for at least 2 seconds, the SETUP selection screen is displayed. Touch [ ] of Audio Setup. The AUDIO SETUP screen appears. Display example for Audio Adjustment Screen • Touching [ ] or [ ] will scroll the list one line at a time.

  • Page 16: Multi Information Function

    Adjusting Bass/Treble You can change the Bass/Treble frequency emphasis to create your own tonal preference. Touch [ ] to display the Bass/Treble adjusting screen. Touch [ ] or [ ] on the scroll bar to scroll the setup items line by line.
  • Page 17 This unit can display the times in 4 major cities of the world. To show the time in the desired city, perform the following operations. Touch one of the 4 clocks in previous page). The City selection screen will be displayed. Click the continent that the desired city belongs to in the right column.

  • Page 18: Rear Entertainment Function

    Touch [DX SEEK]* to choose the tuning mode. SEEK* (MANUAL) DX SEEK* The button displays the current tuning mode. For detailed operation of the buttons, refer to “Listening to the Radio” on page 11. Sound Controller (Sound Cont.) By this function, you can adjust Treble level, Bass level and Subwoofer level directly.

  • Page 19: Switching Display Modes

    Switching Display Modes While your vehicle is parked, touch [WIDE] on the visual source screen. Each touch changes the display modes as follows: MODE 1 MODE 2 MODE 3 (WIDE) (CINEMA) (NORMAL) (WIDE) In Mode 1 (Wide), the monitor displays a normal picture wider to fit in a wide-screen monitor by evenly stretching out the picture horizontally.

  • Page 20: Radio Setup

    Bluetooth Setup: Paired Device / Device Search / Clear Device / Service Provider / Visible Mode / Auto Answer / Speaker Sel / Mic Input / Firmware Version / Firmware Update • For Bluetooth Setup details, refer to “Bluetooth Setup” (page 42). iPod Setup: Playlists / Artists / Albums / Podcasts / Audiobooks / Genres / Composers / Songs / Skip Style...

  • Page 21: Display Setup

    Display Setup Display Setup Operation To display the Display mode screen: To watch a video source, your vehicle must be parked with the ignition key in the ACC or ON position. To do this, follow the procedure below. 1 Bring your vehicle to a complete stop at a safe location.

  • Page 22: Setting Automatic Background Textures

    Setting Automatic Background Textures The background texture will automatically change each time the ignition key is turned off and turned back on again. Setting item: Auto Background Setting contents: OFF / ON OFF: Turns off the Auto Background Texture Scroll mode. Turns on the Auto Background Texture Scroll mode.

  • Page 23: Setting The Calendar

    Setting the Calendar Setting item: Calendar Adjust Further setting items: Year / Month / Day Setting contents: 2008-2099 / 1-12 / 1-31 Year: Adjust the year. Month: Adjust the month. Day: Adjust the day. Displaying the Time The clock indication on the monitor display is turned on or off respectively.

  • Page 24: System Setup

    (engine key) to OFF. Otherwise, the settings may not be changed. Setting the External Device Interrupt Mode If an Alpine Ai-NET Interrupt Box (NVE-K200) is connected to the unit, an Auxiliary Source will be allowed to interrupt the current audio source.

  • Page 25: Setting The Rear Camera Input

    • Second name can be set only when Primary name is set to USB Video. • Only when an Alpine TV tuner is connected, you can operate the displayed function guide from this unit. Adjusting the External Input Audio Level After setting to ON in “Setting the AUX Mode”, this setting can be...

  • Page 26: Setting The Picture Output

    • When OFF is selected, the settings related to AUX+ cannot be changed from this unit. • Only when an Alpine TV tuner is connected, you can operate the displayed function guide from this unit. Adjusting the AUX+ Audio Level After setting to ON in “Setting the AUX+ Mode”, this setting can be...

  • Page 27: Multiinfo Setup

    MultiInfo Setup MultiInfo Setup Operation To display the MultiInfo mode screen: To watch a video source, your vehicle must be parked with the ignition key in the ACC or ON position. To do this, follow the procedure below. 1 Bring your vehicle to a complete stop at a safe location.

  • Page 28: Visual Eq

    Visual EQ Visual EQ Setting Operation The following steps 1 to 3 are common operations to each “Setting item” of Visual EQ setting. Refer to each section for details. After steps 1 and 2 in “Display Setup Operation” (page 19) have been performed, touch [ Visual EQ screen appears.

  • Page 29: Adjusting Image Contrast

    “Selecting the Visual EQ Mode (Factory setting)” (page 26). Data Download Downloading the Background data You can download data (from Alpine’s website) to a USB Memory (optional) (data is written in the root folder), and store the data to the iXA-W404.

  • Page 30: External Audio Processor (Optional)

    Pro Logic II, DTS and PCM modes) Storing Settings in the Memory (page 34) (Storing all the settings and adjustments made on the iXA-W404 (not only the above settings/adjusts) in the memory) In case of combining the Automatic adjustments etc.

  • Page 31: Setting The A.processor

    Setting the A.Processor Check that Defeat mode is off (page 13). Press and hold SETUP for at least 2 seconds. The SETUP selection screen is displayed. Touch [ ] of Audio Setup. The AUDIO SETUP screen appears. • The AUDIO SETUP screen can also be activated directly by pressing SOUND/IMPRINT.

  • Page 32: Using The Pro Logic Ii Mode

    Using the Pro Logic II Mode Pro Logic processing can be conducted on the music signals recorded on two channels to achieve Dolby Pro Logic II surround sound. For two-channel Dolby Digital and DTS signals, there is also a “REAR FILL”...

  • Page 33: Phase Switching

    Performing Time Correction Manually (T.Corr) Because of the particular conditions inside the vehicle, there can be major differences in the distances between the various speakers and the listening position. It is possible to calculate the optimum correction values and eliminate the time error at the listening position yourself using this function.

  • Page 34: Parametric Equalizer Adjustments

    Adjusting the Level Touch [ ] or [ ] of the desired frequency to adjust the level. • When the speaker is set to the “OFF” mode, the graphic equalizer for that speaker cannot be set. Refer to “Setting the Speakers” (page 32).

  • Page 35: Setting Of Dolby Digital

    Setting of Dolby Digital Setting item: Multi CH Setup Adjusting the acoustic image (Bi-Phantom) In most installations, the center speaker must be placed directly between the front passenger and driver. Using this function, the center channel information is distributed to the left and right speakers. This creates an acoustic image simulating a center speaker directly in front of each listener.

  • Page 36: Storing Settings In The Memory

    • It takes a few moments to call up the preset memory. IMPRINT Operation (Optional) Alpine introduces IMPRINT - the world’s first technology that thoroughly eliminates in-car acoustic problems that normally degrade sound quality. This enables us to experience music the way the artist intended.

  • Page 37: Adjusting Sound Setting In Manual Mode

    Adjusting Sound Setting in Manual Mode You can change these sound settings to create your own preference when the MultEQ mode is set to OFF (Manual Mode). Use steps 1 to 5 to select one of the Sound menu modes to modify. See the applicable section below for details about the selected item.

  • Page 38: Adjusting The Graphic Equalizer Curve

    • When OFF is selected, MX effect of each MX mode will be OFF. • Each music source, such as radio, CD and MP3/WMA/AAC can have its own MX setting. • MX mode does not function when MX is ON for AM radio. •...
  • Page 39 Adjusting the Time Correction (T. Corr) Before performing the following procedures, refer to “About Time Correction” (page 39). Setting item: T.Corr Touch [ ] of T.Corr. The T.Corr adjustment screen appears. Adjust the distance (0.0 to 336.6 cm) of a desired speaker by touching the respective [ ] or [ ] button.

  • Page 40: Storing Settings In The Memory

    Adjusting the Level Touch [ ] or [ ] of Level, then adjust the HPF or LPF level. Adjustable output level: –12 to 0 dB. Adjusting the Slope Touch [ ] or [ ] of Slope, then adjust the HPF or LPF slope. Adjustable slope: FLAT , –6 dB/oct., –12 dB/oct., –18 dB/oct., –24 dB/oct.

  • Page 41: About Time Correction

    About Time Correction The distance between the listener and the speakers in a car vary widely due to the complex speaker placement. This difference in the distances from the speakers to the listener creates a shift in the sounds image and frequency characteristics.

  • Page 42: About The Crossover

    0 to outside that recommended may cause damage to the speakers. ---- –12 dB For the recommended crossover frequencies of Alpine speakers, refer to the respective Owner’s Manual. 0 to We are not responsible for damage or malfunction of speakers caused ---- by using the crossover outside the recommended value.

  • Page 43: About Imprint

    These acoustical problems are so severe that no correction system has been able to overcome them. Until now, with the introduction of IMPRINT, Alpine provides a hardware/software combination that not only solves these problems, it actually improves the sound stage, tonal...

  • Page 44: Bluetooth Operation (Optional)

    • Proper function of this unit with all Bluetooth compatible devices is not guaranteed. For handling of the BT compatible device, consult your ALPINE dealer or ALPINE website. • Depending on the surroundings, Bluetooth wireless connection may be unstable.
  • Page 45 Setting the Bluetooth Device Select one of 5 connected Bluetooth compatible devices that you previously registered. Setting item: Paired Device Touch a Bluetooth compatible device to use (change connection) from the Paired Device list. • If the connection is successfully changed, “CONNECTED/(Device name)”...

  • Page 46: Hands-Free Phone Control

    Owner’s Manual are based upon the latest available information and are believed to be accurate at the time of printing. Alpine reserves the right to change or modify any information or specifications without notice or obligation. Answering a Call Incoming calls are announced by the received call ring tone and a displayed message (Caller name/PHONE No.).

  • Page 47: Call Switching Operation

    Call Switching Operation While making a call, this function allows you to initiate the transfer of the audio between the mobile phone and the speakers in the car. While calling, touch [ ] to switch the call sound between the unit and mobile phone. •...

  • Page 48: Voice Dial Operation

    Touch the person name or the telephone number you want to call from the Phone Book list. The call is placed. * The names in Phone Book are listed alphabetically. The listing can be skipped to the next alphabetical character. e.g. touch [ to the names beginning with B from those beginning with A.

  • Page 49: Hce-C107D Operation (Optional)

    (Optional) If an optional Alpine Navigation System is connected to the iXA-W404, the Navigation screen can be displayed on this unit. • Be sure to set “NAV. IN” to ON before using the Navigation, refer to “Setting the Navigation Mode” on page 23.

  • Page 50: Auxiliary Device (Optional)

    Operating Auxiliary Devices (Optional) To operate your devices connected to the AUX terminals on the rear panel of iXA-W404 (AUX mode) or to the Bluetooth interface connector by using an optional Conversion cable (KCE-237B) (AUX+ mode), follow the procedure described below.

  • Page 51: Sat Radio Receiver (Optional)

    * XM and its corresponding logos are trademarks of XM Satellite Radio Inc. * SIRIUS and its corresponding logos are trademarks of SIRIUS Satellite Radio Inc. • The SAT Receiver controls on the iXA-W404 are operative only when a SAT Receiver is connected. Press SOURCE to activate mode switching screen.

  • Page 52: Changing The Display

    This number is a 12 digits number. It is printed on a label found on the SAT Receiver. It can also be displayed on the screen of the iXA-W404 in the following way. While receiving SAT Radio, touch NO. [ ] or [ ] to select channel ‘0’...

  • Page 53: Search Function (Xm Mode)

    Search Function (XM mode) In XM mode, touch [ The category search list is displayed. Displayed only when the current station is the preset one The list scrolls one line at a time by touching [ ] or [ ]. Scroll the list one page at a time by touching [ Touch [ ] to return to the previous screen.

  • Page 54: Receiving Weather Or Traffic Information From Sat Radio

    Receiving Weather or Traffic information from SAT Radio Touch and hold [NO.] or [NAME] for at least 2 seconds in the XM or SIRIUS mode. The received weather or traffic channel is stored. Press and hold BAND for at least 2 seconds. The stored Weather or Traffic channel is recalled.

  • Page 55: Deleting The Stored Song/Artist/Sports Team Information (Sirius Mode Only)

    ] will move a track up/down. Changer (Optional) An optional CD Changer may be connected to the iXA-W404 if it is Ai-NET compatible. With a CD Changer connected to the Ai-NET input of the iXA-W404, the CD Changer will be controllable from the iXA-W404.

  • Page 56: Selecting A Disc (Changer) (Optional)

    • When an MP3 compatible CD changer is connected, the unit can play discs containing both audio data and MP3 data. • The DVD changer (optional) is controllable from the iXA-W404 as well as the CD changer. • For operation of the connected DVD changer (DHA-S690), refer to the Owner’s Manual of DHA-S690.

  • Page 57: Usb Memory/Portable Audio Player (Optional)

    (Optional) A USB memory or Portable audio player can be connected to the iXA-W404 through the USB Connector of this unit. If a USB memory device or Portable audio player is connected to the unit, MP3/WMA/AAC files of USB memory and MP3/WMA files of Portable audio player can be played back.

  • Page 58: Repeat Play

    Random Play Shuffle (M.I.X.) The Shuffle function of the USB memory or Portable audio player is displayed as on the iXA-W404. Shuffle ALL All songs in the USB memory or Portable audio player are played back in random sequence. Any one song does not play back again until all songs have been played back.

  • Page 59: Selecting Playlists/Artists/Albums/Genres/Composers

    Selecting Playlists/Artists/Albums/ Genres/Composers Playlists/Artists/Albums/Genres/Composers can be easily changed. For example, if you listen to a song from a selected album, the album can be changed. Touch [ ] or [ ] to select the desired Playlists/Artists/ Albums/Genres/Composers. • If search selection mode is not activated, a Songs search is not possible.
  • Page 60 ID3 tags/WMA tags This device supports ID3 tag v1 and v2.2.0, v2.3.0 and WMA tag. The following files do not support compression, coding, grouping or non-synchronization. If tag data is in an MP3/WMA/AAC file, this device can display the title (track title), artist name, and album name ID3 tag/WMA tag data.

  • Page 61: Playback

    Searching for a desired Song An iPhone/iPod can contain hundreds of songs. By keeping these songs organized in playlists, the iXA-W404 can use these to ease song searches. Using the search mode’s individual hierarchy, you can narrow down your search as shown in the table below.

  • Page 62: Page Skip Function/Percent Skip Function/Alphabet Skip Function

    To play back the artist directly 1 Touch and hold the artist’s name for at least 2 seconds. All songs of the selected artist are played back. To search for the album of an artist 1 Touch the artist’s name. The Albums search screen of the selected artist is displayed.

  • Page 63: Random Play Shuffle (M.i.x.)

    Random Play Shuffle (M.I.X.) The Shuffle function of the iPhone/iPod is displayed as iXA-W404. Shuffle ALL: All songs in the iPhone/iPod are played back in random sequence. Any one song does not play back again until all songs have been played back.

  • Page 64: When Using The Remote Control

    Button Radio mode: Chooses the tuning mode. By pressing it more than 2 seconds, Automatic Memory will be operated. SAT mode: Switches between CH No. and CH name. MP3/WMA/AAC iPod mode: Switches between play and pause. Audio Processor Button Press the button to display AUDIO SETUP screen. Press the button to display A.PROCESSOR list screen when the external audio processor is connected.* * For the operation of external audio processor, refer to the Owner’s...

  • Page 65: Information

    Information List of World Clock (For details, see page 14.)

  • Page 66: In Case Of Difficulty

    - The indicator will disappear when the temperature returns to within operation range. • Malfunction in the CD Changer. - Consult your Alpine dealer. Press the magazine eject button and pull out the magazine. Check the indication. Insert the magazine again.
  • Page 67 • An iPhone/iPod is not connected. - Make sure the iPhone/iPod is correctly connected and the cable is not excessively bent. • There are no songs in the iPhone/iPod. - Download songs to the iPhone/iPod and connect to the iXA-W404.
  • Page 68 • Communication error. - Turn the ignition key off, and then set to ON again. - Check the display by reconnecting between the iPhone/iPod and the unit, using the iPhone/iPod cable. • Caused by the iPhone/iPod Software Version not being compatible with this unit.

  • Page 69: Specifications

    Specifications MONITOR SECTION Screen Size 4.3" LCD Type Transparent type TN LCD Operation System TFT active matrix Number of Picture Elements 93,600 pcs. (400 × 234) Effective Number of Picture Elements 99% or more Illumination System FM TUNER SECTION Tuning Range 87.7 –...

  • Page 70: Installation And Connections

    (e.g. on-board computer). Do not tap into these leads to provide power for this unit. When connecting the iXA-W404 to the fuse box, make sure the fuse for the intended circuit of the iXA-W404 has the appropriate amperage.

  • Page 71: Installation

    Connect each input lead coming from an amplifier or equalizer to the corresponding output lead coming from the left rear of the iXA-W404. Connect all other leads of the iXA-W404 according to details described in the CONNECTlONS section.
  • Page 72 • The diagram and the fuse amperage shown above are in the case when iXA-W404 is used individually. • If the switched power (ignition) lead of the iXA-W404 is connected directly to the positive (+) post of the vehicle’s battery, the iXA-W404 draws some current (several hundred milliamperes) even when its switch is placed in the OFF position and the battery may be discharged.

  • Page 73: Connections

    Connections To USB memory/ To iPhone/iPod Portable audio player • Set the system switch to “NORM” when only a changer is connected (when the Ai-NET compatible equalizer is not used). When the IMPRINT audio processor is connected, set to EQ/DIV position. * The two system switches are located on the bottom of the unit.
  • Page 74 Connect this lead to the remote control input lead. This lead outputs the controlling signals from the remote control. Remote Control Input Lead (White/Brown) Connect the external Alpine product to the remote control output lead. Reverse Lead (Orange/White) Use only when a back-up camera is connected. Connect to the plus side of the car’s reverse lamp.
  • Page 75 Foot Brake Lead (Yellow/Black) Connect to the vehicle’s foot brake lead or brake lamp lead. Switched Power Lead (Ignition) (Red) Connect this lead to an open terminal on the vehicle’s fuse box or another unused power source which provides (+) 12V only when the ignition is turned on or in the accessory position.

  • Page 76: System Example

    System Example Connect the Ai-NET compatible audio processor (Fiber optic digital compatible), Navigation system, DVD player and changer. NVE-N872A/NVE-M300 Navigation system (Sold Separately) Ai-NET cable DVD Video Player (White/Brown) (White/Brown) (Ai-NET) (DVA-5210 etc.) REMOTE OUT REMOTE IN (Sold Separately) • When the NVA-N751AS is connected for the Navigation System, use the RGB conversion cable KWE-503N (Sold Separately). Please observe the following when using Fiber Optic Cable (Optical Digital Cable).
  • Page 77 RGB Cable (Included with NVE-N852A/NVE-N872A, not included with NVE-N871A) RGB Input Terminal Connect this to the RGB output terminal of the Navigation System. System Switch When connecting an equalizer or divider using Ai-NET feature, place the two switches in the EQ/DIV position. When no device is connected, leave the switches in the NORM position.
  • Page 78 When Connecting External Equipment (White/Pink) * Connect this to the touch panel-compatible rear monitor. (White/Brown) (White/Brown) (Orange/White) System Switch When connecting an equalizer or divider using Ai-NET feature, place the two switches in the EQ/DIV position. When no device is connected, leave the switches in the NORM position.

  • Page 79: Limited Warranty

    ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. (“Alpine”), are dedicated to quality craftsmanship and are pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below.
