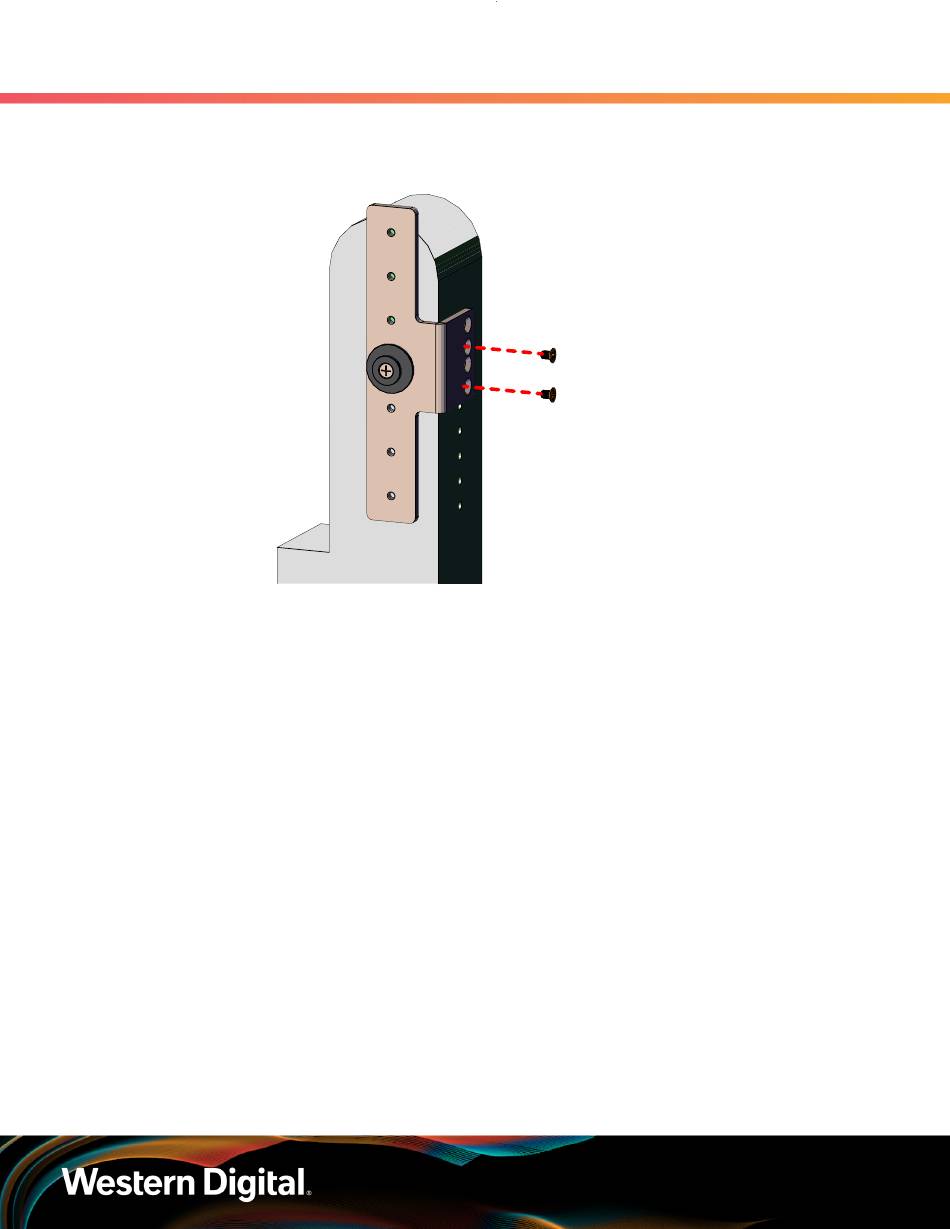

Figure 22: Install the Angle Bracket on the PDU (Top)
Step 5 : Install the PDU into the rear of the rack.
a. Locate the middle set of keyholes on the rear vertical rack rails.
b. Align the PDU mounting buttons with the keyholes on the rear vertical rack rails and slide
down until the PDU is secure.
