Western Digital Ultrastar Data102 Configurations page 27

Recommended Rack
Configurations

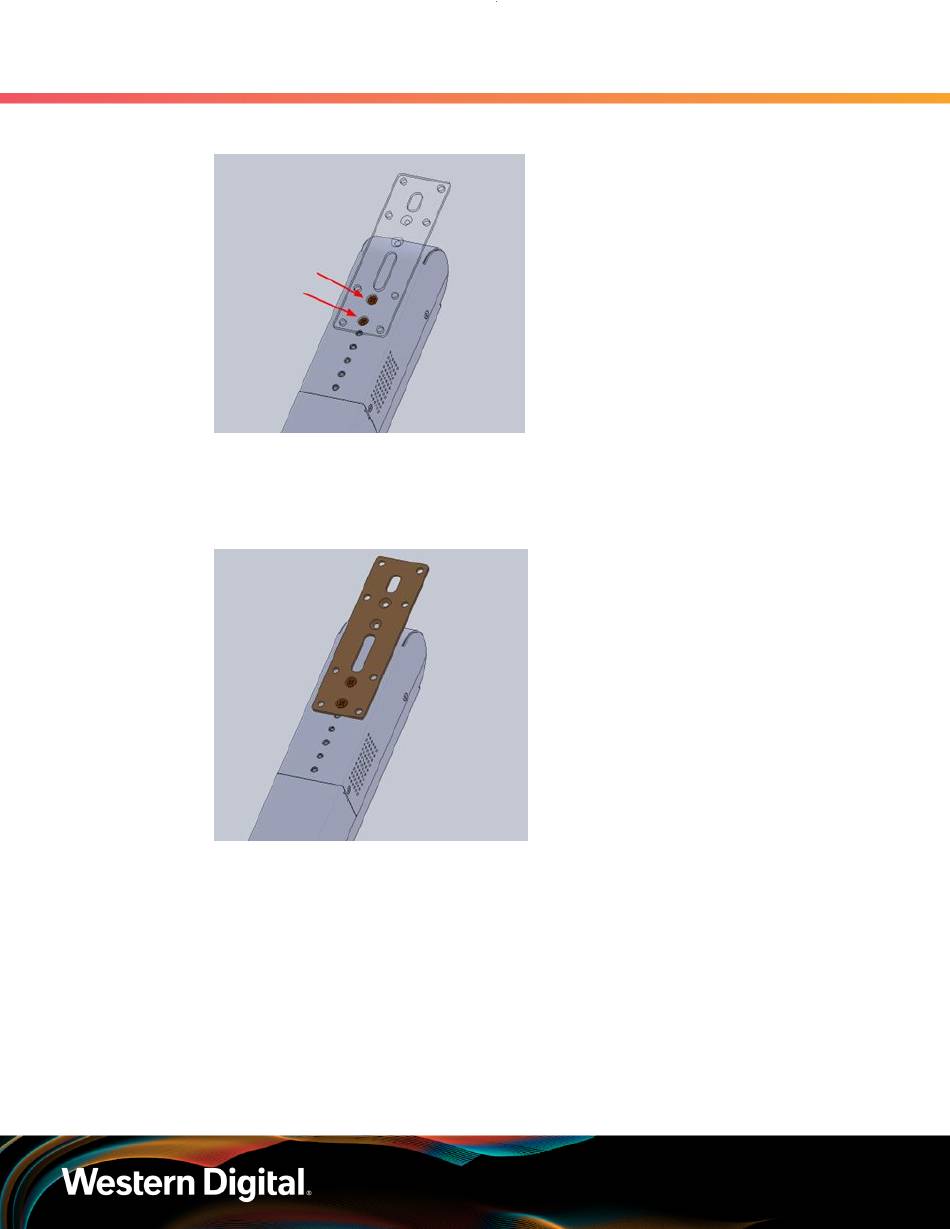

Figure 11: Flat Bracket (top)
c. Secure the flat bracket to the PDU by using the screws provided in the PDU mounting kit as
shown in the image below.
Figure 12: Flat Bracket Installation (top)
d. Align the right-angle bracket behind the flat bracket over the holes on the left-hand side of
the flat bracket.
e. Slide the washers onto the mounting bolts and secure the right-angle bracket to the backer
plate through the flat bracket. Before fully tightening the bolts, ensure that the right-angle
bracket is flush with the edge of the PDU before tightening.
4.1 PDU Mounting Bracket Installation (KIT-MBVPT-1B)
4. Installation
22
