Hunter Hydrawise WIFI-EXT-KIT Installing

HCC - Installing Wi-Fi Antenna
Extension Kit
To improve Wi-Fi visibility to the router, we recommend using the Wi-Fi extension kit (model: WIFI-
EXT-KIT). This is not a signal booster, but an option to get the antenna closer to the router. Going
around corners, through obstructions, or just reducing the distance are appropriate applications for
this product.

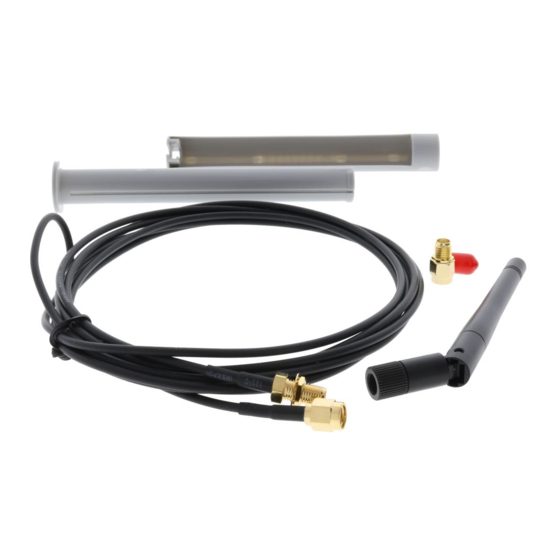

The extension kit comes with two separate cables and mounting hardware to install in ¾" conduit.
The thicker cable provides a 9' extension, while the thinner cable is 3.5' in length.
Note: Use only one cable extension, as combining the two will incur signal loss.
Please visit an authorized Hunter distributor near you using our interactive Distributor Lookup

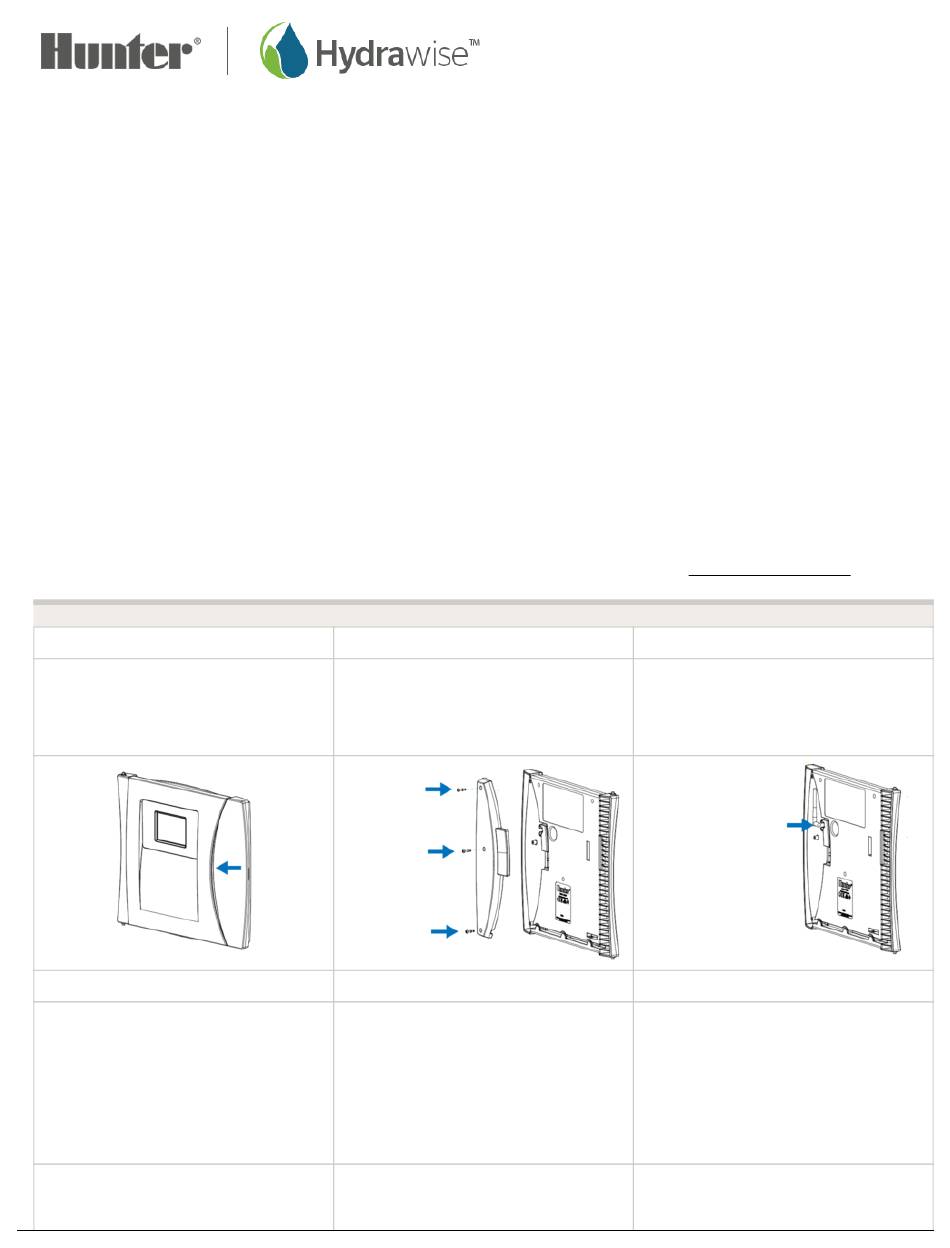

STEP 1
Open front panel to access the antenna
compartment.
STEP 4
Route antenna cable through the
channel at the bottom of the facepack.
Remember to re-install the plastic cover
over the compartment. Note: Drilling
into the cabinet is not recommended.
Please only use existing conduit
knockouts.
STEP 2
Remove the three Phillips screws on
the left hand side of the back of the
panel shown in figure 1.
STEP 5
Route antenna cable from enclosure
through ¾" (20 mm) plastic electrical
conduit. Use standard fittings to position
antenna where required. Do not exceed
supplied cable length.
Copyright 2020 Hunter Industries. All Rights Reserved.
STEP 3
Unthread the existing antenna. Thread
on the extension cable until hand
tightened. Attach included antenna to
the other end of the cable.
STEP 6
Route cable and antenna through
standard ¾" (20 mm) threaded adapter
with male threaded end up.
