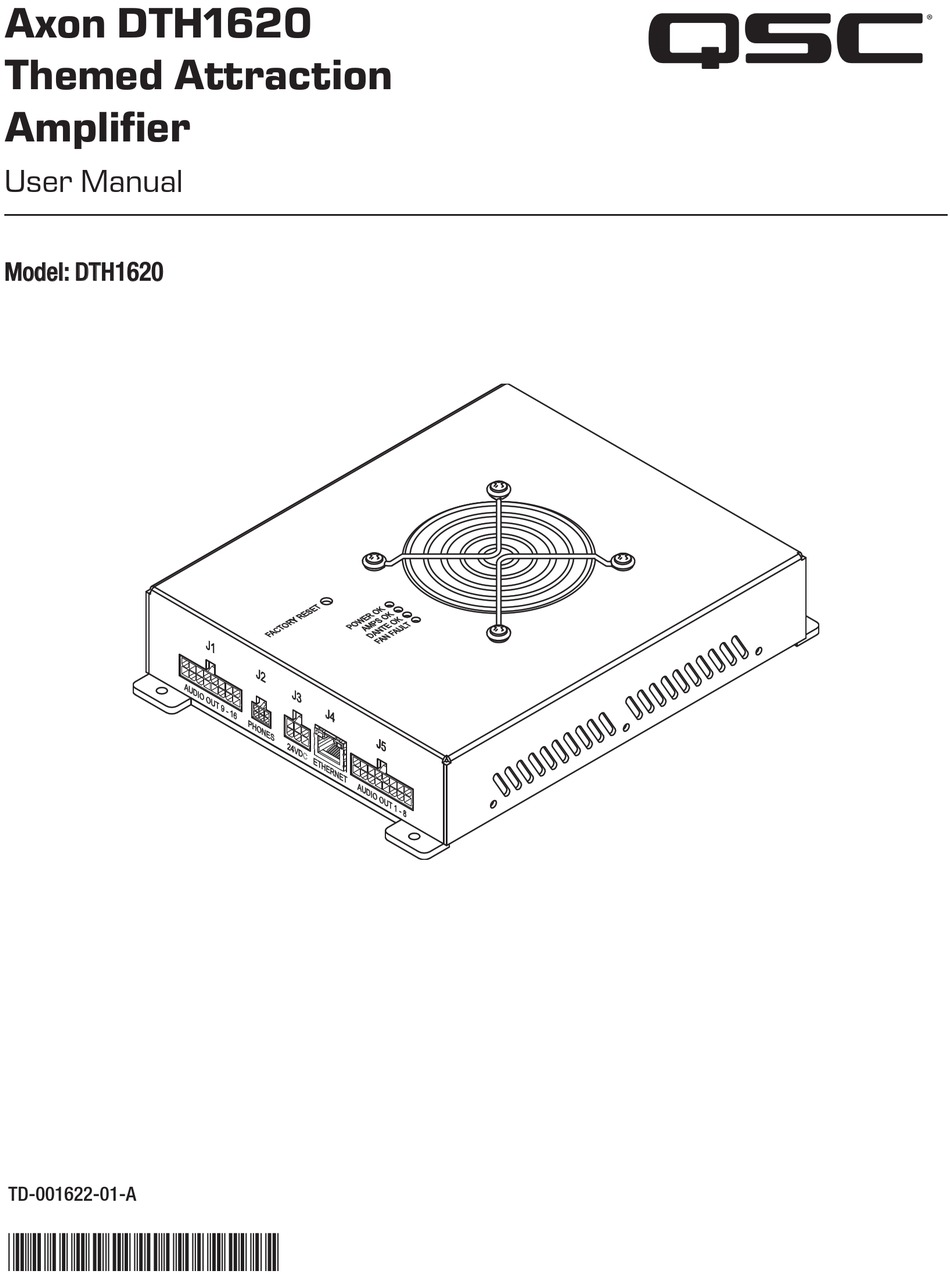

- Page 1 Axon DTH1620 ® Themed Attraction Amplifier User Manual Model: DTH1620 Model: DTH1620 TD-001622-01-A *TD-001622-01*...
- Page 2 EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty.
-
Page 3: Maintenance And Repair
If you wish to discard electronic equipment, please contact your dealer or supplier for further information. RoHS Statement The QSC DTH1620 Series Amplifier is in compliance with “China RoHS” directives. The following chart is provided for product use in China and its territories: QSC DTH1620 and DTH1620 Series Amplifiers 有毒有害物质或元素... -
Page 4: 海拔和热带条件
Only suitable for safe use in areas below 2000m above sea level 仅适用于海拔2000m 以下地区安全使用 Only suitable for safe use in non-tropical climates 仅适用于非热带气候条件下地区安全使用 Warranty For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com What’s in the Box One DTH1620 Amplifier TD-001622-01-A... -
Page 5: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Axon DTH1620 Command Protocol . - Page 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 QSC Customer Support .
-
Page 7: Introduction
Introduction The Attero Tech by QSC DTH1620 is a 16ch x 20 W Dante/AES67 amplifier designed for themed entertainment and immersive theater applications. It features a ruggedized design and compact form factor that enables cost-effective network audio amplification support for individual rides or attractions. The DTH1620 supports traditional passive speaker drivers as well as haptic transducers for specialized audio applications that require high-channel density at low output power. -
Page 8: Connector Pin-Outs
Connector Pin-Outs Audio Output – J1 Channel- Channel Numbers Channel 9 Out+ 9 Out- 10 Out+ 10 Out- 11 Out+ 11 Out- Pin Numbers 12 Out+ 12 Out- 13 Out+ 13 Out- 14 Out+ 14 Out- 15 Out+ 15 Out- 16 Out+ 16 Out- —... -
Page 9: Network Interface - J4
Network Interface – J4 Description DATA_A+ DATA_A- DATA_B+ DATA_C+ DATA_C- DATA_B- 8 7 6 5 4 3 2 1 DATA_D+ DATA_D- — Table 4 — Audio Output – J5 Channel + Channel – Channel Numbers 1 Out+ 1 Out- 2 Out+ 2 Out- 3 Out+ 3 Out-... -
Page 10: Amplifier Top View
Amplifier Top View 1 (4x) Refer to Figure 2 Four 0.177” (4.5 mm) mounting holes FACTORY RESET – Insert a non-conductive tool into the 0.188” (4.78 mm) FACTORY RESET hole then press and hold the reset button for at least FACTORY RESET 3 seconds. -
Page 11: Installation
Installation Dimensions 169.16 mm 51.46 mm 6.660 in 2.02 in 145.03 mm 45.97 mm 5.710 in 1.809 in 4x Ø 0.177 in 4.49 mm 172.72 mm 6.80 in 176.53 mm 6.95 in — Figure 4 — TD-001622-01-A... -
Page 12: Mounting
Mounting The Axon DTH1620 can be mounted in any orientation with a flat surface that meets the dimensional requirements described under “Dimensions” on page 11, is not exposed to rain, condensing humidity, excessive heat or cold, and is strong enough to hold the amplifier, weighing 2 lb, 6 oz, during the intended operational scenarios and shall not block any ventilation holes. -
Page 13: Axon Dth1620 Command Protocol
Axon DTH1620 Command Protocol The DTH1620 uses DHCP by default to obtain an IP address. A static IP addres can be set using the Dante Controller. UDP port 49494 is used for sending the command. The following commands are available for the DTH1620. Version 1.2... -
Page 14: Version / Bootloader Version
Version / Bootloader Version The VERSION command returns the firmware version of the device. BVERSION will return the version of the bootloader. Description of Command Example Command Example Response Description of Response Recall firmware version VERSION<CR> ACK VERSION 1.0<CR> Firmware version is 1.0 Recall bootloader version BVERSION<CR>... -
Page 15: Get/Set Output Mute
Get/Set Output Mute This set of commands gets and sets the output mute status for each output channel (parameter 1 is 1...16) or for all output channels (parameter 1 is 0). Description of Command Example Command Example Response Description of Response Get mute setting for output channel 14 GOM 14<CR>... -
Page 16: Status
Status The GSTAT command allows the control system to get a snapshot of the settings of the device. The command takes no parameters. Description of Command Example Command Example Response Description of Response Get current device status GSTAT<CR> ACK GSTAT<CR> followed by See below the binary structure below —... -
Page 17: Get Channel Name
Get Channel Name This command gets the name of the Dante channel corresponding to a channel. Valid values are 1–16. Description of Command Example Command Example Response Get Channel Name GCN 3<CR> ACK GCN 3 Lobby<CR> — Table 19 — Get Channel Name Syntax Example Get Device Lock This command returns the status of the Dante Device lock. -
Page 18: Specifications
Specifications Specification Description Test Result Additional Info Frequency Response (8 ohm) 1W +0.5dB, -1.5dB Frequency Response (8 ohm) 20W +0.5dB, -1.5dB Frequency Response (16 ohm) 1W +1.0dB, -0.5dB Frequency Response (16 ohm) 10W +1.0dB, -0.5dB Noise (20Hz - 20KHz) into 8Ω -73dBu Noise (20Hz - 20KHz) into 16Ω... -
Page 19: Contact Qsc
You may also register or login to open a case with QSC Technical Services. © 2020 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other trademarks are the property of their respective owners.
