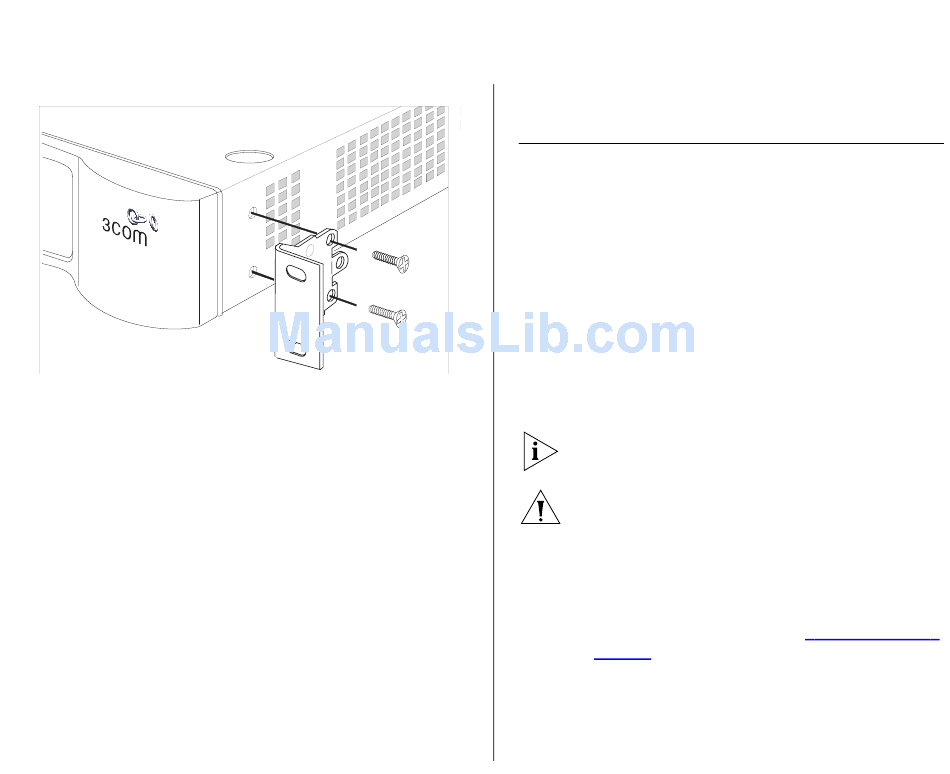

Figure 2 Inserting the Screws
Repeat the two previous steps for the other side of
4
the unit.
Insert the unit into the 19-inch rack and secure with
5
suitable screws (not provided). Ensure that the venti-
lation holes are not obstructed.
Reconnect the network cables.
6

Placing Units On Top of Each Other

If the Switch units are free-standing, up to four units
can be placed one on top of the other. If you are
mixing a variety of Baseline and SuperStack units, the
smaller units must be positioned at the top.
If you are placing Switch units one on top of the
other, you must use the self-adhesive rubber pads
supplied. Apply the pads to the underside of each
Switch, sticking one in the marked area at each cor-
ner. Place the Switch units on top of each other,

Supplying Power to the Switch

ensuring that the pads of the upper unit line up with
the recesses of the lower unit.
Supplying Power to the Switch
Power problems can be the cause of serious failures
and downtime in your network. Ensure that the
power input to your system is clean and free from
sags and surges to avoid unforeseen network out-
ages. 3Com recommends that you install power con-
ditioning, especially in areas prone to black outs,
power dips and electrical storms.
The unit is intended to be grounded. Ensure it is con-
nected to earth ground during normal use. Installing
proper grounding helps to avoid damage from light-
ning and power surges.
Before powering on the Switch, verify that network
cables and the power cable are securely connected.
CAUTION: The Switch has no ON/OFF switch; the
only method of connecting or disconnecting main
power is by connecting or disconnecting the power
cord.
To power on the Switch:
Plug the power cord into the power socket on the
1
rear panel of the Switch. Refer to
on page 12 for more information.
Plug the other end of the power cord into a power
2
outlet.
17
