30
en | Installing the Pendant Arm Wall, Corner, and Mast (Pole) Mounts
9.4
Attach Pendant Arm to Power Supply Box
The bottom hinge pin of the Pendant Arm is provided with a Hinge Pin Stop to hold the hinge
open while attaching the arm to the Power Supply Box.
1.

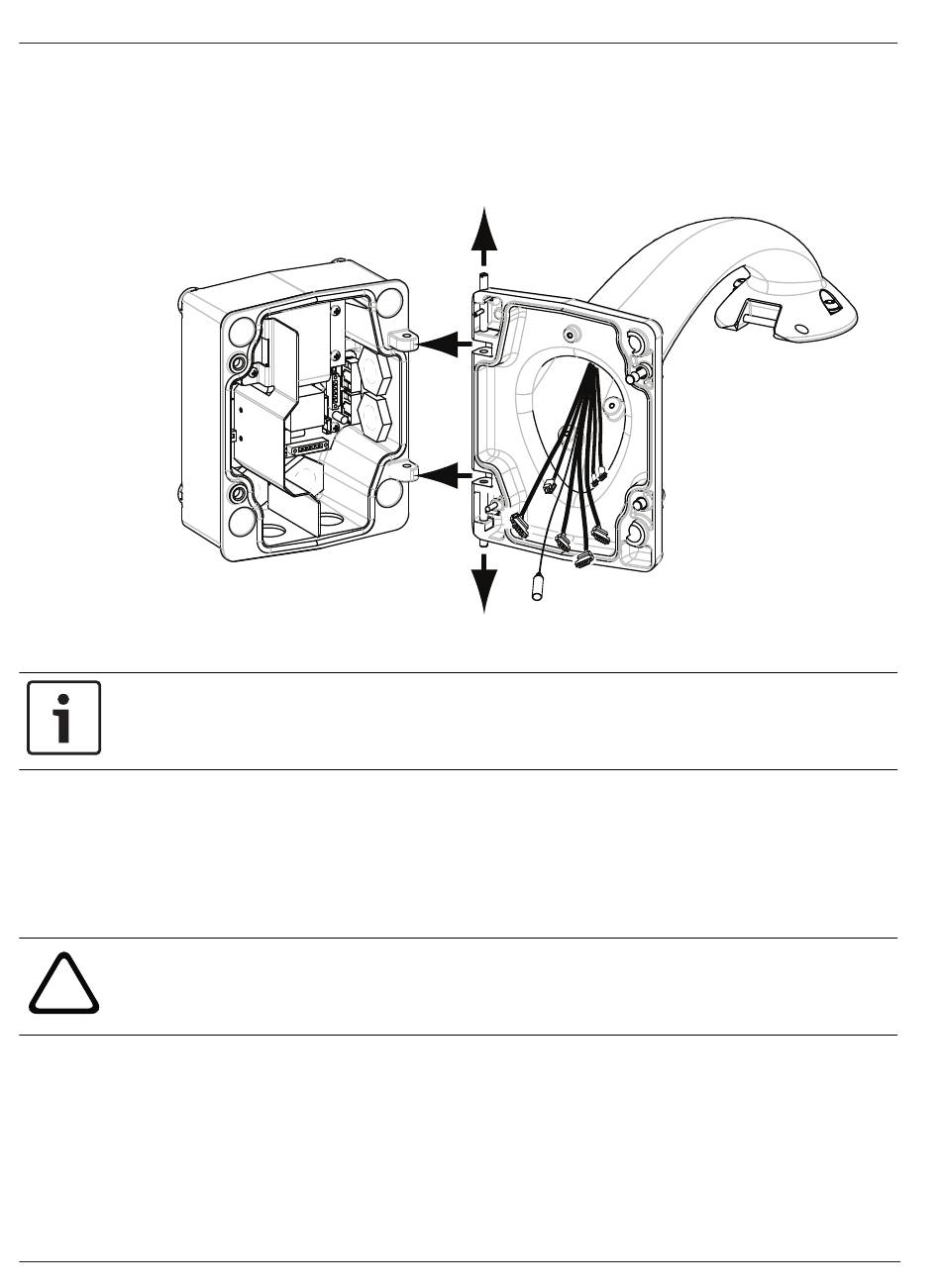

Figure 9.7: Pendant Arm to Power Box Hinge Alignment
2.
Notice!
Both Hinge Pins must be fully compressed to open (unlock) the hinges of the Pendant Arm
and before proceeding to the next step.
3.
4.
Warning!
Serious injury or death can occur if the hinge pins of the Pendant Arm are not fully engaged
!
(locked) to the Power Supply Box. Exercise caution before releasing the Pendant Arm.
2020-07 | 1.0 |
Compress the bottom hinge pin by pushing the pin lever downward and rotating it behind
the Hinge Pin Stop.
Open the top hinge by pushing its pin lever up and holding it.
While continuing to hold the top hinge pin open and align the top and bottom hinges of
the Pendant Arm to their mating points on the Power Supply Box. See the illustration
above.
Once you have aligned the hinges, release the top hinge pin to engage its mating hinge on
the power box. Then release the bottom hinge pin from the Hinge Pin Stop to lock the
Pendant Arm to the Power Supply Box.
Installation Manual (pendant)
AUTODOME inteox 7000i - 2MP (pendant)
Bosch Security Systems
