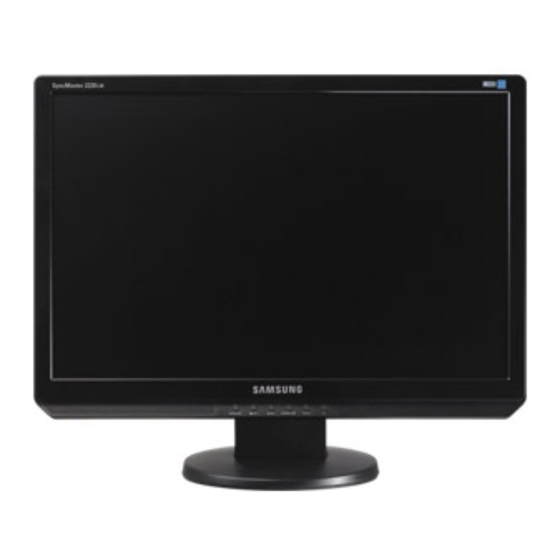

Samsung SyncMaster 2220LM User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SyncMaster 2220LM
SyncMaster 2220LM
Install drivers

Advertisement

loading

Related Manuals for Samsung SyncMaster 2220LM

Summary of Contents for Samsung SyncMaster 2220LM

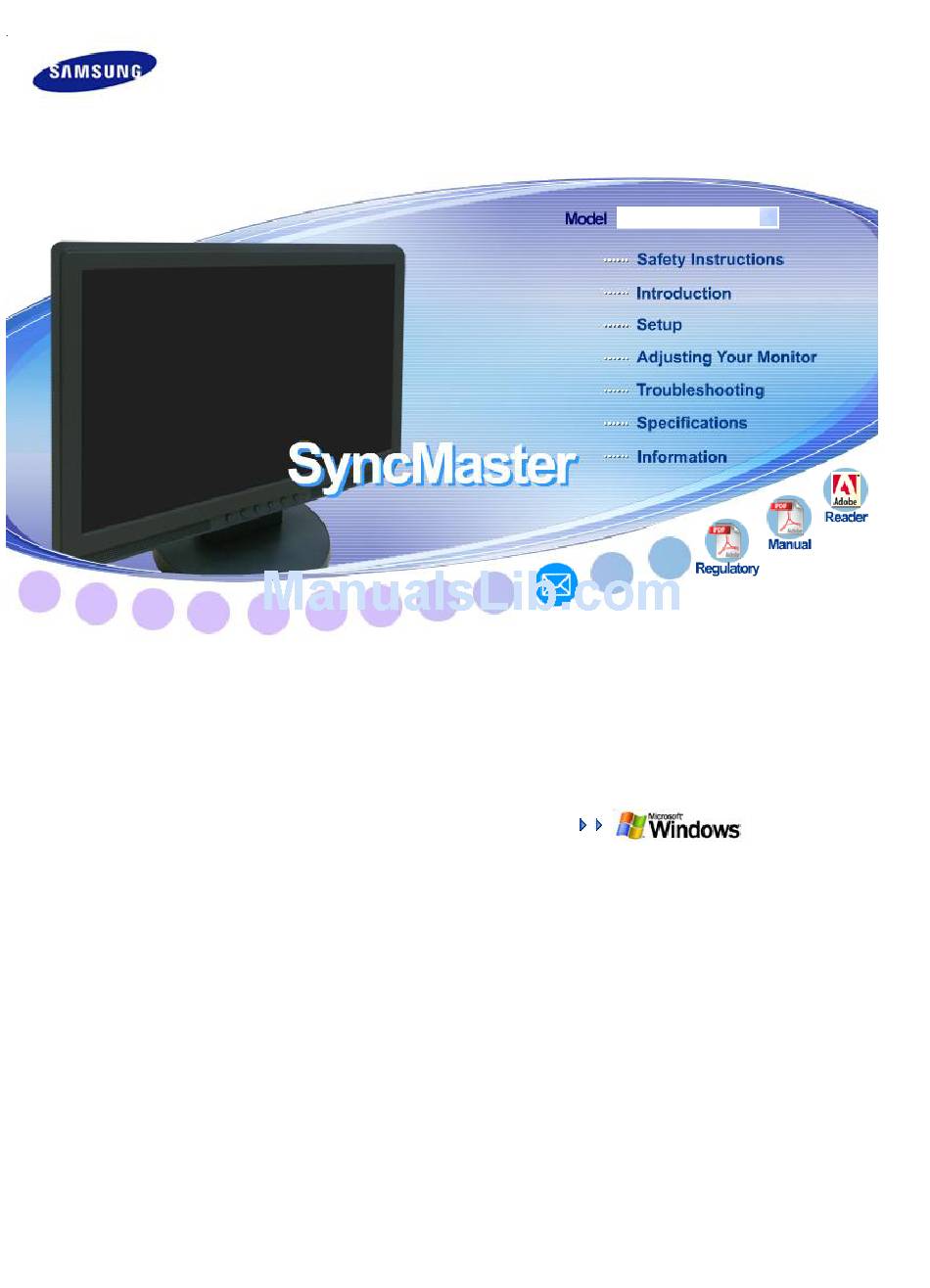

  • Page 1 SyncMaster 2220LM SyncMaster 2220LM Install drivers...
  • Page 2 Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment. Prohibited Do not disassemble Do not touch Model Important to read and understand at all times Disconnect the plug from the outlet Ground to prevent an electric shock SyncMaster 2220LM...
  • Page 3 Power When not used for an extended period of time, set your computer to DPM. If using a screen saver, set it to active screen mode. The images here are for reference only, and are not applicable in all cases (or countries). Do not use a damaged or loose plug.

  • Page 4: Installation

    Do not disconnect the power cord while using the monitor. A surge may be caused by the separation and may damage the monitor. Do not use the power cord when the connector or plug is dusty. If the connector or plug of the power cord is dusty, clean it with a dry cloth.
  • Page 5 This may cause damage to the product or the person carrying it. Install the monitor base in a showcase or shelf so that the end of the base does not protrude from the showcase or shelf. Dropping the product may cause damage to the product or the person carrying it.
  • Page 6 Failing to do so may damage the monitor. Do not place the monitor face down. This may damage the TFT-LCD surface.The installation of the bracket must be done by a qualified professional. Installing a wall bracket must be done by a qualified professional. Installing the bracket by unqualified personnel may result in injury.
  • Page 7 Keep the product's interior clean. Dust which has accumulated in the interior over an extended period of time may cause a malfunction or fire. Others Do not remove the cover (or back). the SAMSUNG customer care center Customer Center...
  • Page 8 This may cause electric shock or fire. Refer to a qualified servicing company. If your monitor does not operate normally - in particular, if there is any unusual sound or smell coming from the monitor - unplug it immediately and contact an authorized dealer or the Service Center.
  • Page 9 Bad ventilation may cause a breakdown or fire. Do not place water containers, chemical products or small metal objects on the monitor. This may cause a malfunction, electric shock or fire. If a foreign substance enters the monitor, unplug the power cord and contact the Service Center.
  • Page 10 Keep the volume at a comfortable level when using the headphones. Excessively loud volume level may damage hearing. Viewing the monitor continuously at a too close angle may result in damage to your eyesight. To ease eye strain, take at least a five-minute break after every hour of using the monitor.
  • Page 11 Children may try to climb on the product to retrieve an object. The product could fall, causing injury or even fatality. When lifting up or moving the monitor, do not lift the monitor upside down while holding only the stand. This may cause your monitor to fall, and become damaged or cause personal injury.

  • Page 12: Product Information (Image Retention Free)

    PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.
  • Page 13 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.
  • Page 14 Model SyncMaster 2220LM Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Without stand Monitor With stand...
  • Page 15 Monitor & Simple Stand Manual Warranty Card/ Registration User's Guide, Quick Setup Guide Card Monitor Driver (Not available in all locations) Cable RGB Cable Power Cord Audio Cable Front...
  • Page 16 Opens the OSD menu. Also use to exit the OSD menu or return to MENU button [MENU/ ] the previous menu. MagicBright™ is a new feature providing optimum viewing MagicBright™ environment depending on the contents of the image you are watching.
  • Page 17 Volume button [ ] ] Adjust items in the menu. Adjust buttons [ Enter button [ ] AUTO button [ AUTO ] Power button [ ] Power indicator Speaker PowerSaver described in the manual for further information regarding power saving functions.
  • Page 18 POWER port Connect the power cord for your monitor to the power port on the back of the monitor. Connect the signal cable to the 15-pin, D-sub port on the back of your RGB IN port monitor. AUDIO IN Connect the audio cable for your monitor to the audio port on the back of your computer.
  • Page 19 Connecting the Monitor Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Use appropriate connection for your computer. 2-1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
  • Page 20 If the monitor and the computer are connected, you can turn them on and use them. Using the Stand Monitor Assembly Monitor and Bottom Attaching a Base This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.
  • Page 21 Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non- specified wall mount is used or the consumer fails to follow the product installation instructions.
  • Page 22 4. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. (Microsoft This monitor driver is under certifying MS logo,and this installation doesn'tdamage your system.The certified driver will be posted on Samsung Monitor homepage http://www.samsung.com/.
  • Page 23 Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown below. Internet web site : http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ ® Microsoft Windows Vista™...
  • Page 24 "Continue". This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage http://www.samsung.com/ 6. Click "Update Driver…" in the "Driver" tab. 7. Check the "Browse my computer for driver software" checkbox and click "Let me...
  • Page 25 8. Click "Have Disk…" and select the folder (for example, D:\Drive) where the driver setup file is located, and click "OK". 9. Select the model that matches your monitor from the list of monitor models on the screen, and click "Next". 10.
  • Page 26 ® ® Microsoft Windows XP Operating System 1. Insert CD into the CD-ROM driver. 2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon. 3. Click "Display" icon and choose the "Settings" tab then click "Advanced..". 4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
  • Page 27 5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button. 6. Select "Don't search ,I will.." then click "Next" and then click "Have disk". 7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next"...
  • Page 28 8. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/ 9. Click the "Close" button then click "OK" button continually.
  • Page 29 SAMSUNG SyncMaster Monitor User's Manual 10. Monitor driver installation is completed. ® Microsoft Windows When you can see "Digital Signature Not Found" on your monitor, follow these steps. 1. Choose "OK" button on the "Insert disk" window. 2. Click the "Browse" button on the "File Needed" window.
  • Page 30 frequency by referring to the Linux Operating System To execute X-Window, you need to make the X86Config file, which is a type of system setting file. 1. Press Enter at the first and the second screen after executing the X86Config file. 2.
  • Page 31 1. [MENU/ Opens the on-screen menu and exits from the menu or closes the adjustment menu. 2. [ These buttons allow you to adjust items in the menu. 3. [ ] Press this button to activate a highlighted menu item. Press to self-adjust the incoming PC signal automatically.

  • Page 32: Auto Pattern

    AUTO Menu When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically. (Available in analog mode only) To make the automatic adjustment function sharper, execute the 'AUTO' AUTO...
  • Page 33 When pressing the MENU button after locking the OSD Menu Description This is the function that locks the OSD in order to keep the current states of settings or prevent others from adjusting the current settings.
  • Page 34 Lock : Hold down the menu button for more than five seconds to activate the OSD adjustment lock function. Unlock : Hold down the menu button for more than five seconds to OSD Lock & Unlock deactivate the OSD adjustment lock function. Though the OSD adjustment lock function is activated, you can still adjust the brightness and contrast, and adjust MagicBright ( using the Direct button.
  • Page 35 Menu When OSD is not on the screen, push the button to adjust volume. Volume Picture Brightness Color Tone Color Image Coarse Language Setup Image Reset Information Picture Description Contrast Color Control Gamma Fine Sharpness H-Position V-Position Color Reset H-Position V-Position Transparency Display Time...
  • Page 36 Menu You can use the on-screen menus to change the brightness according to personal preference. Brightness → [MENU→ You can use the on-screen menus to change the contrast according to personal preference. Contrast → , [MENU→ Color Description → , →...
  • Page 37 Menu The tone of the color can be changed and one of four modes can be selected - Cool, Normal, Warm and Custom. Cool Normal - Keeps whites white. Color Tone Warm Custom - Select this mode when you want to adjust [MENU→...
  • Page 38 Menu Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu. Coarse (Available in analog mode only) [MENU→ , Removes noise such as horizontal stripes. If the noise persists even after fine tuning, repeat it after adjusting the frequency (clock speed).
  • Page 39 Menu You can choose one of 9 languages. Language Note:The language chosen affects only the language of the OSD. It has no effect on any software running on the computer. [MENU→ , You can change the horizontal position where the OSD menu appears on your monitor.
  • Page 40 is turned off. 5 sec, 10 sec, 20 sec, 200 sec Display Time → [MENU→ , Setup Menu Image parameters are replaced with the factory default values. Image Reset → [MENU→ , Color parameters are replaced with the factory default values.
  • Page 41 Menu Description Shows a video source, display mode on the OSD screen. Information [MENU → , → MENU]...

  • Page 42: Check List

    Check List Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom No images on the Is the power cord connected screen.
  • Page 43 There is no image on the screen. Is the power indicator on the monitor blinking at 1 second intervals? I cannot see the On Have you locked the On Screen Screen Display. Display (OSD) Menu to prevent changes? The screen shows Is the screen displaying only one strange colors or just color as if looking at the screen...
  • Page 44 be adjusted. LED is blinking but no Is the frequency properly adjusted images on the screen. when checking the Display Timing on the menu? There are only 16 Have the Windows colors been set colors shown on the properly? screen. The screen colors have changed after changing the video...

  • Page 45: Self-Test Feature Check

    Q & A Question How can I change the frequency? How can I adjust the resolution? How can I set the Power Saving function? How can I clean the outer case/LCD Panel? Self-Test Feature Check Self-Test Feature Check Warning Messages Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.
  • Page 46 4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor. If your monitor screen remains blank after using the previous procedure, check your video controller and computer system; your monitor is functioning properly. Warning Messages If there is something wrong with the input signal, a message appears on the screen or the screen goes blank although the power indicator LED is still on.
  • Page 47 General General Model Name LCD Panel Size Display area Pixel Pitch Synchronization Horizontal Vertical Display Color 16.7 M Resolution Optimum resolution Maximum resolution Input Signal, Terminated RGB Analog. 0.7 Vp-p ± 5 % separate H/V sync, Composite, SOG TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V) Maximum Pixel Clock SyncMaster 2220LM 22"...
  • Page 48 150 MHz Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz Signal Cable 15pin-to-15pin D-sub cable, Detachable Dimensions (WxHxD) / Weigh 517.26 X 362.48 X 61.56 mm / 20.4 x 14.3 x 2.4 inch (Without Stand) 517.26 X 424.38 X 207.83 mm / 20.4 x 16.7 x 8.2 inch (With Stand) / 5.1 kg / 11.2 lbs VESA Mounting Interface 100 mm x 100 mm (For use with Specialty(Arm) Mounting hardware.) Max internal speaker...

  • Page 49: Preset Timing Modes

    Less than 55 watts This monitor is EPA ENERGY STAR compliant when used with a computer equipped with VESA DPM functionality. ® As an ENERGY STAR Partner, SAMSUNG has determined that this product meets the ENERGY STAR Horizontal Vertical Frequency Frequency...
  • Page 50 VESA. 800 x 600 35.156 VESA. 800 x 600 37.879 VESA. 800 x 600 48.077 VESA. 800 x 600 46.875 VESA. 1024 x 768 48.363 VESA. 1024 x 768 56.476 VESA. 1024 x 768 60.023 VESA. 1152 x 864 67.500 VESA.1280 x 960 60.000 VESA.1280 x 1024...

  • Page 51: Contact Samsung Worldwide

    Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. U.S.A 1-800-SAMSUNG (7267864) CANADA 1-800-SAMSUNG (7267864) MEXICO 01-800-SAMSUNG (7267864) ARGENTINE 0800-333-3733 BRAZIL 4004-0000 CHILE 800-726-7864 (SAMSUNG) COLOMBIA 01-8000112112 COSTA RICA...
  • Page 52 70 70 19 70 030-6227 515 3260 SAMSUNG(7267864) (€ 0,15/min) 01805 - 121213 (€ 0,14/Min) 06-80-SAMSUNG (7267864) 800 SAMSUNG (7267864) 0032 (0)2 201 24 18 0900 20 200 88 (€ 0,10/Min) 815-56 480 0 801 801 881 80 8 200 128...
  • Page 53 800-810-5858, 010- 6475 1880 3698-4698 3030 8282, 1800 1100 11 0800-112-8888 0120-327-527 1800-88-9999 1800-10-SAMSUNG (7267864) 1800-SAMSUNG (7267864) 1800-29-3232, 02-689-3232 0800-329-999 1 800 588 889 Middle East & Africa 0860 7267864 (SAMSUNG) 800SAMSUNG (7267864) 8000-4726 http://www.samsung.lt http://www.samsung.kz http://www.samsung.ru http://www.samsung.com/ur http://www.samsung.uz http://www.samsung.com/au http://www.samsung.com.cn http://www.samsung.com/hk http://www.samsung.com/in http://www.samsung.com/id...

  • Page 54: For Better Display

    for the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit: Hz Example :If the same light repeats itself 60 times per second, this is regarded as 60 Hz. Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle.
  • Page 55 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

  • Page 56: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only

    Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
