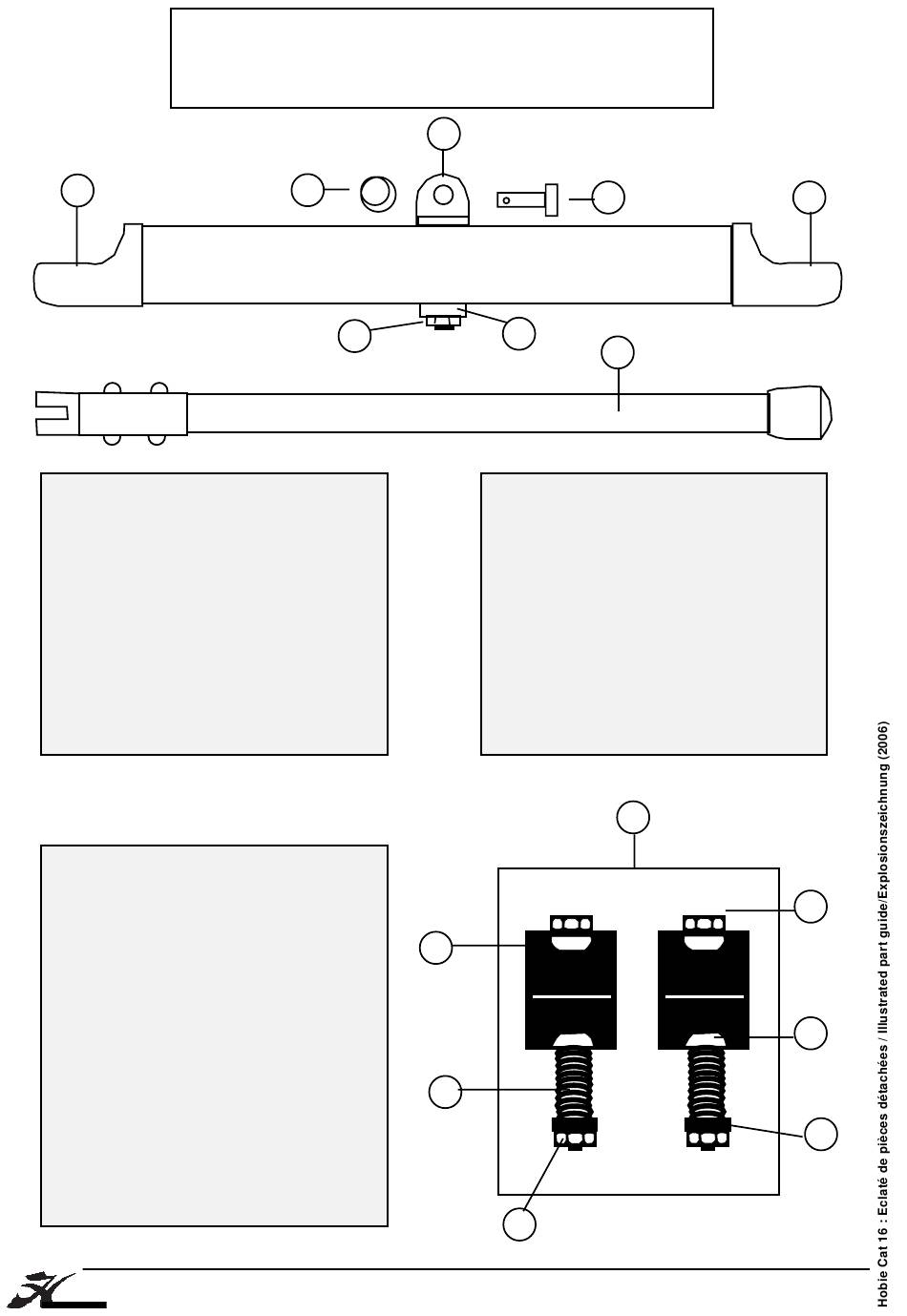

Hobie GETAWAY Illustrated Part Manual page 4

Barre d'accouplement/Tiller crossbar/Anlenkstange
1
1- 99000005: Embout à rotule
Tiller end cap
Pinnenendstück
2 - 99220955: Vis violon art. stick
(x10) Violon screw
Bügel Schraube Stick
3 - 99220230: Anneau brisé
(x10) Split ring
Ringsplint
4- 14061241: Axe percé
(x10) Clevis pin
Bolzen
9 - 99220965: Demi-bille nylon
(x10) Half ball nylon
Nylon Kugel halb
10 - 99500336: Ressort TCM
(x10) TCM spring
TCM Feder
11 - 99220875: Vis TH
(x10) TH screw
TH Schraube
12 - 99220745: Rondelle inox
(x10) Stainless washer
Unterlegscheibe
13 - 99056238: Ecrou indessérable 6mm
(x10) Nylstop nut
Selbstsichernde Mutter
14 - 18062305: Stick fibre de verre
Fibreglas tiller extension
Pinnenauslege Fiberglas
