132999531

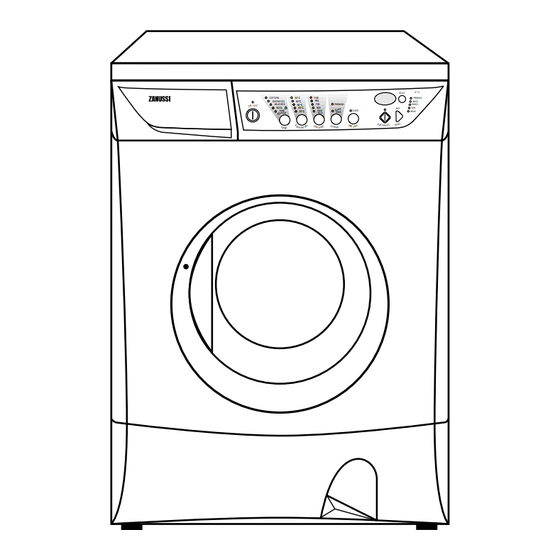

WASHING MACHINE
PRALKA AUTOMATYCZNA
AUTOMATICKÁ PRAČKA
AUTOMATICKÁ PRÁČKA
AUTOMATA MOSÓGÉP
IZ 10 - IZ 12
INSTRUCTION BOOKLET
INSTRUKCJA OBSLUGI
NÁVOD K OBSLUZE
NÁVOD NA OBSLUHU
HASZNÁLATI ÚTMUTATÓ
COTTONS
90 C
1200
900
SYNTHETICS
60 C
DELICATES
50 C
700
WOOL
40 C
500
HAND
30 C
RINSE
WASH
HOLD
GB
PL
CZ
SK
H
Advertisement
Table of Contents
Related Manuals for Zanussi IZ10
Summary of Contents for Zanussi IZ10
-
Page 1: Washing Machine
WASHING MACHINE PRALKA AUTOMATYCZNA AUTOMATICKÁ PRAČKA AUTOMATICKÁ PRÁČKA AUTOMATA MOSÓGÉP 132999531 IZ 10 - IZ 12 COTTONS 90 C 1200 SYNTHETICS 60 C DELICATES 50 C WOOL 40 C HAND 30 C RINSE WASH HOLD INSTRUCTION BOOKLET INSTRUKCJA OBSLUGI NÁVOD K OBSLUZE NÁVOD NA OBSLUHU HASZNÁLATI ÚTMUTATÓ... - Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings Disposal Tips for environmental protection 5 Technical specifications Installation Unpacking Positioning Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance Door locked pilot light Detergent dispenser drawer Control panel Controls Washing hints Sorting the laundry Temperatures Before loading the laundry Maximum loads... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. -
Page 5: Disposal
Child safety • Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance. • The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS MAXIMUM LOAD SPIN SPEED POWER SUPPLY VOLTAGE/FREQUENCY TOTAL POWER ABSORBED MINIMUM FUSE PROTECTION WATER PRESSURE This appliance complies with the following EEC Directives: 73/23/EEC of 19/02/73 relating to low voltage 89/336/EEC of 03/05/89 relating to electromagnetic compatibility. Height Width Depth... -
Page 7: Installation
Installation Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. 1. Using a spanner, unscrew and remove the rear right-hand bolt and lay the machine on its back, taking care not to squash the hoses. -
Page 8: Water Drainage
Water drainage The end of the drain hose can be positioned in three ways: Hooked over the edge of a sink using the plastic hose guide supplied with the machine. In this case, make sure the end cannot come unhooked when the machine is emptying. -
Page 9: Your New Washing Machine
Your new washing machine This new washing machine, which is fitted with the Jet system, patented Zanussi, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 10: Use
Control panel 1 ON/OFF button Press this button to switch the washing machine on. Press the ON/OFF button again to switch the machine off. 2 MAINS-ON light This light is connected to the ON/OFF button. It lights up when you press the button, and goes out when you press it again. -
Page 11: Options Button
• Draining and spin: - Press the START/PAUSE button. The machine will drain the water, then spin the laundry at the maximum speed provided for the selected programme. - Select spin speed by means of button 5, and press the START/PAUSE button. •... -
Page 12: Skip/Reset Button
Important! The first time you use the washing machine, when you switch it on, it may display a blinking zero and give an audible warning signal. This is due to the fact that the washing machine has performed a washing cycle during the manufacturer’s inspection tests, and this cycle has not been erased after its completion. - Page 13 Example: In this case, both the drain and the spin (at the speed provided for the selected type of fabric) will be performed. This button allows you also to select special programmes, such as RINSES, SPIN and DRAIN. • If the machine is already switched on because it has just performed a washing programme, proceed as follows: - depress RESET once or repeatidly to cancel the...
-
Page 14: Washing Hints
Washing hints Sorting the laundry Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens. Temperatures 95° for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets...) 60°... -
Page 15: Detergents And Additives
Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly. Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste. (*) do not use acetone on artificial silk. -
Page 16: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash temperature 95 C Delicate wash Bleaching Bleach in cold water Ironing Hot iron max 200 C Dry cleaning Dry cleaning... -
Page 17: Operating Sequence
Operating sequence Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine. -
Page 18: Select The Temperature
6. Select the temperature Press the TEMPERATURE button if you wish to select a temperature value different from the one proposed by the washing machine. The relevant light will light up. 7. Select the spin speed or the RINSE HOLD option Press the SPIN SPEED button repeatedly, in order to select the desired spin speed or the RINSE HOLD option. -
Page 19: End Of Programme
12. How to change a programme during its cycle Before you make any change, you must pause the washing machine by pressing the START/PAUSE button. It is possible to change any phase before the programme carries it out. Changing the type of fabric or temperature is possible, obviously, only during the washing phase. -
Page 20: Washing Programmes
Washing programmes Type of laundry and Programme/ symbols on load temperature labels 5.5 kg Cottons 60°-95°C White cotton: e.g. sheets, tablecloths, household linen 5.5 kg Cottons 60°-40°-30°C Coloured cotton: e.g. shirts, blouses, underwear, towels, house- hold linen 2.5 kg Synthetics 60°-40°-30°C Synthetic fabrics and... -
Page 21: Maintenance
Maintenance 1. Door seal Check from time to time the door seal and eliminate eventual possible objects that could be trapped in the fold. P1050 2. Bodywork Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth. -
Page 22: Emergency Emptying Out
5. Water inlet filter If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked. Turn off the water tap. Unscrew the hose from the tap. Clean the filter with a stiff brush. Screw the hose back onto the tap. -
Page 23: Something Not Working
Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following alarm codes appears on the display: - E10: problem with the water supply - E20: problem with water draining - E40: door open Once the problem has been eliminated, press the START/PAUSE button all checks, the problem persists, contact your local Service Centre. -
Page 24: The Door Will Not Open
Problem • The door will not open: • Spinning starts late or the laundry is not spun enough: • Water is not visible in the machine: • The machine makes an unusual noise: If you are unable to identify or solve the problem, contact our service centre.
