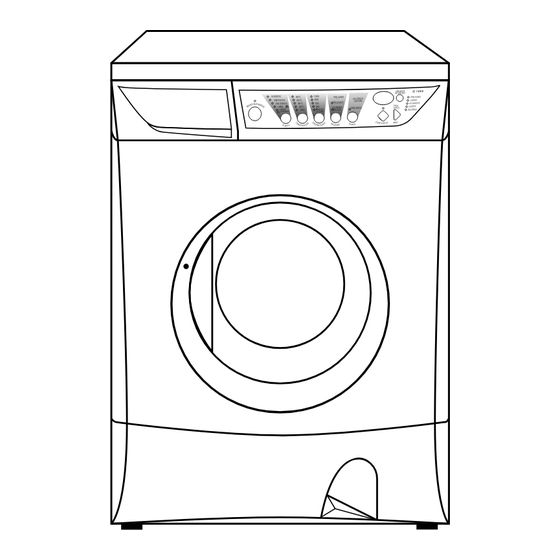

- Page 1 LAVADORA WASHING MACHINE MÁQUINA DE LAVAR ROUPA IZ 10 - IZ 10 ALU ° ° ° ° MANUAL DE USO USER MANUAL MANUAL DE INSTRUÇÕES 132993440...
- Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings 28-29 Maintenance Door seal Disposal Bodywork Detergent dispenser drawer Tips for environmental protection Drain filter Water inlet filter Technical specifications Emergency emptying out The dangers of freezing Installation Unpacking Something not working? 48-49 Positioning Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •... -
Page 5: Disposal
Child safety To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until • Children are often not aware of how dangerous the groove is vertical. electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance. -
Page 6: Technical Specifications
MAXIMUM LOAD Cotton Synthetics 2.5 kg Delicates 2.5 kg Woollens, hand wash SPIN SPEED 1000 rpm max. (IZ 10 - IZ 10ALU ) POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE... -
Page 7: Installation
Installation Unpacking 6. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. -
Page 8: Water Drainage
Water drainage Electrical connection The end of the drain hose can be positioned in three This machine is designed to operate on a 220-230 V, ways: single-phase, 50 Hz supply. Hooked over the edge of a sink using the plastic Check that your domestic electrical installation can hose guide supplied with the machine. -
Page 9: Your New Washing Machine
Your new washing machine This new washing machine, which is fitted with the Jet system, patented Zanussi, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 10: Use
Control panel fabrics to be hand-washed (HAND WASH programme). 1 ON/OFF button By selecting position FRIO the machine will wash with Press this button to switch the washing machine on. cold water. To be used for extremely delicate items, The display (8) will show three blinking dashes or a such as curtains. - Page 11 To complete the cycle, choose one of the following • SUPER RINSE (ACLARADO ADICIONAL): this options: option can be selected with all programmes except the wool and hand wash programme. The • Draining and spin: machine performs 4 rinses instead of 3. This option - Press the START/PAUSE button.
- Page 12 After you have pressed the START/PAUSE button, the countdown begins, and the delay time value decreases by one unit every hour. You can delay the start of the selected programme by up to 24 hours in one hour intervals. • An incorrect option selection has been made: this is indicated by the message Err when a function incompatible with the current programme is selected.
- Page 13 Important! You must set the washing machine to • DRAIN PAUSE before you make any change in the Depress RESET (ANULAR) three times, the programme in progress. pilot lights WASH, RINSES and SPIN go out. • Draining of water and spinning after the Example: execution of programmes with the NIGHT WASH (CICLO NOCHE) option.
- Page 14 Important! The door will be locked throughout the delay time (DOOR LOCKED light lit). If you need to open the door, you must first set the washing machine to PAUSE by pressing the START/PAUSE button. After you have closed the door, press the START/PAUSE button again.
-
Page 15: Washing Hints
Delicate fabrics, woollens and hand wash Washing hints programme: drum no more than one third full. Washing a maximum load makes the most efficient Sorting the laundry use of water and energy. For heavily soiled laundry, reduce the load size. Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. -
Page 16: Detergents And Additives
lay the garment on a soft cloth and dab the stain. on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer. Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach. -
Page 17: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 18: Operating Sequence
4. Switch the machine on Operating sequence To switch the machine on, press the ON/OFF button : the mains-on light comes on. Before washing your first load of laundry, we The display will show three blinking dashes or a recommend that you run a cotton cycle at 60°C, with blinking zero. - Page 19 9. Select the SUPER RINSE and/or ECONOMY 40° AA option ° ° If you wish the laundry to undergo an extra rinse, ° ° select the SUPER RINSE option. If your laundry is lightly or normally soiled and it is necessary to prolong the washing time, select the ECONOMY 40°...
- Page 20 12. How to change a programme After approximately 3 minutes, you can open the door. during its cycle Pay attention to the level and temperature of the Before you make any change, you must pause the water in the washing machine! washing machine by pressing the START/PAUSE When you close the door and press the ON/OFF button.
-
Page 21: Washing Programmes
Programme chart Washing programmes Type of Consumption* laundry and Programme/ Description of Load Available options symbols on temperature programme Energy Water Time labels litres h/min. CENTRIFUGADO 5 kg Cottons Wash at 2.29 CICLO NOCHE White cotton: Algodón 60°-90°C PRELAVADO e.g. sheets, 60°-90°C 3 rinses MANCHAS DIFICILES... -
Page 22: Maintenance
Maintenance 1. Door seal Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the Check from time to time the door seal and eliminate drawer after cleaning. eventual possible objects that could be trapped in the fold. -
Page 23: Water Inlet Filter
5. Water inlet filter If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked. Turn off the water tap. Unscrew the hose from the tap. Clean the filter with a stiff brush. Screw the hose back onto the tap. -
Page 24: Something Not Working
Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following alarm codes appears on the display: - E10: problem with the water supply - E20: problem with water draining - E40: door open Once the problem has been eliminated, press the START/PAUSE button to restart the programme. - Page 25 Problem Possible cause • Spinning starts late or the laundry is • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
- Page 26 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
