York Y34 Technical Manual

Millennium single package rooftop units 25, 30, & 40 ton
Hide thumbs
Table of Contents

Advertisement

Quick Links

TECHNICAL GUIDE
MILLENNIUM
®
SINGLE PACKAGE ROOFTOP UNITS
Y32, Y33 & Y34
25, 30, & 40 TON
25 TON (10 EER)
30 & 40 TON (9.5 EER)
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
®

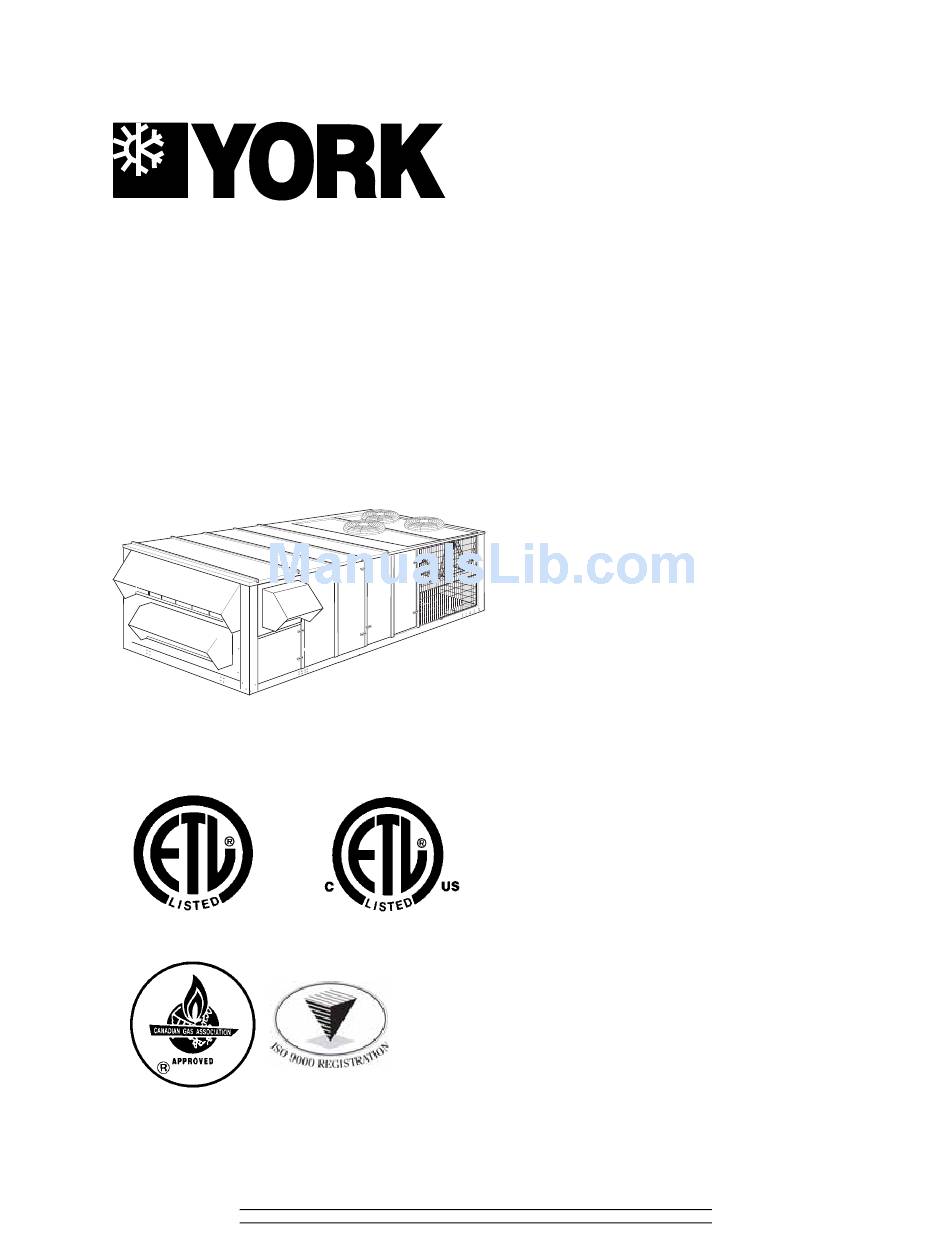

30 TON UNIT SHOWN
ISO 9001
Certified Quality
Management System
TOMORROW'S UNIT TODAY

GENERAL

Introducing the YORK Millennium 25, 30, & 40 ton rooftop
line - units designed to provide peak performance and value
both today and for years to come. Millennium units are manu-
factured at an ISO 9001 registered facility, and each rooftop
is completely computer-run tested prior to shipment.
The Millennium is designed to be flexible enough to meet
your needs today and in the future. The true value of YORK's
Millennium is that it can be designed to fit any need, from
cooling only, constant volume applications to variable air vol-
ume systems with variable frequency drive.

FEATURING:

•
Cooling Only Units
•
Cooling/Gas Heating Units (Natural) Standard or
Modulating Gas Heat available
•
Cooling/Electric Heating Units
•
Cooling/Hot Water Heating Units
•
Cooling/Steam Heating Units
•
Industry Leading Efficiency
•
Double Wall Construction
•
Stainless Steel or Powder Coated Drain Pan
•
Multiple Scroll Compressors
•
Multiple Refrigeration Circuits
•
Upgradable Motor Efficiency
•
Enhanced Filtration
•
Vibration Isolated Supply Fan and Motor
•
Technicoated Evaporator and Condenser Coils
•
High Capacity Evaporator Coils
•
Single Power Point Connection
•
Easy Access Hinged Doors
•
Variable Air Volume
•
Constant Air Volume
•
Factory Installed Economizers/Disconnect/Convenience
Outlet/Control Options
•
Low Profile
MILLENNIUM SIMPLICITY
•
Single Button Programming and LED Display
•
Designed to operate on both constant and variable air
volume units
•
365-Day real time clock with automatic Daylight Savings
time adjustment
•
Occupancy Schedule allowing two schedules per day
•
20 Holiday schedules with programmable schedules that
can start at any time, day or night
•
Patented Comfort Ventilation operation for economical
and comfortable economizer operation
•
Demand Ventilation option to assure proper IAQ condi-
tions based on available space or return air CO
•
Temperature/Humidity programming algorithm allows
programmable limits to help control humidity in the space
•
Smoke Purge automatically ventilates the space when
smoke is detected
•
Monitors dirty filters and proves airflow before starting
heating or cooling
•
Intelligent recovery to bring the space temperature up to
occupied setting quicker and more economically
246653-YTG-E-0108
®
ELITE™ FEATURES:
levels
2

Advertisement

Table of Contents
loading

Related Manuals for York Y34

Summary of Contents for York Y34

  • Page 1: General

    The Millennium is designed to be flexible enough to meet your needs today and in the future. The true value of YORK’s Millennium is that it can be designed to fit any need, from cooling only, constant volume applications to variable air vol- ume systems with variable frequency drive.

  • Page 2: Table Of Contents

    OPTIONAL CONTROL ......95 YORK COMMERCIAL COMFORT SYSTEM (YCCS) . . . 95 AVAILABLE ACCESSORIES ..... 95 PARTIAL PERIMETER ROOF CURBS .
  • Page 3 Fig.# HOT WATER PIPING CROSS-SECTION ..15 HOT WATER COIL - 25 & 30 TON, 1 ROW, AT 10 GPM ....... . . 16 HOT WATER COIL - 25 &...
  • Page 4 246653-YTG-E-0108 Tbl.# GENERAL PHYSICAL DATA ....10 REFRIGERANT CHARGE ..... 11 STANDARD GAS HEATING CAPACITIES .

  • Page 5: Overview

    Millennium offers unparalleled flexibility. Optional features include: Variable Air Volume - YORK gives you the ability to vary air volume by inlet guide vanes or variable frequency drive - the choice is yours. All Millennium VAV units come standard with hot gas bypass to give extended operation range.

  • Page 6: Installation Features

    (30 & 40 Ton R-22 only) Variety of Exhaust Air Options - YORK Millennium offers a wide variety of exhaust air options, including barometric relief, non-modulating power exhaust, and modulating power exhaust.

  • Page 7: Construction Features

    COILS DOUBLE WALL CONSTRUCTION CONSTRUCTION FEATURES YORK's Millennium rooftop line is built for the long haul, with high end features and construction offered at a competitive price. Millennium units are manufactured at an ISO 9001 reg- istered facility, and each rooftop is completely computer-run tested prior to shipment.

  • Page 8: List Of Features And Benefits

    • Simplicity Elite™ controls • ModLINC translator • York Commercial Comfort System (YCCS) LIST OF FEATURES AND BENEFITS Field Installed Accessories • 7-Day Programmable Wall Thermostat-Can be used with or without remote sensors. Can be used on CV and VAV units when wall thermostat is required for scheduling and temperature control.

  • Page 9: Nomenclature

    246653-YTG-E-0108 NOMENCLATURE Johnson Controls Unitary Products...

  • Page 10: General Physical Data

    246653-YTG-E-0108 TABLE 1: GENERAL PHYSICAL DATA EER / IPLV TANDARD APACITY VAPORATOR UMBER APACITY TEPS UMBER IAMETER X IDTH INCHES HP R ANGE CFM R ANGE FULL LOAD ESP R ANGE UMBER HP R ANGE SINGLE MOTOR /FPI /FPI /FPI UANTITY IAMETER INCHES...

  • Page 11: Selection Procedure

    15 lb. / 5 oz. Factory 15 lb. / 13 oz. Ensure that it is offered in the Y34 unit. Read option model as N5. From the basic nomenclature, the model now becomes Y34AN5. Add voltage code of “4” for 460-3-60. Nomen- 460,000 Btuh clature becomes Y34AN54.

  • Page 12: Standard Gas Heating Capacities

    PTION ODELS Y32/Y33/Y34 Y32/Y33/Y34 Y34 ONLY Heating capacity is only staged on CV models. VAV models use only one stage at full capacity. Blower motor heat not included. Based on a heat content of 1075 Btu/Ft. Unit Control Board with 3 heating outputs only. For all other Unit Control Boards the 1st Stage is 533 MBH.

  • Page 13: Modulating Heat

    PTION Y32, Y33, Y34 Y32, Y33, Y34 Y32, Y33, Y34 (460 & 575 volt only) Supply air fan motor heat not included. Heating capacity is only staged on CV models. VAV models use only one stage at full capacity. For 208 volts, multiply kW and MBH values by .751. For 230 volts, multiply kW and MBH values by .918 For 460 volts, multiply kW and MBH values by .918.

  • Page 14: Hot Water Heating

    HOT WATER HEATING The YORK Millennium Rooftop units (30 - 40 Ton sizes) can be furnished with a YORK hot water coil as the source of heat (Bottom Supply Only). A one or two row coil will be factory installed in the heating section downstream of the supply air fan and just above the supply air opening in the bottom of the unit.

  • Page 15: Hot Water Piping Cross-Section

    (1 OR 2 ROW) CONDENSING HOT WATER COIL 26" INLET (2") OUTLET (2") 15.8" 11.88" 8.38" 2.25" 2.55" 88.75" HEAT SECTION COMPARTMENT FIGURE 1 - HOT WATER PIPING CROSS-SEC- TION TABLE 12: STATIC RESISTANCE HOT WATER COIL (1 ROW, 40 TON) 8000 11000 0.11...

  • Page 16: Hot Water Coil - 25 & 30 Ton, 1 Row, At 10 Gpm

    246653-YTG-E-0108 2 3 0 .0 2 2 0 .0 2 1 0 .0 2 0 0 .0 1 9 0 .0 1 8 0 .0 1 7 0 .0 1 6 0 .0 1 5 0 .0 1 4 0 .0 1 3 0 .0 1 2 0 .0 1 1 0 .0...

  • Page 17: Hot Water Coil - 25 & 30 Ton, 1 Row, At 30 Gpm

    2 9 0 .0 2 8 0 .0 2 7 0 .0 2 6 0 .0 2 5 0 .0 2 4 0 .0 2 3 0 .0 2 2 0 .0 2 1 0 .0 2 0 0 .0 1 9 0 .0 1 8 0 .0 1 7 0 .0...

  • Page 18: Hot Water Coil - 40 Ton, 1 Row, At 10 Gpm

    246653-YTG-E-0108 2 5 0 .0 2 4 0 .0 2 3 0 .0 2 2 0 .0 2 1 0 .0 2 0 0 .0 1 9 0 .0 1 8 0 .0 1 7 0 .0 1 6 0 .0 1 5 0 .0 1 4 0 .0 1 3 0 .0...

  • Page 19: Hot Water Coil - 40 Ton, 1 Row, At 30 Gpm

    3 2 0 .0 3 1 0 .0 3 0 0 .0 2 9 0 .0 2 8 0 .0 2 7 0 .0 2 6 0 .0 2 5 0 .0 2 4 0 .0 2 3 0 .0 2 2 0 .0 2 1 0 .0 2 0 0 .0...

  • Page 20: Physical Data Hot Water Coil - 2 Row

    246653-YTG-E-0108 PHYSICAL DATA HOT WATER COIL - 2 ROW Coil Casing ....Galvanized Steel Coil Construction....Al Fin / Cu. Tube Rows Deep .

  • Page 21: Hot Water Coil - 25 & 30 Ton, 2 Row, At 20 Gpm

    4 8 0 .0 4 6 0 .0 4 4 0 .0 4 2 0 .0 4 0 0 .0 3 8 0 .0 3 6 0 .0 3 4 0 .0 3 2 0 .0 3 0 0 .0 2 8 0 .0 2 6 0 .0 2 4 0 .0...

  • Page 22: Hot Water Coil - 25 & 30 Ton, 2 Row, At 60 Gpm

    246653-YTG-E-0108 6 1 0 .0 5 9 0 .0 5 7 0 .0 5 5 0 .0 5 3 0 .0 5 1 0 .0 4 9 0 .0 4 7 0 .0 4 5 0 .0 4 3 0 .0 4 1 0 .0 3 9 0 .0 3 7 0 .0...

  • Page 23: Hot Water Coil - 40 Ton, 2 Row, At 20 Gpm

    5 3 0 .0 5 1 0 .0 4 9 0 .0 4 7 0 .0 4 5 0 .0 4 3 0 .0 4 1 0 .0 3 9 0 .0 3 7 0 .0 3 5 0 .0 3 3 0 .0 3 1 0 .0 2 9 0 .0...

  • Page 24: Hot Water Coil - 40 Ton, 2 Row, At 60 Gpm

    246653-YTG-E-0108 7 0 0 .0 6 8 0 .0 6 6 0 .0 6 4 0 .0 6 2 0 .0 6 0 0 .0 5 8 0 .0 5 6 0 .0 5 4 0 .0 5 2 0 .0 5 0 0 .0 4 8 0 .0 4 6 0 .0...

  • Page 25: Steam Heating

    STEAM HEATING The YORK Millennium units (25, 30, and 40 ton sizes) can be manufactured with a steam heat coil (Bottom Supply only). YORK's one row steam coil is installed in the heating section just downstream of the supply air fan and just above the sup- ply air opening in the bottom of the unit.

  • Page 26: Steam Coil - 25 & 30 Ton, 1 Row

    246653-YTG-E-0108 3 5 0 3 4 0 3 3 0 3 2 0 3 1 0 3 0 0 2 9 0 2 8 0 2 7 0 2 6 0 2 5 0 2 4 0 2 3 0 2 2 0 2 1 0 2 0 0...

  • Page 27: Exhaust Fan Drive Data

    TABLE 24: EXHAUST FAN DRIVE DATA LOWER ODEL RAME ANGE 213T 25 Ton 215T 215T 213T 30 Ton 215T 1069 254T 184T 40 Ton 215T 1069 254T TABLE 25: SUPPLY FAN MOTOR AND DRIVE DATA LOWER ODEL RAME ANGE 213T 215T 25 Ton 254T...

  • Page 28: Supply Air Drive Adjustment

    246653-YTG-E-0108 SUPPLY AIR DRIVE ADJUSTMENT At unit start-up, the measured CFM may be higher or lower than the specified CFM shown in Figures 22, 23, and 24. To achieve the specified CFM, the speed of the drive may have to be decreased or increased by changing the pitch diameter (PD) of the motor sheave as outlined below: Failure to properly adjust the total system air quan- tity can result in extensive blower damage.

  • Page 29: 25 Ton Drive Adjustment

    TABLE 26: 25 TON DRIVE ADJUSTMENT 7.5 HP M & 567 RPM D 10 HP M OTOR RIVE %RPM ’ %RPM ROWNING & CFM & CFM (Std.)4.5 TABLE 27: 30 TON DRIVE ADJUSTMENT 10 HP M & 617 RPM D 15 HP M OTOR RIVE...

  • Page 30: Drive Adjustment For Power Exhaust - 25 Ton

    246653-YTG-E-0108 TABLE 29: DRIVE ADJUSTMENT FOR POWER EXHAUST - 25 TON 5 HP M & 759 RPM D OTOR RIVE %RPM ’ ROWNING & CFM (Std.) 4.9 TABLE 30: DRIVE ADJUSTMENT FOR POWER EXHAUST - 30 & 40 TON 7.5 HP M &...

  • Page 31: Cooling Performance 25 Ton

    TABLE 31: COOLING PERFORMANCE 25 TON IR ON VAPORATOR OTAL (°F) (MBH) 337.7 310.2 7500 271.9 243.9 344.1 316.1 8750 277.1 248.7 350.5 321.9 10000 282.3 253.4 355.5 326.5 11250 286.3 257.1 360.5 331.1 12500 290.4 260.8 316.1 283.5 7500 267.4 262.7 319.6...

  • Page 32: Cooling Performance 30 Ton Standard

    246653-YTG-E-0108 TABLE 32: COOLING PERFORMANCE 30 TON STANDARD CAPACITY COIL IR ON VAPORATOR OTAL (°F) (MBH) 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 EMPERATURE OF IR ON 75°F OTAL 2 (MBH) ENSIBLE APACITY (°F) NPUT ETURN 27.8 223 203 183 163 142 27.3 259 240 220 200 179 159 141...
  • Page 33 TABLE 32: COOLING PERFORMANCE 30 TON STANDARD CAPACITY COIL (CONTINUED) IR ON VAPORATOR OTAL (°F) (MBH) 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 Johnson Controls Unitary Products EMPERATURE OF IR ON 95°F OTAL 2 (MBH) ENSIBLE APACITY (°F) NPUT ETURN...
  • Page 34 246653-YTG-E-0108 TABLE 32: COOLING PERFORMANCE 30 TON STANDARD CAPACITY COIL (CONTINUED) IR ON VAPORATOR OTAL (°F) (MBH) 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 The capacities are gross ratings. For net capacity, deduct the supply air blower motor heat *MBh = 3.415 x kW). Refer to the appropriate Blower Performance table for the kW of the supply air blower motor.

  • Page 35: Cooling Performance 30 Ton High Capacity Coil

    TABLE 33: COOLING PERFORMANCE 30 TON HIGH CAPACITY COIL IR ON VAPORATOR OTAL (°F) (MBH) 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 Johnson Controls Unitary Products EMPERATURE OF IR ON 75°F OTAL 2 (MBH) ENSIBLE APACITY (°F) NPUT ETURN 27.9...
  • Page 36 246653-YTG-E-0108 TABLE 33: COOLING PERFORMANCE 30 TON HIGH CAPACITY COIL (CONTINUED) IR ON VAPORATOR OTAL (°F) (MBH) 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 EMPERATURE OF IR ON 95°F OTAL 2 (MBH) ENSIBLE APACITY (°F) NPUT ETURN 34.5 217 197 177 157 136 33.8...
  • Page 37 TABLE 33: COOLING PERFORMANCE 30 TON HIGH CAPACITY COIL (CONTINUED) IR ON VAPORATOR OTAL (°F) (MBH) 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 The capacities are gross ratings. For net capacity, deduct the supply air blower motor heat *MBh = 3.415 x kW). Refer to the appropriate Blower Performance table for the kW of the supply air blower motor.

  • Page 38: Cooling Performance 40 Ton Standard Capacity Coil

    246653-YTG-E-0108 TABLE 34: COOLING PERFORMANCE 40 TON STANDARD CAPACITY COIL IR ON VAPORATOR OTAL (°F) (MBH) 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000 EMPERATURE OF IR ON 75°F OTAL 2 (MBH) ENSIBLE APACITY (°F) NPUT ETURN 39.3...
  • Page 39 TABLE 34: COOLING PERFORMANCE 40 TON STANDARD CAPACITY COIL (CONTINUED) IR ON VAPORATOR OTAL (°F) (MBH) 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000 Johnson Controls Unitary Products EMPERATURE OF IR ON 95°F OTAL 2 (MBH) ENSIBLE APACITY...
  • Page 40 246653-YTG-E-0108 TABLE 34: COOLING PERFORMANCE 40 TON STANDARD CAPACITY COIL (CONTINUED) IR ON VAPORATOR OTAL (°F) (MBH) 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000 The capacities are gross ratings. For net capacity, deduct the supply air blower motor heat *MBh = 3.415 x kW). Refer to the appropriate Blower Performance table for the kW of the supply air blower motor.

  • Page 41: Cooling Performance 40 Ton High Capacity Coil

    TABLE 35: COOLING PERFORMANCE 40 TON HIGH CAPACITY COIL IR ON VAPORATOR OTAL (°F) (MBH) 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000 Johnson Controls Unitary Products EMPERATURE OF IR ON 75°F OTAL 2 (MBH) ENSIBLE APACITY (°F)
  • Page 42 246653-YTG-E-0108 TABLE 35: COOLING PERFORMANCE 40 TON HIGH CAPACITY COIL (CONTINUED) IR ON VAPORATOR OTAL (°F) (MBH) 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000 EMPERATURE OF IR ON 95°F OTAL 2 (MBH) ENSIBLE APACITY (°F) NPUT ETURN...
  • Page 43 TABLE 35: COOLING PERFORMANCE 40 TON HIGH CAPACITY COIL (CONTINUED) IR ON VAPORATOR OTAL (°F) (MBH) 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000 The capacities are gross ratings. For net capacity, deduct the supply air blower motor heat *MBh = 3.415 x kW). Refer to the appropriate Blower Performance table for the kW of the supply air blower motor.

  • Page 44: Cfm, Static Pressure, And Power - Altitude And Temperature Corrections

    246653-YTG-E-0108 CFM, STATIC PRESSURE, AND POWER - ALTI- TUDE AND TEMPERATURE CORRECTIONS The information below should be used to assist in application of product when being applied at altitudes at or exceeding 1000 feet above sea level. The air flow rates listed in the standard blower performance tables are based on standard air at sea level.

  • Page 45: Altitude/Temperature Conversion

    ltitude/Temperature Conversion Factor FIGURE 21 - ALTITUDE/TEMPERATURE CONVERSION FACTOR Johnson Controls Unitary Products TEMPER TURE (°F) 246653-YTG-E-0108 SEA LEVEL...

  • Page 46: Fan Performance - 25 Ton

    246653-YTG-E-0108 TABLE 37: FAN PERFORMANCE - 25 TON AIRFLOW CFM 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 AIRFLOW CFM 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 AIRFLOW CFM 4000 5000 6000 7000 8000 9000 10000 11000 12000...

  • Page 47: Fan Performance - 25 Ton

    A - Standard Unit Note: Standard Unit includes wet evaporator coil, clean 2" throwaway filters, system and cabinet effects at standard air density and 0' elevation. FIGURE 22 - FAN PERFORMANCE - 25 TON Johnson Controls Unitary Products CFM (x1000) 246653-YTG-E-0108 25 Ton Forward Curve...

  • Page 48: Fan Performance - 30 Ton

    246653-YTG-E-0108 TABLE 38: FAN PERFORMANCE - 30 TON (CFM) IRFLOW 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 10.7 (CFM) IRFLOW 6000 7000 8000 9000 10000 11000 12000 13000 10.0 14000 11.9 15000 14.0 (CFM) IRFLOW 6000 7000 8000 9000 10000...

  • Page 49: Fan Performance - 30 Ton

    A - Standard Unit Note: Standard Unit includes wet evaporator coil, clean 2" throwaway filters, system and cabinet effects at standard air density and 0' elevation. FIGURE 23 - FAN PERFORMANCE - 30 TON Johnson Controls Unitary Products CFM (x1000) 246653-YTG-E-0108 30 Ton Forward Curve...

  • Page 50: Fan Performance - 40 Ton

    246653-YTG-E-0108 TABLE 39: FAN PERFORMANCE - 40 TON (CFM) IRFLOW 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000 10.4 18000 12.3 (CFM) IRFLOW 8000 9000 10000 11000 12000 13000 14000 15000 10.8 16000 12.5 17000 14.3 18000 16.4 (CFM) IRFLOW 8000...

  • Page 51: Fan Performance - 40 Ton

    A - Standard Unit Note: Standard Unit includes wet evaporator coil, clean 2" throwaway filters, system and cabinet effects at standard air density and 0' elevation. FIGURE 24 - FAN PERFORMANCE - 40 TON Johnson Controls Unitary Products CFM (x1000) 246653-YTG-E-0108 40 Ton Forward Curve...

  • Page 52: Fan Performance - 25 & 30 Ton Airfoil

    246653-YTG-E-0108 TABLE 40: FAN PERFORMANCE - 25 & 30 TON AIRFOIL (CFM) IRFLOW 4000 5000 6000 7000 8000 1072 9000 1197 10000 1322 11000 1447 12000 1574 13000 1701 14000 1828 15000 1955 11.5 (CFM) IRFLOW 4000 5000 6000 1070 7000 1163 8000...
  • Page 53 TABLE 40: FAN PERFORMANCE - 25 & 30 TON AIRFOIL (CFM) IRFLOW 4000 1601 5000 1621 6000 1653 7000 1698 8000 1754 9000 1822 10000 1898 10.7 11000 1982 12.3 12000 2072 14.1 13000 2167 16.2 14000 2265 18.6 15000 2368 21.1 (CFM)

  • Page 54: Fan Performance - 40 Ton Airfoil

    246653-YTG-E-0108 TABLE 41: FAN PERFORMANCE - 40 TON AIRFOIL (CFM) IRFLOW 8000 9000 10000 11000 1029 12000 1117 13000 1205 14000 1294 15000 1382 16000 1471 17000 1560 11.0 18000 1649 13.0 19000 1739 15.2 20000 1828 17.7 21000 1918 20.4 22000 2008...
  • Page 55 TABLE 41: FAN PERFORMANCE - 40 TON AIRFOIL (CFM) IRFLOW 8000 1315 9000 1360 10000 1411 11000 1466 12000 1526 10.3 13000 1590 11.8 14000 1656 13.4 15000 1725 15.2 16000 1796 17.3 17000 1868 19.5 18000 1943 21.9 19000 2019 24.6 20000...

  • Page 56: Component Static Resistance

    246653-YTG-E-0108 TABLE 42: COMPONENT STATIC RESISTANCE COMPONENT COIL LOSSES 6,000 . 25 T -0.06 . 25 T Baseline . 30 T -0.045 . 30 T Baseline 30 T -0.019 30 T 0.042 . 40 T -0.030 . 40 T Baseline 40 T -0.020 40 T...

  • Page 57: Power Exhaust - One Forward Curved Fan 25 Ton

    TABLE 43: POWER EXHAUST - ONE FORWARD CURVED FAN 25 TON AIRFLOW CFM 4000 0.66 5000 1.21 6000 1.93 7000 3.00 8000 3.81 9000 5.81 10000 8.42 AIRFLOW CFM 4000 1.39 5000 2.00 6000 2.92 7000 4.18 8000 5.74 9000 7.63 10000 1077...

  • Page 58: Power Exhaust - One Forward Curve

    246653-YTG-E-0108 1600 1500 1400 1300 1200 1100 1000 FIGURE 25 - POWER EXHAUST - ONE FORWARD CURVE FAN - 25 TONS 10 BHP 7.5 BHP 5 BHP 10.0 CFM (x1000) Power Exhaust 25 Ton 12.0 14.0 16.0 18.0 Johnson Controls Unitary Products...

  • Page 59: Power Exhaust - Two Forward Curved Fans - 30 & 40 Ton

    TABLE 44: POWER EXHAUST - TWO FORWARD CURVED FANS - 30 & 40 TON IRFLOW 4000 0.32 5000 0.53 6000 0.84 7000 1.26 8000 1.79 9000 2.42 10000 3.26 11000 4.31 12000 5.46 13000 6.93 14000 8.51 15000 10.40 16000 12.60 IRFLOW 4000...

  • Page 60: Power Exhaust - Two Forward Curved Fans - 30 & 40 Tons

    246653-YTG-E-0108 FIGURE 26 - POWER EXHAUST - TWO FORWARD CURVED FANS - 30 & 40 TONS Johnson Controls Unitary Products...

  • Page 61: Electrical Data 25 Ton Basic Unit R22

    TABLE 45: ELECTRICAL DATA 25 TON BASIC UNIT R22 OMPRESSORS EACH OLTAGE 208-3-60 42.3 230-3-60 42.3 460-3-60 17.6 575-3-60 14.2 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC TABLE 46: ELECTRICAL DATA 30 TON BASIC UNIT R22 OMPRESSORS EACH OLTAGE...

  • Page 62: Electrical Data 40 Ton Basic Unit R22

    246653-YTG-E-0108 TABLE 47: ELECTRICAL DATA 40 TON BASIC UNIT R22 OMPRESSORS EACH OLTAGE 208-3-60 37.2 230-3-60 37.2 460-3-60 17.2 575-3-60 12.4 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC OD F OTORS EACH 58.0 58.0 27.0 19.3 UPPLY LOWER...

  • Page 63: Electrical Data 25 Ton With Electric Heat R22

    TABLE 48: ELECTRICAL DATA 25 TON WITH ELECTRIC HEAT R22 OD F OMPRESSORS EACH OLTAGE 208-3-60 42.3 66.0 230-3-60 42.3 66.0 460-3-60 17.6 27.5 575-3-60 14.2 22.2 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC Johnson Controls Unitary Products OTORS UPPLY LOWER...

  • Page 64: Electrical Data 30 Ton With Electric Heat R22

    246653-YTG-E-0108 TABLE 49: ELECTRICAL DATA 30 TON WITH ELECTRIC HEAT R22 OD F OMPRESSORS EACH OLTAGE 208-3-60 37.2 58.0 230-3-60 37.2 58.0 460-3-60 17.2 27.0 575-3-60 12.4 19.3 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC OTORS UPPLY LOWER...

  • Page 65: Electrical Data 40 Ton With Electric Heat R22

    TABLE 50: ELECTRICAL DATA 40 TON WITH ELECTRIC HEAT R22 OD F OMPRESSORS EACH OLTAGE 208-3-60 37.2 58.0 230-3-60 37.2 58.0 460-3-60 17.2 27.0 575-3-60 12.4 19.3 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC Johnson Controls Unitary Products OTORS UPPLY LOWER...

  • Page 66: Electrical Data 25 Ton With Power

    246653-YTG-E-0108 TABLE 51: ELECTRICAL DATA 25 TON WITH POWER EXHAUST R22 OMPRESSORS EACH OLTAGE 208-3-60 42.3 66.0 230-3-60 42.3 66.0 460-3-60 17.6 27.5 575-3-60 14.2 22.2 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC OD F OTORS UPPLY LOWER...

  • Page 67: Electrical Data 30 Ton With Power

    TABLE 52: ELECTRICAL DATA 30 TON WITH POWER EXHAUST R22 OMPRESSORS EACH OLTAGE 208-3-60 37.2 58.0 230-3-60 37.2 58.0 460-3-60 17.2 27.0 575-3-60 12.4 19.3 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC Johnson Controls Unitary Products OD F OTORS UPPLY...

  • Page 68: Electrical Data 40 Ton With Power

    246653-YTG-E-0108 TABLE 53: ELECTRICAL DATA 40 TON WITH POWER EXHAUST R22 OMPRESSORS EACH OLTAGE 208-3-60 37.2 58.0 230-3-60 37.2 58.0 460-3-60 17.2 27.0 575-3-60 12.4 19.3 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC OD F OTORS UPPLY LOWER...

  • Page 69: Electrical Data 25 Ton With Electric Heat And Power Exhaust R22

    TABLE 54: ELECTRICAL DATA 25 TON WITH ELECTRIC HEAT AND POWER EXHAUST R22 OMPRESSORS LECTRIC OLTAGE PTION TAGES 42.3 208-3-60 42.3 42.3 230-3-60 42.3 Johnson Controls Unitary Products OD F OTORS UPPLY EACH EACH 66.0 66.0 66.0 66.0 246653-YTG-E-0108 LOWER OTOR REAKER 3 16.7...
  • Page 70 246653-YTG-E-0108 TABLE 54: ELECTRICAL DATA 25 TON WITH ELECTRIC HEAT AND POWER EXHAUST R22 (CONTINUED) OMPRESSORS LECTRIC OLTAGE PTION TAGES 17.6 460-3-60 17.6 17.6 OD F OTORS UPPLY EACH EACH 27.5 27.5 27.5 LOWER OTOR REAKER 3 11.0 11.0 14.0 14.0 11.0 14.0...
  • Page 71 TABLE 54: ELECTRICAL DATA 25 TON WITH ELECTRIC HEAT AND POWER EXHAUST R22 (CONTINUED) OMPRESSORS LECTRIC OLTAGE PTION TAGES 14.2 575-3-60 14.2 14.2 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC Johnson Controls Unitary Products OD F OTORS UPPLY EACH...

  • Page 72: Electrical Data 30 Ton With Electric Heat And Power Exhaust R22

    246653-YTG-E-0108 TABLE 55: ELECTRICAL DATA 30 TON WITH ELECTRIC HEAT AND POWER EXHAUST R22 OMPRESSORS LECTRIC OLTAGE PTION TAGES 37.2 208-3-60 37.2 37.2 230-3-60 37.2 OD F OTORS UPPLY EACH EACH 58.0 58.0 58.0 58.0 LOWER OTOR REAKER 3 24.2 30.8 30.8 46.2...
  • Page 73 TABLE 55: ELECTRICAL DATA 30 TON WITH ELECTRIC HEAT AND POWER EXHAUST R22 (CONTINUED) OMPRESSORS LECTRIC OLTAGE PTION TAGES 17.2 460-3-60 17.2 17.2 Johnson Controls Unitary Products OD F OTORS UPPLY EACH EACH 27.0 27.0 27.0 246653-YTG-E-0108 LOWER OTOR REAKER 3 11.0 14.0 14.0...
  • Page 74 246653-YTG-E-0108 TABLE 55: ELECTRICAL DATA 30 TON WITH ELECTRIC HEAT AND POWER EXHAUST R22 (CONTINUED) OMPRESSORS LECTRIC OLTAGE PTION TAGES 12.4 575-3-60 12.4 12.4 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC OD F OTORS UPPLY EACH EACH 19.3...

  • Page 75: Electrical Data 40 Ton With Electric Heat And Power Exhaust R22

    TABLE 56: ELECTRICAL DATA 40 TON WITH ELECTRIC HEAT AND POWER EXHAUST R22 OMPRESSORS LECTRIC OLTAGE PTION TAGES 37.2 208-3-60 37.2 37.2 230-3-60 37.2 Johnson Controls Unitary Products OD F OTORS UPPLY EACH EACH 58.0 58.0 58.0 58.0 246653-YTG-E-0108 LOWER OTOR REAKER 3 24.2...
  • Page 76 246653-YTG-E-0108 TABLE 56: ELECTRICAL DATA 40 TON WITH ELECTRIC HEAT AND POWER EXHAUST R22 (CONTINUED) OMPRESSORS LECTRIC OLTAGE PTION TAGES 17.2 460-3-60 17.2 17.2 OD F OTORS UPPLY EACH EACH 27.0 27.0 27.0 LOWER OTOR REAKER 3 11.0 14.0 14.0 21.0 11.0 21.0...
  • Page 77 TABLE 56: ELECTRICAL DATA 40 TON WITH ELECTRIC HEAT AND POWER EXHAUST R22 (CONTINUED) OMPRESSORS LECTRIC OLTAGE PTION TAGES 12.4 575-3-60 12.4 12.4 Minimum Circuit Ampacity. Dual Element, Time Delay Type. HACR type per NEC Johnson Controls Unitary Products OD F OTORS UPPLY EACH...

  • Page 78: Center Of Gravity

    246653-YTG-E-0108 TABLE 57: UNIT WEIGHTS COMPONENT 25 TON Basic Unit 4410 Gas Heat 267 MBH 533 MBH 800 MBH Electric Heat 40KW 80KW 108KW Hot Water Heat 1 Row Coil 2 Row Coil Steam Heat 1 Row Coil Blower Forward Curve Fan (Std Fan) FC IGV Air Foil Fan AF IGV...

  • Page 79: Unit Cornerweight

    TABLE 61: UNIT CORNERWEIGHT 25 TON UNIT DESCRIPTION ASIC ASIC 1018 1111 CONOMIZER ASIC CONOMIZER AND 1084 AS OR LECTRIC ASIC CONOMIZER AND 1220 1275 AS OR LECTRIC EAT AND OWER XHAUST NOTES:Basic Unit = cooling only, 10hp FC fan. + Econ = +235lb + Heat = single stage gas, 180 lb + Power Exhaust = modulating 7.5hp...

  • Page 80: Component Location

    246653-YTG-E-0108 EVAPORATOR COIL AND DRAINPAN ACCESS POWER & CONTROL WIRING FILTER ACCESS COMPRESSOR ACCESS REAR RIGHT SIDE HEAT SECTION FRONT LEFT SIDE POWER EXHAUST ACCESS HEAT SECTION EVAPORATOR COIL AND DRAINPAN ACCESS FILTER DRIERS FILTER ACCESS REAR SUPPLY BLOWER & MOTOR FIGURE 28 - COMPONENT LOCATION Johnson Controls Unitary Products...

  • Page 81: End Return, Bottom Supply

    RETURN AIR SUPPLY AIR 7-7/8" 64" 76-3/8 LEFT SIDE 92" 80.93" LEFT SIDE 4-5/8” BASE RAIL 1-1/2" FPT DETAIL A (DRAIN CONNECTION) FIGURE 29 - END RETURN, BOTTOM SUPPLY Johnson Controls Unitary Products REAR DETAIL DETAIL 24.9" 8.15" FRONT 6.25" REAR 4.5"...

  • Page 82: Bottom Supply And Return

    246653-YTG-E-0108 RETURN AIR SUPPLY AIR 64" 92" LEFT SIDE 80.93" 4.5" 83" LEFT SIDE 4-5/8” BASE RAIL BASE RAIL 1 -1 /2 " F P T DETAIL A (DRAIN CONNECTION) FIGURE 30 - BOTTOM SUPPLY AND RETURN REAR DETAIL DETAIL FRONT REAR 4.5"...

  • Page 83: Bottom Return, Front & Rear Supply

    FRONT SUPPLY: FOR COOLING ONLY APPLICATIONS REAR SUPPLY: FOR COOLING ONLY OR GAS HEAT APPLICATIONS RETURN AIR SUPPLY AIR REAR 64" 92" LEFT SIDE 80.93" 4.5" 83" LEFT SIDE 4-5/8” BASE RAIL 1-1/2" FPT DETAIL A (DRAIN CONNECTION) FIGURE 31 - BOTTOM RETURN, FRONT & REAR SUPPLY Johnson Controls Unitary Products REAR 26"...

  • Page 84: End Return, Front & Rear Supply

    246653-YTG-E-0108 FRONT SUPPLY: FOR COOLING ONLY APPLICATIONS REAR SUPPLY: FOR COOLING ONLY OR GAS HEAT APPLICATIONS RETURN AIR SUPPLY AIR 7 - 7 / 8 " 6 4 " 7 6 - 3 / 8 9 2 " LEFT SIDE 8 0 .

  • Page 85: Millennium Overhead View

    35.42 39.31 93.43 FIGURE 33 - MILLENNIUM OVERHEAD VIEW CONDENSER SECTION FIGURE 34 - MILLENNIUM MAJOR COMPONENT LAYOUT Johnson Controls Unitary Products 259.68 241.22 BLOWER GAS HEAT EVAPORATOR SECTION SECTION SECTION 246653-YTG-E-0108 FILTER ECONOMIZER POWER SECTION EXHAUST SECTION...

  • Page 86: Millennium Cabinet Door Configuration

    246653-YTG-E-0108 Hinged, Tool-Free Door Hinged, Tool-Free w/PE Option STD Cabinet Option includes Hinged, Tool-Free Doors # 1, 3, 6, 8. Premium Cabinet Option includes Hinged, Tool-Free Doors # 1, 2, 3, 6, 7, 8. Doors # 4, 5, 9 are dependent upon unit Heating and Power Exhaust Options.

  • Page 87: Clearances - Hood/Economizer & Motor Drive - Side

    246653-YTG-E-0108 FIGURE 36 - CLEARANCES - HOOD/ECONOMIZER & MOTOR DRIVE - SIDE EFT SIDE FRONT SIDE 15.93 79.0 15.93 20.12 19.6 HOOD FOR OPTIONAL EXHAUST AIR (NOT AVAILABLE WITH RAIN HOOD FOR END RETURN OR WITH 33.90 FIXED OUTSIDE AIR 33.90 29.36 FIXED OUTSIDE AIR )

  • Page 88: Partial Roof Curb Model 1Rc0455P

    246653-YTG-E-0108 FIGURE 38 - PARTIAL ROOF CURB MODEL 1RC0455P Johnson Controls Unitary Products...

  • Page 89: Guide Specifications - York Millennium 25, 30, & 40 Ton Units

    The Millennium is designed to be flexible enough to meet your needs today and in the future. The true value of York's Millennium is that it can be designed to fit any need, from cooling only, constant volume applications to variable air volume systems with vari- able frequency drive.

  • Page 90: Air Filtering System

    246653-YTG-E-0108 shall be selected for a minimum service factor of 1.2 and have fixed pitched sheaves. AIR FILTERING SYSTEM All filter holding frames shall be of heavy duty construction designed for industrial applications. All filters shall be either side accessible or front loading with access doors provided on both sides of the filter section.

  • Page 91: Electric Heating Section

    through each tube, to expel the flue gas and to maintain a negative pressure within the heat exchanger relative to the conditioned space. Induced draft fans shall be direct-drive. One (1) high limit controller per heating module, with auto- matic reset to prevent the heat exchanger from operating at an excessive temperature will be installed.

  • Page 92: Compressors

    246653-YTG-E-0108 to allow complete drainage. Coils in excess of 48 inches high shall have an intermediate drain pan, also fabricated of galva- nized powder painted steel extending the entire finned length of the coil to provide better water drainage. Drainage from the intermediate drain pan shall be to the primary drain pan.

  • Page 93: Equipment Control Features

    The control shall lock on the Fan if the high temperature limit trips three times in one hour of operation. The control will have a software programmable Fan Mode Switch for Auto operation or Continuous operation. When the Fan is in the Continuous mode, it will run continu- ously during the occupied schedule and in the Auto mode when in an unoccupied schedule.

  • Page 94: Optional Communication Translator

    BACnet devices that communicate using the Modbus The ModLINC is preconfigured to provide an interface to YORK UP products equipped with an Intelli-Comfort or Sim- plicity-Elite controller and allows monitoring and control by a ®...

  • Page 95: Optional Control

    OPTIONAL CONTROL York Commercial Comfort System (YCCS) Provides rooftop system integration for YCCS single zone, change-over bypass and VAV systems. AVAILABLE ACCESSORIES The following accessories shall be available: Partial perimeter roof curbs 14" high roof curb with wood nailer. The partial perimeter roof curb surrounds the portion of the unit which has airflow, and includes a support at the compressor end of the unit.
  • Page 96 Subject to change without notice. Printed in U.S.A. 246653-YTG-E-0108 Copyright © 2008 by Johnson Controls, Inc. All rights reserved. Supersedes: 246653/036-21091-004-D-0206 Johnson Controls Unitary Products 5005 York Drive Norman, OK 73069...

This manual is also suitable for:

Y32Y33

Table of Contents
