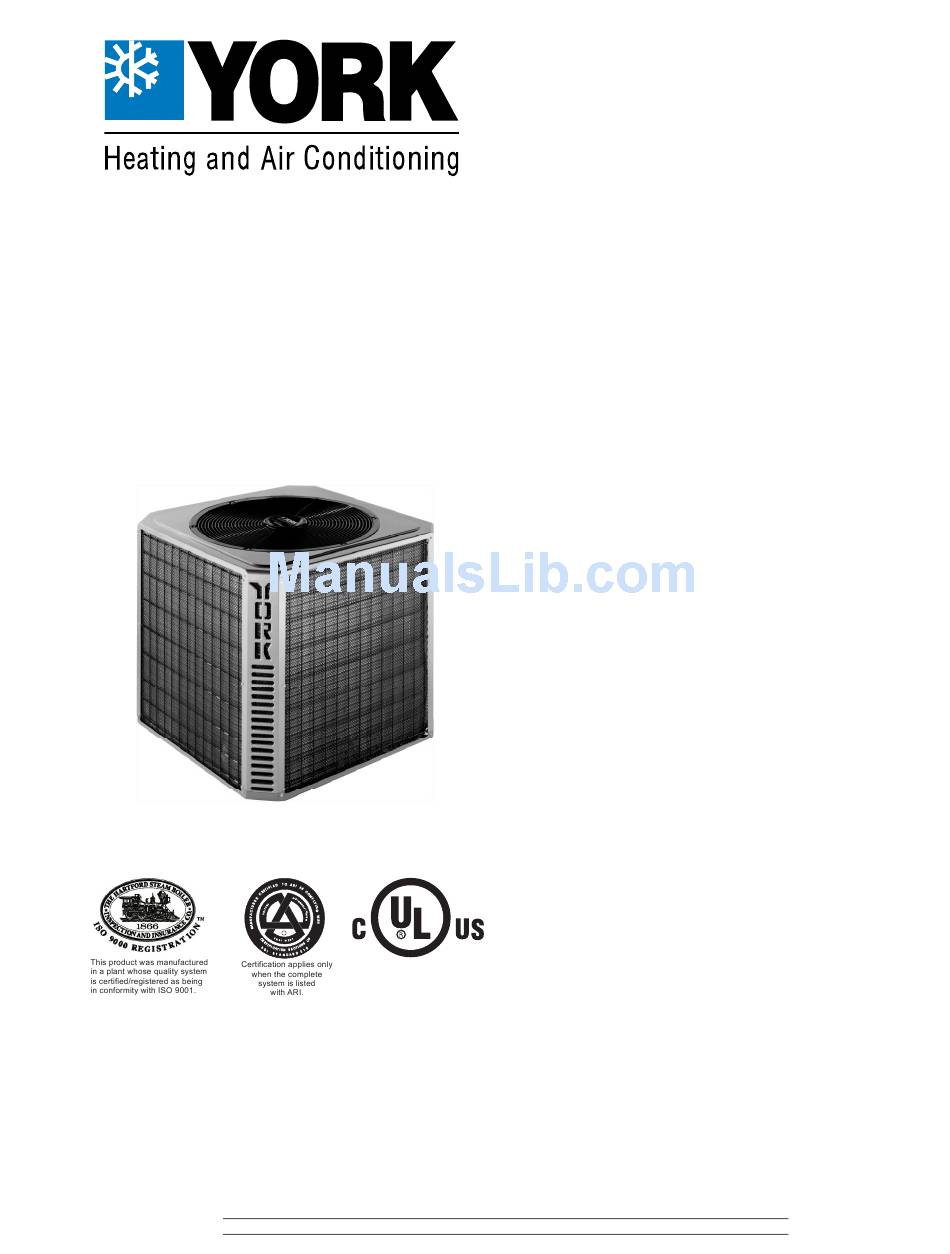

TECHNICAL GUIDE
TM
STELLAR PLUS
SPLIT-SYSTEM AIR CONDITIONERS
12 SEER
MODELS:
H4DH018 THRU 060
(1.5 THRU 5 NOMINAL TONS)
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.ariprimenet.org.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
R
P
LISTED
DESCRIPTION
The HDH Series condensing unit is the outdoor part of a ver-
satile system of air conditioning. It is designed to be custom-
matched with one of York's complete line of evaporator sec-
tions, each designed to serve a specific function. Matching
Air Handlers are available for upflow, downflow or horizontal
application to provide a complete system. Electric heaters are
available if required. Add-On coils are available for use with
upflow, downflow or horizontal furnaces.
WARRANTY
5-year limited parts warranty.
10-year limited compressor warranty.
FEATURES
• QUALITY CONDENSER COILS - The coil is constructed
of enhanced copper tube and aluminum fins.
• COIL PROTECTION - Coils are protected from damage by
a polymer mesh applied between the coil face, and a PVC
coated steel coil guard.
• PROTECTED COMPRESSOR - The compressor is inter-
nally protected against high pressure and temperature.
This is accomplished by the simultaneous operation of
high pressure relief valve and a temperature sensor which
protects the compressor if undesirable operating condi-
tions occur.
• DURABLE FINISH - Cabinet is made of powder painted
steel over pre-primered steel. The pre-treated galvanized
steel provides a better paint to steel bond, which resists
corrosion and rust creep. Special primer formulas and
automotive quality finish insure less fading when exposed
to sunlight.
• LOWER INSTALLED COST - Installation time and costs
are reduced by easy power and control wiring connec-
tions. Hard start kits are available for non-scroll models. All
units contain enough refrigerant for a matching indoor coil
and 15 feet of interconnecting piping. The small base
dimension means less space is required on the ground or
roof.
• TOP DISCHARGE - The warm air from the top mounted
fan is blown up away from the structure and any landscap-
ing. This allows compact location on multi-unit applica-
tions.
• LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise up away from the living
area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the rippled fins
of the condenser coil muffle the normal fan motor and
compressor operating sounds.
• LOW MAINTENANCE - Long life permanently lubricated
motor bearings need no annual servicing.
• EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections and a single panel covering the electrical controls
make servicing easy.
• SECURED SERVICE VALVES -Provided on both the liq-
uid and vapor sweat connections for ease of evacuating
and charging.
• U.L. and C.U.L. listed - approved for outdoor application.
Certified in accordance with the Unitary Small Equipment cer-
tification program, which is based on ARI Standard 210/240.
036-21020-003 Rev. C (0203)
Advertisement
Table of Contents
Related Manuals for York STELLAR PLUS H4DH018 THRU 060
Summary of Contents for York STELLAR PLUS H4DH018 THRU 060
- Page 1 H4DH018 THRU 060 (1.5 THRU 5 NOMINAL TONS) Due to continuous product improvement, specifications are subject to change without notice. Visit us on the web at www.york.com for the most up-to-date technical information. Additional rating information can be found at www.ariprimenet.org.
-
Page 2: Specifications
036-21020-003 Rev. C (0203) Physical and Electrical Data MODEL H4DH018S06 H4DH024S06 H4DH030S06 H4DH036S06 H4DH042S06 H4DH048S06 H4DH060S06 Unit Supply Voltage Normal Voltage Range Minimum Circuit Ampacity 10.1 Max. Overcurrent Device Amps Recip Compressor Type Rated Load Compressor Amps Locked Rotor Crankcase Heater Fan Motor Amps Rated Load Fan Diameter Inches... - Page 3 Additional R-22 Charge / Orifice Size for Various Matched Systems ADDITIONAL R-22 CHARGE / ORIFICE SIZE FOR VARIOUS MATCHED SYSTEMS Outdoor Unit H4DH018S06 H4DH024S06 H4DH030S06 Unit Orifice (s) 55, 57 Factory R-22 Charge, lbs-oz 4 - 14 Indoor Coil Coil Orifice G2FD024(S,H)14,17 57 + 6 G2FD030(S,H)17...
- Page 4 036-21020-003 Rev. C (0203) COOLING CAPACITY - With Air Handler Coils AIR HANDLER UNIT MODEL MODEL N1AHB0806 H4DH018S06 N1AHB0806 N1AHB0806 H4DH024S06 N1AHB0806 N1AHB1206 H4DH030S06 N1AHB1206 N1AHB1206 N1AHB1206 H4DH036S06 N1AHD1406 N1AHD1406 N1AHC1606 H4DH042S06 N1AHC1606 N1AHC1606 H4DH048S06 N1AHD2006 8,10,15,20,25,30 N1AHD2006 8,10,15,20,25,30 H4DH060S06 N1AHD2006 8,10,15,20,25,30 H4DH018S06...
- Page 5 COOLING CAPACITY - Upflow, Downflow, & Horizontal Furnaces and Coils FURNACE** UNIT MODEL CFM RANGE (MIN.-MAX.) H4DH018S06 H4DH024S06 H4DH030S06 1150 1050 H4DH036S06 1350 For Notes see Page 5. Unitary Products Group COIL RATED MODEL 14,17 G1FA024S14,17 G1FA030S14 G1FA036S14 17,21 G1FA036S17,21 G1HD024 G1NA030S17H 14,17...
- Page 6 036-21020-003 Rev. C (0203) COOLING CAPACITY - Upflow, Downflow, & Horizontal Furnaces and Coils FURNACE** UNIT MODEL CFM RANGE (MIN.-MAX.) 1225 H4DH042S06 1575 1400 H4DH048S06 1800 1575 H4DH060S06 2025 1. TXV = Use 1TV700 Series Kit. Requires a 2FD Blower Time Delay unless a standard furnace is equipped with one. ** Refer to Quick Selection Chart for specific furnace match-up.
- Page 7 COOLING CAPACITY - With Variable Speed Furnaces VARIABLE SPEED UNIT MODEL FURNACE MODEL 1 PH 12 SEER AC / P1DU / P1XD / P1XU - VARIABLE SPEED P1DUA12V P1DUA12V P1DUA12V P1DUA12V P1DUA12V P1DUA12V P1DUA12V H4DH018S06 P1DUA12V P1XDB12V P1XUB12V P1XUB12V P1XUB12V P1XUB12V P1XUB12V P1XUB12V...
- Page 8 036-21020-003 Rev. C (0203) COOLING CAPACITY - With Variable Speed Furnaces (Continued) VARIABLE SPEED UNIT MODEL FURNACE MODEL For Notes see Page 8. P1DUB16V P1DUB16V P1DUB16V P1DUB16V P1DUB16V P1DUB16V P1DUB16V P1DUB16V P1DUC20V P1DUC20V P1DUC20V P1DUC20V P1DUC20V P1DUC20V P1DUC20V H4DH036S06 P1DUC20V P1DUC20V P1XDB12V P1XUB12V...
- Page 9 COOLING CAPACITY - With Variable Speed Furnaces (Continued) VARIABLE SPEED UNIT MODEL FURNACE MODEL P1DUB16V P1DUB16V P1DUC20V P1DUC20V P1DUC20V P1DUC20V P1DUC20V P1DUC20V P1XDD20V P1XUC16V P1XUC16V H4DH048S06 P1XUC16V P1XUC16V P1XUC16V P1XUC20V P1XUC20V P1XUC20V P1XUC20V P1XUC20V P1XUD20V P1XUD20V P1XUD20V P1XUD20V P1DUC20V P1DUC20V P1DUC20V P1XDD20V P1XUC20V...
-
Page 10: Cooling Performance
036-21020-003 Rev. C (0203) COOLING PERFORMANCE AIR TEMP ON CONDENSER SUCT. T/P @ COMPR. MODEL 75°F TEMP. PSIG MBH 61.5 18.7 1.92 68.5 20.8 1.92 H4DH018S06 76.0 22.9 1.90 84.0 25.1 1.86 61.5 22.4 2.10 68.5 25.0 2.14 H4DH024S06 76.0 27.7 2.17 84.0... -
Page 11: Typical Installation
TYPICAL INSTALLATION THERMOSTAT POWER SUPPLY INDOOR BLOWER TO COIL L INSTALLATION NOTE: All outdoor wiring must be weatherproof TYPICAL FIELD WIRING - 1 PHASE APPLICATION ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY. Unitary Products Group WEATHERPROOF DISCONNECT... - Page 12 036-21020-003 Rev. C (0203) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. INDOOR COIL MODEL NO. ID CFM CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
- Page 13 COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. INDOOR COIL MODEL NO. ID CFM CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
- Page 14 036-21020-003 Rev. C (0203) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. INDOOR COIL MODEL NO. ID CFM CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
- Page 15 COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. INDOOR COIL MODEL NO. ID CFM CONDENSER ENTERING AIR ID DB TEMPERATURE ID WB T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
- Page 16 036-21020-003 Rev. C (0203) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. INDOOR COIL MODEL NO. ID CFM CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
- Page 17 COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. INDOOR COIL MODEL NO. ID CFM CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
- Page 18 036-21020-003 Rev. C (0203) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. INDOOR COIL MODEL NO. ID CFM CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. T.C. S.C. NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM. Multipliers for determining the performance with other indoor sections.
- Page 19 036-21020-003 Rev. C (0203) MATCHING INDOOR COMPONENTS ADD-ON COILS - FOR FURNACE APPLICATIONS AIR HANDLERS - Unitary Products Group...
- Page 20 Subject to change without notice. Printed in U.S.A. Copyright © by York International Corp. 2003. All rights reserved. Unitary Product Group NOTES Supersedes: 036-21020-003 Rev. B (0702) 5005 York Drive 036-21020-003 Rev. C (0203) Norman 73069...
