TECHNICAL GUIDE
STELLAR PLUS ECO
SPLIT-SYSTEM AIR CONDITIONERS
R-410A 12 SEER
MODELS:
H4AH024 THRU 060
(2 THRU 5 NOMINAL TONS)
R
P
CERTIFICATION APPLIES ONLY
WHEN THE COMPLETE
SYSTEM IS LISTED
WITH ARI.
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.ari.org.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
2 TM
LISTED
DESCRIPTION

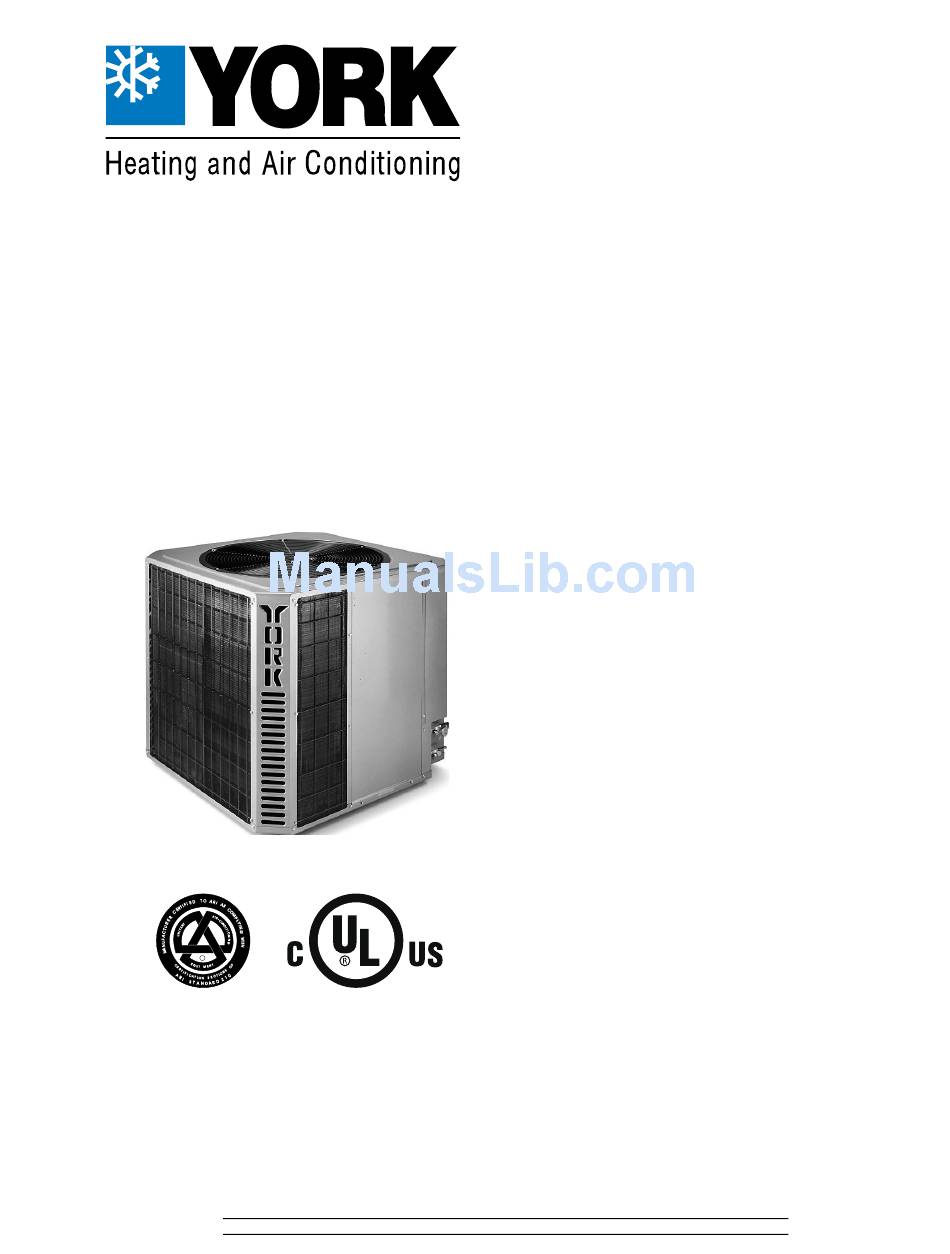

The HAH Series condensing unit is the outdoor part of a ver-
satile system of air conditioning. It is designed to be custom-
matched with one of York's complete line of evaporator sec-
tions, each designed to serve a specific function. Matching
Air Handlers are available for upflow, downflow or horizontal
application to provide a complete system. Electric heaters are
available if required. Add-On coils are available for use with
upflow, downflow or horizontal furnaces.
WARRANTY
5-year limited parts warranty.
10-year limited compressor warranty.
FEATURES
• QUALITY CONDENSER COILS - The coil is constructed
of copper tube and hardened black coated aluminum fins
for durability and long lasting efficient operation. The fins
on the unit are protected with a decorative grille.
• PROTECTED COMPRESSOR - The compressor is inter-
nally protected against high pressure and temperature.
This is accomplished by the simultaneous operation of
high pressure relief valve and a temperature sensor which
protects the compressor if undesirable operating condi-
tions occur. Additionally the unit has high and low pressure
switch for extra protection against high pressure or loss of
charge. The compressor is protected by a 10 year limited
warranty.
• DURABLE FINISH - Cabinet is made of powder painted
steel over prepainted primer. The pre-treated flat galva-
nized steel provides a better paint to steel bond, which
resists corrosion and rust creep. Special primer formulas
and champagne finish insure less fading when exposed to
sunlight. This finish has been tested to provide 1/3 greater
protection than conventional units.
• LOWER INSTALLED COST - Installation time and costs
are reduced by easy power and control wiring connec-
tions. Hard start kits are available for non-scroll models. All
units contain enough refrigerant for a matching indoor coil
and 15 feet of interconnecting piping. The small base
dimension means less space is required on the ground or
roof.
• TOP DISCHARGE - The warm air from the top mounted
fan is blown up away from the structure and any landscap-
ing. This allows compact location on multi-unit applica-
tions.
• LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise up away from the living
area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the rippled fins
of the condenser coil muffle the normal fan motor and
compressor operating sounds.
• LOW MAINTENANCE - Long life permanently lubricated
motor bearings need no annual servicing.
• EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections and a single panel covering the electrical controls
make servicing easy.
• SECURED SERVICE VALVES -Provided on both the liq-
uid and vapor sweat connections for ease of evacuating
and charging.
• U.L. and C.U.L. listed - approved for outdoor application.
Certified in accordance with the Unitary Small Equipment cer-
tification program, which is based on ARI Standard 210/240.
036-21215-003 Rev. B (1202)
Advertisement
Table of Contents
Related Manuals for York H4AH024S06
Summary of Contents for York H4AH024S06
- Page 1 The HAH Series condensing unit is the outdoor part of a ver- satile system of air conditioning. It is designed to be custom- matched with one of York’s complete line of evaporator sec- tions, each designed to serve a specific function. Matching Air Handlers are available for upflow, downflow or horizontal application to provide a complete system.
- Page 2 036-21215-003 Rev. B (1202) Physical and Electrical Data MODEL H4AH024S06 H4AH030S06 H4AH036S06 H4AH042S06 H4AH048S06 H4AH060S06 Unit Supply Voltage 208/230 - 1 - 60 187 to 253 Normal Voltage Range Minimum Circuit Ampacity 13.2 16.6 20.5 24.5 26.8 35.6 Max. Overcurrent Device Amps...
- Page 3 036-21215-003 Rev. B (1202) R-410A SYSTEM CHARGING PROCEDURE ADDITIONAL R-410A CHARGE / ORIFICE SIZE FOR VARIOUS MATCHED SYSTEMS OUTDOOR UNIT H4AH024 H4AH030 H4AH036 H4AH042 H4AH048 H4AH060 65, 67 69, 71 75, 77 UNIT ORIFICE(S) FACTORY CHARGE, LBS. - OZ. 5 - 5 6 - 5 7 - 2 8 - 5...
- Page 4 UNIT MODEL NET MBH SEER RATED SEER ELECTRIC MODEL MODEL W/O TXV HEAT KW TOTAL SENS. + TXV 1 PH 12 SEER AC WITH N1AH / G2FD H4AH024S06 N1AHB0806 2,5,8,10 G2FD024(S,H)17 24.0 18.0 12.00 10.80 H4AH024S06 N1AHB0806 2,5,8,10 G2FD030(S,H)17 24.2 18.3...
- Page 5 24.2 18.3 12.00 10.70 G1HD024 23.4 17.8 12.00 10.80 G1HD036 24.6 18.7 12.25 11.20 14,17 G1UA024S14,17 23.2 16.4 11.70 10.60 H4AH024S06 G1UA030S14 24.0 18.0 12.00 10.80 G1UA036S14 24.4 18.4 12.00 10.80 17,21 G1UA036S17,21 24.2 18.3 12.00 10.70 14,17 G2FD024(S,H)14,17 24.0 18.0...
- Page 6 1 PH 12 SEER AC / P1DU / P1XU - VARIABLE SPEED P1DUA12V G1FA024S14 23.6 16.9 12.50 10.65 P1DUA12V G1UA024S14 23.6 16.9 12.50 10.65 P1DUA12V G2FD024S14 24.6 18.7 13.00 11.80 H4AH024S06 P1XUB12V G1FA024S17 23.6 16.9 13.00 10.85 P1XUB12V G1UA024S17 23.6 16.9 13.00 10.85 P1XUB12V G2FD024S17 24.6 18.7 13.00 12.00...
- Page 7 036-21215-003 Rev. B (1202) COOLING CAPACITY - With Variable Speed Furnaces COOLING VARIABLE SPEED NET MBH SEER UNIT MODEL RATED SEER COIL MODEL FURNACE MODEL W/O TXV TOTAL SENS. + TXV P1DUA12V G1FA036S14 1230 35.4 26.7 12.20 11.20 P1DUA12V G1UA036S14 1230 35.4 26.7...
-
Page 8: Typical Installation
036-21215-003 Rev. B (1202) ACCESSORIES 1H/1C, auto/manual changeover, electronic programmable, deluxe 7-day, thermostat. Refer to Price Manual for specific model numbers. 1H/1C, auto/manual changeover, electronic programmable. Hard Start Kit - Provides increased starting torque for areas * For the most current accessory information, refer to the with low voltage. - Page 9 036-21215-003 Rev. B (1202) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. HAH024S06 INDOOR COIL MODEL NO. G2FD024(S,H)14,17 ID CFM CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. 28.0 26.6 24.8 22.4 28.2 26.8 25.0 22.8 28.3 26.9 25.1 23.1 S.C.
- Page 10 036-21215-003 Rev. B (1202) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. HAH030S06 INDOOR COIL MODEL NO. G2FD036(S,H)17 ID CFM 1000 1150 CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. 35.9 33.6 30.9 28.1 36.3 33.8 31.3 28.7 36.6 34.2 31.8 29.2 S.C.
- Page 11 036-21215-003 Rev. B (1202) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. HAH036S06 INDOOR COIL MODEL NO. G2FD036(S,H)17 ID CFM 1100 1200 1300 CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. 40.0 37.6 32.8 40.5 37.5 33.5 40.9 38.6 34.1 S.C.
- Page 12 036-21215-003 Rev. B (1202) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. HAH042S06 INDOOR COIL MODEL NO. G2FD042(S,H)21 ID CFM 1250 1400 1550 CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. 46.4 43.4 40.4 37.1 47.0 43.9 41.1 37.7 47.5 44.4 41.9 38.3...
- Page 13 036-21215-003 Rev. B (1202) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. HAH048S06 INDOOR COIL MODEL NO. G1FA048S21 ID CFM 1450 1600 1750 CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. 53.6 50.5 47.4 54.4 51.3 48.1 55.2 52.1 48.8 S.C.
- Page 14 036-21215-003 Rev. B (1202) COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. HAH060S06 INDOOR COIL MODEL NO. G1FA060S21,24 ID CFM 1750 1875 2000 CONDENSER ID DB ENTERING AIR TEMPERATURE ID WB T.C. 66.3 63.3 59.3 66.9 64.0 60.0 67.5 64.7 60.6 S.C.
- Page 15 036-21215-003 Rev. B (1202) MATCHING INDOOR COMPONENTS ADD-ON COILS - FOR FURNACE APPLICATIONS G1NA G1UA UNCASED G1HD 1/2 CASED UPFLOW HORIZONTAL DUCT UPFLOW G2FD* MULTI-POSITION G1FA (UPFLOW, HORIZONTAL FULL CASED AND DOWNFLOW) UPFLOW * Available with factory installed horizontal drain pan. AIR HANDLERS - FOR NON-FURNACE APPLICATIONS N1AH OR N1VS MODULAR BLOWER...
- Page 16 NOTES Subject to change without notice. Printed in U.S.A. 036-21215-003 Rev. B (1202) Copyright © by York International Corp. 2002. All rights reserved. Supersedes: 036-21215-003 Rev. A (0602) Unitary 5005 Norman Products York Group Drive 73069...
