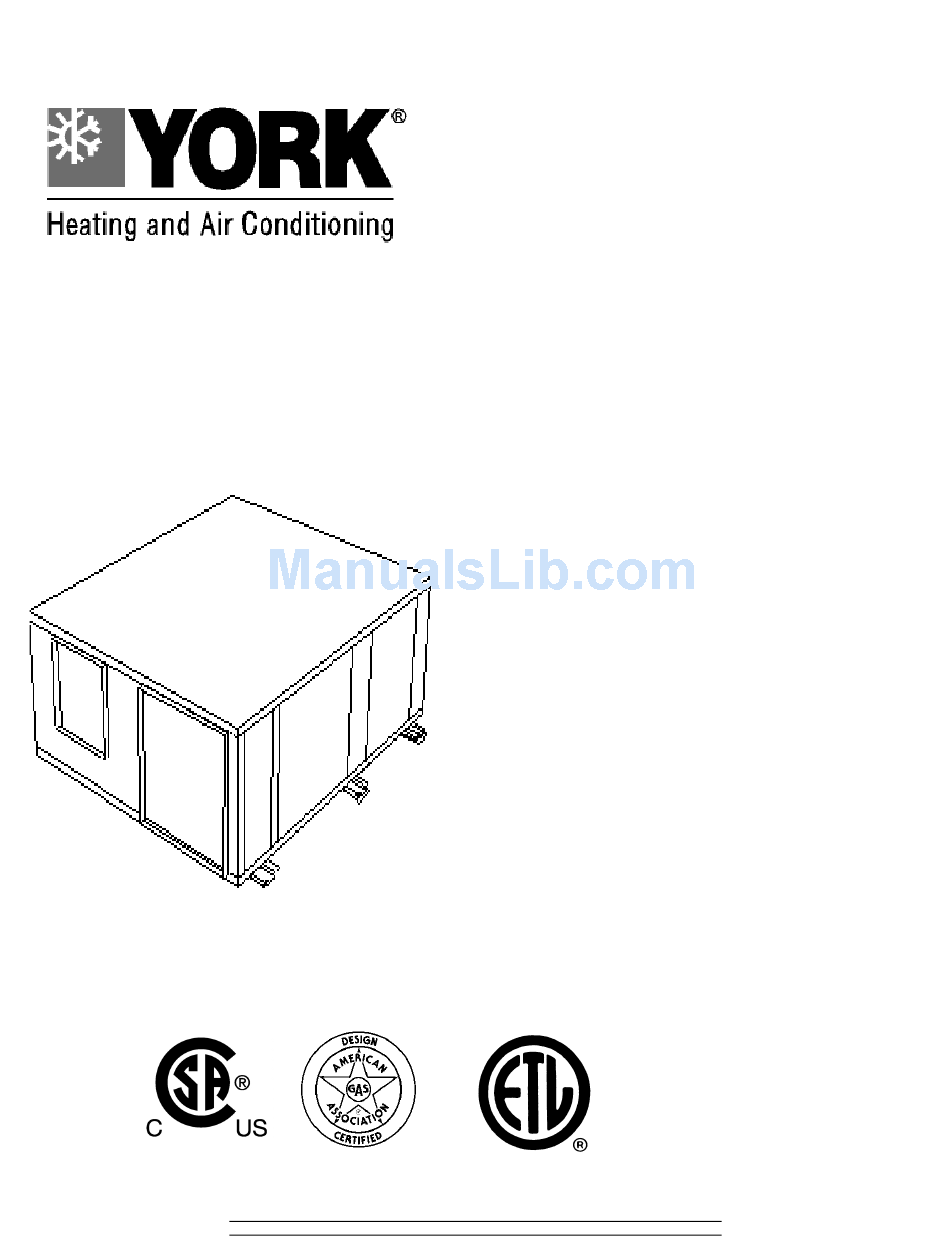

TECHNICAL GUIDE
SINGLE PACKAGE AIR CONDITIONERS
HORIZONTAL INDOOR &
CONDENSER AIR FLOW
MODELS:
D3HH 024 THRU 180
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
York horizontal ductable air conditioning packages offer a com-
plete line of unit options for indoor, through-the-wall installations
for high and low rise building applications.
York's compact, low profile indoor design protects from potential
vandalism, weathering and eliminates the need for any unsightly
exterior equipment.
Floor-by-floor installation provides independent zone and temper-
ature control. Renovation and restoration projects are simplified
where roof load, cooling tower, and construction restrictions can
present installation problems.
The air cooled DHH horizontal series units are available from 2 to
15 tons.
York's DHH horizontal air cooled indoor air conditioning features
high efficiency, quality engineering and dependable operation.
HORIZONTAL FEATURES
•
Low profile cabinets are unitized for single package and/
or split Installation.
I
•
deal for tenant change and/or renovations.
•
Ductable ceiling mount saves valuable floor space.
•
Protected from extreme weather conditions and vandal-
ism.
•
Compact size fits through standard openings (31").
•
Low profile range 20" to 29" in depth.
•
Static compatibility to suit various installation require-
ments. using centrifugal blowers and adjustable pulleys.
•
Available in 2, 3, 4, 5, 8, 10, 12, and 15 ton capacities.
036-21187-001 REV A (0301)
Advertisement
Table of Contents
Related Manuals for York D3HH 024
Summary of Contents for York D3HH 024
- Page 1 FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE 036-21187-001 REV A (0301) DESCRIPTION York horizontal ductable air conditioning packages offer a com- plete line of unit options for indoor, through-the-wall installations for high and low rise building applications.
-
Page 2: Table Of Contents
036-21187-001 REV A (0301) TABLE OF CONTENTS DESCRIPTION ......1 HORIZONTAL FEATURES ....1 GENERAL MECHANICAL . -
Page 3: General Mechanical
PRODUCT CATEGORY D = Single Package Air Conditioner (Air Cooled) PRODUCT GENERATION Number = Generation PRODUCT IDENTIFIER SK = Vertical Indoor Packaged Unit HH = Horizontal Indoor Packaged Unit GENERAL MECHANICAL SPECIFICATIONS GENERAL - All 2 to 10 ton models ship with a full refrigerant charge. -
Page 4: Field Installed Accessories 3
036-21187-001 REV A (0301) CORROSION RESISTANT COATINGS - Condenser and/or evaporator coils shall have a 2 to 3 mil coating of Heresite P- 413 protective coating applied in a multiple dip and bake pro- cess. STAINLESS STEEL DRAIN PAN - Evaporator drain pan shall be fabricated of 304 stainless steel material. - Page 5 TABLE 2: GENERAL DATA 8 TO 15 TONS MODEL DHH: NOMINAL COOLING (TONS) CALCULATED EER GROSS COOLING CAPACITY (BTUH) DESIGN CFM SYSTEM POWER (KW) COMPRESSOR-TYPE NUMBER USED EVAPORATOR COIL-TYPE FACE AREA (SQ FT) ROWS/FPI REFRIGERANT CONTROL CONDENSER COIL-TYPE FACE AREA (SQ FT) ROWS/FPI EVAPORATOR FAN-TYPE NUMBER USED...
-
Page 6: Cooling Performance Data
036-21187-001 REV A (0301) TABLE 3: COOLING PERFORMANCE DATA - DHH024 85°F DHH024 2 TON 62°F 67°F 75°F 24.7 17.8 27.1 14.3 29.6 10.8 23.8 17.3 26.1 13.7 28.5 10.5 22.8 16.6 25.0 13.5 27.2 10.0 21.7 16.2 23.6 12.9 25.0 9.1 80°F 24.7 20.9... -
Page 7: Cooling Performance Data
TABLE 6: COOLING PERFORMANCE DATA - DHH060 85°F DHH060 5 TON 62°F 67°F 72°F CFM EDB 75°F 58.8 44.3 63.8 34.7 69.2 25.7 56.6 43.2 61.4 33.8 66.6 24.9 54.1 42.0 58.8 32.8 63.8 24.1 51.6 40.8 56.1 31.7 61.0 23.3 1800 80°F 58.8 52.5 63.8 42.8 69.2 33.9 56.6 51.4 61.4 42.0 66.6 33.1 54.1 50.3 58.8 41.0 63.8 32.2 51.6 49.1 56.1 39.9 61.0 31.4 85°F 59.8 59.8 63.8 51.1 69.2 42.0 58.0 58.0 61.4 50.2 66.6 41.2 56.0 56.0 58.8 49.2 63.8 40.3 53.9 53.9 56.1 48.1 61.0 39.5... -
Page 8: Cooling Performance Data
036-21187-001 REV A (0301) TABLE 9: COOLING PERFORMANCE DATA - DHH144 85°F DHH144 12 TON 62°F 67°F 72°F CFM EDB TC 75°F 146.0 109.2 158.6 85.9 172.0 63.4 140.8 106.5 152.5 83.5 163.6 60.3 134.6 103.5 146.4 81.1 159.6 59.6 128.2 100.5 139.6 78.5 152.4 57.4 4300 80°F 146.0 128.9 158.6 105.6 172.0 83.4 140.8 126.2 152.5 103.5 163.5 79.3 134.6 123.2 146.4 101.0 159.6 79.3 128.2 120.3 139.6 98.5 152.4 77.1 85°F 147.8 147.8 158.6 125.9 172.0 103.2 143.4 143.4 152.5 123.5 163.6 98.1 134.6 138.6 146.4 120.9 159.6 99.1 133.2 133.2 139.6 118.3 152.4 96.7... -
Page 9: Supply Air Blower Performance 8 To 15 Ton
TABLE 12: SUPPLY AIR BLOWER PERFORMANCE 8 TO 15 TON MODEL SUPPLY CFM 3000 0.77 3200 0.92 3400 1.08 3600 1.30 4000 1.75 4400 2.31 4300 1.31 4800 1.77 5300 2.84 5400 2.87 6000 3.20 6600 4.20 NOTE: 1. At higher evaporator airflows, and wet bulb conditions condensate carry-over may occur. Adjust airflow downward as necessary 2. -
Page 10: Electrical Data
036-21187-001 REV A (0301) ELECTRICAL DATA TABLE 15: STANDARD MOTORS - 2 TO 5 TON COMPRESSOR MODEL VOLTAGE 024A06 208-230/1/60 13.6 024A25 208-230/3/60 036A06 208-230/1/60 17.9 036A25 208-230/3/60 11.4 036A46 460/3/60 036A58 575/3/60 048A06 208-230/1/60 26.4 048A25 208-230/3/60 15.0 048A46 460/3/60 048A58 575/3/60... - Page 11 ELECTRICAL DATA TABLE 17: OVERSIZE EVAPORATOR MOTORS - 2 TO 5 TONS MODEL VOLTAGE 024A06 208-230/1/60 13.6 024A25 208-230/3/60 036A06 208-230/1/60 17.9 036A25 208-230/3/60 11.4 036A46 460/3/60 036A58 575/3/60 048A06 208-230/1/60 26.4 048A25 208-230/3/60 15.0 048A46 460/3/60 048A58 575/3/60 060A25 208-230/3/60 19.3 060A46...
- Page 12 036-21187-001 REV A (0301) FIGURE 1: 2 TO 3 TON UNIT DIMENSIONS Unitary Products Group...
-
Page 13: To 5 Ton
036-21187-001 REV A (0301) FIGURE 2: 4 TO 5 TON UNIT DIMENSIONS Unitary Products Group... - Page 14 036-21187-001 REV A (0301) FIGURE 3: 8 TO 10 UNIT DIMENSIONS Unitary Products Group...
- Page 15 036-21187-001 REV A (0301) FIGURE 4: 12 TO 15 UNIT DIMENSIONS Unitary Products Group...
- Page 16 Subject to change without notice. Printed in U.S.A. Copyright © by Unitary Products Group 2001. All rights reserved. Unitary Products Group 036-21187-001 REV A (0301) Supersedes: 530.45-TGIY (600) 5005 York Drive Norman 73069...
