INSTALLATION
MANUAL
CONTENTS
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . 3
PRE-INSTALLATION INSPECTION
OF EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
UNIT MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . .5
OUTDOOR AIR DUCTWORK . . . . . . . . . . . . . . . .12
EVAPORATOR BLOWER DISCHARGE
CONVERSION . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
BLOWER SPEED ADJUSTMENT . . . . . . . . . . . . 17
LOW AMBIENT DAMPER INSTALLATION. . . . . 18
START-UP AND OPERATION . . . . . . . . . . . . . . . 19
MAINTENANCE / SERVICE
See the following page for a complete Table of
Contents.
NOTES, CAUTIONS AND WARNINGS
The installer should pay particular attention to the
words: NOTE, CAUTION, and WARNING. Notes are
intended to clarify or make the installation easier.
Cautions are given to prevent equipment damage.
Warnings are given to alert installer that personal
injury and/or equipment damage may result if installa-
tion procedure is not handled properly.
CAUTION: READ ALL SAFETY GUIDES BEFORE
SAVE THIS MANUAL
. . . . . . . . . . . . . . . .20
INSTALLATION & OPERATING INSTRUCTIONS
FOR D2SK036 - D2SK300

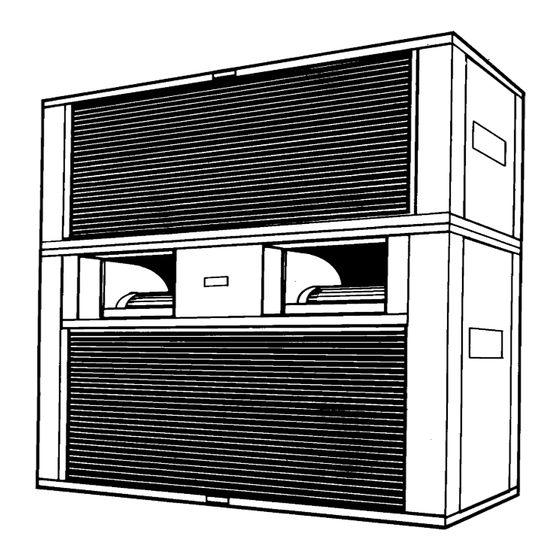

VERTICAL AIR CONDITIONING UNITS
D2SK036-300
EMBASSY SERIES
036-21540-001-A-0503
