Seagate Lyve Drive Shuttle
User Manual
Model:
Click here to access an up-to-date online version
of this document. You will also find the most recent content as well as expandable illustrations, easier
navigation, and search capability.

Advertisement

Table of Contents
loading

Related Manuals for Seagate Lyve Drive Shuttle

Summary of Contents for Seagate Lyve Drive Shuttle

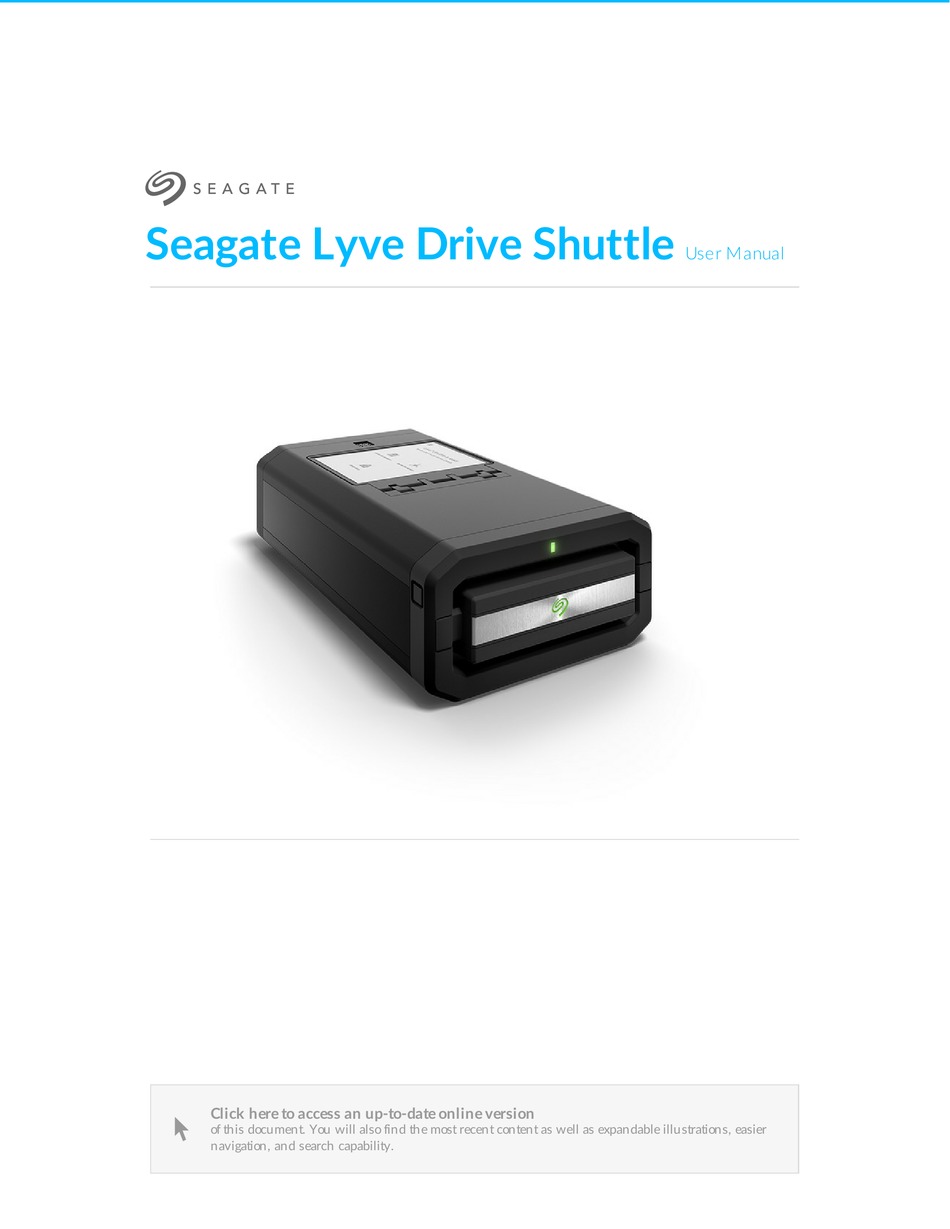

  • Page 1 Seagate Lyve Drive Shuttle User Manual Model: Click here to access an up-to-date online version  of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.

  • Page 2: Table Of Contents

    ......................... . Lyve Drive Shuttle is ready .
  • Page 3 ......................... . Set credentials (Volum e password) .
  • Page 4 ......................... . Taiwan RoHS...

  • Page 5: Box Content

    Take control of your data transfer and transport costs when moving data around your enterprise. The ® Seagate Lyve Drive™ Shuttle is available in storage options that are simple and affordable for emerging edge environments, regardless of cloud service provider. This shuttle supports most industry-standard file systems and network protocols for easy ingestion from direct-attached, network-attached, and other external storage devices.

  • Page 6: Dimensions

    Type C PD 3.0 power adapter (15V@3A) When charging the device using the power supply port, use only the power supply provided  with your device. Power supplies from other Seagate and third-party devices can damage your Lyve Drive Shuttle. Temperature ranges...

  • Page 7: E-Ink Screen

    To retract, push the handle back in until the latch catches. Status LED The status LED is located above the handle. It is steady green when inactive and blinks during activity. Seagate Lyve Drive Shuttle 4/20/20...

  • Page 8: Shipping Case

    Shipping case A shipping case is included with Lyve Drive Shuttle. Always use the case when transporting and shipping the device. Lyve Drive Shuttle is well protected in its hard enclosure but is not manufactured to withstand the potentially damaging impacts that can occur with transport.

  • Page 9: Getting Started

    B. Connect the power cord to the power supply. C. Connect the power cord to a live power outlet. Use only the power supply provided with your device. Power supplies from other Seagate and  third-party devices can damage your Lyve Drive Shuttle.

  • Page 10: View The E-Ink Display

    View the E-Ink display Follow the onscreen instructions to complete the setup. When completing the setup, a popup prompts you to set the clock for Lyve Drive Shuttle. To  make certain that your device has the correct date, time, and time zone, follow the prompt to the clock setting.

  • Page 11: Site Credentials

    In addition to DHCP, you can set up unique network credentials for all your sites. Go to network settings to manage the device’s credentials for quick connections when shuttling between sites. See Network Configuration. Register Lyve Drive Shu le Seagate Lyve Drive Shuttle 4/20/20...
  • Page 12 1. On the Home screen, tap the Menu icon ( ). 2. Tap Shut Down. Lyve Drive Shuttle does not have a power button. To power on the device, disconnect and reconnect the power cable. In the event Lyve Drive Shuttle is abruptly disconnected from power, it will restart automatically ...

  • Page 13: Security

    Lyve Drive Shuttle and will not work if it is removed. Create a password Lyve Drive Shuttle can only be unlocked by the device password. During the initial setup, you are prompted to create a password. A minimum of 6 characters are required.

  • Page 14: Lock Device

    1. Connect the power cable to power on the device. 2. Enter your password. 3. Tap Unlock. Lock device To lock the device: 1. On the Home screen, tap the Menu icon ( ). 2. Tap Lock. Seagate Lyve Drive Shuttle 4/20/20...

  • Page 15: Desktop Operations

    Desktop Opera ons You can connect a computer to Lyve Drive Shuttle's USB host port. Once connected, you can copy files to Lyve Drive Shuttle. Connect a computer To connect a computer: 1. On the Home screen, tap Connect to Computer.

  • Page 16: Copy Files

    Copy files To copy files to Lyve Drive Shuttle: 1. With your computer connected to Lyve Drive Shuttle, open a computer file browser window and navigate to the location on Lyve Drive Shuttle where you want to locate your copied files.
  • Page 17 3. At the prompt, confirm by tapping Disconnect. Seagate Lyve Drive Shuttle 4/20/20...

  • Page 18: Network Configuration

    1. On the Network screen, tap Choose Service. 2. Tap SMB or NFS. If you choose NFS, Lyve Drive Shuttle will be crypto erased and the storage formatted as  EXT4. All items stored on the device will be deleted.

  • Page 19: Configure Sites

    Set creden als (Volume password) Add an extra layer of security by creating a username and password to access the Lyve Drive Shuttle volume on the network. This is only available with SMB as the service and cannot be used with NFS. The default name of the volume is Lyve Drive Shuttle.
  • Page 20  connected to a domain If you're using a Windows machine connected to a domain, your Lyve Drive Shuttle username/password credentials must match your domain credentials in order to access the Lyve Drive Shuttle's volume over the network. See this knowledge base article for more details.

  • Page 21: Network Operations

    1. On the Home screen, tap Connect to Network. 2. Connect Lyve Drive Shuttle's Ethernet port to a network. 3. Once Lyve Drive Shuttle is connected, you can copy data from computers on the network to Lyve Drive Shuttle’s volume.

  • Page 22: Copy Storage Devices

    1. On the Home screen, tap Copy a Drive. 2. Connect a device to Lyve Drive Shuttle's USB port. 3. Lyve Drive Shuttle searches for connected devices. At the prompt, select the source to copy to Lyve Drive Shuttle and tap Copy.

  • Page 23: Fo Lder Naming Co Nventio Ns

    Performing incremental copies When a new storage device is detected, Lyve Drive Shuttle will copy all files from the source. If the same drive is connected again at a later date, Lyve Drive Shuttle will perform either a full or incremental copy, depending on your copy settings.

  • Page 24: Enabling Incremental Copies

    Enabling copy verifica ons To enable copy verifications: 1. On the Home screen, tap the Menu icon ( ). 2. Tap Settings. 3. Tap Copy Storage Device. 4. Make sure the Verify checkbox is selected. 5. Tap Back. Seagate Lyve Drive Shuttle 4/20/20...

  • Page 25: Crypto Erase

    Crypto Erase A crypto erase securely deletes all data on Lyve Drive Shuttle. Data cannot be recovered after a crypto erase. Your security settings and password remain unchanged. To crypto erase the device: 1. On the Home screen, tap the Menu icon ( ).

  • Page 26: Recovery

    Recovery If an internal issue is detected when starting, Lyve Drive Shuttle may automatically initiate a recovery. To complete the recovery: 1. Tap to choose one of the recovery options: Revert all Revert only settings to factory defaults. Data and settings password remain untouched.

  • Page 27: Manual Recovery

    Manual recovery To initiate a manual recovery: 1. On the Home screen, tap the Menu icon ( ) and select Support > Recovery. 2. Follow the instructions above. Seagate Lyve Drive Shuttle 4/20/20...

  • Page 28: Settings

    Enabling this option doubles the time to copy. 3. Tap Back. Clock You can set the date, time, time zone, and clock (12-hour/24-hour) for Lyve Drive Shuttle. To edit clock settings: 1. In the Settings menu, tap Clock. Seagate Lyve Drive Shuttle...

  • Page 29: Change Password

    To change your current password: 1. In the Settings menu, tap Change Password. 2. Enter your current password and tap Next. 3. Enter your new password and tap Next. 4. Re-enter your new password and tap Change. Seagate Lyve Drive Shuttle 4/20/20...

  • Page 30: Support

    2. Tap Support. 3. Select an activity from the menu. Update Lyve Drive Shuttle's firmware may need to be updated as part of routine maintenance or in order to resolve a specific issue. To initiate a firmware update: 1. In the Support menu, tap Update.

  • Page 31: Generate Diagnostic

    Lyve Drive Shuttle will automatically update when powering on. Generate diagnos c If you've contacted Seagate support about a technical problem with Lyve Drive Shuttle, a representative may ask you to download a diagnostic report to aid in troubleshooting the issue.

  • Page 32: About

    Firmware version Serial number 3. Tap Back. Lyve Drive Shuttle uses open source libraries. You can download acknowledgements and licenses: 1. On the About screen, tap Acknowledgements & Licenses. 2. Connect a storage device and tap Download. 3. Review the download results and tap OK.

  • Page 33: Regulatory Compliance

    Regulatory Compliance Product Name Regulatory Model Number Seagate Lyve Drive Shuttle SUP001S FCC DECLARATION OF CONFORMANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 34 CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence”...
  • Page 35 Seagate Lyve Drive Shuttle 4/20/20...
