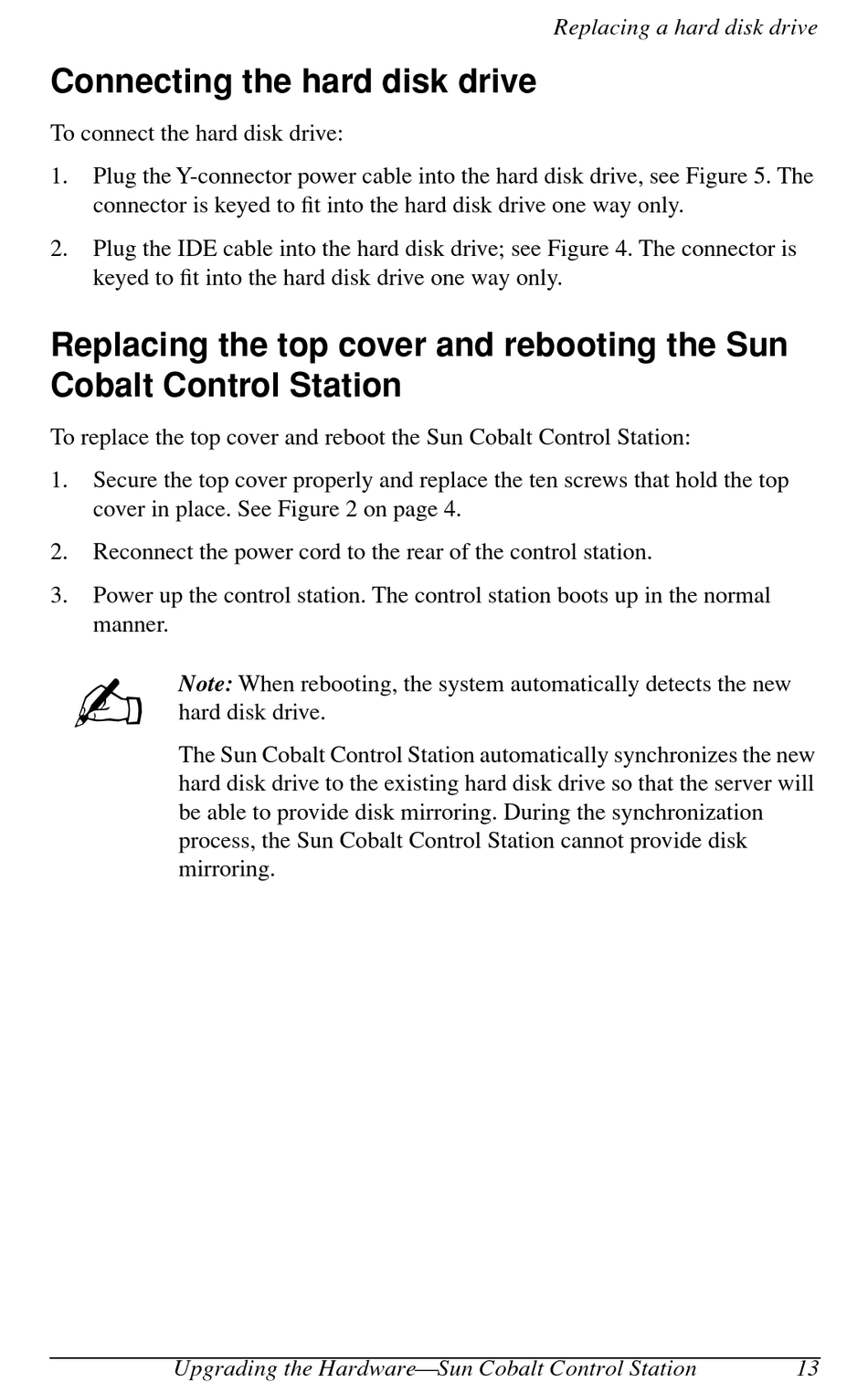

Connecting the hard disk drive

To connect the hard disk drive:
1. Plug the Y-connector power cable into the hard disk drive, see Figure 5. The
connector is keyed to fit into the hard disk drive one way only.
2. Plug the IDE cable into the hard disk drive; see Figure 4. The connector is
keyed to fit into the hard disk drive one way only.
Replacing the top cover and rebooting the Sun
Cobalt Control Station
To replace the top cover and reboot the Sun Cobalt Control Station:
1. Secure the top cover properly and replace the ten screws that hold the top
cover in place. See Figure 2 on page 4.
2. Reconnect the power cord to the rear of the control station.
3. Power up the control station. The control station boots up in the normal
manner.
✍
Note: When rebooting, the system automatically detects the new
hard disk drive.
The Sun Cobalt Control Station automatically synchronizes the new
hard disk drive to the existing hard disk drive so that the server will
be able to provide disk mirroring. During the synchronization
process, the Sun Cobalt Control Station cannot provide disk
mirroring.
