Changing the Battery

When the indicator goes dim or no longer lights, it means
that the battery is nearly dead and must be replaced. Replace
the battery following the steps below.
* The use of an AC adaptor is recommended as the unit's power
consumption is relatively high. Should you prefer to use
batteries, please use the alkaline type.

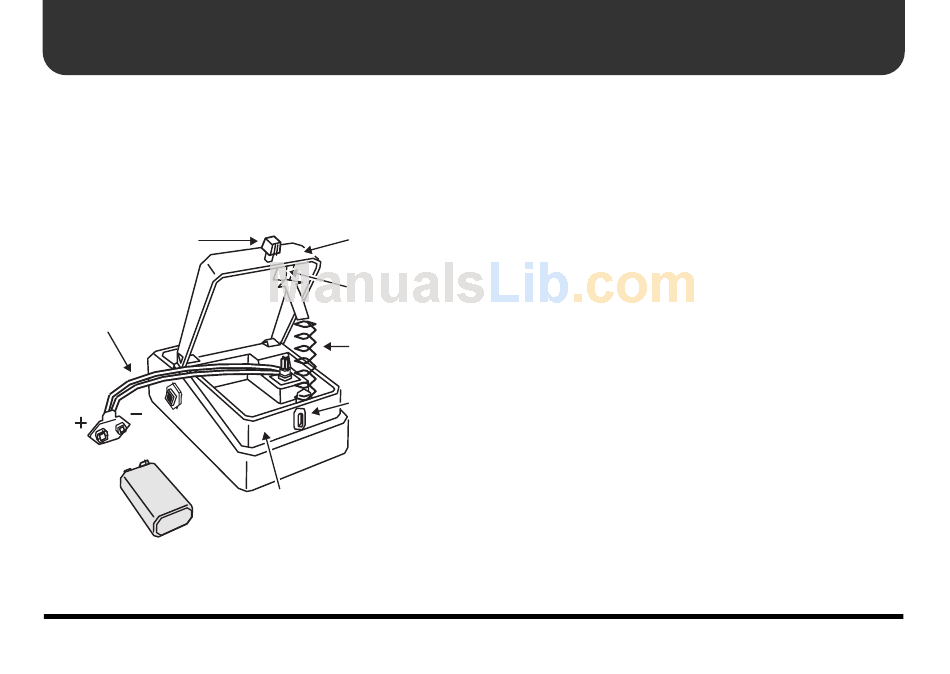

fig.12
Thumbscrew
Battery Snap
Cord
Battery
Snap
9V Battery
38
Pedal
Spring Base
Coil Spring
Guide Bush
Hole
Battery Housing
1. Loosen the thumbscrew at the front of the
pedal, then lift the pedal upwards to open
the unit.
* The thumbscrew can be left in the pedal while changing the
battery.
2. Remove the old battery from the battery
housing, and remove the snap cord con-
nected to it.
3. Connect the snap cord to the new battery,
and place the battery inside the battery
housing.
* Be sure to carefully observe the battery's polarity (+ versus –).
4. Slip the coil spring onto the spring base on
the back of the pedal, then close the pedal.
* Carefully avoid getting the snap cord caught in the pedal,
coil spring, and battery housing.
5. Finally, insert the thumbscrew into the
guide bush hole and fasten it securely.
