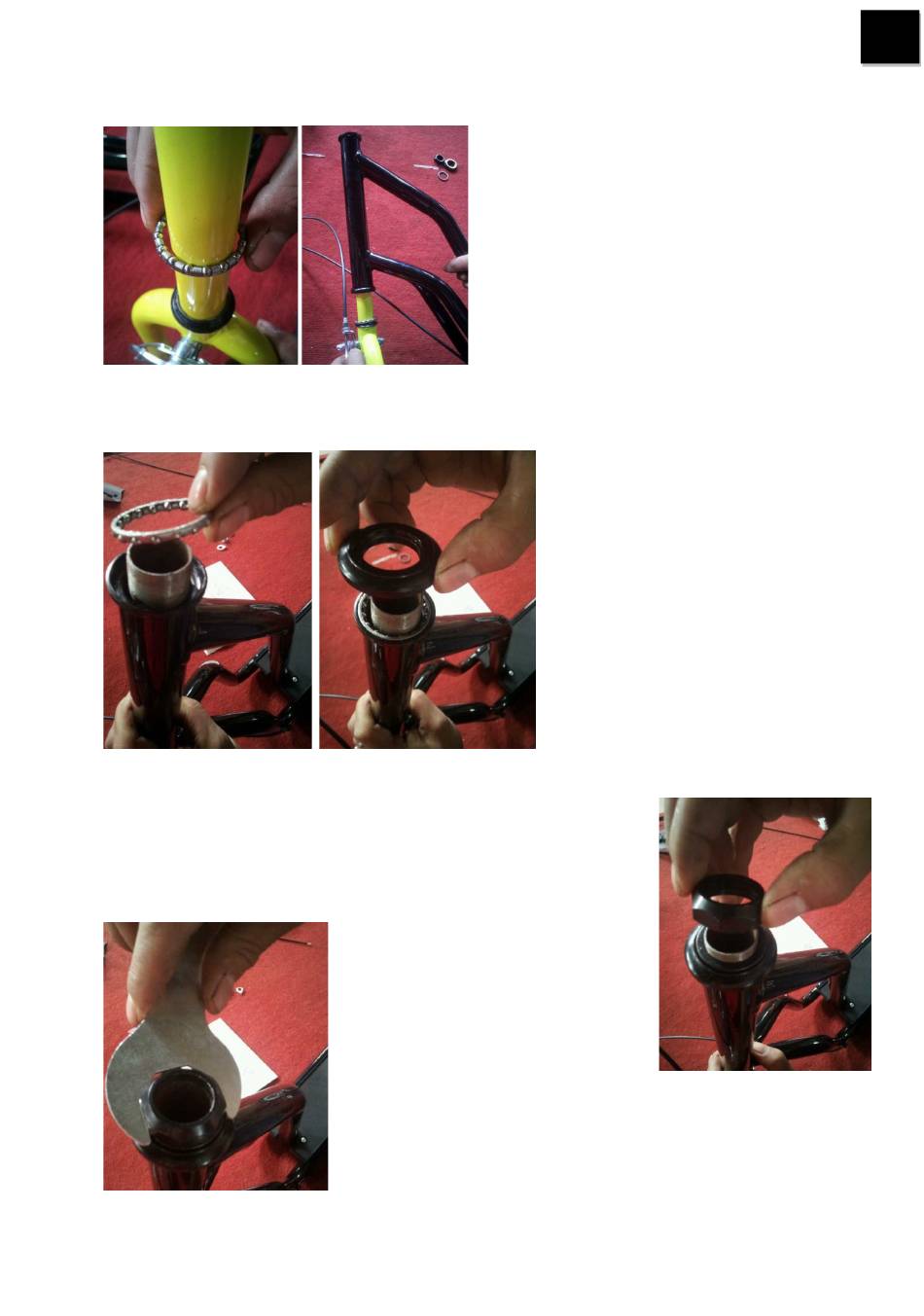

INSTALLATION OF THE FORK
Part One
Please pay attention to the direction of thread bearing shows by the photograph then to return the fork by
taking care well that bearing ball is in housing envisaged has its effect.
Important : Please check the spigot as well as the counter-nut are correctly tight.
Part Two
Please place second bearing ball in housing envisaged to this end then to aim nut like indicating on the
photographs.
Attention: Please check the spigot as well as the counter-nut are correctly tight.
Part Three
To position and aim locknut.
Important: Please ensure that the bracket is in the correct center.
Part Four
To fix locknut with the help of the wrench and
ensure that it is tightly fixation.
Important: Ensure that the bracket is in the correct center.
