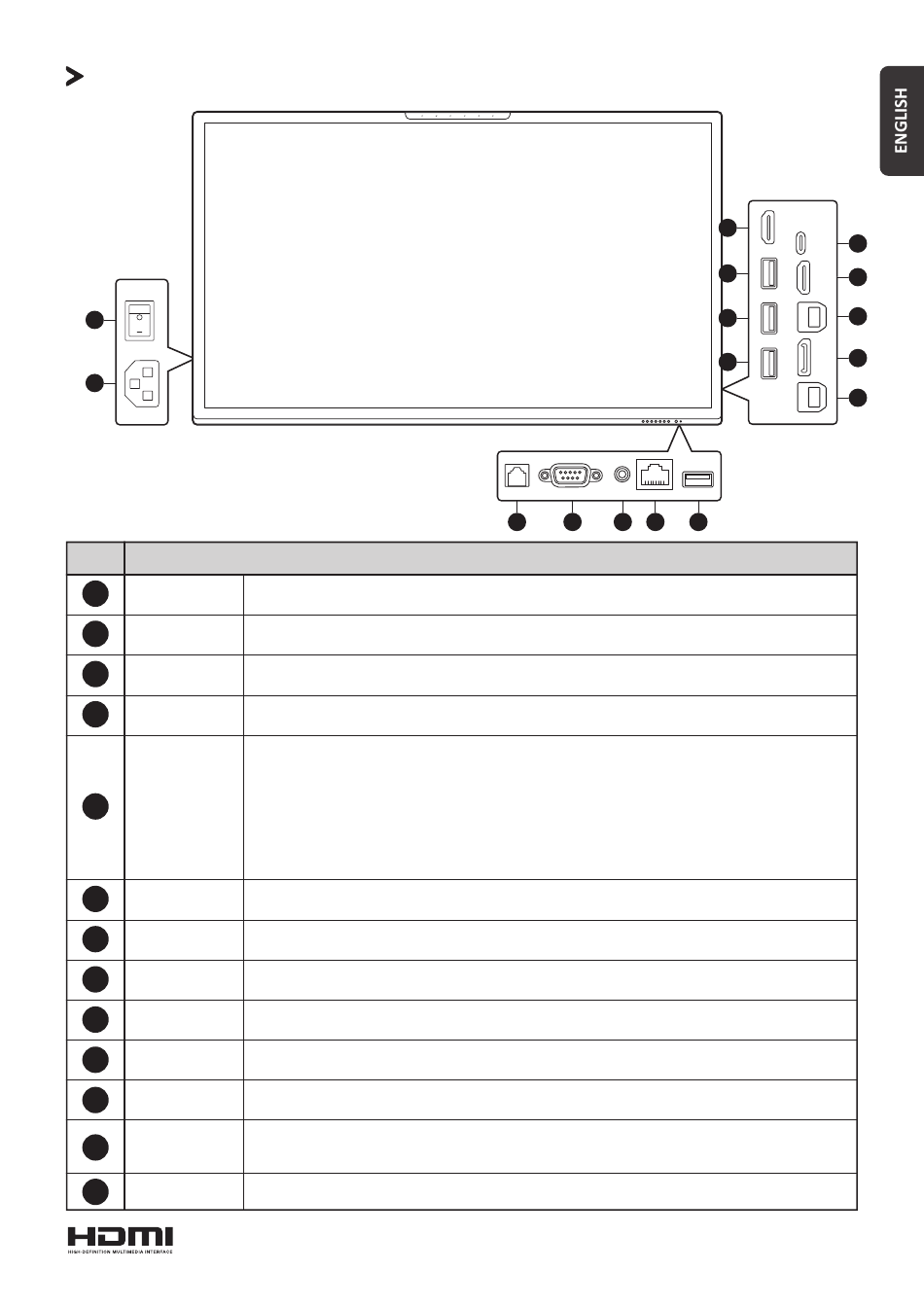

Terminal Interface Overview

12
13
Item Descrip�on
1
HDMI OUT
2
USB 3.0
3
USB Type C
4
HDMI IN
5
TOUCH
6
DisplayPort
7
SPDIF
8
RS232
9
AUDIO OUT
10
LAN
11
USB 2.0
12
AC Switch
13
AC IN
The terms HDMI and HDMI High-Defini�on Mul�media Interface, and the HDMI Logo are trademarks
®
or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Connect to devices with HDMI input func�on.
Connect USB devices such as hard disks, keyboard, mouse, etc.
Charging support up to 60W, OTG, Data transmission, network signal output, Extension for
Audio and Video output.
High defini�on input; connect to PC with HDMI output, set-top box, or other video device.
Touch signal output to external PC.
Network signal out to external PC when Embedded Player has Lan port input.
A�er connec�on (with external PC), the external PC's audio can be played through the
ViewBoard, and the external PC's audio can be controlled by the audio bu�on of the
ViewBoard.
A�er connec�on (with external PC), the device connected to the USB 3.0 port can be directly
used by an external PC.
Connect to devices with DisplayPort output func�on.
Mul�channel sound via op�cal signals.
Serial interface; used for mutual transfer of data between devices.
Audio output to an external speaker.
Standard RJ45 (10M/100M/1G) Internet connec�on interface (This network port is used for
Embedded Player and Slot in PC).
Connect USB devices such as hard disks, keyboard, mouse, etc.
Turn on/off AC power supply
"I" = Power on, "O" = Power off
AC power input
7 8 9 10
1
3
2
4
5
2
6
2
5
11
