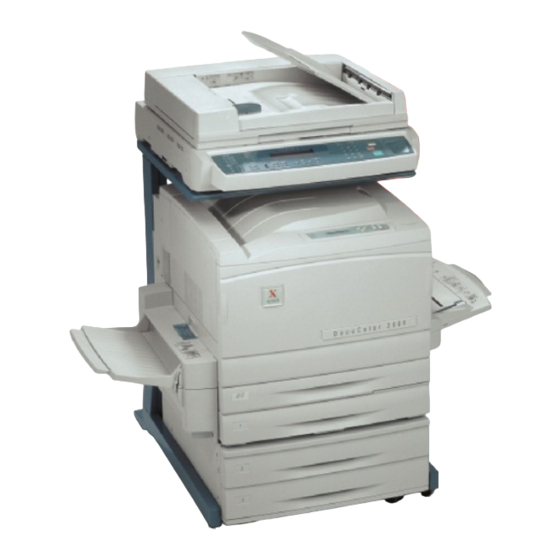

DocuColor 2006

Getting Started

The Document Company
XEROX

Advertisement

Table of Contents
loading

Related Manuals for Xerox Copier

Summary of Contents for Xerox Copier

  • Page 1: Getting Started

    DocuColor 2006 Getting Started The Document Company XEROX...
  • Page 2 ® ® names and product numbers mentioned in this publication are registered trademarks of Xerox Corporation. Xerox Canada is a licensee of all the trademarks. Other company brands and product names may be trademarks or registered trademarks of their respective companies and are also acknowledged.

  • Page 3: Safety Notes

    Always connect the copier to a properly grounded wall outlet. If in doubt, have the outlet checked by a qualified electrician. Never use an extension cord between the copier power cord and an electrical outlet. Do not allow anything to rest on the power cord.

  • Page 4: Maintenance Safety

    Ensure that you read all Warnings and Cautions, and follow each step in the instructions exactly as they are written. Never attempt any activity that is not specified in the Xerox DocuColor 2006 User Information, or on the User Interface, or that is not specifically directed by an authorized Xerox Representative.

  • Page 5: Ozone Safety

    If the DocuColor 2006 is producing unusual noises or odors If the system does not work or continues to malfunction after following the Problem Solving procedures in the Xerox DocuColor 2006 User Information, call your local Xerox Service Representative. For additional safety information concerning the DocuColor 2006 or Xerox...

  • Page 6: European Union

    Changes or modifications to this equipment not specifically approved by the Xerox Corporation may void the user’s authority to operate this equipment. Shielded cables must be used with this equipment to maintain compliance with FCC regulations.
  • Page 7 Council Directive 89/336/EEC, approximation of the laws of the member states related to electromagnetic compatibility. A full declaration, defining the relevant directives and referenced standards can be obtained from your XEROX Limited representative or by contacting: • Environment, Health and Safety, •...
  • Page 8 Changes or modifications to this equipment not specifically approved by Fuji Xerox Environmental Health and Safety or Xerox Corporation Environmental Health and Safety may void the user’s authority to operate this equipment. Shielded cables must be used with this equipment to maintain compliance with the Radio Communications Act of 1992.

  • Page 9: Table Of Contents

    2. Getting to know the DocuColor 2006 ...2-1 Printer, Front View ...2-1 Printer, Rear View...2-2 Printer, Internal View...2-3 Printer Control Panel...2-4 Scanner and Document Feeder components ...2-5 Scanner Control Panel...2-7 Accessories...2-9 Accessories ordering information ...2-9 Supplies reorder numbers...2-10 Xerox DocuColor 2006 Table of contents...
  • Page 10 Before you begin ...3-7 Installing the print driver ...3-7 Windows NT 4.0...3-9 Before you begin ...3-9 Installing the print driver ...3-9 Macintosh OS ...3-11 Before you begin ...3-11 Installing the print driver ...3-11 Setting up the DocuColor 2006 Chooser...3-11 Xerox DocuColor 2006...

  • Page 11: Setting Up The Docucolor 2006

    Do not connect any other devices to the wall outlet designated for the Xerox DocuColor 2006. Install the Xerox DocuColor 2006 in a location that meets the following conditions: •...

  • Page 12: Space Requirements For The Docucolor 2006 Printer

    Space requirements for the DocuColor 2006 Printer CAUTION The Xerox DocuColor 2006 has ventilation grilles on the side and rear, which must remain unobstructed for safe operation. The Printer should be located at least 6 and 1/2 inches (165 mm) from the wall. Obstructing the grilles could present a fire hazard.

  • Page 13: Space Requirements With The Optional Sorter/Stacker

    Space requirements with the optional Sorter/Stacker The following illustration shows the dimensions for the largest configuration of the copier/printer, which includes a Duplex Module and Sorter/Stacker. 6.5 inches 22.75 inches 578 mm 36 inches 14.4 mm Xerox DocuColor 2006 165 mm 36 inches 914.4 mm...

  • Page 14: Checking The Installation Components

    Accessories, if ordered Client Software (customer installed) The first step If the DocuColor 2006 was installed for you, go to the Xerox DocuColor If you ordered the optional 2 Tray Module, go to the Module procedure. If you do not have a 2 Tray Module, go to the 2006.

  • Page 15: Setting Up The 2 Tray Module

    With a person on each side of the box, grasp the crossbars in the locations indicated by the labels. Lift the 2 Tray Module from the box and place it the selected location. Lock the front casters as shown below. Xerox DocuColor 2006 0301098a 301007B-WOL...
  • Page 16 Close the top tray and repeat step 7 for the lower paper tray. Open both the paper trays. WARNING Use care when removing the packing from connectors and wire harnesses. 10. Remove the cardboard protector from the rear post shown below. 11. Close the two paper trays. 0301008a 301009B-WOL Xerox DocuColor 2006...
  • Page 17 12. Remove the tape from the paper feed area access door, and then open the door. 301010B-WOL 13. Remove the cardboard packing shown below. 301011B-WOL 14. Close the paper feed area access door. The next step Go to the Unpacking the Printer procedure in this section. Xerox DocuColor 2006...
  • Page 18 1. Setting up the DocuColor 2006 Installing the 2 Tray Module Xerox DocuColor 2006...

  • Page 19: Unpacking The Printer

    The Printer weighs 153 pounds (69.5 kg) without the dry ink or print/copy cartridges installed. ALWAYS USE FOUR PEOPLE TO LIFT THE PRINTER. Ensure that you keep the Printer LEVEL. Please note that the rear of the Printer is heavier than the front. REAR Xerox DocuColor 2006 FRONT 301013...
  • Page 20 If you are installing the Printer on the optional 2 Tray Module, go to step 8 on the next page. • If you did not order the 2 Tray Module, skip step 8 and go to step 9. 1-10 0301014a 0301199 Xerox DocuColor 2006...
  • Page 21 Aligning the pins and the left rear covers is shown below. Partially open Paper Tray 2, and tighten the two thumbscrews shown below. Do not over tighten the thumbscrews. Close Paper Tray 2. Xerox DocuColor 2006 301016B-WOL 1-11...
  • Page 22 Remove all the tape from the exterior of the Printer: Left side Right Side Inside the Front Cover 1-12 301018A-WOL 301019B-WOL Xerox DocuColor 2006...
  • Page 23 10. Remove all the internal packing from the Printer by performing steps a through m. Remove the spacer labeled B. Remove the cardboard collar from the knob shown below. Pull the narrow strip labeled G from the Dry Ink chamber. Xerox DocuColor 2006 301025B-WOL 301245A-WOL 301026B-WOL 1-13...
  • Page 24 Repeat steps c through e until all four of the strips labeled G are removed from the Dry Ink carrousel. Pull open Paper Tray 1 until it stops. Remove the two spacers labeled C and E, shown below. 1-14 0 301027C-WOL 0 301028C-WOL 301023B-WOL Xerox DocuColor 2006...
  • Page 25 Open the Bypass Tray and remove the spacer labeled F. Gently pull the Bypass Tray in order to open the Bypass Transport, and remove the two spacers labeled D. Close the Bypass Transport and Bypass Tray. Xerox DocuColor 2006 301022C-WOL 301020B-WOL 301021B-WOL...
  • Page 26 If you installed the Printer on the 2 Tray Module, perform the following steps: Remove the small cover from the rear of the Printer. Connect the two small connectors from the 2 Tray Module into the jacks in the Printer. 1-16 301077b Printer 301029A-WOL 301030A-WOL Xerox DocuColor 2006...
  • Page 27 1. Setting up the DocuColor 2006 While holding the cover on the 2 Tray Module closed, align the small cover to the plastic rails, and slide it into the Printer. 301136A-WOL The next step Go to the Printer installation procedure. Xerox DocuColor 2006 1-17...
  • Page 28 1. Setting up the DocuColor 2006 Unpacking the Printer 1-18 Xerox DocuColor 2006...

  • Page 29: Printer Installation

    Do not place the metal spring into the hole. Ensure that the metal spring extends down against the outside of the cover. Place the right-hand arm of the tray into the corresponding hole as shown. Xerox DocuColor 2006 Preparing for the installation Unpacking the 30130a...
  • Page 30 Install the Copy Print Cartridge: Open the Front Cover of the Printer. Rotate the yellow lever A in the direction of the arrows, until the dot is aligned with the Unlocked symbol. 1-20 301033b 301033B-WOL 301034b 301034B-WOL 301034b Xerox DocuColor 2006...
  • Page 31 Tear open the notched end of the silver protective bag and remove the cartridge. CAUTION DO NOT touch the blue surface of the drum. If the drum is scratched, or contaminated with oil from your hand, the output can be degraded. Xerox DocuColor 2006 301035b 301035B-WOL 301081b 1-21...
  • Page 32 Push the cartridge all the way into the Printer until it snaps into place. Rotate lever B in the direction of the arrow until the dot is aligned with the Locked symbol. 1-22 301036c 0301037C - W O L 301038b Xerox DocuColor 2006...
  • Page 33 Locate the correct Dry Ink Cartridge box for the color of the current chamber. Remove the Dry Ink Cartridge from the box. Shake the cartridge seven or eight times as shown below. Xerox DocuColor 2006 301039b 301040a 301040A-WOL 1-23...
  • Page 34 Ensure that the dot on the cartridge is aligned with the Locked symbol as shown. CAUTION Ensure that the cartridge is in the Locked position. If the cartridge is NOT in the Locked position, Dry Ink can spill into the Printer. 1-24 301041c 301119b Xerox DocuColor 2006...
  • Page 35 If the Dry Ink Cartridge is not in the Printer all the way, the knob will not rotate. Repeat step 5 for the three remaining Dry Ink Cartridges. Rotate the carrousel again to ensure that the last cartridge is in the Printer all the way. Xerox DocuColor 2006 301027c 0 301027C-WOL 301038c 0 301028C-WOL...
  • Page 36 The next step If you have ordered the optional Duplex Tray, go to the Tray procedure. If you do not have a Duplex Tray, go to procedure. 1-26 301077b Installing the Duplex Loading paper in the Paper Tray Xerox DocuColor 2006...

  • Page 37: Installing The Duplex Tray

    Small Connector Cover with cutout • Special Tool Remove the Duplex Tray from the plastic wrap. Remove the packing from the tray Ensure that all the packing is removed from the tray. Open Paper Tray 1. Xerox DocuColor 2006 301043b 301128a 301128A-WOL 1-27...
  • Page 38 To remove the cover, shift it to the right then pull it away from the Printer. Discard the cover. Install the Duplex Tray: Align the rails on the tray with the rails in the Printer. Partially close the Duplex Tray and the paper tray. 1-28 301050b 301050B-WOL 301051b 301052b Xerox DocuColor 2006...
  • Page 39 Using a screwdriver, remove the two screws from lower left-hand cover of the Printer as shown below. Remove the cover by shifting it to the right then pulling it away from the Printer. Discard the cover. Xerox DocuColor 2006 301053b 301053B-WOL 301054b...
  • Page 40 Using the Special Tool from the contents of the Printer carton, remove the two small covers from the left-hand side of the Printer. Discard the two covers. Remove the Access Cover located on the lower left-hand side of the Printer. DO NOT discard this cover. 1-30 301204a 301056d Xerox DocuColor 2006...
  • Page 41 10. Install the Lower Inverter as shown below. SMALL CONNECTOR AND CABLE 301057b 301057B-WOL The Lower Inverter does not install flush with the Printer covers. Install the two thumbscrews from the contents of the box. 301058a 301058B-WOL Xerox DocuColor 2006 1-31...
  • Page 42 Printer. Reinstall the small Access Cover. 11. Install the Upper Inverter: Install the Upper Inverter into the Printer as shown. 1-32 301059a 301059A-WOL 301060b 301060B-WOL 301061b 301061B-WOL Xerox DocuColor 2006...
  • Page 43 Install the new Connector Cover with the cutout into the access hole, guiding the wires through the cutout in the cover. CAUTION Use caution if you must rearrange the tiny wires on the connector in order to close the Connector Cover. Xerox DocuColor 2006 301062b 301132A-WOL 301063b 301133A-WOL...
  • Page 44 Installing the Duplex Tray 12. Reinstall the Output Tray. 301064b 301064B-WOL 13. Connect the power cord to the Printer and the wall outlet. 0301070b 301071B-WOL The next step Go to the Loading the paper in the paper tray procedure. 1-34 Xerox DocuColor 2006...

  • Page 45: Loading Paper In The Paper Tray

    If you are loading paper in the 2 Tray Feeder paper trays, skip step 2. It is not necessary to press down on the metal plate in Tray 2 or Tray3. Press down on the metal plate in the tray until it latches. Xerox DocuColor 2006 for details about the paper 301128a...
  • Page 46 To avoid jams, load paper with the long edge against the side of the tray when possible. Adjust the two Paper Guides so that they lightly touch the edges of the paper stack. 1-36 301067B-WOL 301068B-WOL 0301101a 301067b 301068b 301102a Xerox DocuColor 2006...
  • Page 47 If there are additional paper trays installed in your DocuColor 2006, repeat this procedure until all the trays are loaded with the desired paper stock. The next step Go to the section Xerox DocuColor 2006 Installing the Scanner Stand. 301065b 1-37...
  • Page 48 1. Setting up the DocuColor 2006 Loading paper in the paper tray 1-38 Xerox DocuColor 2006...

  • Page 49: Installing The Scanner Stand

    Ensure that the following parts are included in the carton: Right Leg Left Leg Right Support Left Support Table Top Xerox DocuColor 2006 Rear/Bottom Plate with casters Spacer Bar 2 Braces 2 Stabilizing Feet 10. 2 Bumpers 6mm Allen Wrench, not shown...
  • Page 50 Install the Spacer Bar between the tops of the two legs using four screws. You have just completed the Lower Assembly. Turn the Lower Assembly over. Install the two Stabalizing Feet, using four screws as shown. 1-40 301143a 301151a 301130a Xerox DocuColor 2006...
  • Page 51 Place the Left Support and the Right Support into the table top and install the two screws. This is the Upper Assembly Install four screws through the supports and into the top of the table. Install the two braces into the positions shown below. Xerox DocuColor 2006 301202 301137 1-41...
  • Page 52 Turn the Upper Assembly over, and slide it into the legs of the Lower Assembly until it stops. Attach the two assemblies together using eight Allen Screws and the Allen Wrench. 10. Install the two Bumpers into the rear slots of the bottom plate. 1-42 301140a 301139a 301141a Xerox DocuColor 2006...
  • Page 53 Installing the Scanner Stand 1. Setting up the DocuColor 2006 11. Move the Scanner Table around the Printer as shown. 301152a Xerox DocuColor 2006 1-43...
  • Page 54 1. Setting up the DocuColor 2006 Installing the Scanner Stand The next step Go to the Installing the Scanner procedure. 1-44 Xerox DocuColor 2006...

  • Page 55: Installing The Scanner

    Lift the Scanner from the box and place it on the Scanner Stand. Ensure that the front Scanner feet are placed into the round recessed areas on the top front of the Scanner Stand. Xerox DocuColor 2006 301049a 301045a 1-45...
  • Page 56 Please store these screws in a safe place, or tape them to the rear of the Scanner Stand. The screws lock the Scanner Drive into a secure position. You will need them if the Scanner has to be moved. 1-46 301046a 301132a Xerox DocuColor 2006...
  • Page 57 Install one end of the Interface Cable to the rear of the Scanner, and the other end to the left-hand side of the Printer. Connect the power cable between the Printer and the Scanner as shown. Xerox DocuColor 2006 301131a 301228a 1-47...
  • Page 58 1. Setting up the DocuColor 2006 Installing the Scanner Connect the Scanner power cord to the wall outlet and to the rear of the Scanner. 301080 The next step Go to the Installing the Document Feeder procedure. 1-48 Xerox DocuColor 2006...

  • Page 59: Installing The Document Feeder

    Check the contents of the kit for the following parts: • Feeder Assembly • Exit Tray • Two Knobs Ensure that the Scanner power is OFF, and that the power cord is disconnected. Raise the Document Glass Cover. Xerox DocuColor 2006 301125a 0301220A- W O L 1-49...
  • Page 60 Using both hands, lift the cover straight up and remove. This cover may be discarded. Use a screwdriver to loosen and remove the two small covers shown below. Discard the covers and screws. 1-50 301222a 0301223A- W O L Xerox DocuColor 2006...
  • Page 61 Remove the protective packing from the front edge of the Document Feeder. From the back of the Scanner, align the holes in the Document Feeder hinges to the alignment posts on the Scanner. Xerox DocuColor 2006 03301227A -W O L 0301229A- W O L 1-51...
  • Page 62 Using both hands, push the Document Feeder toward the front of the Scanner. This secures the Feeder to the posts. Install the two knobs from the kit and tighten. 1-52 0301230A- W O L 0301230a- W O L Xerox DocuColor 2006...
  • Page 63 Connect the cable to the back of the Scanner and tighten the two screws. Install the Exit Tray. Reconnect the power cord, and switch ON the Scanner. Xerox DocuColor 2006 0301249A- W O L 0301250A- W O L 301250a 301085a...
  • Page 64 1. Setting up the DocuColor 2006 Installing the Document Feeder The next step If you are installing the optional Sorter/Stacker, go to the Installing the Sorter/Stacker procedure. Otherwise, go to the Printing the Test Page procedure. 1-54 Xerox DocuColor 2006...

  • Page 65: Installing The Sorter/Stacker

    Installing the Sorter/Stacker The Sorter/Stacker is an optional accessory for the Xerox DocuColor 2006. It attaches to the left side of the unit and consists of 10 bins and a high capacity bin. Xerox service personnel or installation personnel or the customer may install it.
  • Page 66 Review the Sorter/Stacker components before installing the unit. 1-56 Sorter bins High capacity bin Attachment plate Jam clearance cover Connector cord Xerox DocuColor 2006...
  • Page 67 Unpacking the Sorter/Stacker Read all the steps before performing this procedure. Open the box. Remove the instruction sheet. Remove the plastic bag with the new connector cover. Xerox DocuColor 2006 1-57...
  • Page 68 Remove the cardboard inserts that hold the unit in place. Move any plastic away from the bottom wheels of the Sorter/Stacker. Gently tip the box so the Sorter/Stacker is standing on its wheels 1-58 Xerox DocuColor 2006...
  • Page 69 Do not press down on the attachment plate as this may cause the unit to tip. Carefully roll the Sorter/Stacker out of the box. Remove the plastic wrapping from around the Sorter/Stacker. Xerox DocuColor 2006 1-59...
  • Page 70 Remove the strap around the high capacity bin. Remove any tape or cardboard from the outboard side of the Stacker/Sorter. Open the cover and remove any packing material inside it. 1-60 0303006A- W O L Xerox DocuColor 2006...
  • Page 71 10. Remove the tape that is holding the connector cord in place. Keep the cord wrapped to protect the connector. 11. Ensure that any remaining tape is removed from the unit. Xerox DocuColor 2006 1-61...
  • Page 72 Connecting the Sorter/Stacker Read all the steps before performing this procedure. CAUTION Ensure that the power is off on the copier/printer before you begin to install the Sorter/Stacker. Switch off the copier/printer. Remove the output tray from the copier/printer. At the Sorter/Stacker, extend the attachment plate.
  • Page 73 Position the plate so its vertical edge is to the left and thumbscrews align with the holes in the base of the extension. Ensure that the duplex tray icon is visible in the spacer plate cut out. Tighten the thumbscrews. Xerox DocuColor 2006 1-63...
  • Page 74 Align the Sorter/Stacker with the left side of the DocuColor 2006 so the thumbscrews on the plate align with the holes in the left cover of the copier/printer. The upper horizontal edges of the alignment plate should fit under Jam Clearance Area 5.
  • Page 75 Remove the connector cover that is below the power plug on the left side of the copier/printer. Remove the protective plastic wrap from the Sorter/Stacker cord and connector. Plug in the connector. Xerox DocuColor 2006 1-65...
  • Page 76 10. Remove the new connector cover from its wrapping. Holding the cord to the left cut out side of the opening, place the lower edge into the opening and push the new cover up and into place. 1-66 Xerox DocuColor 2006...
  • Page 77 Installing the Sorter/Stacker 1. Setting up the DocuColor 2006 11. Slide the Sorter/Stacker to the right into position. Xerox DocuColor 2006 1-67...
  • Page 78 1. Setting up the DocuColor 2006 Installing the Sorter/Stacker The next step Go to the Printing the Test Page procedure. 1-68 Xerox DocuColor 2006...

  • Page 79: Switching On The Power

    The DocuColor 2006 performs a registration setup, then after a few moments messages indicating the Scanner is ready are displayed on the Printer Control Panel and on the Scanner Control Panel. Xerox DocuColor 2006 301072A-WOL 0301232a 0301232A - W O L...

  • Page 80: Switching Off The Power

    DocuColor 2006 is networked, it may be receiving data. Press the 0 on the ON/OFF button on the Scanner only. The Scanner controls the power for the Printer, therefore it is not necessary to switch off the power on the Printer. 1-70 301086 Xerox DocuColor 2006...

  • Page 81: Printing A Test Page From The Printer Control Panel

    Press the Item/Enter button. PROCESSING JOB FROM TRAY 1 is displayed. After a moment the test page is delivered to the Output Tray on the top of the Printer. Xerox DocuColor 2006 chapter. UP Arrow button Item/Enter button Getting to...

  • Page 82: Making A Test Copy From The Scanner

    If you are adding memory to the Scanner, go to the the Scanner • If you are not adding memory, go to 2006. 1-72 procedure. Getting to know the DocuColor Getting to know Copy button Start button 301003 Adding memory to the Adding memory to Xerox DocuColor 2006...

  • Page 83: Adding Memory To The Printer

    Avoid exposing the card to direct sunlight, high temperatures, or humidity. Switch OFF the power to the Printer and to the Scanner. Remove the three screws from the upper right-hand side panel of the Printer. Xerox DocuColor 2006 301073A-WOL 301186 301083 1-73...
  • Page 84 Slide the card into the lower slot below the 64MB memory card. Using your thumbs, press the card into the slot until it clicks. Go to step 7. 1-74 301210 301214a 0301063A- W O L 301233a 301211a Xerox DocuColor 2006...
  • Page 85 Slide the new memory card into the upper slot. Using your thumbs, press the card into the slot until it clicks. If you are installing a second card, slide it into the lower slot and press it into place. Xerox DocuColor 2006 301212a 301213a 301214a...
  • Page 86 Insert the left-hand side Printer panel into place as shown below. Press the panel closed and slide it to the left. Reinstall the three screws into the side panel. 1-76 301215a 301216 301070 Xerox DocuColor 2006...
  • Page 87 Adding memory to the Printer 1. Setting up the DocuColor 2006 10. Switch ON the Printer and the Scanner power. 0301072a 0301232a 301072A-WOL 0301232A - W O L 11. After a few moments, READY is displayed on the control panel. Xerox DocuColor 2006 1-77...
  • Page 88 If you are adding memory to the Scanner, go to Scanner procedure. • If you are not installing memory to the Scanner, go to the know the Xerox DocuColor 2006 1-78 Adding memory to the Getting to section. Xerox DocuColor 2006...

  • Page 89: Adding Memory To The Scanner

    Avoid exposing the memory card to direct sunlight, high temperatures, or humidity. Switch OFF the power to the Scanner. Locate the access cover on the left side of the Scanner. Xerox DocuColor 2006 1. Setting up the DocuColor 2006 301125 301219a...
  • Page 90 Printer. Remove the memory card from the anti-static bag. Align the card to the rails in the access slot, then push the memory card into the Scanner as far as it will go. 1-80 301206 301207 301208 Xerox DocuColor 2006...
  • Page 91 Align the screws on the end of the memory card to the holes in the rear Printer cover. Use a screw driver to tighten the screws. Replace the access cover and switch ON the power. After a few moments, READY is displayed on the printer control panel. Xerox DocuColor 2006 301209 301085 1-81...
  • Page 92 1. Setting up the DocuColor 2006 Adding memory to the Scanner The next step Go to the Getting to know the Xerox DocuColor 2006 section. 1-82 Xerox DocuColor 2006...

  • Page 93: Getting To Know The Docucolor 2006

    Top Right-hand Cover – open to add additional memory Bypass Tray – use for transparencies, envelopes, postcards, or other stock Bypass Transport – open to access paper jams 10. Paper Feed Area – open to access paper jams Xerox DocuColor 2006 Getting to know the DocuColor 2006 301074B-WOL...

  • Page 94: Printer, Rear View

    14. Printer Side Output Tray – copies are delivered to this tray 15. Printer Power Switch – use to switch OFF and ON the Printer power 16. Printer power cord connector – connect the Printer power cord here T F S G I P 301075B-WOL Xerox DocuColor 2006...

  • Page 95: Printer, Internal View

    21. Print/Copy Cartridge – use to transfer copy/print image to media 22. Knob – use to manually turn the carrousel in order to access the Dry Ink Cartridges 23. Lever A – the Copy/Print Cartridge is accessed through here Xerox DocuColor 2006 301076B-WOL...

  • Page 96: Printer Control Panel

    Error Indicator – this indicator is lit when an error has occurred Processing Indicator – this indicator is lit when Printer is processing a On-line Indicator – this indicator is lit when the system is on-line. 301150a Xerox DocuColor 2006...

  • Page 97: Scanner And Document Feeder Components

    Document Input Tray – place the originals to be scanned here Original Exit Tray – scanned originals are delivered here Document Cover handle – use to access the Document Glass Access cover – raise to access the feed rollers and to clear jams Xerox DocuColor 2006 301146a 301129a...
  • Page 98 Document Cover without Document Feeder – raise to access the Document Glass Registration corner – place the top right-hand corner of your original here Document Glass – supports the original for scanning 0301221A- W O L Xerox DocuColor 2006...

  • Page 99: Scanner Control Panel

    13. Contrast Dial – use to lighten or darken the Control Panel Screen 14. Paper Supply Arrow buttons – use to select the desired paper tray 15. Zoom Arrow buttons – use to select Reduce/Enlarge from 25-400% Xerox DocuColor 2006 2. Setting up the DocuColor 2006 0301149A- W O L...
  • Page 100 17. Reduce/Enlarge indicators – indicates which setting is currently selected 18. Paper Supply indicators – indicates which paper tray is currently selected 19. Color Mode button – use to access color mode options 20. Lighten/Darken button – use to lighten or darken the output Xerox DocuColor 2006...

  • Page 101: Accessories

    ZMB128 128MB Memory Upgrade ZMB256 256MB Memory Upgrade Xerox DocuColor 2006 Accessory Required for installing the DC2006 on a Token Ring Network. Enables two-sided printing. to 10 sets of copies in the bins. It can also be used to stack up to 500 sheets in the high capacity bin.

  • Page 102: Supplies Reorder Numbers

    006R90307 006R90308 006R90309 2-10 Description Number 1Black Dry Ink 006R90310 Cartridge 1 Cyan Dry Ink 013R90140 Cartridge 1 Magenta Dry Ink 008R12571 Cartridge Description 1 Yellow Dry Ink Cartridge 1 Print/Copy Cartridge 1 Dry Ink Waste Container Xerox DocuColor 2006...

  • Page 103: Network Setup

    • Handle the card by the top or side edges only. Do not touch the card components or the gold connector edge. • Avoid placing the card near magnetic devices, such as a PC monitor. • Avoid exposing the card to direct sunlight, high temperatures, or humidity. Xerox DocuColor 2006 Network Setup...
  • Page 104 Slide the panel to the left and lift to remove. Remove the Token Ring card from the anti-static bag. Install the card as shown below. Ensure that the jacks are accessible through the rear frame of the Printer. 301083 301210 301252 301217 Xerox DocuColor 2006...
  • Page 105 Insert the left-hand side Printer panel into place as shown. Press the panel closed and slide it to the left. Reinstall the three screws into the side panel. Xerox DocuColor 2006 301218a 301216 301070a...
  • Page 106 Connect the network cable. 10. Switch ON the Printer power. After a few moments, READY is displayed on the control panel. 301254a Xerox DocuColor 2006...

  • Page 107: Windows 95/98

    D:\) from the drop-down box and select the Browse button. • If you are installing from files you downloaded using the Installer WebTool, type the name of your hard disk drive (for example, C:\) and select the Browse button. Xerox DocuColor 2006...
  • Page 108 Verify the path is correct and select OK. In the Printers box, select Xerox DocuColor 2006 and Next. 10. Select LPT1: ECP Printer Port and Next. 11. Using a maximum of 31 characters, enter a name for the printer or leave the default name in the Printer name box.

  • Page 109: Windows 2000

    Browse to the English\Prntdrvr\Ps_drvr\Win_2000 folder and ensure that oemsetup.inf or oemsetup is selected. Select Open. Verify the path is correct and select OK. 10. In the Printers box, select Xerox DocuColor 2006 and Next. Xerox DocuColor 2006 Installing the user software in a chapter.
  • Page 110 For detailed information about setting up parallel port printing, TCP/IP, IPX/SPX, SPM, or SMB printing, or setting printer options and installing additional software, refer to environment on the user CD. Installing the user software in a Windows 2000 Xerox DocuColor 2006...

  • Page 111: Windows Nt 4.0

    (for example, D:\) and select Browse. • If you are installing from files you downloaded using the Installer WebTool, type the name of your hard disk drive (for example, C:\) and select Browse. Xerox DocuColor 2006 Installing the user software in a Windows NT 4.0...
  • Page 112 Select OK and ensure that oemsetup.inf or oemsetup is selected. Verify the path is correct and select OK. 10. In the Printers box, select Xerox DocuColor 2006 and Next. 11. Using a maximum of 31 characters, enter a name for the printer or leave the default name in the Printer Name box.

  • Page 113: Macintosh Os

    To install from files you downloaded using the Installer WebTool, open the Printer Driver folder on your hard disk. Double-click the AdobePS 8.6 Installer icon. When the Warning dialog box is displayed, select Yes. Select Restart when the installation is complete. Xerox DocuColor 2006 3-11...

  • Page 114: Setting Up The Docucolor 2006 In The Chooser

    For detailed information about installing Fiery software and fonts; configuring connections for ColorWise ProTools, Fiery Spooler or Fiery Link; or installing fonts or additional software, refer to the Macintosh OS environment 3-12 Installing user software in a chapter on the user CD. Xerox DocuColor 2006...

This manual is also suitable for:

2006npc - docucolor color laser

Table of Contents
