Mounting the Camera, cont.

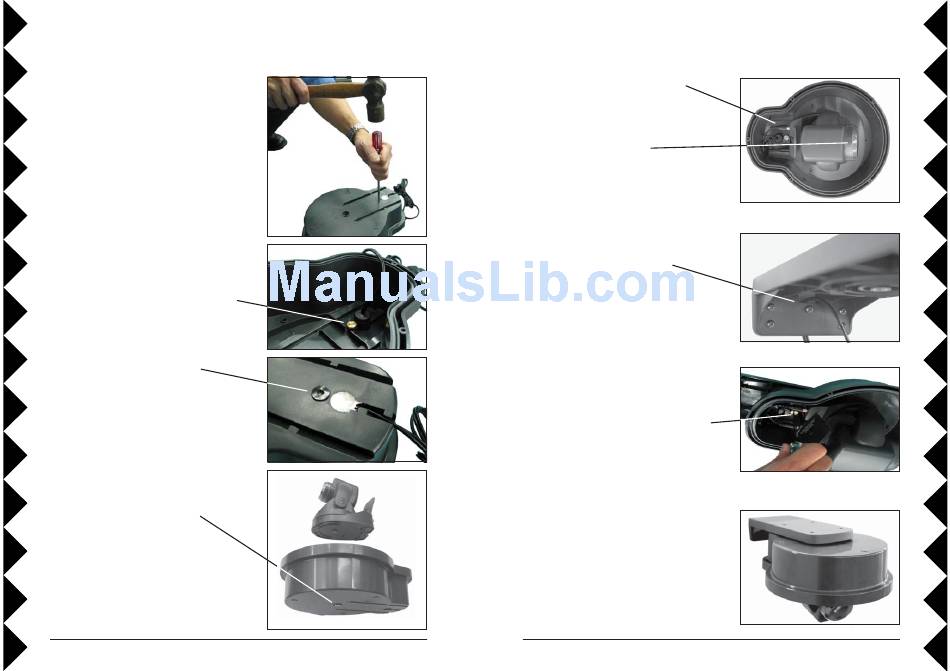

Mounting the camera on a wall

using the bracket provided
1. Knock out the ONE hole shown
here on the base of the dome using
a screwdriver and hammer.
2. Put a black rubber washer on the
inside of base of the dome and
then insert a brass screw into the
hole. Make sure that the end of
the screw does not protrude from
the wall of the base.
3. Attach a black rubber
washer on the outside of
the base.
4. Attach the camera to the base of the
dome using the brass screw on the
outside of the dome's base.
20
5. Plug the power and video
cables into the camera.
6. Remove the lens cap
(Don't touch the lens).
7. Pass the cables through the hole in
the mounting bracket and attach the
bracket to a wall.
8. Attach the base of the dome to the
mounting bracket. Then, tightly
fasten the dome assembly to the
bracket, by fixing the brass screw
inside the dome.
9. Point the pip on the camera's
antenna in the direction of the TV
that you connected the receiver to (if
you're using the wireless feature).
10. Attach the clear dome cover to the
base of the dome, using the 5 screws
provided.
