Safe Handling - Planar LookThru Fabricator’s Manual

Electronics Box is located). However, the light emitted toward the rear is significantly less –
approximately 90% - than that on the front, and any image viewed from behind will be reversed.
Cooling Features
The Planar LookThru display generates significant heat that must be dissipated. The Electronics
Box is perforated to allow for proper airflow but installations must keep at least 0.25 inches
(5mm) between the Electronics Box and the mounting surface and 0.5 inches (12mm) above the
Electronics Box to allow for that airflow. Additionally, dust build-up can prevent adequate cooling
so regular vacuuming must be facilitated in the installation to allow for the cooling features to
work.
Glass Treatment
The front surface of the Display Glass is made of Corning
anti-reflective coating that is optically bonded to the OLED display. The Corning Gorilla Glass
provides scratch resistance on the front of the display only. The back side of the display is
susceptible to damage from sharp and/or hard objects and should be protected accordingly.
location of the inputs on the Electronics Box, as well as provide access to either the keypad on
the back or the Remote Control (with an included 112inch extension cord and sensor).

Safe Handling

When removing the display from its box or moving
it around, hold it by the indicated handholds on
the Display Chassis and Electronics Box. Do not
lift, move or shift the display by the Display Glass.
It is recommended to have at least two people
when moving or installing the display.
The display ships with a protective film over both
the front and rear sides of the Display Glass.
When removing the film there is a possibility of
electrostatic discharge (ESD). Wear an
appropriate ESD safety device and/or connect the
Planar LookThru display's power cord to a
8

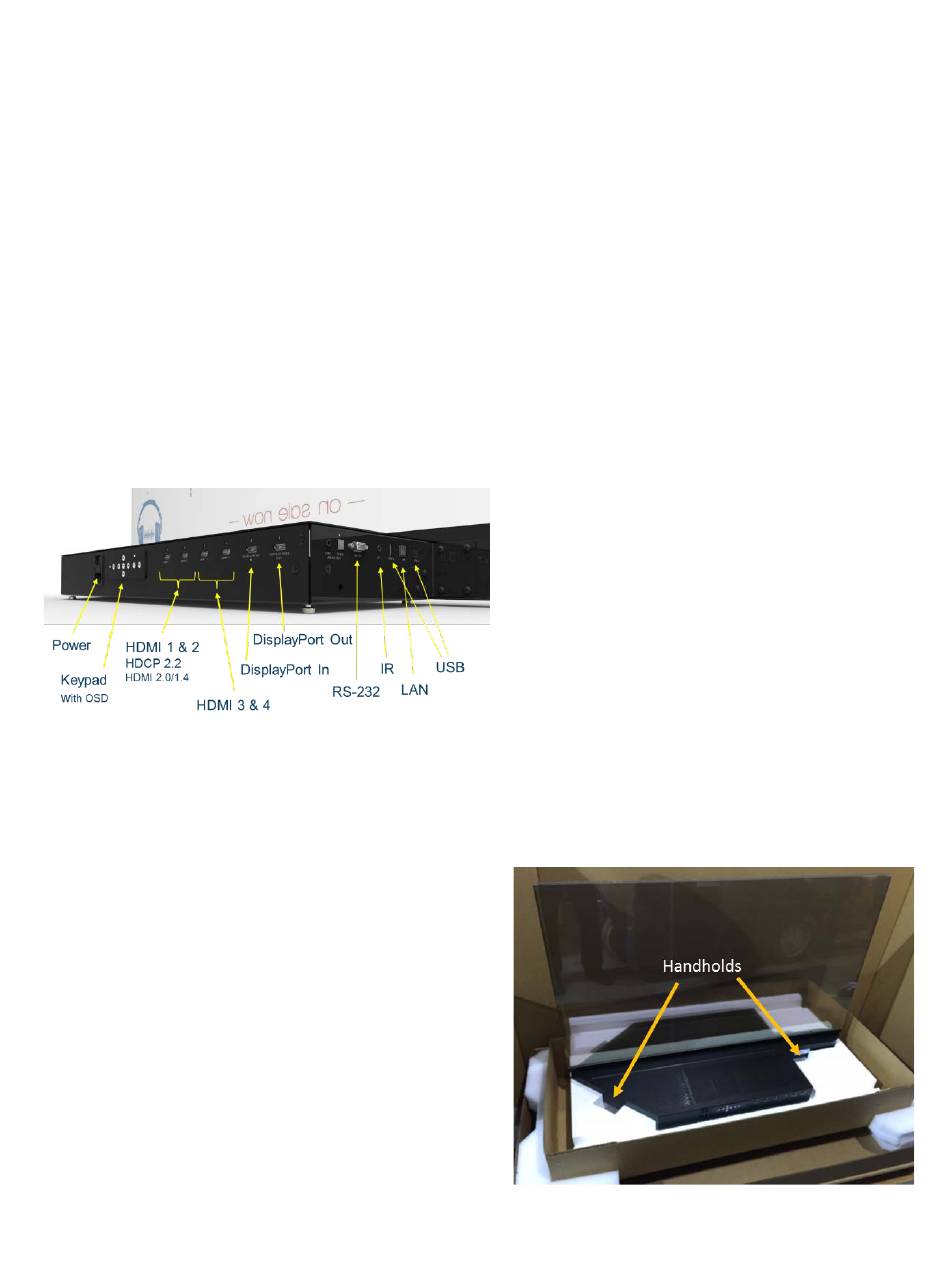

Input/Output
A single display installation can be driven
from any HDMI or DisplayPort capable
source. If multiple displays will be tiled
together, the RS-232 connection will allow
custom display hardware to drive the
displays.
Installations should take into account the
Planar LookThru Fabricator's Guide
® ®
Gorilla Glass, and is coated with an
020-1315-00C
