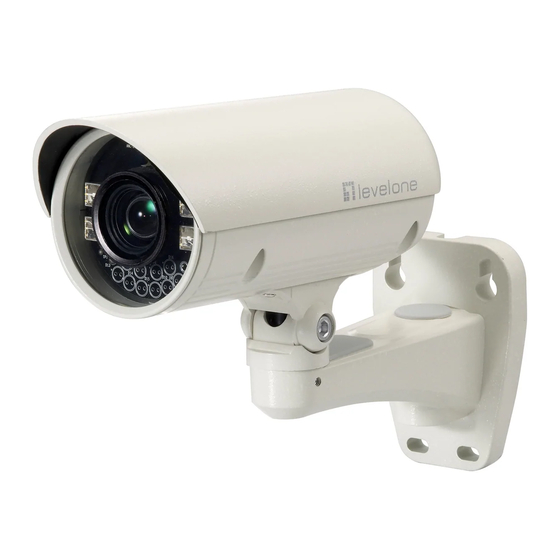

- Page 1 Network Camera User’s Manual FCS-5043 Zoom Network camera, 2-Megapixel, Outdoor, 802.3af PoE, IR LEDs, Day & Night, 3x User Manual Version 1.0 1/56...
- Page 2 Network Camera User’s Manual Table of Contents Overview ....................... 3 Package Contents ....................4 Connections ......................5 Hardware description ..................5 Hardware Installation .................... 6 Connect to the Network Camera ................8 Install the IP Finder program ................8 Bonjour program ..................15 C2.mylevel1.com (Free DDNS service) ............
- Page 3 Network Camera User’s Manual Overview Law in your country may prohibit the use of surveillance devices. The Network Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.
- Page 4 Network Camera User’s Manual Package Contents If any of the above items are missing, please contact your dealer immediately. Network Camera (Wired or PoE) Software CD Power adapter Quick installation guide Wrench/Screws/Wall Mount Bracket Moisture Absorber/RJ45 Female Note: Using a power supply with a different voltage than the one included with the Network Camera will cause damage and void the warranty for this product.
- Page 5 Network Camera User’s Manual Connections Hardware description Plan view panel Inner View 5/56...
- Page 6 Network Camera User’s Manual Hardware Installation 1. Attach the Network Camera with the included stand 2. Place the Camera fix it onto ceiling or wall Use screws to fix the Network Camera onto the ceiling or wall. 3. Power over Ethernet (PoE) ...
- Page 7 Network Camera User’s Manual General Connection (without PoE) 1. Connect the camera to a switch via Ethernet cable. Connect the power cable from the Network Camera to power outlet. 4.General I/O Terminal Block This Network Camera provides a general I/O terminal block which is used to connect external input devices.
- Page 8 Network Camera User’s Manual Connect to the Network Camera Install the IP Finder program When you installed your Network camera on your LAN environment, you may install “IP Finder” to discover Network camera’s IP address. The Administrator must place the product software CD into the CD-ROM drive of the PC running in Microsoft Windows.
- Page 9 Network Camera User’s Manual “IP Finder” is used to search the IP address of Network Cameras or Video servers on a LAN. After searching, Video Servers or Network Cameras will be located by the IP Finder. 9/56...
- Page 10 Network Camera User’s Manual Search Camera Click search Camera button, the program will search for all family network devices on the same LAN. After searching, the main installer window will pop up. Click on the MAC and model name which matches the product label on your device to connect to the Network Camera via Internet Explorer.
