Endpin Jack Installation
NOTE: Before installing the pickup in the soundhole, install
the endpin jack in the endblock of the guitar
to unsolder the cable from the jack and shorten it or simply tie
wrap the excess cable inside the guitar. If you modify the
cable length to fit your instrument, leave enough slack to
allow the cable to be secured to the side wall of the guitar
with the supplied wire clips.
Prepare the endpin jack hole by drilling a 15/32" hole in
the intended location of the jack. (If the guitar has an
existing strap button hole enlarge that hole to 15/32"

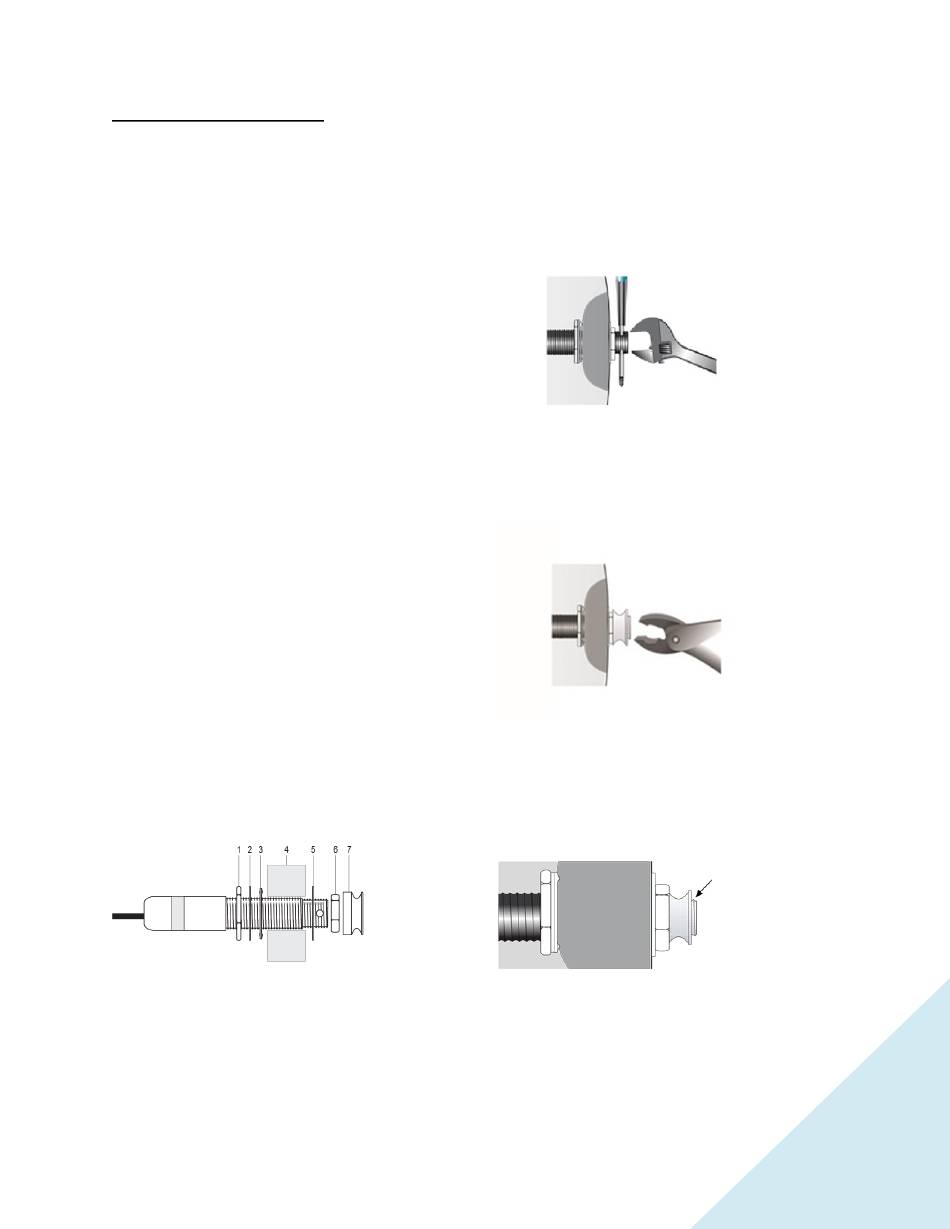

Follow this sequence when installing the endpin jack:
Inside the guitar:
1 - Large Hex nut
2 - Large Dress Washer
3 - Star Washer
Guitar End Block
4 -
Outside the guitar:
4 - Small Dress Washer
5 - Small Dress Nut
6 - Strap Button
Thread the large nut, dress washer and star washer
down the large threaded portion of the jack to allow the
proper amount of the jack to go through the end block.
Note: For proper fit, the endpin Jack should protrude at
least 5/16" (7.9 mm) and no more than 11/32" (8.7mm)
outside the guitar's body.
Push the jack through the hole and fit the small dress washer
and nut over the end of the jack. Tighten the nut with a 1/2"
.
You may choose
open-end or adjustable wrench while counter-holding the
jack in place with an Allen wrench or small screwdriver.
Thread and gently tighten the strap button using rubber
tipped pliers
Note: With the strap button in place, the end of the jack
should protrude slightly, so that when a plug is inserted, it
will snap securely in place.
- 3 -
