Installation-Operation
Data Reporter
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Part No. 246085

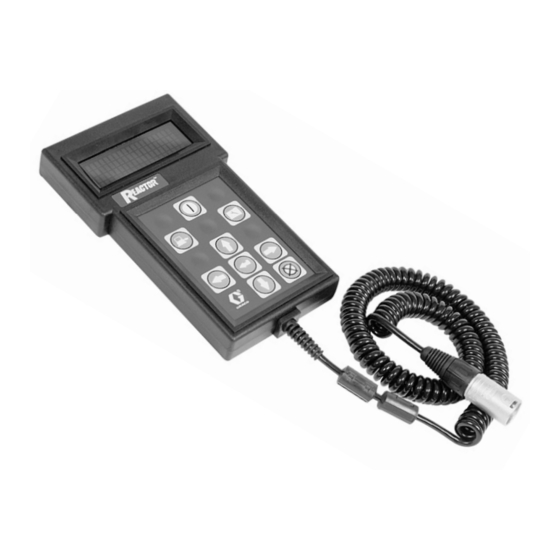

Records actual temperature, temperature setpoint, actual pressure, pressure setpoint, cycles,
and diagnostic code data from Reactor™ proportioner.
Downloads data to PC with Microsoft® Windows 98 though Windows XP.
Part No. 248848
Data Reporting Kit without interface module.
309867G
EN

Advertisement

Table of Contents
loading

Related Manuals for Graco 246085

Summary of Contents for Graco 246085

  • Page 1 Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions. Part No. 246085 Records actual temperature, temperature setpoint, actual pressure, pressure setpoint, cycles, and diagnostic code data from Reactor™ proportioner. Downloads data to PC with Microsoft® Windows 98 though Windows XP.

  • Page 2: Install Hardware

    Install Hardware Install Hardware For 246085 only. For Kit 248848 continue on step 12. 3. For Electric Reactor, thread wires (B, C) and cables (H, P) of interface module (1) through boot in top of cabinet. For Hydraulic Reactors, orient power supply 90° as 1.
  • Page 3 Install Hardware 8. Connect PUMP cable to J12 on motor control board. CAUTION Models E-30 and E-XP2 Before handling boards, put on a static conductive wrist strap to protect against static discharge which can damage boards. Follow instructions provided with wrist strap.
  • Page 4 Install Hardware 9. Insert wires (B, C) in top front terminals of fuse block b. For Hydraulic Reactor, drill two holes exactly as (F) at circuit breaker module. Tighten screws (S). shown below. Be careful not to damage compo- nents inside cabinet when drilling holes. Apply sealant (4c) to screw threads.

  • Page 5: Main Screen

    Screens Reporter displays data received from Reactor. It is not a remote control for Reactor. Main Screen Main screen appears when powered up. GRACO REPORTER REV 1.01 MAR 20 2003 12:48:12 45:32 HOURS LEFT Press . Following message will appear momen- tarily, followed by Record screen.

  • Page 6: Setup Screens

    Screens Setup Screens Change Units ↓ SETUP Display must be at main screen, page 5. Press RECORDING PERIOD CHANGE UNITS enter Setup. Press to move through DATE/TIME CHANGE Setup menu. Press to select. Press ↓ SETUP CHANGE UNITS RECORDING PERIOD ∗...

  • Page 7: Install Software

    Install Software Install Software Delete Records ↑ SETUP The Reactor Downloading program operates on DELETE RECORDS PCs with Microsoft® Windows 98 or later. 1. Close all programs and applications. 2. Insert software CD (6) in CD ROM drive. If install starts automatically, go to step 6.

  • Page 8: Hardware Connections

    Downloading Downloading Hardware Connections If indicator is red and following message appears, connection is broken. 1. See drawing on page 14. Connect cable (7) to con- verter (2) and to appropriate serial port on PC. If PC uses a USB port, connect a USB to RS-232 serial adapter between the PC and cable (7).
  • Page 9 Downloading . 1. Main Window 309867G...

  • Page 10: View Log File

    Downloading Get Log File Get Uncompressed Log File For non-English Microsoft Windows XP operating 1. Access by File>Get Log File on menu bar, or left systems, “Get Uncompressed Log File” should be button on tool bar. used if the “Get Log File” command fails. The uncompressed option takes about five times longer than the compressed mode.
  • Page 11 Downloading Open File in Excel 1. Start Excel. 2. Change file type to All Files (*.*). See F . 2. . 2. Excel Window 309867G...
  • Page 12 Downloading 3. Locate saved ReactorLogFile.log. See F . 3. . 3. Reactor Log File Window 4. Check that file is delimited. See F . 4. 5. Click Finish. See F . 4. . 4. Check that File is Delimited 309867G...
  • Page 13 Downloading 6. Data is imported into formatted Excel document. See F . 5. . 5. Sample Formatted Excel Document 309867G...
  • Page 14 Downloading 309867G...
  • Page 15 Parts Parts Models 246085 and 248848 Ref. Ref. Part No. Description Part No. Description 103312 . SCREW, machine; 8-32 x 3/8 in. 246122 MODULE, interface (10 mm) (model 246085 only) 100284 . NUT, hex; 8-32 246597 CONVERTER, RS-232 to RS-485 113500 .

  • Page 16: Graco Standard Warranty

    Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
