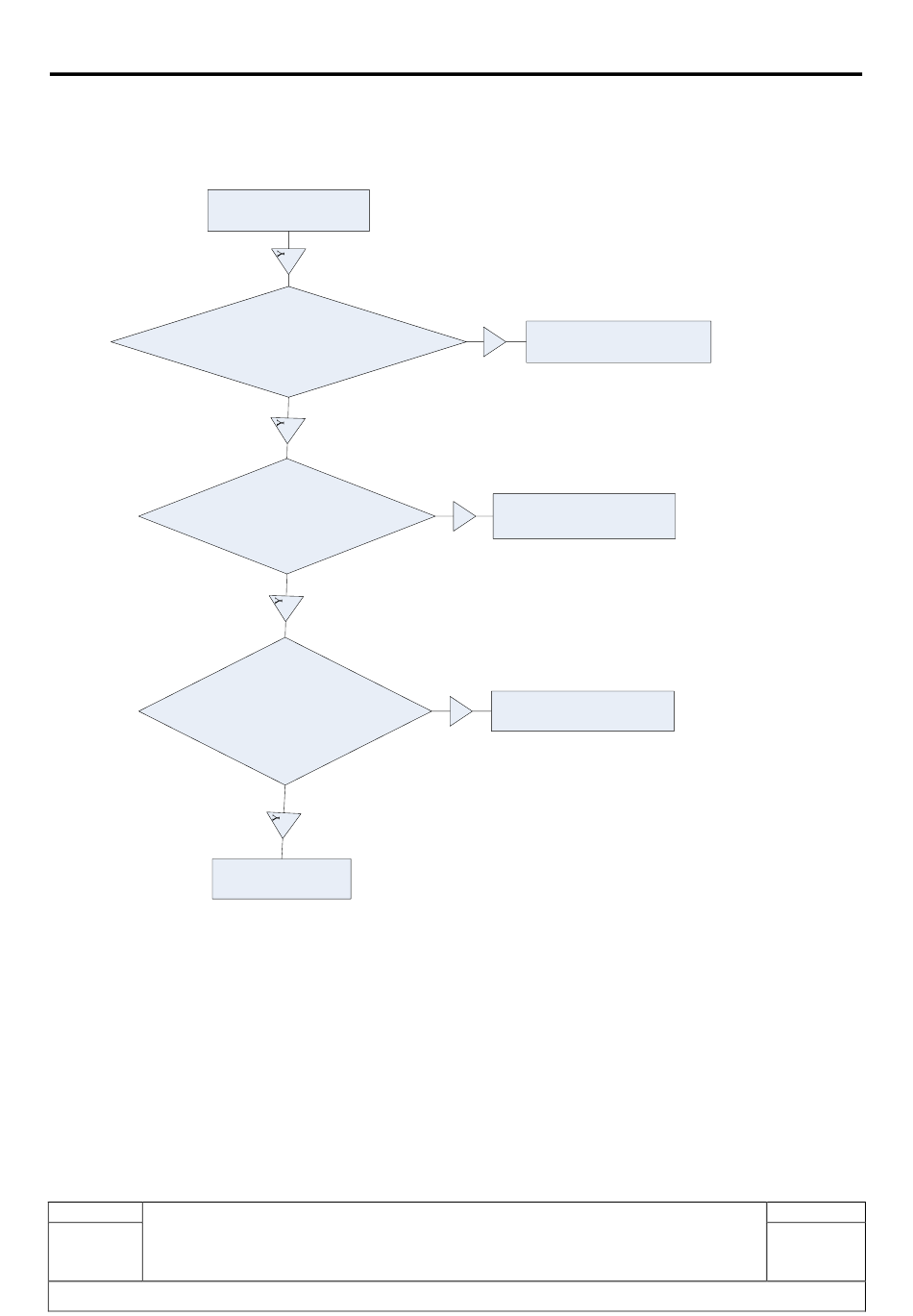

7.9 Sub camera issue
Sub camera function
failure
Check whether the connection
between sub camera and sub
camera connector is good
Check whether sub camera is
normal
C h e c k w h e t h e r s u b c a m e r a
connector is normal
Replace PCBA
Rev.
1.0
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
N
Replace sub camera
N
R e w e l d o r r e p l a c e s u b
N
camera connector
FL02 Level 2 Repair Document
TCL
Communication Ltd.
Reassemble sub camera
