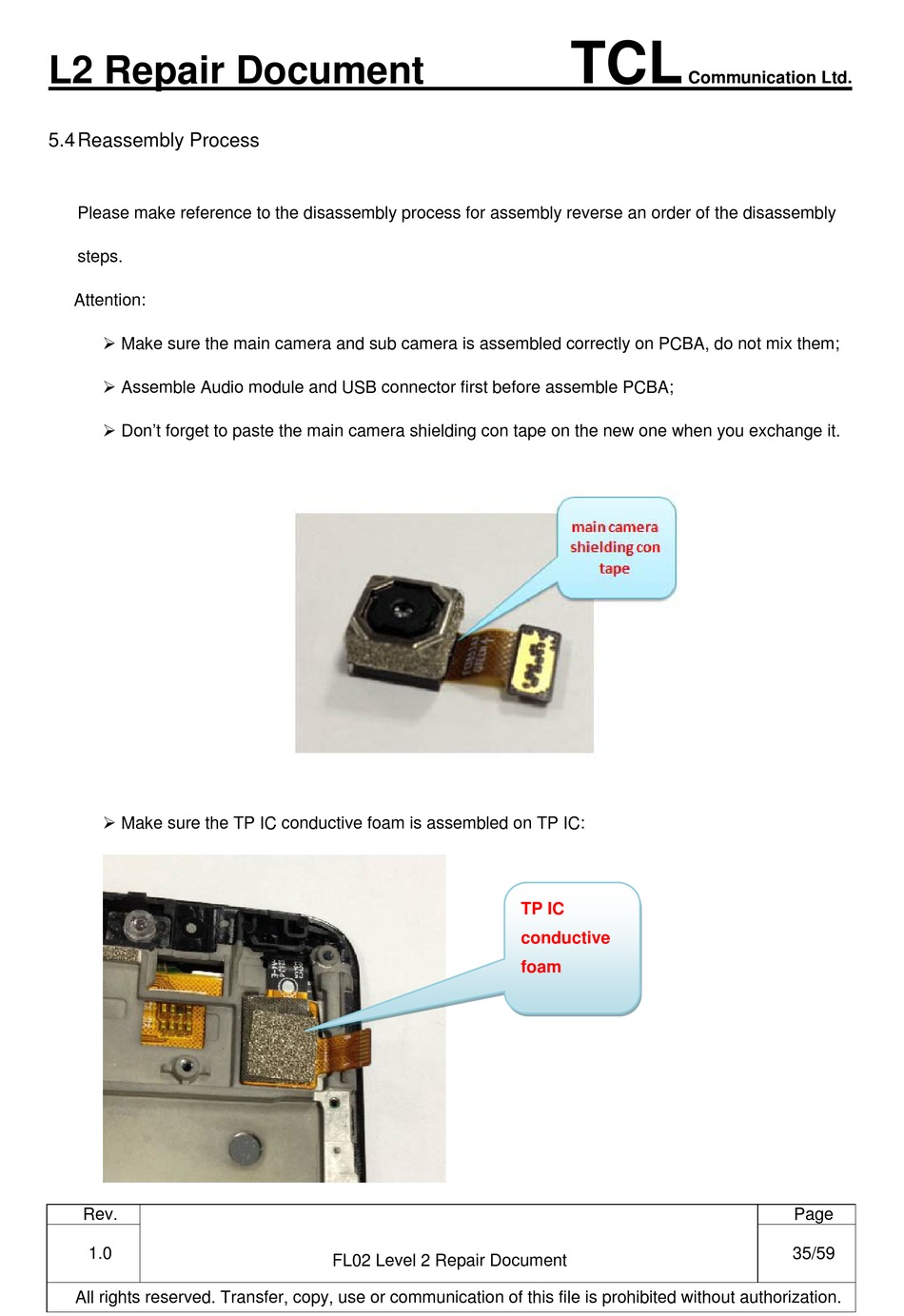

5.4 Reassembly Process

Please make reference to the disassembly process for assembly reverse an order of the disassembly
steps.
Attention:
 Make sure the main camera and sub camera is assembled correctly on PCBA, do not mix them;
 Assemble Audio module and USB connector first before assemble PCBA;
 Don't forget to paste the main camera shielding con tape on the new one when you exchange it.
 Make sure the TP IC conductive foam is assembled on TP IC:
Rev.
1.0
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
FL02 Level 2 Repair Document
TCL
Communication Ltd.
TP IC
conductive
foam
