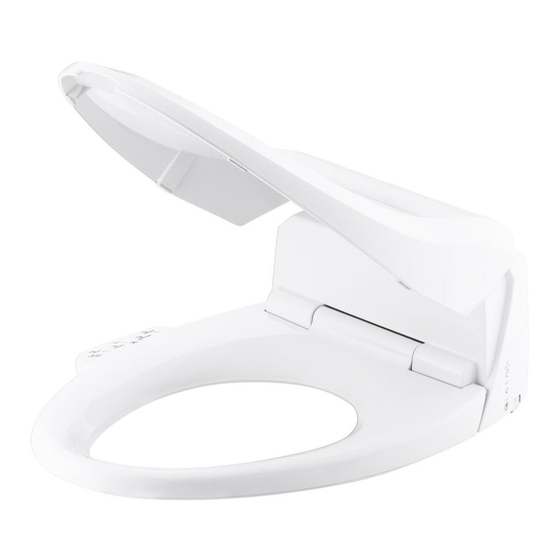

- Page 1 H H O O M M E E O O W W N N E E R R ’ ’ S S - - 1 1 2 2 5 5 T T o o i i l l e e t t S S e e a a t t w w h h i i t t h h B B i i d d e e t t F F u u n n c c t t i i o o n n a a l l i i t t y y...
- Page 2 All information in this guide is based upon the latest product information available at the time of publication. At Kohler Company, we strive to fulfill our mission of improving the level of gracious living for each person who is touched by our products and services.
-
Page 3: Important Safeguards
• Use this appliance only for its intended purpose as described in the manual. Do not use attachments not recommended by Kohler Co. • Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped, damaged, or dropped into water. - Page 4 • Connect this product to a properly grounded outlet only. Seegrounding instructions. • Install this product properly by following the installation procedure. • Only authorized persons can install or repair the unit. Do not attempt to service this appliance yourself, doing so could void the warranty. WARNING: Risk of electric shock, fire, or personal injury.
-
Page 5: Specifications
SPECIFICATIONS Water supply pressure 20 psi (139 kPa) - 80 psi (551 kPa) Electrical Power 220/240 V c.a. /50-60 Hz /450 W Power cord length 1,5 m Puissance du chauffe-eau 400 W Nozzle Nozzle spray flow Posterior flow, with aeration 0,40 lpm –... - Page 6 Warm air blower Maximum fan air flow 0,22 m3/min Heater rating 240 W Temperature adjustment Off / 40°C / 50°C / 58°C Safety adjustment Thermal fuse, heating element thermal cut-out Deodorizer Maximum fan air flow 0,24 m3/min Toilet seat Cover closing Soft-close Seat closing Soft-close...
-
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: Risk of electric shock, fire, or personal injury. This product must be groun- ded and connected only to a dedicated, nominal 220/240 VAC, 50/60 Hz circuit protected by a 16 A thermal circuit breaker completed by a 30 mA Ground-Fault Circuit breaker. If the product is not grounded and protected by a ground fault circuit interrupter or a higher voltage circuit is used, electric shock, fire, or personal injury may occur. - Page 8 TEST THE FUNCTIONS Wrap the toilet seat with plastic wrap. This will prevent water from spraying from the toilet during testing. Plug the power cord into the electrical outlet. The seat will go through a power-up sequence where the power indicator LED will flash amber. Once power-up sequence is complete and the tank is full, the indicator will turn green.
-
Page 9: Operation
OPERATION Press this icon to stop the activated function of cleaning or warm air blower. The deodorization function is activated when the seat sensor detects a user. Press this icon to turn off the deodorize function. The deodorize function will reactivate for the next user. -
Page 10: Panel Diagram
= Seat Temp: Press this icon to select and set the temperature of the seat during the power on status. Every time the icon is pressed, the temperature level will change from off (room temperature), to low (35°C), to medium (37°C) to high (39°C). - Page 11 CLEAN THE NOZZLE NOTE: The spray nozzle can only be extended for cleaning when the seat is not activated or occupied. Raise the cover and seat. Pull out one of the nozzles and hold for cleaning. Clean the spray nozzle with a soft-bristled brush. Release the nozzle to allow the wand to retract.
- Page 12 REMOVE THE SEAT Turn off the water supply at the supply stop. NOTE: The seat will contain water until Mouting Plate drained. Refer to the “Drain the Water from Release button the Seat” section. Unplug the seat from the electrical outlet. Disconnect the water supply hose from the angle valve tap.
-
Page 13: Care And Cleaning
CARE AND CLEANING For best results, keep the following in mind when caring for your KOHLER product: IMPORTANT! Do not immerse product in water. • Always test your cleaning solution on an inconspicuous area before applying to the entire surface. - Page 14 C. Circuit breaker has been C. Locate the problem and tripped. reset the circuit breaker. D. None of the above D. Contact a Kohler Service actions correct the representative. symptom. 3. Seat is loose. A. Screws and nuts are A.
- Page 15 Symptoms Probable Causes Recommended Action CLEANING FUNCTIONS 2. The water pressure is A. The screen is clogged. A. See the “Clean the Screen” low. section. 3. Water stops flowing A. One minute after pressing A. Press the “Rear” or “Front” from the spray wand one of the icons, washing icon again.
- Page 16 Symptoms Probable Causes Recommended Action SLOW CLOSE COVER A. None. A. Due to changes in 1. The speed of the seat room temperature. and cover closure varies in summer and winter. SEAT SENSOR A. Remove any water or A. The seat sensor is 1.
-
Page 17: Spare Parts
SPARE PARTS 1085053-SP 1184334-SP Temperature fuse assy-S/P 45558K Installation screw 1085135-SP attachment Hinge cover drive-SP 1205827-SP LED A-S/P 1102014-SP clip attachment-S/P 1205828-SP 1185618-SP LED B-S/P Cover assy-S/P 1085180-SP 1092508-SP Ring installation attachment-S/P bumper kit-S/P 1085096-SP 1204224-SP Fan door-S/P 1114079-SP Electrification spout drain indicator PCBA-S/P assy. -
Page 18: Warranty
WARRANTY One-Year Limited Warranty KOHLER plumbing products are warranted to be free of defects in material and workmans- hip for one year from date of installation. Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection discloses any such defects occurring in normal usage within one (1) year after installation. - Page 20 Kohler France Immeuble le Cap 3 rue de Brennus 93631 La Plaine Saint-Denis CEDEX Tél. : +33 1 49 17 37 37...
