Tools and Parts

Gather the required tools and parts before starting installation. Read
and follow the instructions provided with any tools listed here.
■ Flat-blade screwdriver
■ #2 Phillips screwdriver
■
Adjustable wrench that
opens to 1" (25 mm) or
hex-head socket wrench
(for adjusting dryer feet)
■ Level
■
Wire stripper (direct wire
installations)
■ Vent clamps
Parts supplied
Non-Steam Models
4 Leveling legs
Remove parts package from dryer drum. Check that all parts are
included.
NOTE: Do not use leveling legs supplied with dryer if installing
on a pedestal.
2

INSTALLATION REQUIREMENTS

■ Caulking gun and compound
(for installing new exhaust
vent)
■ Tin snips (new vent
installations)
■ ¼" nut driver
(recommended)
■ Tape measure
■ Pliers

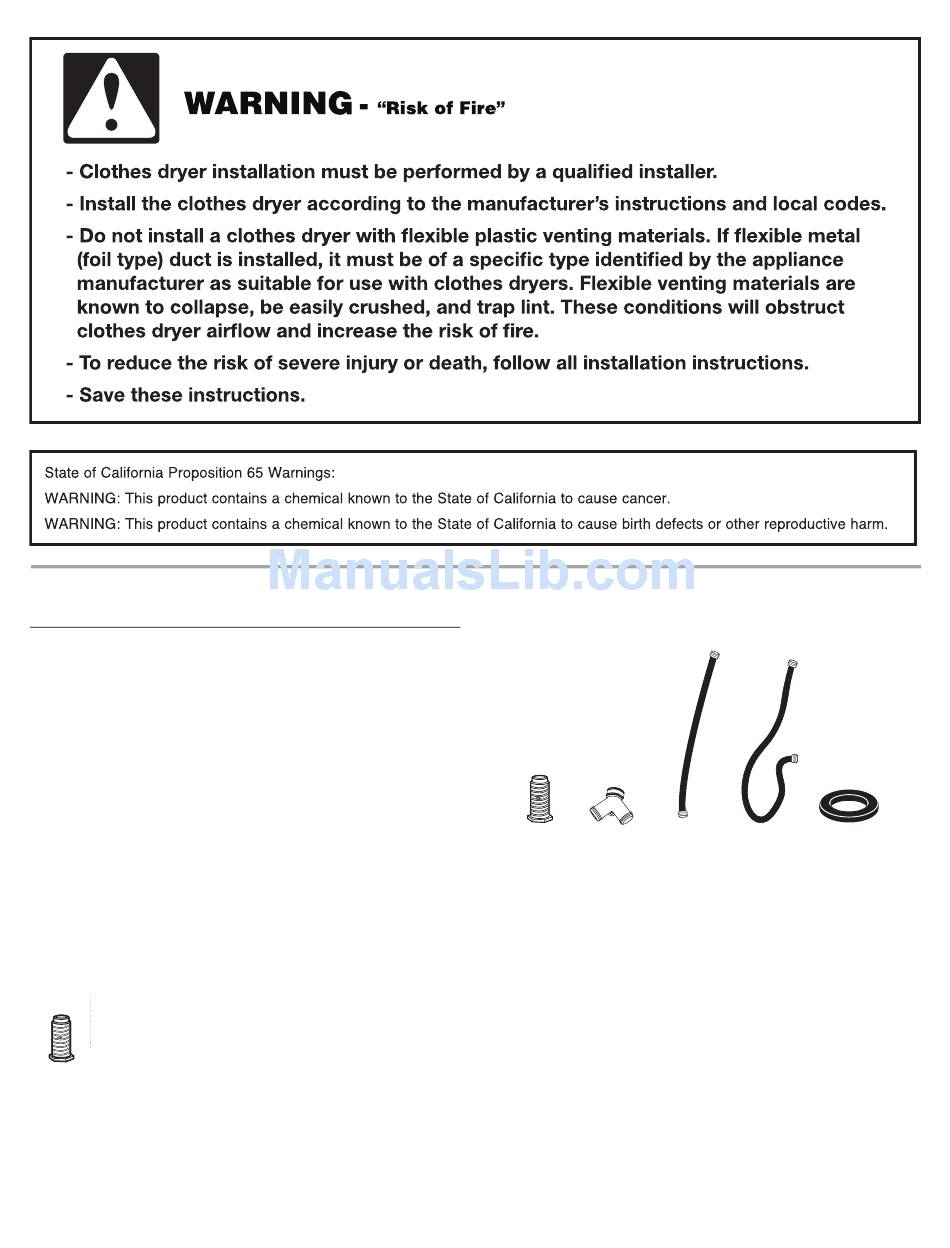

Steam Models
A
B
A. Leveling legs (4)
B. "Y" connector
C. Short inlet hose
Remove parts package from dryer drum. Check that all parts are
included.
NOTE: Do not use leveling legs supplied with dryer if installing
on a pedestal.
Parts needed
Check local codes. Check existing electrical supply and venting.
See "Electrical Requirements" and "Venting Requirements" before
purchasing parts.
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your dryer. For further information, please refer to the "Assistance
or Service" section in your Use and Care Guide.
C E
D
D. Long inlet hose
E. Rubber washer
