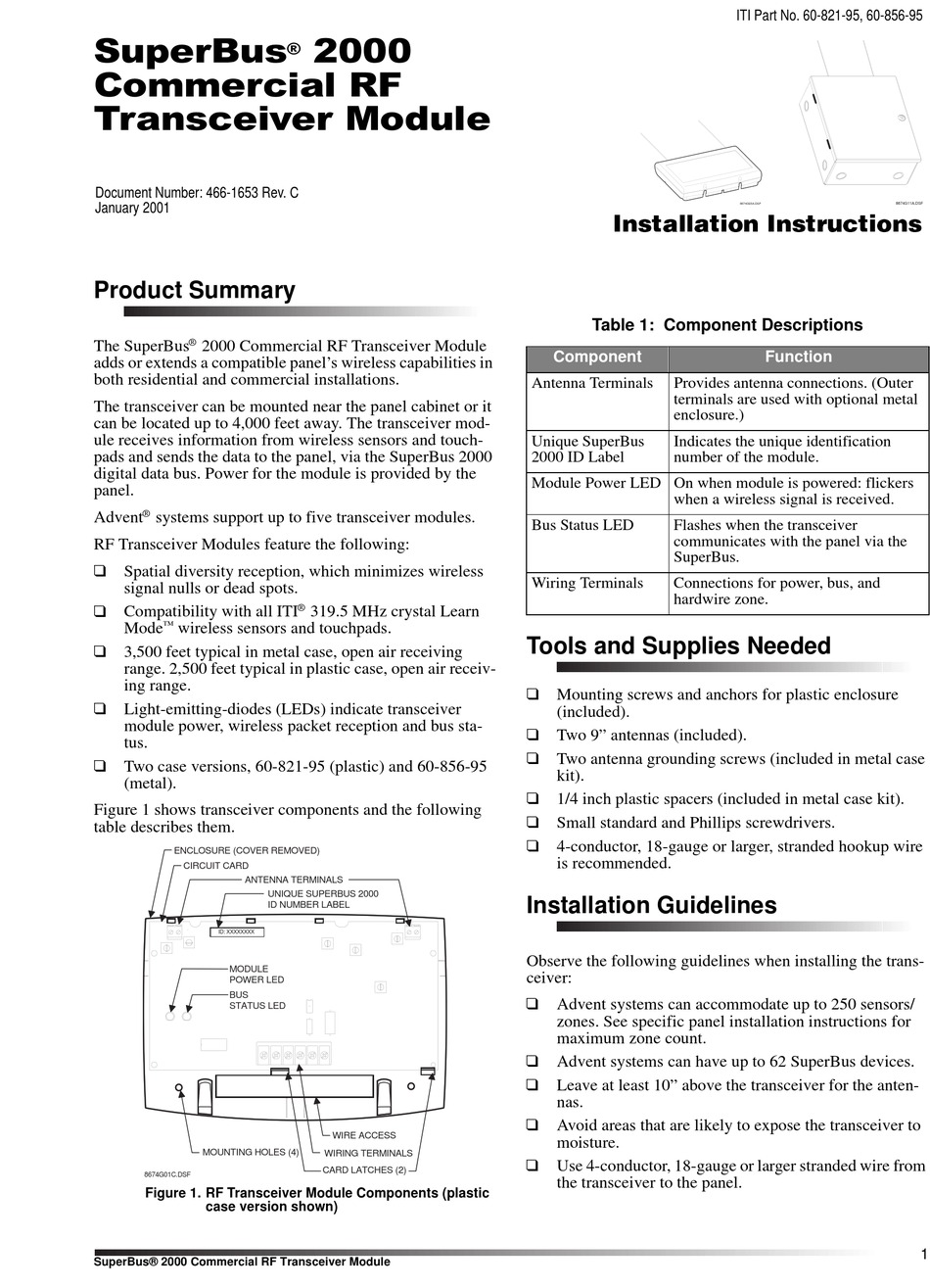

Document Number: 466-1653 Rev. C
January 2001
Product Summary
®
The SuperBus 2000 Commercial RF Transceiver Module
adds or extends a compatible panel's wireless capabilities in
both residential and commercial installations.
The transceiver can be mounted near the panel cabinet or it
can be located up to 4,000 feet away. The transceiver mod-
ule receives information from wireless sensors and touch-
pads and sends the data to the panel, via the SuperBus 2000
digital data bus. Power for the module is provided by the
panel.
®
Advent systems support up to five transceiver modules.
RF Transceiver Modules feature the following:
R
Spatial diversity reception, which minimizes wireless
signal nulls or dead spots.
R
Compatibility with all ITI
™
Mode wireless sensors and touchpads.
R
3,500 feet typical in metal case, open air receiving
range. 2,500 feet typical in plastic case, open air receiv-
ing range.
R
Light-emitting-diodes (LEDs) indicate transceiver
module power, wireless packet reception and bus sta-
tus.
R
Two case versions, 60-821-95 (plastic) and 60-856-95
(metal).
Figure 1 shows transceiver components and the following
table describes them.
ENCLOSURE (COVER REMOVED)
CIRCUIT CARD
ANTENNA TERMINALS
UNIQUE SUPERBUS 2000
ID NUMBER LABEL
ID: XXXXXXXX
MODULE
POWER LED
BUS
STATUS LED
MOUNTING HOLES (4)
8674G01C.DSF
Figure 1. RF Transceiver Module Components (plastic
case version shown)
SuperBus® 2000 Commercial RF Transceiver Module

Š
®
319.5 MHz crystal Learn
WIRE ACCESS
WIRING TERMINALS
CARD LATCHES (2)
˜ÃÌ>>̈œ˜Ê˜ÃÌÀÕV̈œ˜Ã
Table 1: Component Descriptions
Component
Antenna Terminals Provides antenna connections. (Outer
terminals are used with optional metal
enclosure.)
Unique SuperBus Indicates the unique identification
2000 ID Label number of the module.
Module Power LED On when module is powered: flickers
when a wireless signal is received.
Bus Status LED Flashes when the transceiver
communicates with the panel via the
SuperBus.
Wiring Terminals Connections for power, bus, and
hardwire zone.
Tools and Supplies Needed
R
Mounting screws and anchors for plastic enclosure
(included).
R
Two 9" antennas (included).
R
Two antenna grounding screws (included in metal case
kit).
R
1/4 inch plastic spacers (included in metal case kit).
R
Small standard and Phillips screwdrivers.
R
4-conductor, 18-gauge or larger, stranded hookup wire
is recommended.
Installation Guidelines
Observe the following guidelines when installing the trans-
ceiver:
R
Advent systems can accommodate up to 250 sensors/
zones. See specific panel installation instructions for
maximum zone count.
R
Advent systems can have up to 62 SuperBus devices.
R
Leave at least 10" above the transceiver for the anten-
nas.
R
Avoid areas that are likely to expose the transceiver to
moisture.
R
Use 4-conductor, 18-gauge or larger stranded wire from
the transceiver to the panel.
ITI Part No. 60-821-95, 60-856-95
8674G03A.DSF 8674G11A.DSF
Function
1
